VCE Pass-Thru RJ45 CAT6 Modular Data Plug
- “VCE Pass Through 8P8C CAT6 Gold Plated Ethernet Connectors” are designed for for fast, reliable connector installations for Category 6 networks.
- DIY RJ45 cable connector termination solution for making custom length Ethernet patch cords.Transparent gold plated RJ45 plugs allow you to identify wire sequence, eliminating scrap and improper crimps.
- PASS-THRU DESIGN simplifies terminations as wires are inserted through the connector and out the other side. This frustration-free 1-piece plug seats cable jackets tightly for fast crimps and connections.
High performance CAT6 Modular Plug
- Three-point staggered contacts enhances alignment with the conductor and meets the requirements for higher data transfer speeds.

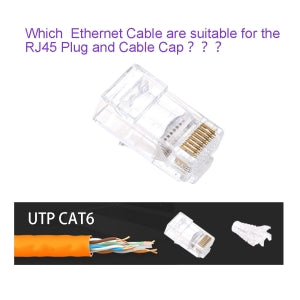

- Suitable for wire OD ∅0.93 ~ ∅1.04, multi-stranded and single-stranded cables 23AWG.
- Ul Applications: 250 Volts Ac Max. At 2 Amps.
- Dielectric Withstanding Voltage : 1000 Volts Ac. 60 Sec.
- Insulation Resistance: 500 MΩ.
- Contact Resistance: 20mΩ Max.
- Operating Ambient Temperature: -20°c ~ 75°c.
- Housing: Polycarbonate, Ul94v-0 Or Ul94v-2.
- Color: Transparent Or Other Color Are Available.
- Contact Blade: Copper Alloy.
- Gold Plating: 3u''~50u", Are Available.
- Strain Relief: 20pound Min.
- Durability: 1200 Mating Cycles.
High Quality Construction
What You Get
VCE Crimping Tool Suggestions
- With just one crimping tool , you can assemble the RJ45 Network cable yourself.
- The VCE Ethernet EZ RJ45 Crimping Tool will help you install the rj45 cable easily.
- Please search B07TT5J2WJ, the first crimper from left.
- Press down the handle and roll out the lock button from the back to unlock.
- Put the cable into the stripper,rotate the tool with a circle.
- Arrange the wires.
- Cut the wires horizontally,then,assemble the plug.
- Put the plug into the crimping tool.
- Confirm push to the button.
- Crimp plug.
