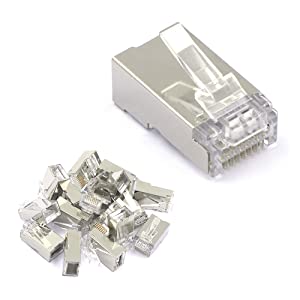

VCELINK Pass-Thru Shielded RJ45/CAT6 8P8C Connector Plug (25 PCS)-UL Listed

$13.99 $14.59

Rating:

  • VCE meet the demands of a fast paced work environment with high-quality crimp plugs, shielding your network prevents signal loss and electromagnetic EMI/RFI interference and maintains a proper ground connection. Note: you need a End Pass Through Crimper Tool(sold separately) to install these plugs
  • Suitable for wire OD ∅0.93 ~ ∅1.04, multi-stranded and single-stranded cables 23AWG. AWG and OD MUST BOTH meet the requirements.
  • PASS-THRU DESIGN simplifies terminations as wires are inserted through the connector and out the other side. This frustration-free 1-piece plug seats cable jackets tightly for fast crimps and connections.
  • Supports RJ45 CAT6 cable's data transmitting capability of up to 1000Mbps (1Gb), used for CCTV, Security Cameras, Routers, Switches, Printers, and Servers.
  • Package Contents: 25 x Shielded RJ45 CAT6 Pass Through Modular Plug. With UL Listed, just use it without concern.
  • Country:
    Buy on Amazon
    [
  • VCE meet the demands of a fast paced work environment with high-quality crimp plugs, shielding your network prevents signal loss and electromagnetic EMI/RFI interference and maintains a proper ground connection. Note: you need a End Pass Through Crimper Tool(sold separately) to install these plugs
  • Suitable for wire OD ∅0.93 ~ ∅1.04, multi-stranded and single-stranded cables 23AWG. AWG and OD MUST BOTH meet the requirements.
  • PASS-THRU DESIGN simplifies terminations as wires are inserted through the connector and out the other side. This frustration-free 1-piece plug seats cable jackets tightly for fast crimps and connections.
  • Supports RJ45 CAT6 cable's data transmitting capability of up to 1000Mbps (1Gb), used for CCTV, Security Cameras, Routers, Switches, Printers, and Servers.
  • Package Contents: 25 x Shielded RJ45 CAT6 Pass Through Modular Plug. With UL Listed, just use it without concern.
  • ]



     logo
    CAT6 Shielded Modular Plugs

    VCE Shielded Pass-Thru RJ45 CAT6 Modular Plug - 50 Pack
    Quality you can count on

    • VCE gold plated Cat6 ends provide stable、smooth and fast network speed for Cat6 data networks transmission
    • DIY RJ45 cable connector termination solution for making custom length Ethernet patch cords

    Universal Compatibility

    • High-performance shielded housing for Cat6 / Cat5E / Cat5
    • Compatibility with CCTV, Security Cameras, Routers, Switches, Printers, and Servers

    Note

        • Suitable for wire OD ∅0.93 ~ ∅1.04, multi-stranded and single-stranded cables 23AWG ~ 26AWG
        • Package Contents: 200 x RJ45 Cat6 pass-thru ethernet connector





    CAT6 Shielded Modular Plugs



    SPECIFICATIONS
    MATERIAL:

    • Housing: Polycarbonate, Ul94v-0 Or Ul94v-2
    • Color: Sliver
    • Contact Blade: Copper Alloy
    • Gold Plating: 50u"

    MECHANICAL:

    • Strain Relife: 20pound Min
    • Durability: 1200 Mating Cycles
    ELECTRICAL:
    • Ul Applications: 250 Volts Ac Max. At 2 Amps
    • Dielectric Withstanding Voltage : 1000 Volts Ac. 60 Sec
    • Insulation Resistance: 500 MΩ
    • Contact Resistance: 20mΩ Max
    • Operating Ambient Temperature: -20°c ~ 75°c



    CAT6 Shielded Modular Plugs

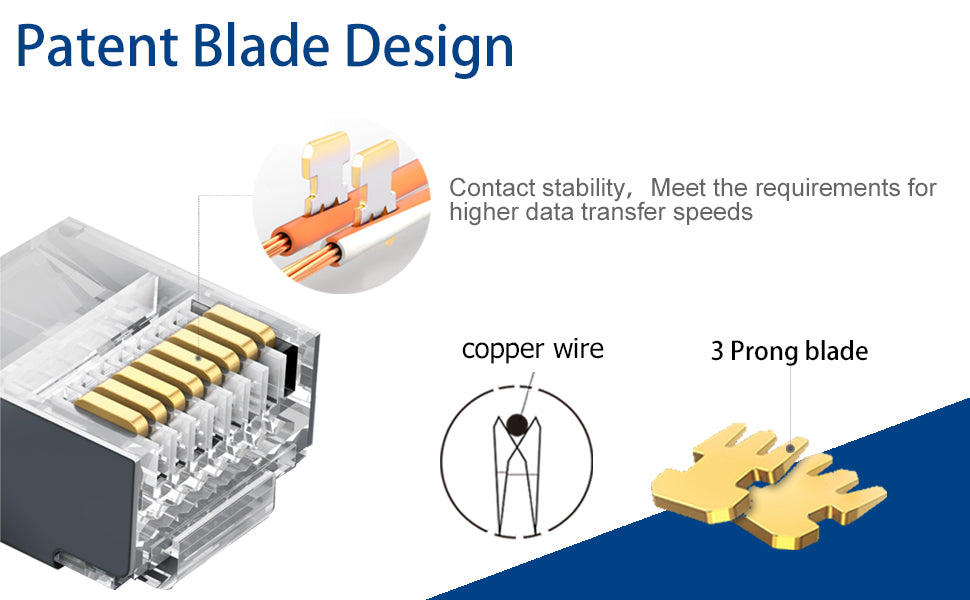

    3 Prong Design



    • 3-Prong Blade ensures closer combination between the contacts and the wire core than 2-Prong Blade.
    • 50u" gold-plated contacts provide faster speed with less interference.



    CAT6 Shielded Modular Plugs



    Special Shielded Design



    • Nickel-plated shield structure provide perfect protection from interference.
    • Strong mating clip for frequent unplugging.



    CAT6 Shielded Modular Plugs



    Easy to Use



    • You can use them on both solid and stranded cable.
    • Pass-thru design simplifies terminations as wires are inserted through the connector and out the other side.



    CAT6 Shielded Modular Plugs

    VCE Crimping Tools Suggestion



    • With just one crimping tool , you can assemble the RJ45 Network cable yourself
    • The VCE Ethernet EZ RJ45 Crimping Tool will help you install the rj45 cable easily
    • Please search B07TT5J2WJ if you need
