VCE CAT6 RJ45 Pass Through Modular Plugs, 3 Prong Gold Plated Ethernet 50u" EZ Crimp Connectors for Solid or Stranded UTP Cable, UL Listed 200 Pack

$45.99

  • DIY CAT6 CABLES - You can make category 6 cables in preferred lengths quickly and easily by using VCE rj45 ends. Note: you need an end pass-thru crimper(sold separately) to install these plugs.
  • APPLICATION SCOPE - Wire OD: ∅0.93 ~ ∅1.04, multi-stranded and single-stranded cables: 23AWG ~ 26AWG. AWG and OD MUST BOTH meet the requirements.
  • PASS-THRU DESIGN - Easy to use, even if it’s your first time. Wires can through the slots.
  • 50u" GOLD PLATED - 3 Prong blade ensures closer combination between the contacts and the wire core than 2 prong blade.
  • Package Contents: 200 x RJ45 CAT6 Pass Through Modular Plug. With UL Listed(E136825), just use it without concern.
  • Description

    logo

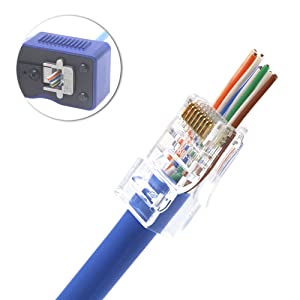

    RJ45 Pass Through Modular Plugs
    VCE Pass-Thru RJ45 CAT6 Modular Data Plug

    • “VCE Pass Through 8P8C CAT6 Gold Plated Ethernet Connectors” are designed for fast, reliable installations for Category 6 networks.
    • DIY RJ45 cable connector termination solution for making custom length Ethernet patch cords.

    Note:

    • Suitable for wire OD ∅0.93 ~ ∅1.04, multi-stranded and single-stranded cables 23AWG ~ 26AWG.
    • Package Contents: 200pcs x VCE Pass-Thru RJ45 CAT6 Modular Data Plug.
    SPECIFICATIONS
    RJ45 Pass Through Modular Plugs
    MATERIAL:

    • Housing: Polycarbonate, Ul94v-0 Or Ul94v-2.
    • Color: Transparent.
    • Contact Blade: Copper Alloy.
    • Gold Plating: 50u.

    MECHANICAL:

    • Strain Relife: 20pound Min.
    • Durability: 1200 Mating Cycles.
    ELECTRICAL:

    •  Ul Applications: 250 Volts Ac Max. At 2 Amps.
    • Dielectric Withstanding Voltage : 1000 Volts Ac. 60 Sec.
    • Insulation Resistance: 500 MΩ.
    • Contact Resistance: 20mΩ Max.
    • Operating Ambient Temperature: -20°c ~ 75°c.
    RJ45 Pass Through Modular Plugs

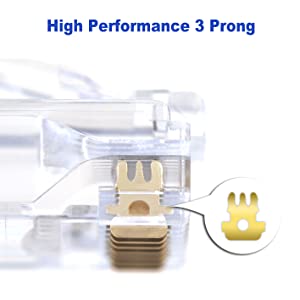

    3 Prong Design

    • 3-Prong Blade ensures closer combination between the contacts and the wire core than 2-Prong Blade.
    • 50u gold-plated contacts provide faster speed with less interference.
    RJ45 Pass Through Modular Plugs

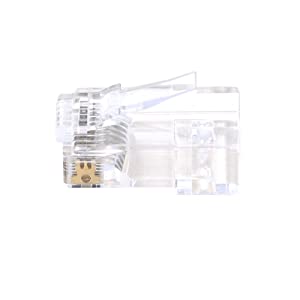

    High Quality Construction

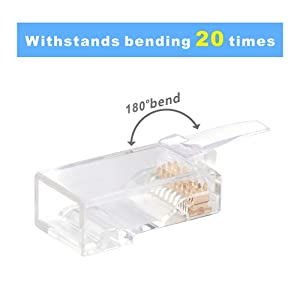

    • Strong mating clip for frequent unplugging.
    • High-Transparency shell allow you to identify wire sequence, eliminate scrap and improper crimps.
    RJ45 Pass Through Modular Plugs

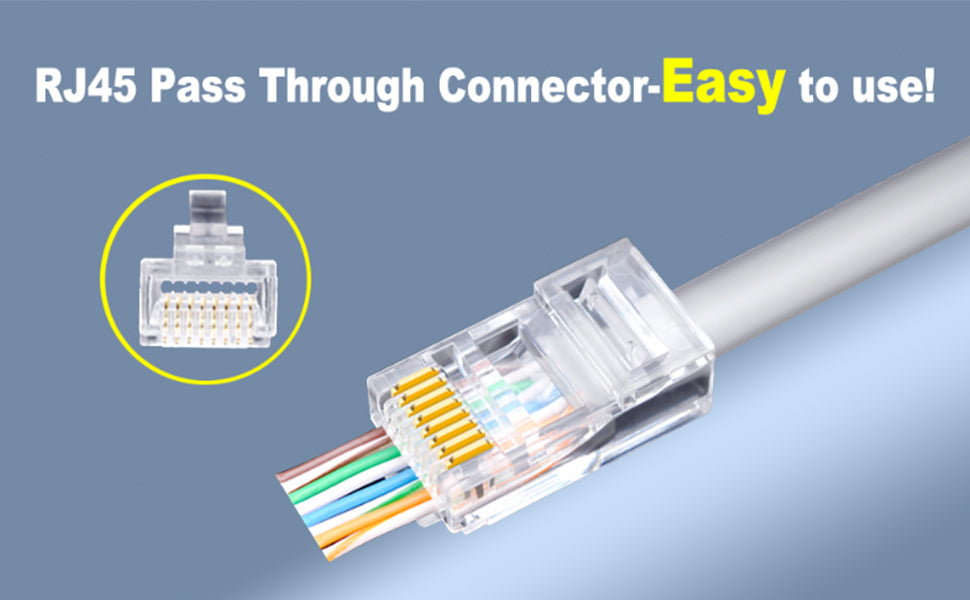

    Easy to Use

    • You can use them on both solid and stranded cable.
    • Pass-thru design simplifies terminations as wires are inserted through the connector and out the other side.

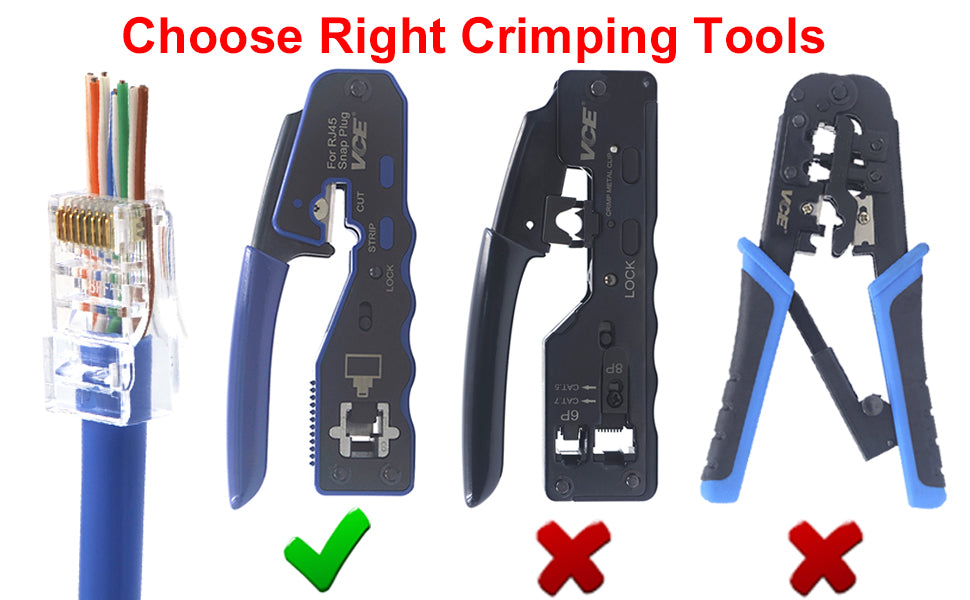

    VCE Crimping Tool Suggestions
    RJ45 Pass Through Modular Plugs
    • With just one crimping tool , you can assemble the RJ45 Network cable yourself
    • The VCE Ethernet EZ RJ45 Crimping Tool will help you install the rj45 cable easily.
    • Please search B07TT5J2WJ, the first crimper from left.





    [
  • DIY CAT6 CABLES - You can make category 6 cables in preferred lengths quickly and easily by using VCE rj45 ends. Note: you need an end pass-thru crimper(sold separately) to install these plugs.
  • APPLICATION SCOPE - Wire OD: ∅0.93 ~ ∅1.04, multi-stranded and single-stranded cables: 23AWG ~ 26AWG. AWG and OD MUST BOTH meet the requirements.
  • PASS-THRU DESIGN - Easy to use, even if it’s your first time. Wires can through the slots.
  • 50u" GOLD PLATED - 3 Prong blade ensures closer combination between the contacts and the wire core than 2 prong blade.
  • Package Contents: 200 x RJ45 CAT6 Pass Through Modular Plug. With UL Listed(E136825), just use it without concern.
  • ]
