Description
[
VCE gold plated RJ45 CAT6 end pass through ethernet RJ45 connector plugs let you quickly and easily create category 6 cables in preferred lengths. Note: you need a End Pass Through Crimper Tool(sold separately) to install these plugs
Suitable for wire OD ∅0.93 ~ ∅1.04, multi-stranded and single-stranded cables 23AWG ~ 26AWG. AWG and OD MUST BOTH meet the requirements.
PASS-THRU DESIGN simplifies terminations as wires are inserted through the connector and out the other side. This frustration-free 1-piece plug seats cable jackets tightly for fast crimps and connections.
Transparent gold plated RJ45 plugs allow you to identify wire sequence, eliminating scrap and improper crimps.
Package Contents: 100 x RJ45 CAT6 Pass Through Modular Plug. With UL Listed, just use it without concern.
]
For any questions, please contact VCELINK Support.

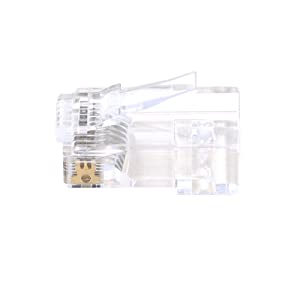

VCE Pass-Thru RJ45 CAT6 Modular Data Plug
- “VCE Pass Through 8P8C CAT6 Gold Plated Ethernet Connectors” are designed for for fast, reliable connector installations for Category 6 networks.
- DIY RJ45 cable connector termination solution for making custom length Ethernet patch cords.Transparent gold plated RJ45 plugs allow you to identify wire sequence, eliminating scrap and improper crimps.
- PASS-THRU DESIGN simplifies terminations as wires are inserted through the connector and out the other side. This frustration-free 1-piece plug seats cable jackets tightly for fast crimps and connections.
High performance CAT6 Modular Plug
- Three-point staggered contacts enhances alignment with the conductor and meets the requirements for higher data transfer speeds.
- Suitable for wire OD ∅0.93 ~ ∅1.04, multi-stranded and single-stranded cables 23AWG ~ 26AWG.
SPECIFICATIONS

ELECTRICAL:
- Ul Applications: 250 Volts Ac Max. At 2 Amps.
- Dielectric Withstanding Voltage : 1000 Volts Ac. 60 Sec.
- Insulation Resistance: 500 MΩ.
- Contact Resistance: 20mΩ Max.
- Operating Ambient Temperature: -20°c ~ 75°c.
MATERIAL:
- Housing: Polycarbonate, Ul94v-0 Or Ul94v-2.
- Color: Transparent Or Other Color Are Available.
- Contact Blade: Copper Alloy.
- Gold Plating: 3u''~50u", Are Available.
MECHANICAL:
- Strain Relife: 20pound Min.
- Durability: 1200 Mating Cycles.

High Quality Construction
- High-resistance PC shrapnel through 20 times test.
- Strong mating clip for frequent unplugging.
- 50 micron gold-plated contacts provide faster speed with less interference.




VCE Crimping Tools Suggestion

- With just one crimping tool , you can assemble the RJ45 Network cable yourself
- The VCE Ethernet EZ RJ45 Crimping Tool will help you install the rj45 cable easily.
