VCE Shielded RJ45 Cat6A/Cat7 Connector With Strain Relief Boot
- VCE Shielded Cat 6A / Cat 7 Modular Plug is designed for sensitive or harsh environments that require security with protection against electromagnetic and radio frequency interference (EMI/RFI) noise and alien crosstalk.
- Secure termination for shielded or outdoor-rated cable with an IP camera or security camera installation.
CAT6A & CAT7 Shielded Termination Solution
- High-performance shielded housing for Cat6A / Cat7.

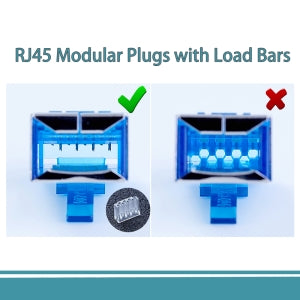

- Three-point staggered contacts enhances alignment with the conductor and meets the requirements for higher data transfer speeds.
STP & FTP & UTP Cable Compatible
- Supports shielded and unshielded cable.
- Supports 23-25 AWG solid or stranded cable,for wire core OD 1.35~1.45mm, AWG and OD MUST BOTH meet the requirements.
MATERIAL & FINISH:
- Housing: Polycarbonate, Ul94v-0 Or Ul94v-2.
- Color : Transparent Or Other Color Are Available.
- Contact Blade: Copper Alloy.
- Conductor : Stranded & Solid Wire.
- Can Be Used For The Wire Od FromØ 1.35~Ø1.45
- Gold Plating: 3u''~50u",are Available
- UL applications: 250 volts ac max., at 2 amps.
- Dielectric withstanding voltage : 1000 volts ac.
- Withstand voltage time: 60s.
- Insulation resistance: 100 mΩ.
- Termination: resistance 20mΩ max afterenvironmental testing.
- Cable-to-plug Tensile Strength : 20pound Min.
- Durability : 200 Mating Cycles.
High Quality Construction
What You Get

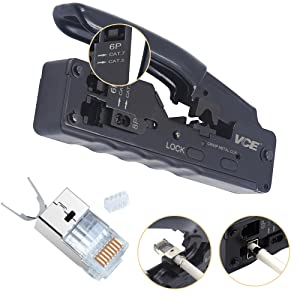

With just one crimping tool , you can assemble the RJ45 Network cable yourself：
- Put the plug into crimping tool and crimp plug
- Make the clip and braiding shield, drain wire fully contacted.
- Fix cable and complete
