VCE Shielded RJ45 Cat6A/Cat7 Connector With Strain Relief Boot
- VCE Shielded Cat 6A / Cat 7 Modular Plug is designed for sensitive or harsh environments that require security with protection against electromagnetic and radio frequency interference (EMI/RFI) noise and alien crosstalk.
- Secure termination for shielded or outdoor-rated cable with an IP camera or security camera installation.
CAT6A & CAT7 Shielded Termination Solution
- High-performance shielded housing for Cat6A / Cat7.

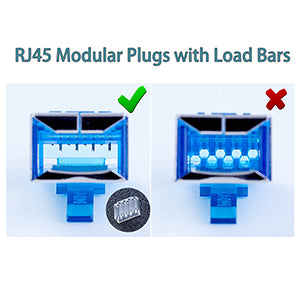

- Three-point staggered contacts enhances alignment with the conductor and meets the requirements for higher data transfer speeds.
STP & FTP & UTP Cable Compatible
- Supports shielded and unshielded cable.
- Supports 23-26 AWG solid or stranded cable,for wire core OD 1.35~1.45mm, AWG and OD MUST BOTH meet the requirements.
MATERIAL & FINISH:
- Housing: Polycarbonate, Ul94v-0 Or Ul94v-2
- Color : Transparent
- Contact Blade: Copper Alloy
- Conductor : Stranded & Solid Wire.
- Gold Plating: 50u"
- an Be Used For The Wire Od FromØ 1.35~Ø1.45
- UL applications: 250 Voltis AC.Max AT 2 AMPS
- Dielectric withstanding voltage : 1000 Voltis AC. 60 SEC
- Insulation resistance: 500 mΩ
- Contact resistance: 20 mΩ MAX
- Insertion cycles: 20 cycles/minute max
- Strain relife: 20pound Min
- Durability: 1200 mating cycles
High Quality Construction
What You Get

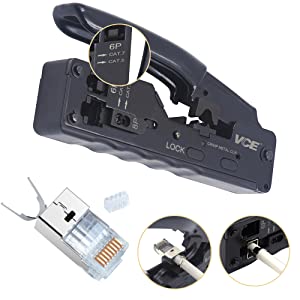

With just one crimping tool , you can assemble the RJ45 Network cable yourself：
- Put the plug into crimping tool and crimp plug
- Make the clip and braiding shield, drain wire fully contacted.
- Fix cable and complete
