VCELINK RJ45 RJ11 Network Ethernet Cable Crimping Tool with 20x Shielded RJ45 Cat6/Cat6A/Cat7 Modular Plugs and 20x Strain Relief Boots+Mini Wire Stripper Cutter

$47.99 $54.99

  • VCE professional cable installation crimper tool and mini wire stripper cutter for cable clamping, pressing, stripping and cutting
  • 20 Pack Nickel Plated Shielded RJ45 Cat6,Cat6A,Cat7 Modular Plug with Cat6A Cat7 Ethernet RJ45 Cable Cap Connectors Strain Relief Boots (Black), protect the connector of the cable and prevent dust and water from entering the crystal head.(The Ethernet cable cap compatible with cable OD 7~8mm)
  • DIY RJ45 cable connector terminates shielded twisted pair solid cable for making custom length Ethernet patch cords; Supports 23 AWG round or flat solid or stranded wire; Secure termination for shielded or outdoor-rated cable with an IP camera or security camera installation
  • Mini portable cable stripper to handle your smart home installations, used for UTP/STP cables, data telephone cable, ethernet keystone coupler and other cables. Finger loop provides a secure hold, easy and safe to strip cables, and punch down wires on modular connectors
  • Superior transmission meets CAT6a performance requirements per ANSI/TIA-568-B.2-10 for a Gigabit Ethernet channel compliant network, backwards compatible with Cat 5e cable. 50 micron gold-plated contacts on 8P8C network connectors
  • Country:
    Buy on Amazon
    [
  • VCE professional cable installation crimper tool and mini wire stripper cutter for cable clamping, pressing, stripping and cutting
  • 20 Pack Nickel Plated Shielded RJ45 Cat6,Cat6A,Cat7 Modular Plug with Cat6A Cat7 Ethernet RJ45 Cable Cap Connectors Strain Relief Boots (Black), protect the connector of the cable and prevent dust and water from entering the crystal head.(The Ethernet cable cap compatible with cable OD 7~8mm)
  • DIY RJ45 cable connector terminates shielded twisted pair solid cable for making custom length Ethernet patch cords; Supports 23 AWG round or flat solid or stranded wire; Secure termination for shielded or outdoor-rated cable with an IP camera or security camera installation
  • Mini portable cable stripper to handle your smart home installations, used for UTP/STP cables, data telephone cable, ethernet keystone coupler and other cables. Finger loop provides a secure hold, easy and safe to strip cables, and punch down wires on modular connectors
  • Superior transmission meets CAT6a performance requirements per ANSI/TIA-568-B.2-10 for a Gigabit Ethernet channel compliant network, backwards compatible with Cat 5e cable. 50 micron gold-plated contacts on 8P8C network connectors
  • ]

    VCE Network and Telephone Multi-Tool Kit

    RJ45 RJ11 Ethernet Cable Crimping Tool



    • Compact design: 2/3 the size of traditional crimpers.
    • Crimp connectors on to CAT5,CAT5e,CAT6,CAT6A,CAT7 cable.
    • RJ-45 ( Data) and RJ-11 / RJ-12 (Voice) fixed die cavities.
    • Electroplate surface, handle and locking feature.

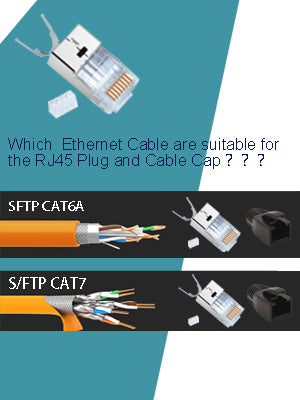

    CAT6A & CAT7 Shielded Termination Solution



    • High-performance shielded housing for Cat6A / Cat7.
    • Three-point staggered contacts enhances alignment with the conductor and meets the requirements for higher data transfer speeds.
    • Supports shielded and unshielded cable.
    • Supports 23 AWG solid or stranded cable,for wire core OD 1.35~1.45mm, AWG and OD MUST BOTH meet the requirements.



    What You Get



    • 1 x VCE RJ45 RJ11 Modular Cable Crimper.
    • 1 x VCE Mini Wire Stripper Cutter.
    • 20 x VCE cat6a/cat7 shielded rj45 modular plugs,load bars, and black strain relief boots.
    • You can get replacement for free if quality problem.



    Operating Instructions

    Cat7 Modular Plugs

    How to make the rj45 cable:

    1.Put the cable into the stripper.

    2.rotate the mini wire stripper around the cable.

    3.Put the wires into the load bar in turn (by the rj45 order of T568A or T568B ), cut the wires horizontally.

    (If you want to crimp the rj11/rj12 cables,the wires order is different with the rj45 cables.)

    4.Assemble plug.

    5.Press down the handle and roll out the lock button from the back to unlock.

    6.Regulating screw fit for cat5 or cat7.

    (If you want to crimp the rj11/rj12 cable,ignore this step.)

    7.Put the plug into the crimping tool,then crimp plug.

    8.Lightly press the tail to the middle,then use the dovetail clamp crimping.

    Cat7 Modular Plugs

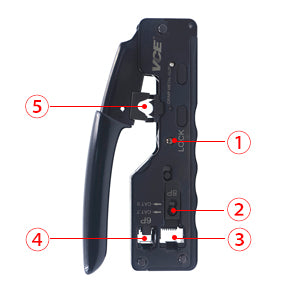

    The function of tool

    1.Lock Button

    2.Regulating Screw for Cat5/Cat5e/Cat6/Cat6a/Cat7

    3.8P8C,RJ45 For Ethernet Cable

    4.6P6C,4P4C,RJ11,RJ12 For Telephone Cable

    5.Dovetail Clip Crimper

     Cat7 Modular Plugs



    Unlock first when using



    1. Press down the pvc non-slip handle
    2. Roll out the ' Lock ' button
    3. Unlock state

     Cat7 Modular Plugs





    Crimping dovetail clip



    1. Lightly press the tail to the middle
    2. Use the dovetail clamp crimping.





    Cat7 Modular Plugs

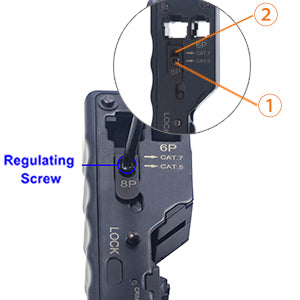

    Easily change the mode by screwdriver



    1. Cat5 : fit for cat 5 , cat 5e,cat 6 plugs.
    2. Cat7 : fit for cat 6a , cat 7 plugs.
