VCE Shielded RJ45 Cat6/Cat5E Connector with Strain Relief Boot
- VCE Shielded Cat 6 Modular Plug is designed for sensitive or harsh environments that require security with protection against electromagnetic and radio frequency interference (EMI/RFI) noise and alien crosstalk.
- Secure termination for shielded or outdoor-rated cable with an IP camera or security camera installation.
CAT6 & CAT5E Shielded Termination Solution
- High-performance shielded housing for Cat6 / Cat5e.

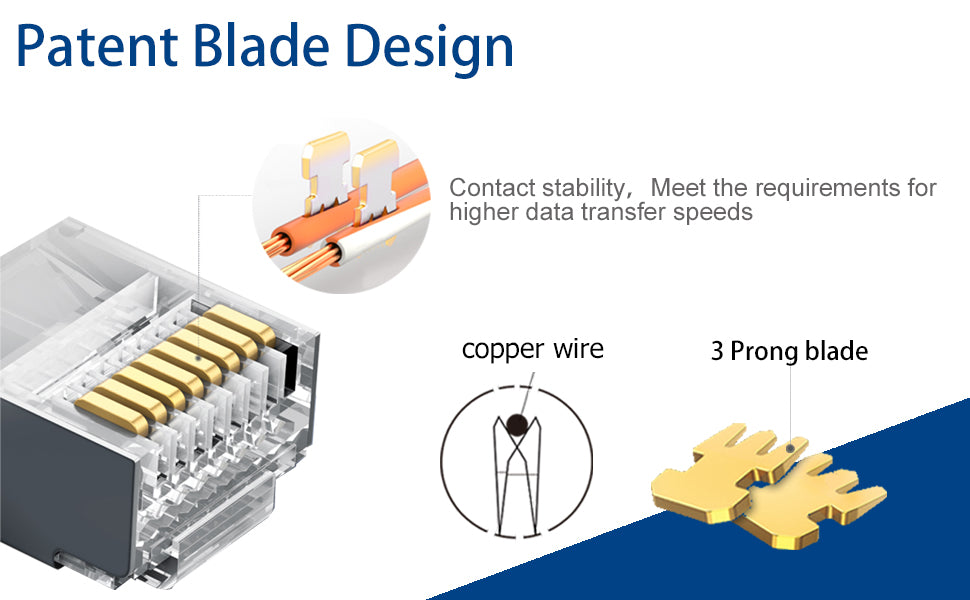

- Three-point staggered contacts enhances alignment with the conductor and meets the requirements for higher data transfer speeds.
- Supports 23-26 AWG solid or stranded cable,for wire core OD 0.95-1.02mm, AWG and OD MUST BOTH meet the requirements.
- Make sure your installation is as shown in the figure please.
- 200 x VCE cat6/cat5e shielded rj45 modular plugs,load bars, and strain relief boots.
High Quality Construction
- Strong mating clip for frequent unplugging.
- Nickel-plated shield structure provide perfect protection from interference.
- 50 micron gold-plated contacts provide faster speed with less interference.
- Load bars for arranging wires.
- Strain-relief boot to protect the modular clip.
- The strain relief boots compatible with cable OD 7~8mm.
- Put the wires into load bar in turn. And cut the wires horizontally.
- Assemble the plug.
- Put the plug into the crimping tool. Crimp it.
- UL applications: 250 volts ac max., at 2 amps.
- Dielectric withstanding voltage : 1000 volts ac.
- Withstand voltage time: 60s.
- Insulation resistance: 100 mΩ.
- Termination: resistance 20mΩ max afterenvironmental testing.
- Cable-to-plug Tensile Strength : 20pound Min.
- Durability : 200 Mating Cycles.
MATERIAL & FINISH:
- Housing: Polycarbonate, Ul94v-0 Or Ul94v-2.
- Color : Transparent Or Other Color Are Available.
- Contact Blade: Copper Alloy.
- Conductor : Stranded & Solid Wire.
- Can Be Used For The Wire Od FromØ 1.35~Ø1.45
- Gold Plating: 3u''~50u",are Available
