VCE Shielded RJ45 Cat7/Cat6A/Cat5E Connector
- SHIELDED METAL RJ45 connectors terminate Cat 6A, Cat 7 solid or stranded conductors; Robust shield termination and strain relief allow for one-step termination process provides superior shielding and mitigates alien crosstalk
- SUPERIOR CONSTRUCTION of STP wire connectors with metal housing and gold-plated contacts to suppress alien crosstalk and provide a secure connection; Crimp-style plugs terminate solid or stranded cable with three-point staggered contacts to provide a secure connection
CAT7 & CAT6A Shielded Termination Solution
- High-performance shielded housing for Cat7 / Cat6A / Cat5E.
- RJ45 CABLE suitable for wire core OD 1.35~1.45mm, multi-stranded and single-stranded cables 23AWG,AWG and OD MUST BOTH meet the requirements.

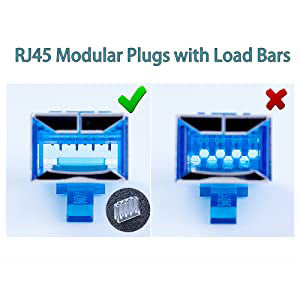

- Make sure your installation is as shown in the figure please.
- Load bars for arranging wires.
- Inserting 8 conductors into the connector is easy and efficient
- Dovetail clip design, make the network cable firm and not loose,provide stable signal transmission
High Quality Construction
- Strong mating clip for frequent unplugging.
- Nickel-plated shielded structure provide perfect protection from interference.
- 50u" gold-plated contacts provide faster speed with less interference.
What You Get
- 25 x VCE Shielded RJ45 Cat7/Cat6A Modular Plugs,Load Bars.
- You can get replacement for free if quality problem.

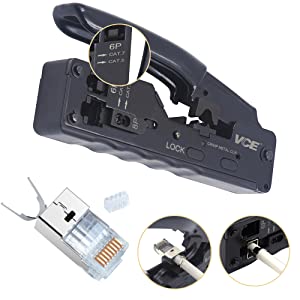

The Crimping Tools Suggestion
With the crimping tool , you can assemble the RJ45 Network cable yourself :
- Put the plug into crimping tool and crimp plug
- Make the clip and braiding shield, drain wire fully contacted.
- Fix cable and complete
