VCE Nickel Plated Shielded RJ45 Modular Plug for Cat6/Cat6A/Cat7 Cable STP Solid and Stranded Ethernet Wire - 50u Gold-Plated 200 PCS

$104.49

  • VCELINK SHIELDED METAL RJ45 connectors terminate Cat6/Cat6A/Cat7 solid or stranded conductors; Robust shield termination and strain relief allow for one-step termination process provides superior shielding and mitigates alien crosstalk.
  • DIY RJ45 CABLE connector terminates shielded twisted pair solid cable for making custom length Ethernet patch cords; Supports 23 to 26 AWG round or flat solid or stranded wire, for wire core OD 1.35~1.45mm, AWG and OD MUST BOTH meet the requirements; Secure termination for shielded or outdoor-rated cable with an IP camera or security camera installation.
  • SUPERIOR TRANSMISSION meets CAT6a performance requirements per ANSI/TIA-568-B.2-10 for a Gigabit Ethernet channel compliant network, backwards compatible with Cat 5e cable. 50 micron gold-plated contacts on 8P8C network connectors provide faster speed with less interference.
  • SUPERIOR CONSTRUCTION of STP wire connectors with metal housing and gold-plated contacts to suppress alien crosstalk and provide a secure connection; Crimp-style plugs terminate solid or stranded cable with three-point staggered contacts to provide a secure connection.
  • PACKAGE CONTENTS:200 Pieces per plastic bag..
  • Description



    LOGO
    Shielded RJ45 Modular Plug



    Shielded RJ45 Modular Plug
      1. Put the plug into crimping tool and crimp plug
      2. Make the clip and braiding shield, drain wire fully contacted.
      3. Fix cable and complete



    Shielded RJ45 Modular Plug
    SPECIFICATIONS
    Electrical

    • UL applications: 250 volts ac max., at 2 amps.
    • Dielectric withstanding voltage : 1000 volts ac.
    • Withstand voltage time: 60s.
    • Insulation resistance: 100 mΩ.
    • Termination: resistance 20mΩ max afterenvironmental testing.



    Mechanical:

    • Cable-to-plug Tensile Strength : 20pound Min.
    • Durability : 200 Mating Cycles.



    MATERIAL & FINISH:
    • Housing: Polycarbonate, Ul94v-0 Or Ul94v-2.

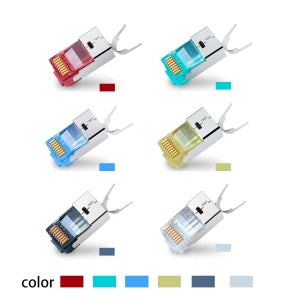

    • Color : Transparent Or Other Color Are Available.
    • Contact Blade: Copper Alloy.
    • Conductor : Stranded & Solid Wire.
    • Can Be Used For The Wire Od FromØ 1.35~Ø1.45
    • Gold Plating: 3u''~50u",are Available



    Shielded RJ45 Modular Plug

    Shielded RJ45 Modular Plug

    Shielded RJ45 Modular Plug

    Shielded RJ45 Modular Plug

    [
  • VCELINK SHIELDED METAL RJ45 connectors terminate Cat6/Cat6A/Cat7 solid or stranded conductors; Robust shield termination and strain relief allow for one-step termination process provides superior shielding and mitigates alien crosstalk.
  • DIY RJ45 CABLE connector terminates shielded twisted pair solid cable for making custom length Ethernet patch cords; Supports 23 to 26 AWG round or flat solid or stranded wire, for wire core OD 1.35~1.45mm, AWG and OD MUST BOTH meet the requirements; Secure termination for shielded or outdoor-rated cable with an IP camera or security camera installation.
  • SUPERIOR TRANSMISSION meets CAT6a performance requirements per ANSI/TIA-568-B.2-10 for a Gigabit Ethernet channel compliant network, backwards compatible with Cat 5e cable. 50 micron gold-plated contacts on 8P8C network connectors provide faster speed with less interference.
  • SUPERIOR CONSTRUCTION of STP wire connectors with metal housing and gold-plated contacts to suppress alien crosstalk and provide a secure connection; Crimp-style plugs terminate solid or stranded cable with three-point staggered contacts to provide a secure connection.
  • PACKAGE CONTENTS:200 Pieces per plastic bag..
  • ]
