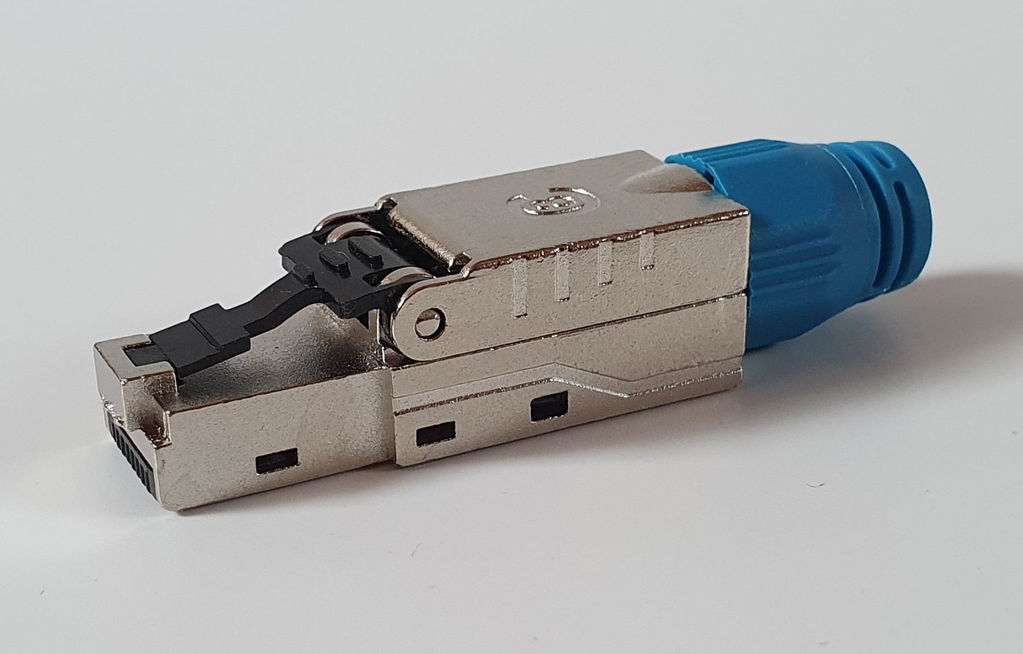

RJ45 CAT8 Connector VCELINK
Features:
- Blade Material: Phosphor Bronze and Gold-plating
- Retention strength: 7.7kg Between Jack and Plug
- Operation Temperature: -30 °C to 60 °C

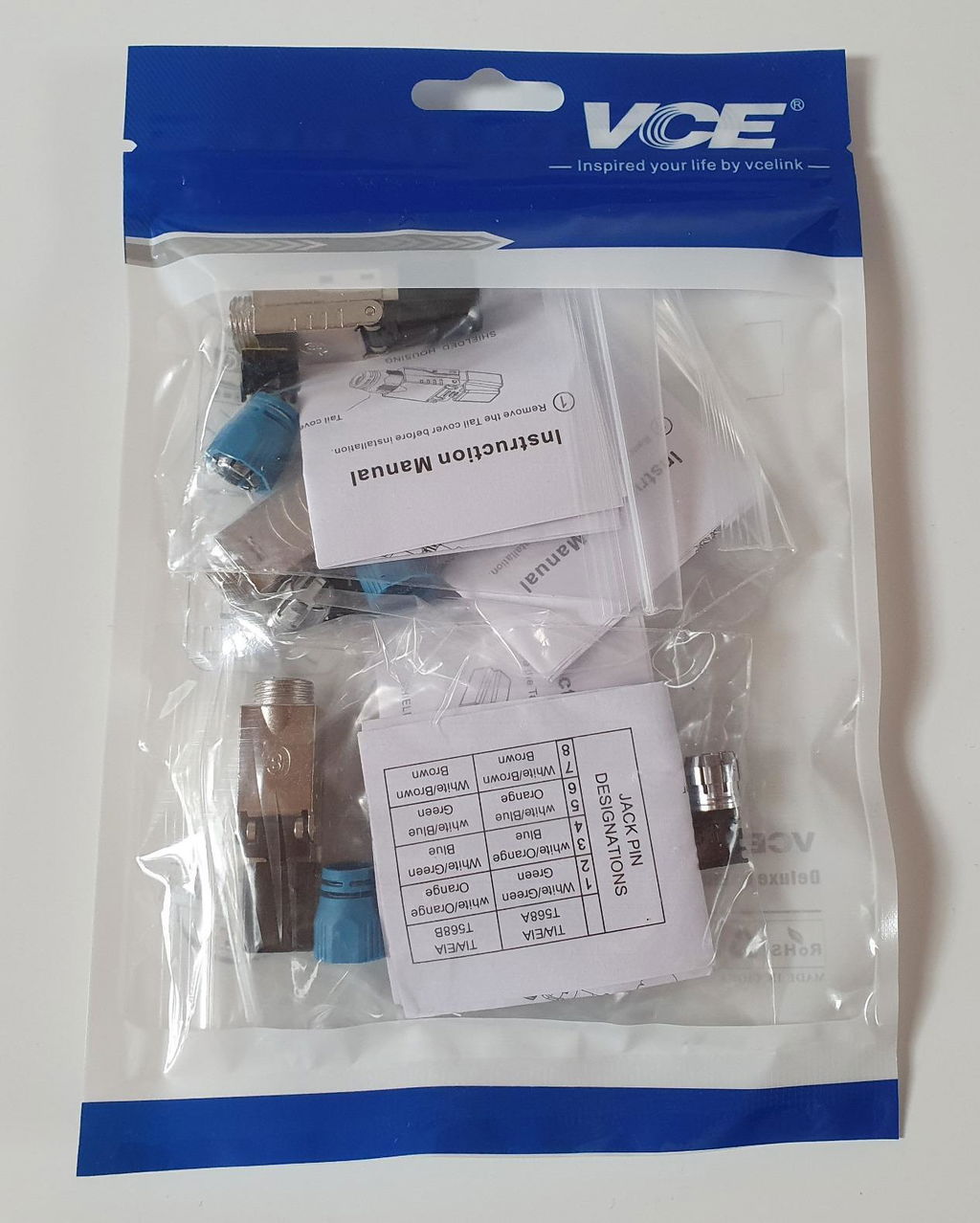

- Package: 1/8/24 x Toolless RJ45 Connector
- After-sales Service: 12-month Warranty
Recommended Products

Cable Wire Snips VCELINK
If you have a bulk purchase request, please send us an inquiry or email us.
DESCRIPTION

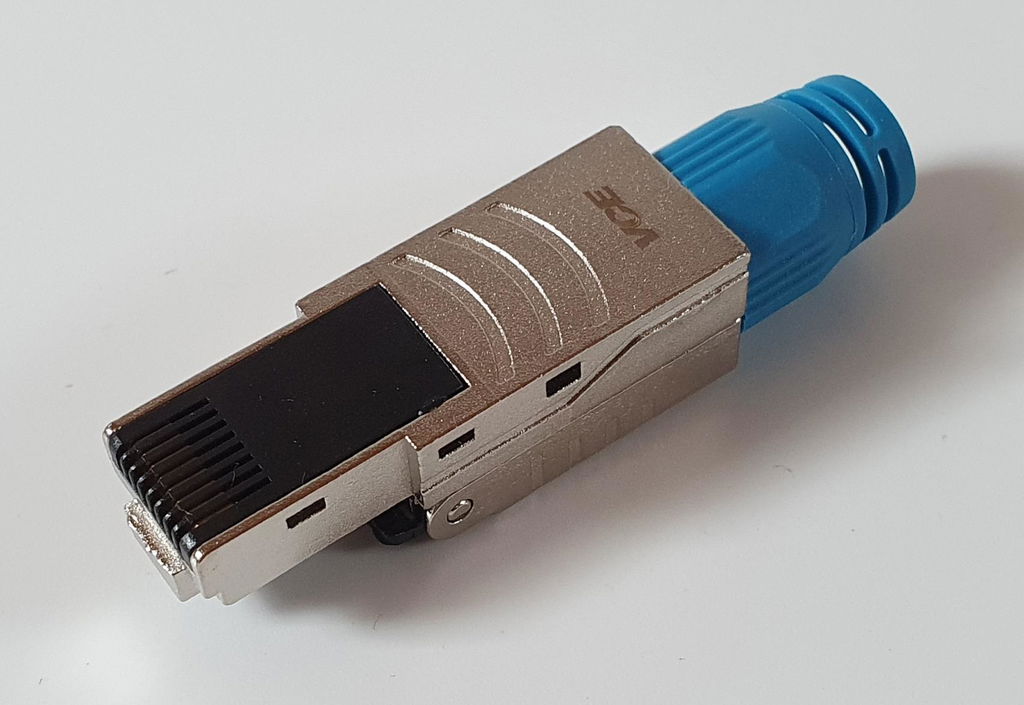

RJ45 CAT8 Connector VCELINK

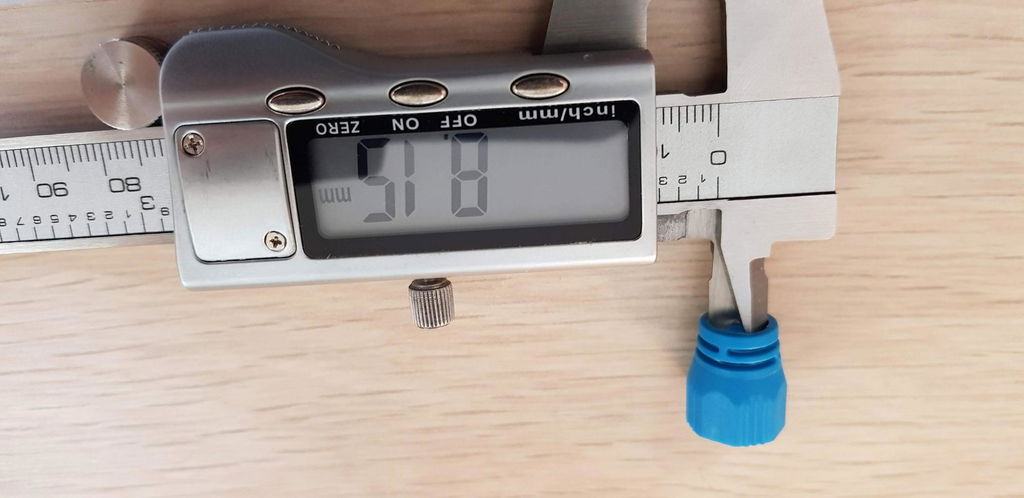

Tool less CAT8 connector is suitable for Cat8 Cat7A Cat7 Cat6A installation cables that have AWG 22 to AWG 23 and a cable sheath diameter of 6 to 9.5mm. Its simple installation will improve efficiency and reduce waste. Both professionals and DIYers will be able to do it quickly and good. It is compatible with CCTV camera, computer, router, server, switch, etc.
High-speed Transmission
-CAT8 socket is up to 40 Gbps, 2000 MHz;
-It supports PoE, PoE Plus, UPoE;
-Shielded housing with anti-interference to ensure the quality of the signal transmission;
-The gold-plated phosphor bronze contacts have stable and fast transmission speed to meet the high-speed requirements of video games, online offices, teleconferences, and data rooms;
-PCB board ensures good conductivity and effectively reduces network signal loss for higher speed and more stable network transmission.
Thoughtful Design

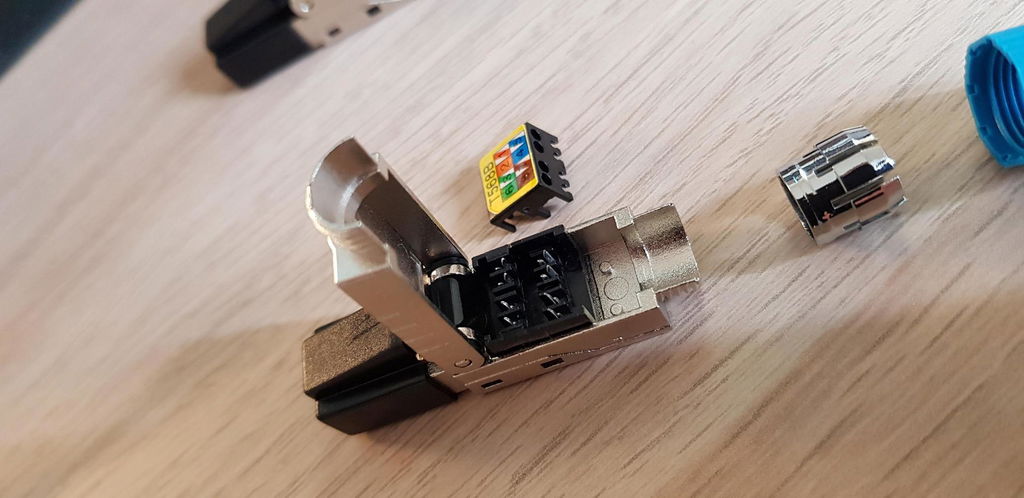

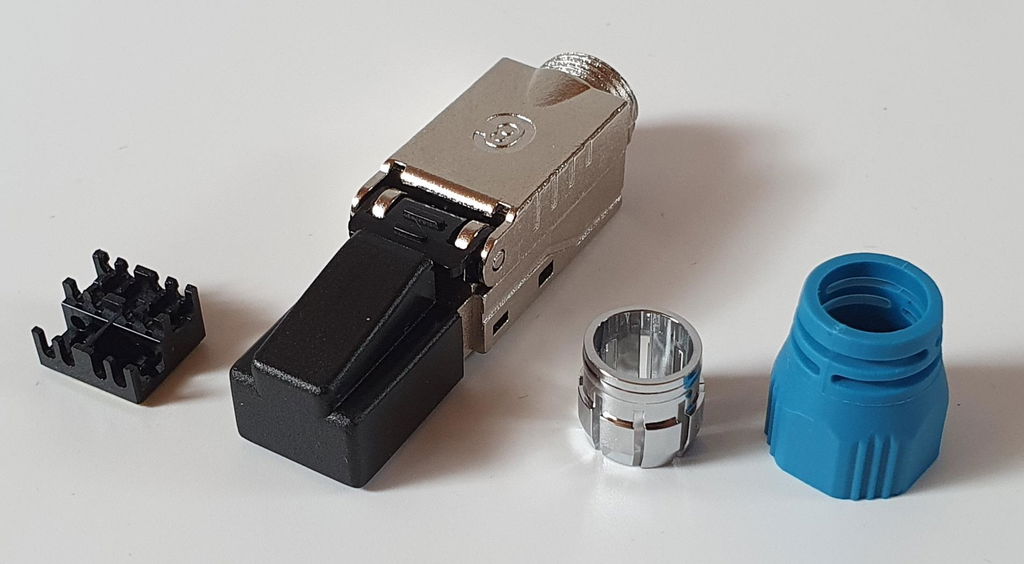

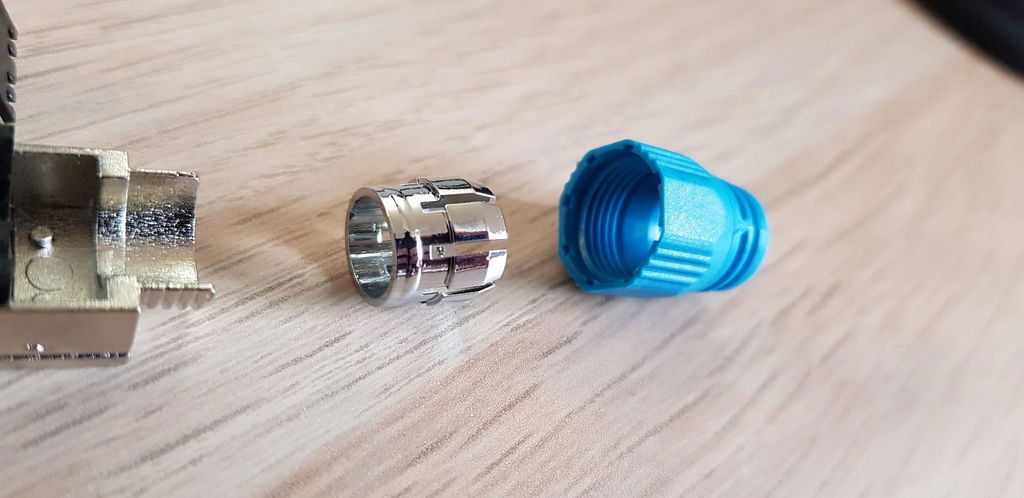

-Toolless connector, no more professional crimper tools required. Easy and quick to install;
-45° terminal block helps firmly clamp;
-Reusable CAT 8 connector, cost-effective and environmentally friendly;

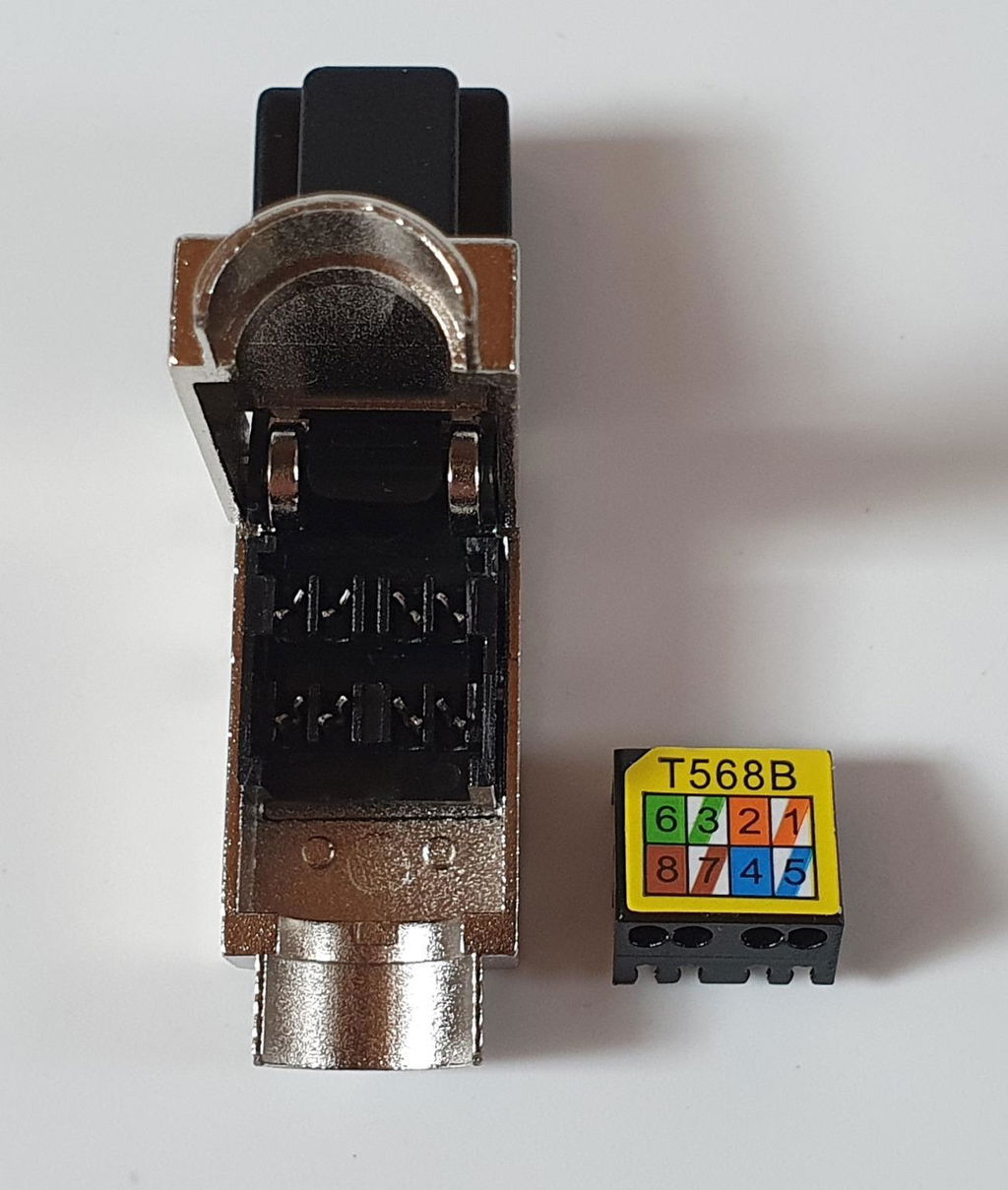

-Threading aid with wire sequence diagram for easy installation.
Compatible with RJ45 Tester and Ethernet Cable.
Learn more from Best for Field Termination: Toolless RJ45 Connector.
