RJ45 Crimping Tool Kit VCELINK

RJ45 Crimping Tool Kit VCELINK

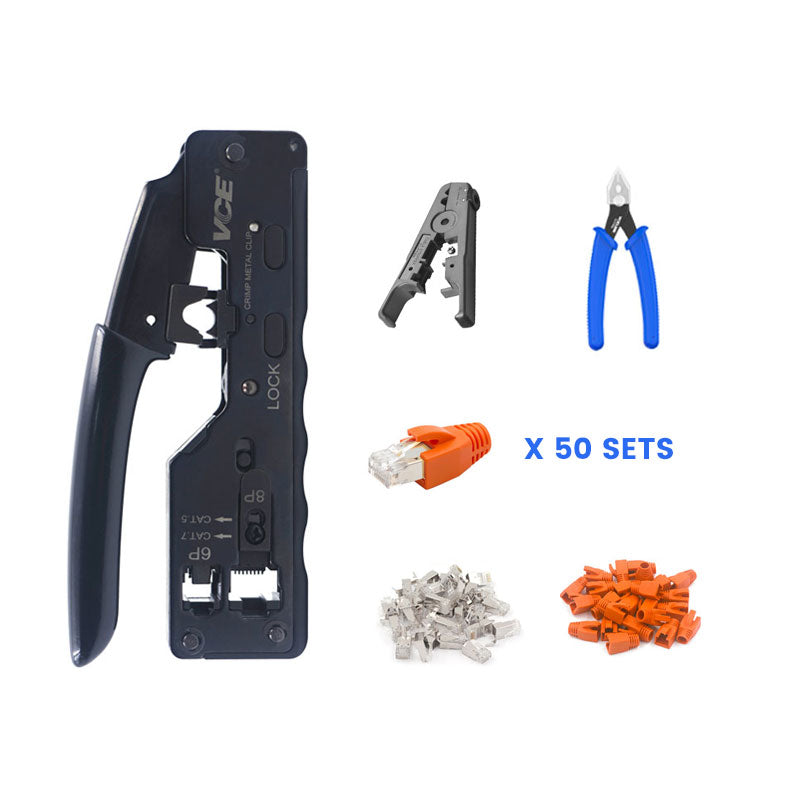

VCELINK RJ45 Crimping tool kit includes Ethernet crimping tool (GJ669BK), RJ45 Cat7 connectors (SJ650), RJ45 strain relief boots (SR123OG), adjustable wire stripper (GJ501A), and cable wire snips (GJ706BL), You can choose different combinations according to your needs.

We also offer customization services and support bulk purchasing. If you need other combinations, feel free to contact us or email us.

RJ45 Crimping Tool (GJ669BK)

-Support crimp 8P8C ethernet cable and 6P6C,4P4C, RJ11, and RJ12 for telephone cable;

-Regulating Screw for Cat5/Cat5e/Cat6/Cat6a/Cat7;

-Support crimping dovetail clip.--Ergonomic grip and lighter weight allow you can handle it with only one hand and feel comfortable operating;

-The bottom is designed with a non-slip texture to prevent peeling and slipping when crimping.

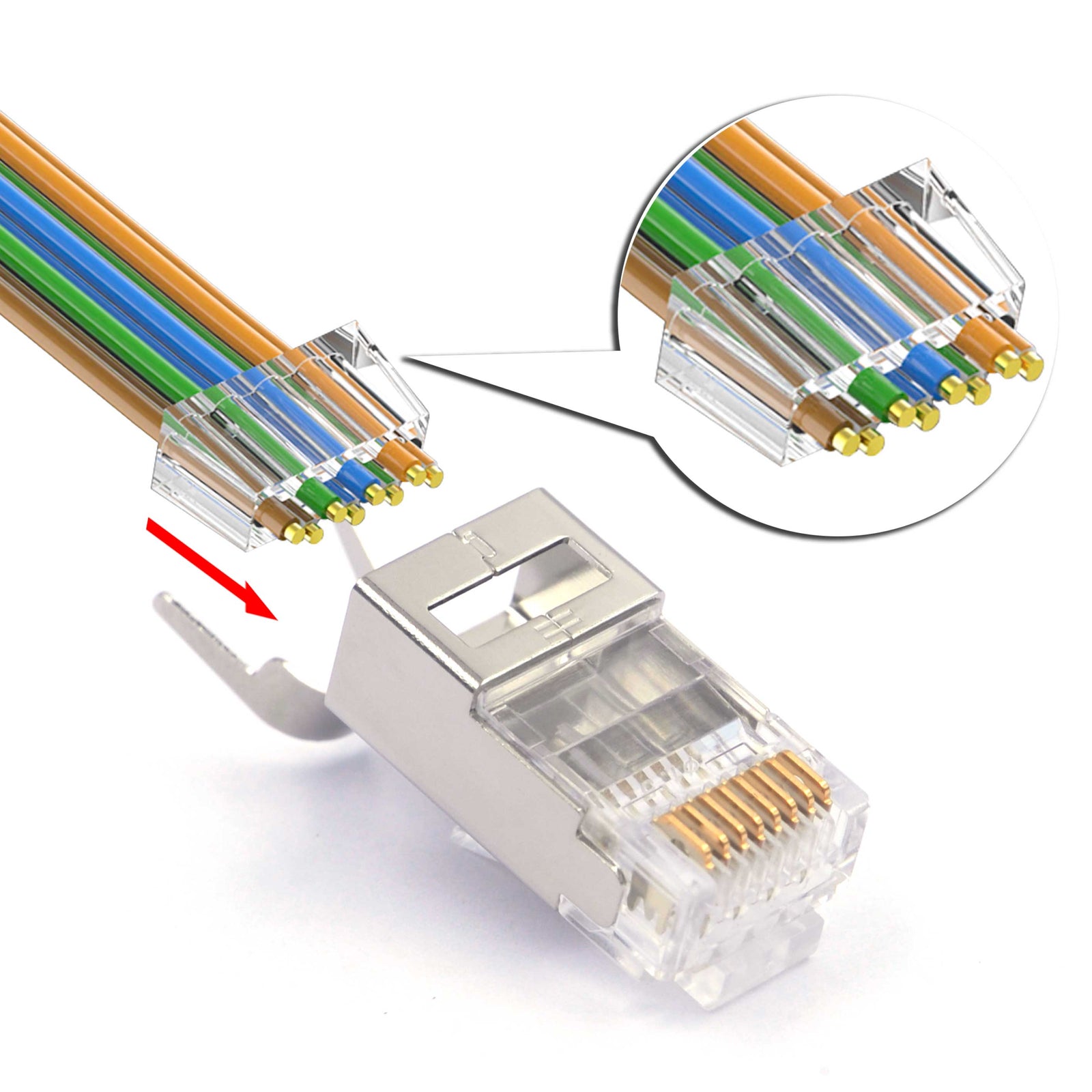

RJ45 Cat7 Connector (SJ650)

-RJ45 connector ends with a nickel-plated shield structure to provide perfect protection from interference;

-Metal housing and gold-plated contacts to suppress alien crosstalk and provide a secure connection;

-50μ gold-plated contacts provide faster speed with less interference;

-Meets CAT7 performance requirements up to 10 Gigabit Ethernet channel compliant network, backward compatible with CAT6A cable;

-Suitable for wire OD from Ø1.35 ~ Ø1.45;

-Dovetail design secures the cable and provides better grounding;

-Double-row Load bar design with two rows of wire cores for easy wiring.

RJ45 Colorful Boots (SR123OG)

-Support FTP and STP, but can not work with UTP;

-Multiple colors are available: blue; black; gray; yellow;

-Compatible with Cat6A/Cat7 cables and RJ45, 8P8C modular plug, for ethernet cable OD 7~8 mm;

-Protect the cable and prevent dust and water from entering the plugs, extending the life of your cables.

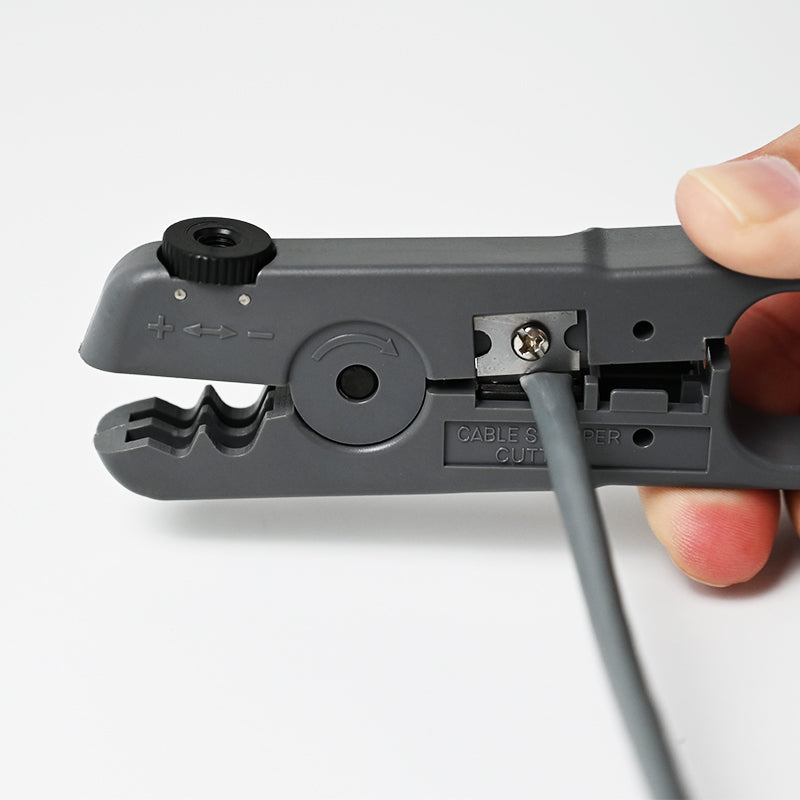

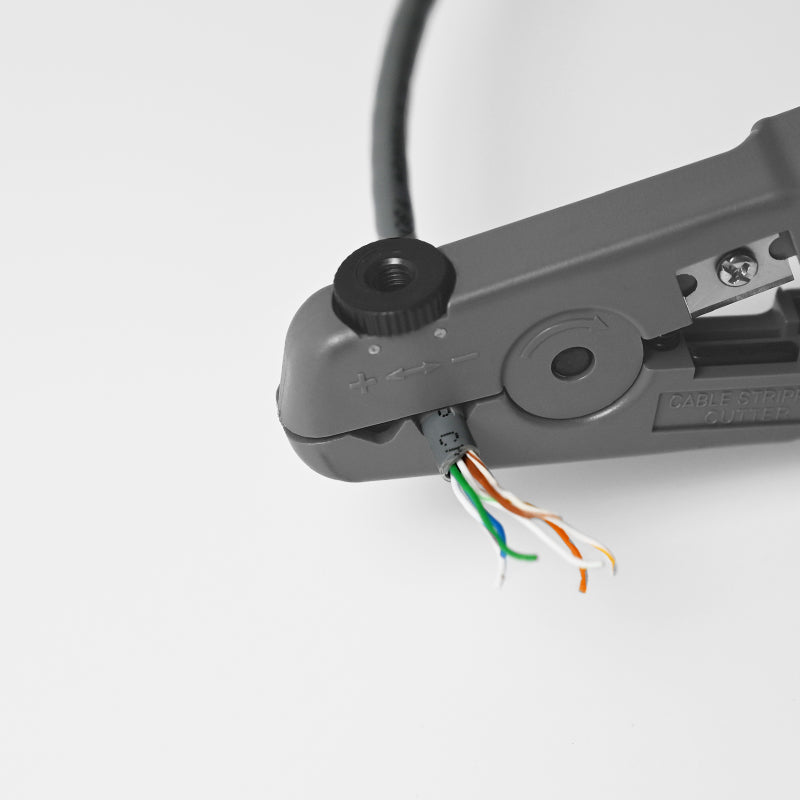

Adjustable Wire Stripper (G501A)

-Ideal for stripping network cables and telephone cables;

-Portable and easy to carry out;

-Adjustable screw, wide range of uses；

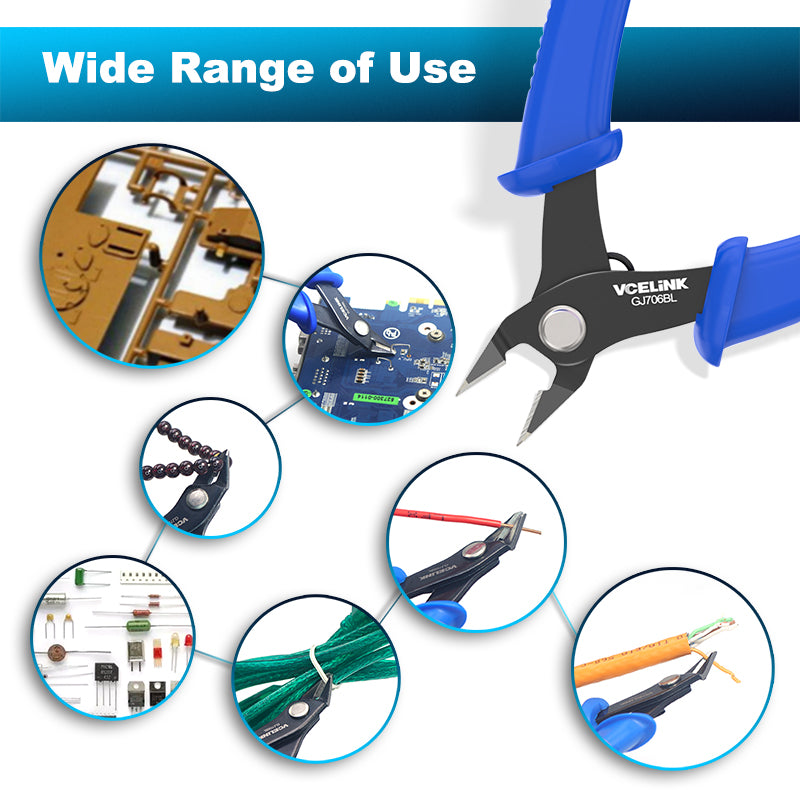

Cable Wire Snip (GJ706BL)

-Sharp blade, easy-to-cut tie wrap, plastic burrs and other small plastics, beading wire, etc.;

-Side cutters can use to cut off 0-2mm copper wire (12-46AWG);

-Comfortable and non-slip handle provides a comfortable and efficient cutting experience;

-Spring-loaded miniature cutter can rebound automatically, is labor-saving, and won't be tired after a long time. Improve working efficiency.

Learn more from What is an RJ45 Crimping Tool？& RJ45 Connector 101: Everything You Want to Know
