Bulk U/UTP Cat6 Ethernet Cable 1000ft/500ft VCELINK
Free shipping for orders in the US-During the Promotion Period.
Fast shipping. Know More at Delivery & Return.
For more information, please send us an inquiry or email us.
Features:
- 23AWG, 1.02mm Insulation Diameter

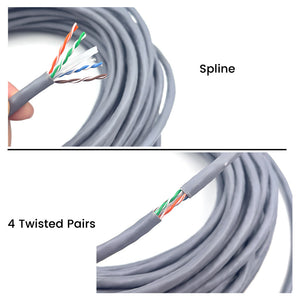

- U/UTP 4 Twisted Pairs
- Bandwidth up to 250 MHz

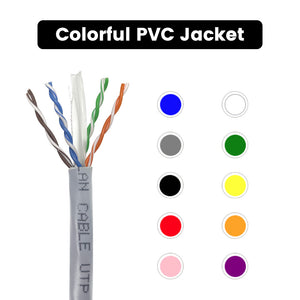

- Additional cable colors available
- Support OEM/ODM Bulk Purchase
- Lifetime Product Support
Pairs Perfectly With
Description
Product Specification |
|||
| Type | U/UTP Cat6 Cable | Wire Gauge | 23AWG |
| Conductor Material | Copper | Insulation Material | HDPE |
| Insulation Diameter | 1.02mm | Number of Conductors | 8 Twisted in 4 Pairs |
| Drain Wire |
None |
Shield | None |
| Outer Jacket Material | PVC | Outer Jacket Diameter | 6.40mm±0.20mm |
| Cable Length | 500ft/1000ft | MOQ | 300 Boxes |
Electrical Characteristics |
|||
| Impedance | 1-250MHz 100±15(Ohms) | Rated Temperature | 75C° |
| DC Resistance Unbalance(%) | Max 2.5 | DC Resistance 20C° | 8.4(Ohms/100m) |
| Insulation Resistance | >5000MΩ *Km | Dielectric strength | DC 2500V 2S |
Features
Excellent Cat6 Performance
-4 pair easily identified color-striped pairs;
-Excellent attenuation and crosstalk characteristics;
-Adopt high-quality 23 AWG standard 1.02mm single strand.
Safe & Reliable
CMR jacket is UL-listed and is flame retardant for use between floors, within walls, and in non-ventilated spaces. It helps us prevent the spread of fire to floors in vertical installations.
Wide Application
-ANSI/TIA-568-C.2 and ISO 11801;
-EN50173 and IEC61156-5;
-IEEE 802.3af and IEEE 802.3at.
OEM/ODM Customization
-Support customized Ethernet cables with various specifications. Please send us an inquiry or email us.
