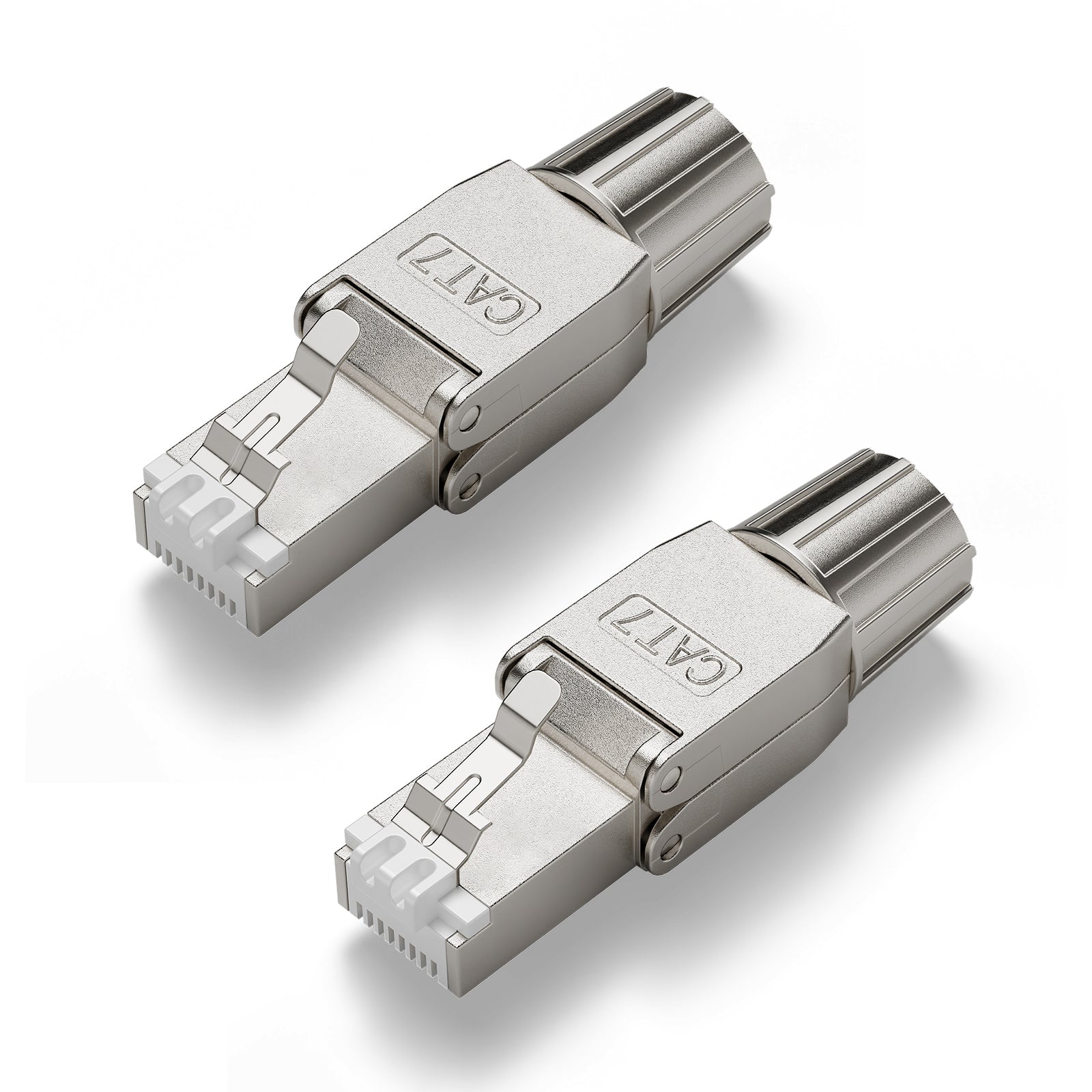

Cat7 Tool Free RJ45 Plug VCELINK
Quantity | Price Per Unit / Pack | Savings |
---|---|---|
10-49 | $13.29 | 5% |
50-99 | $12.87 | 8% |
100+ | $11.89 | 15% |
Free shipping for orders in the US-During the Promotion Period.
Fast shipping. Know More at Delivery & Return.
For more information, please send us an inquiry or email us.
Features:
- Support PoE, PoE Plus, UPoE
- Plastic Material: NEW PC
- Shielded Material: Zinc Alloy Nickel Plating
- Operation Temperature: -10 °C to 60 °C
- 12-month Warranty & Lifetime Product Supoort
Pairs Perfectly With
Description

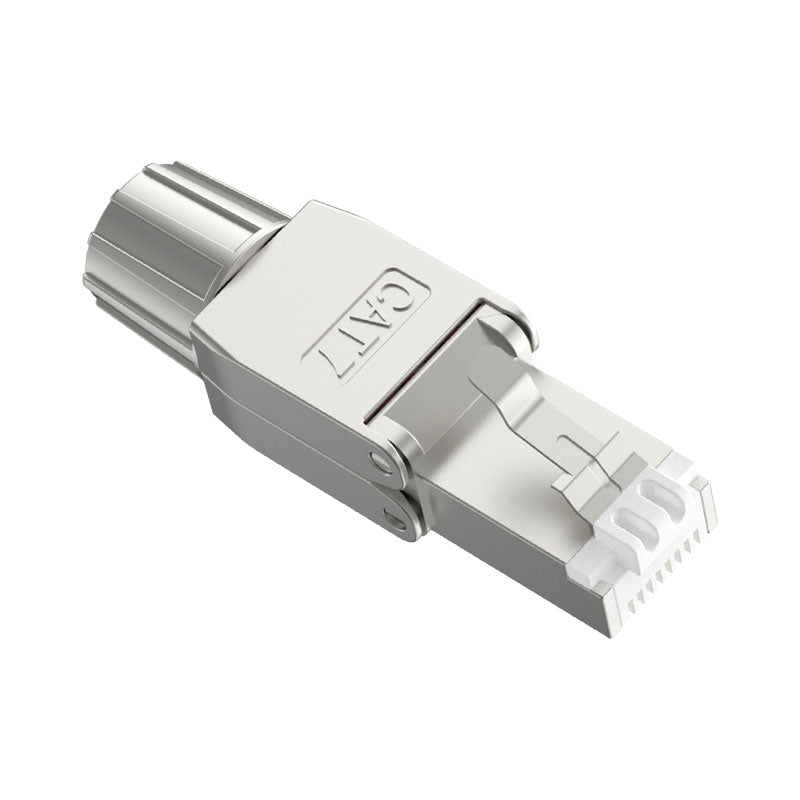

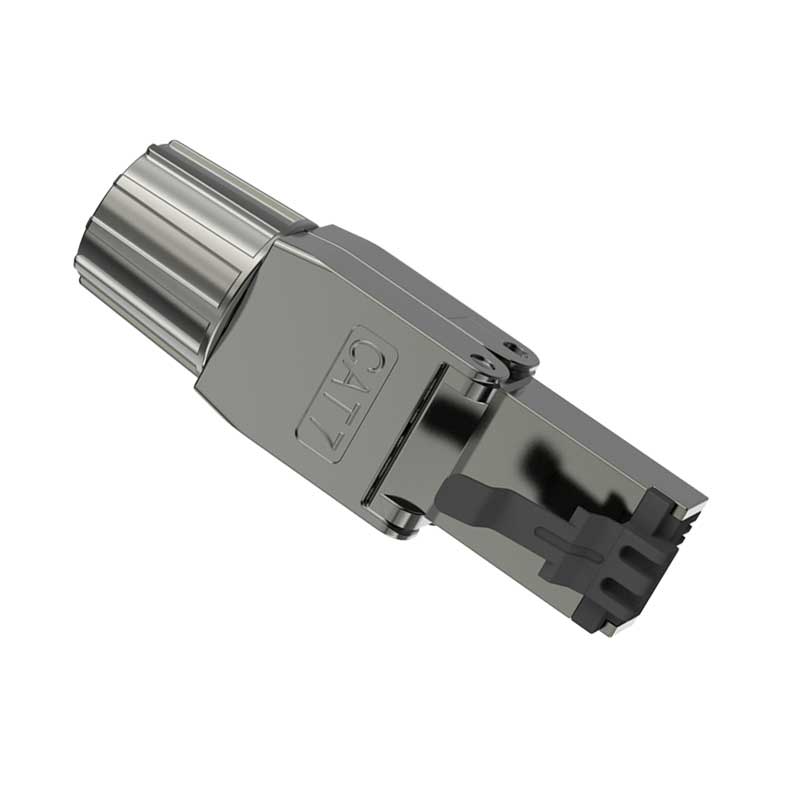

Make your Cat7 cable connections more reliable with our Cat7 Field Termination Plug. This tool-less, reusable connector is designed for fast and efficient installations in scenarios requiring high-speed network transmission, ideal for both professionals and beginners. We provide tutorial pictures and videos to help you better understand the installation.
VCELINK supports bulk and customized buying, please contact us directly or email us for more information.
Learn More in What is Field Termination Plug?
Specifications
Product Type | Cat7 Toolless Plug |
Termination Type | 8P8C Connector |

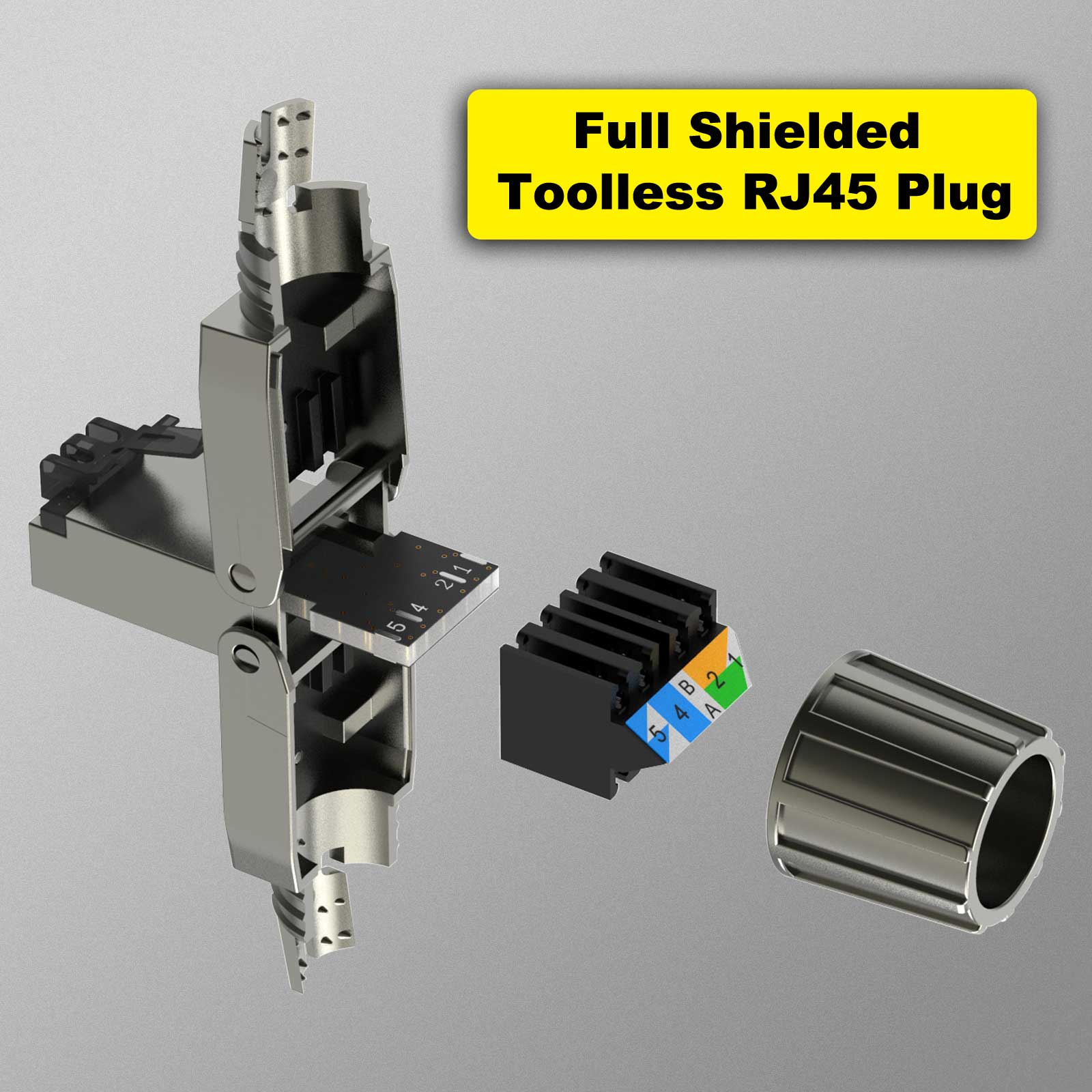

Style | Toolless; Shielded |
Wiring Scheme | T568A/T568B |
Data Rate Support | 10 Gbps |
Plastic Material | New PC |
Shielded Material | Zinc Alloy Nickel Plating |
Terminal Pins | Phosphor Bronze, Zin Plating |
RJ45 Contact Life | ≥750 Times |
IDC Terminal Life | ≥250 Times |
Contact Resistance | 20m OHM |
Insulation Resistance | ≤500m OHM @100 V DC |
Withstand Voltage | DC 1,000V AC 700V RMS 60HZ, 1MIN. |
Operating Ambient Temperature | -10°C ~ 60°C |
Storage Ambient Temperature | -40°C ~ 70°C |
Cat7 Permanent Link | Conform to ANSI/TIN/EIA 568B. 2-10 |

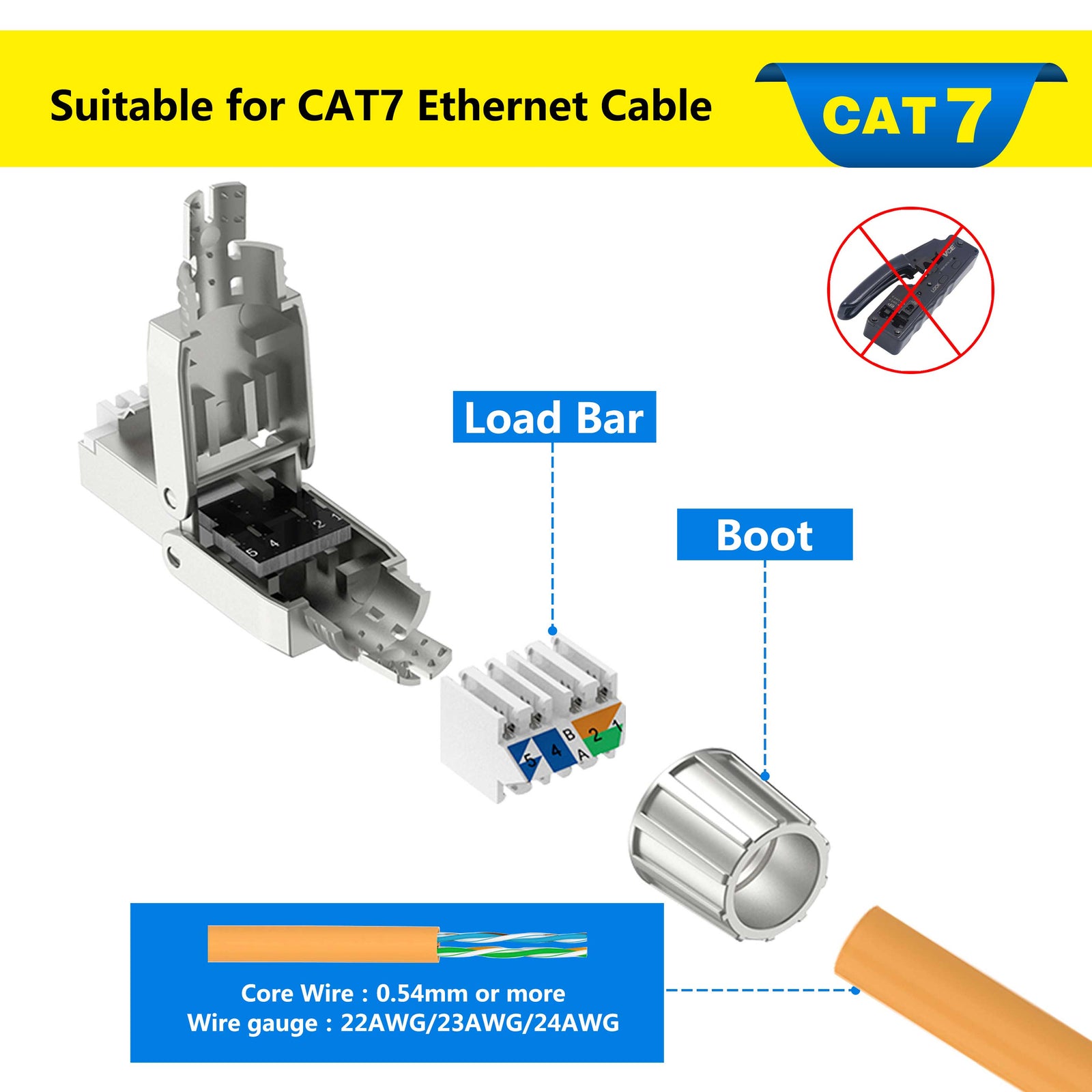

Usage | Stranded Wire or Solid Wire 22 AWG to 26 AWG |
Features

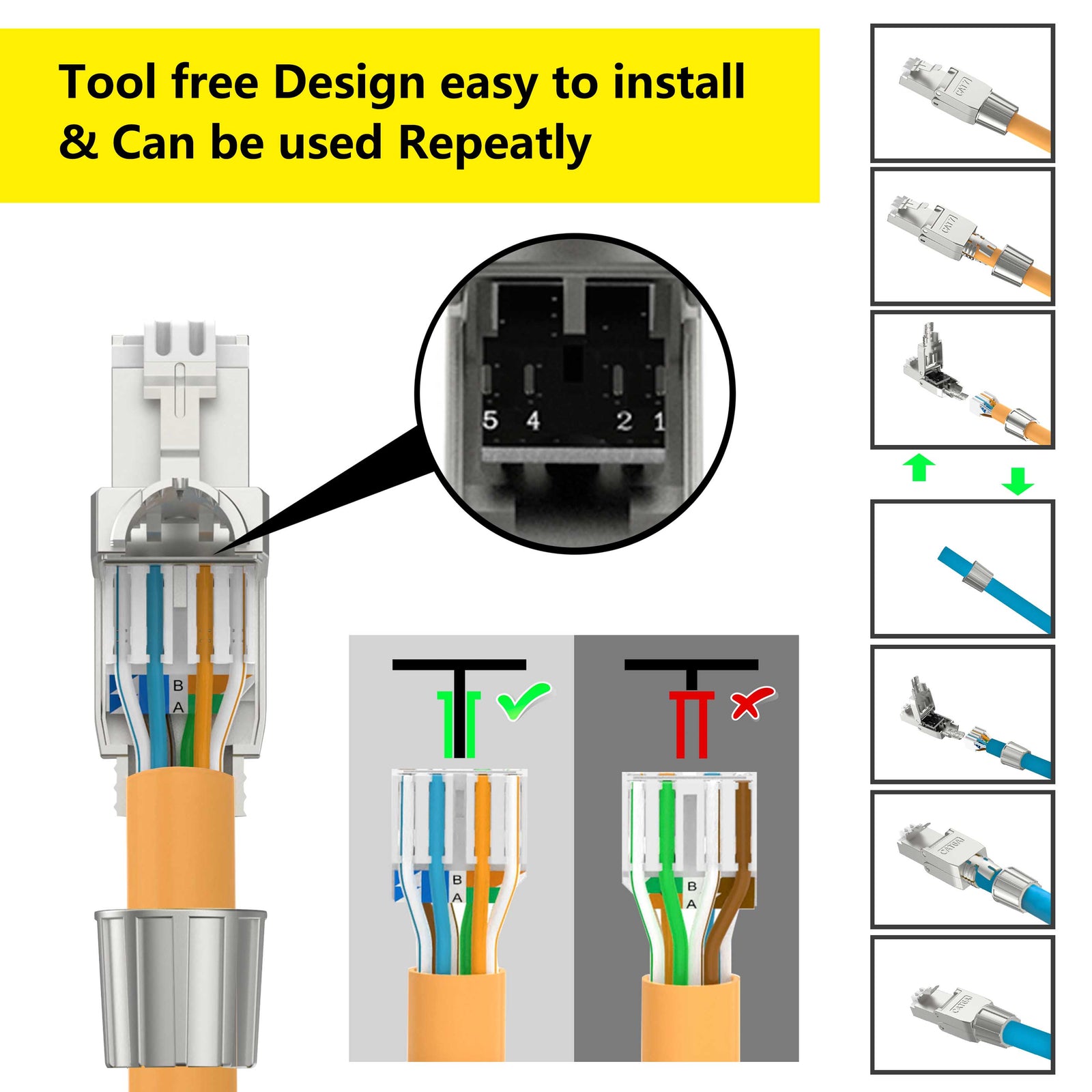

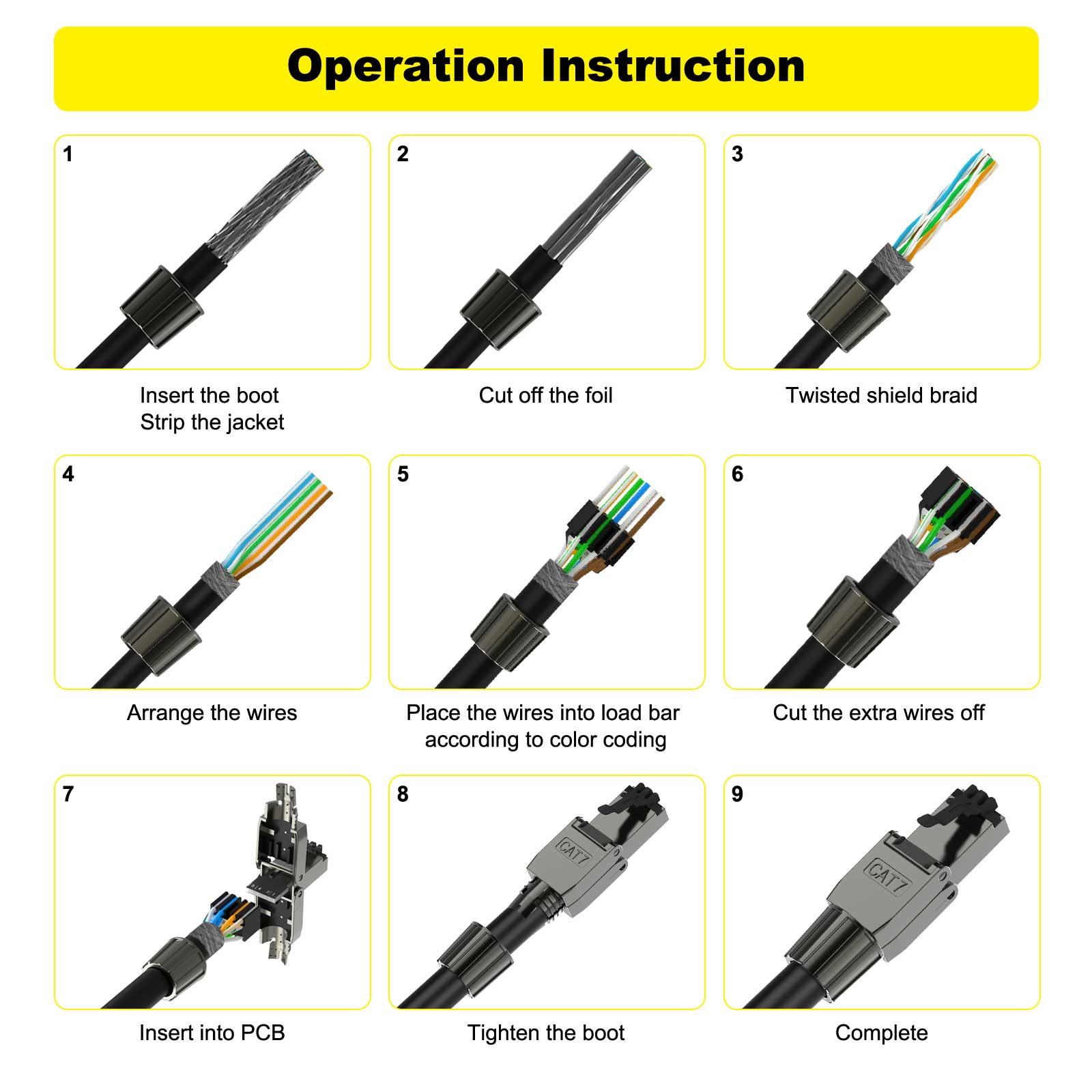

Easy to Install
-The toolless design makes it easy to install without any need for professional RJ45 crimpers;

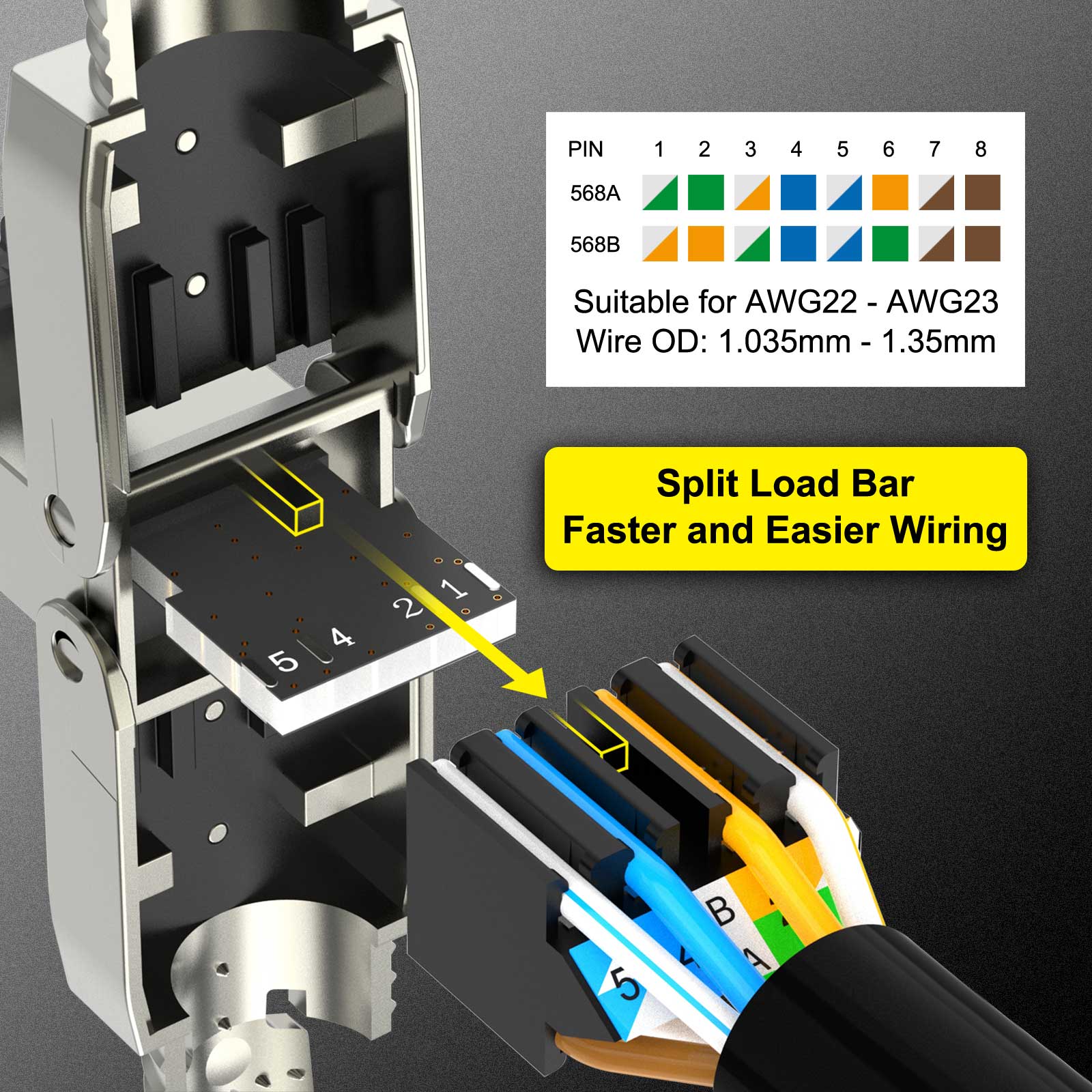

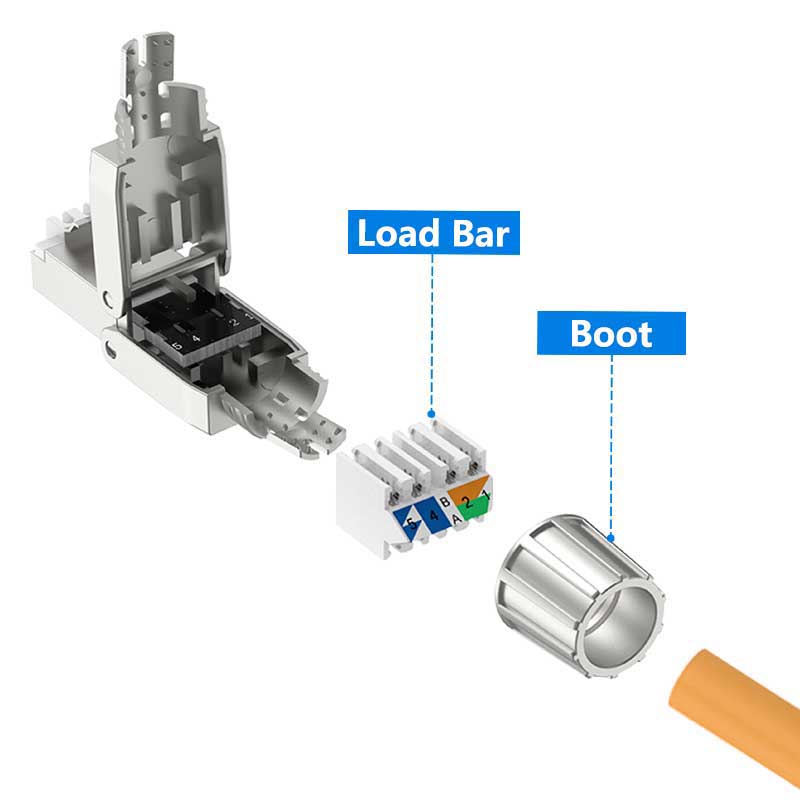

-The conductor holder makes wire threading easier and faster.
Compact and Reusable Design
-The compact and short size makes this Cat7 connector suitable for tight space;
-Allows for multiple uses without affecting the quality of network transmission.

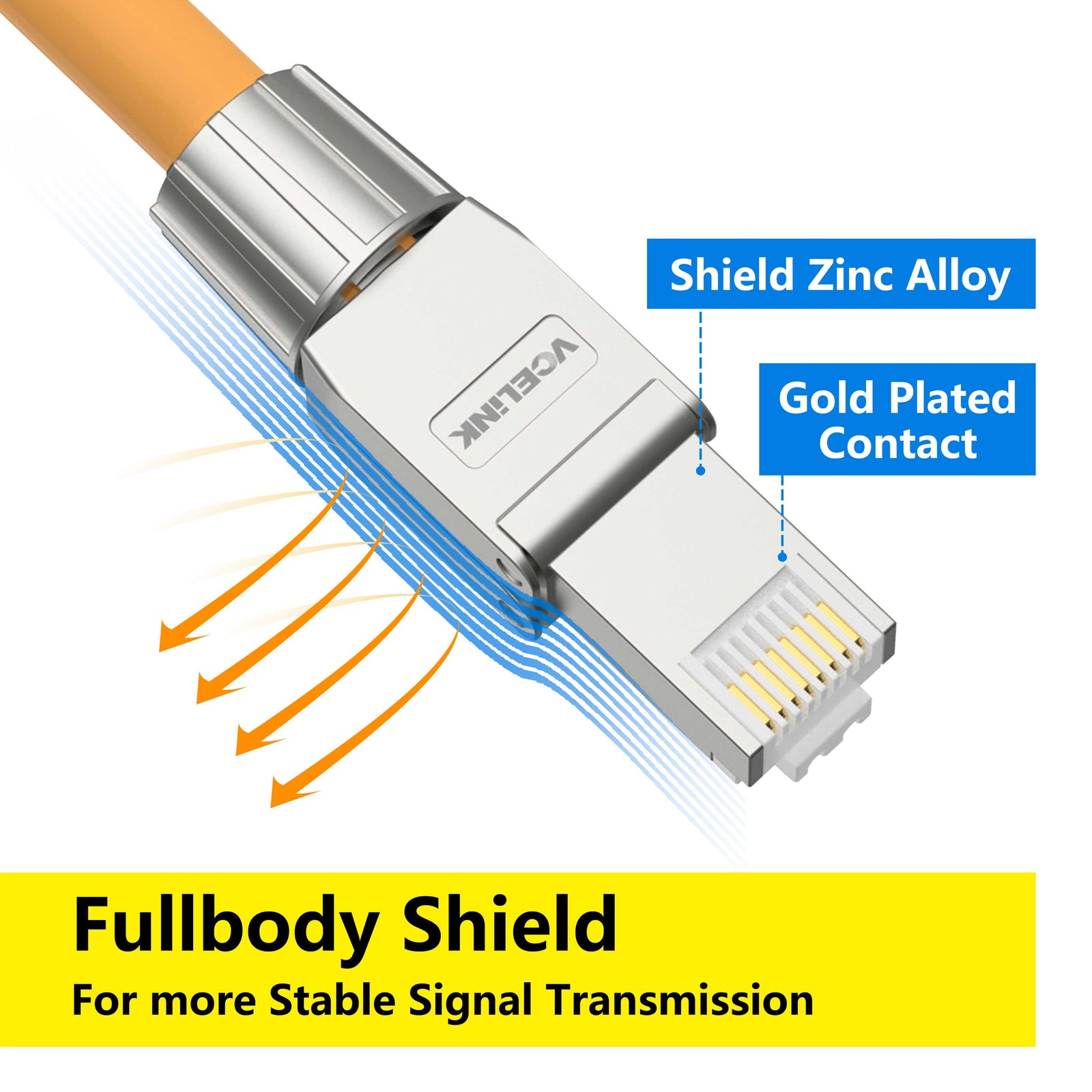

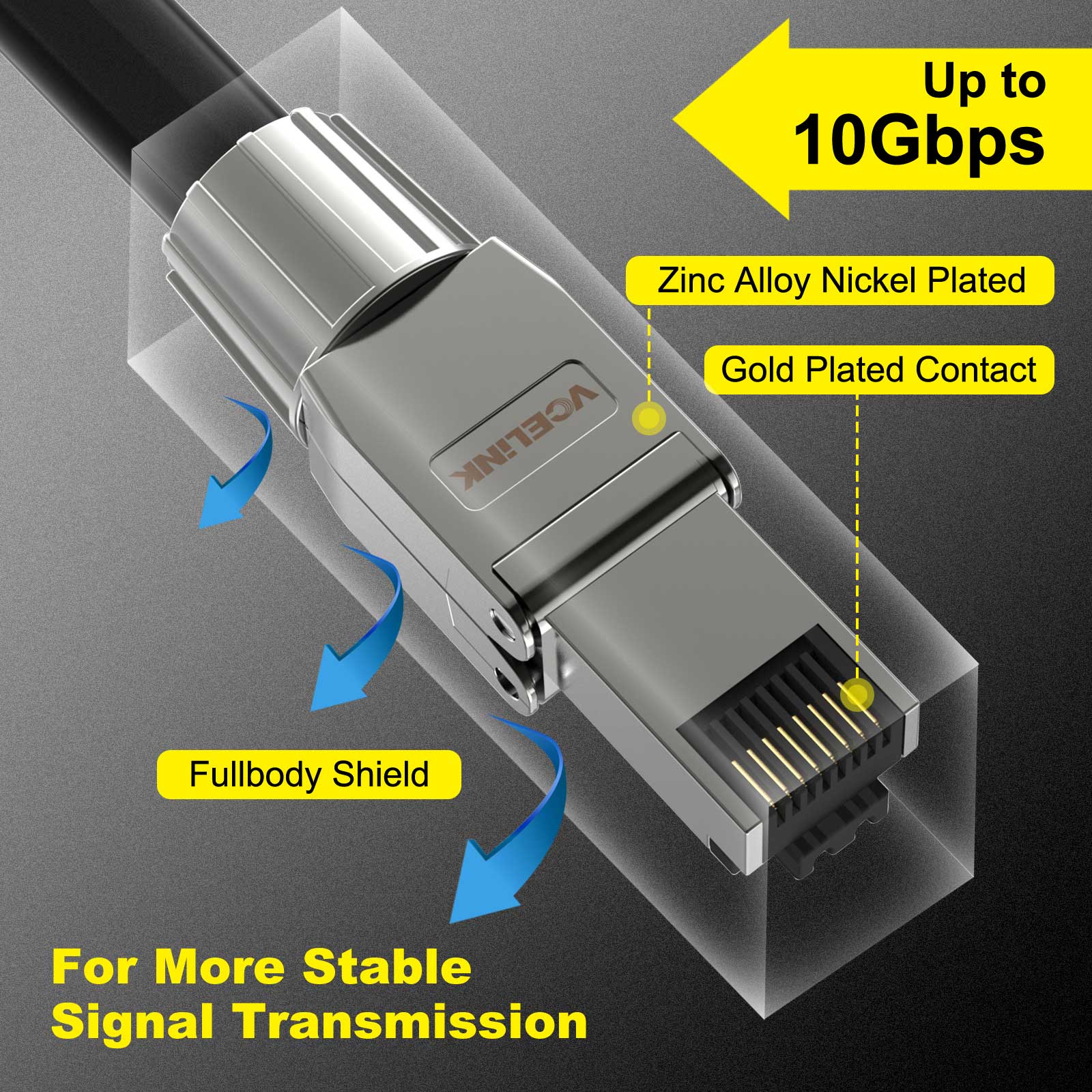

Stable Transmission
-Gold-plated contacts improve the quality of signal transmission;
-Zinc alloy shielded housing provides resistance to external interference;

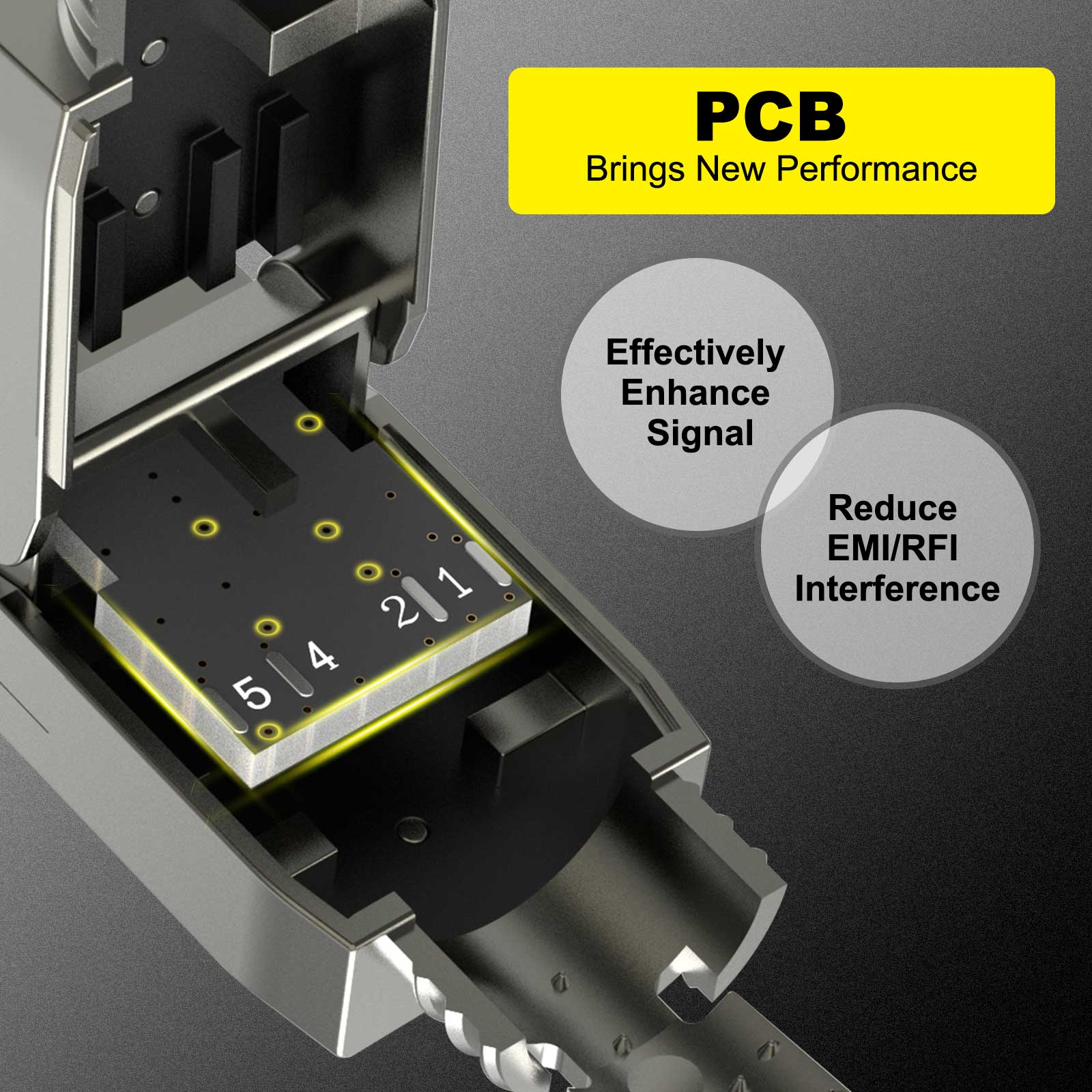

-PCB board ensures good conductivity for stable network transmission.

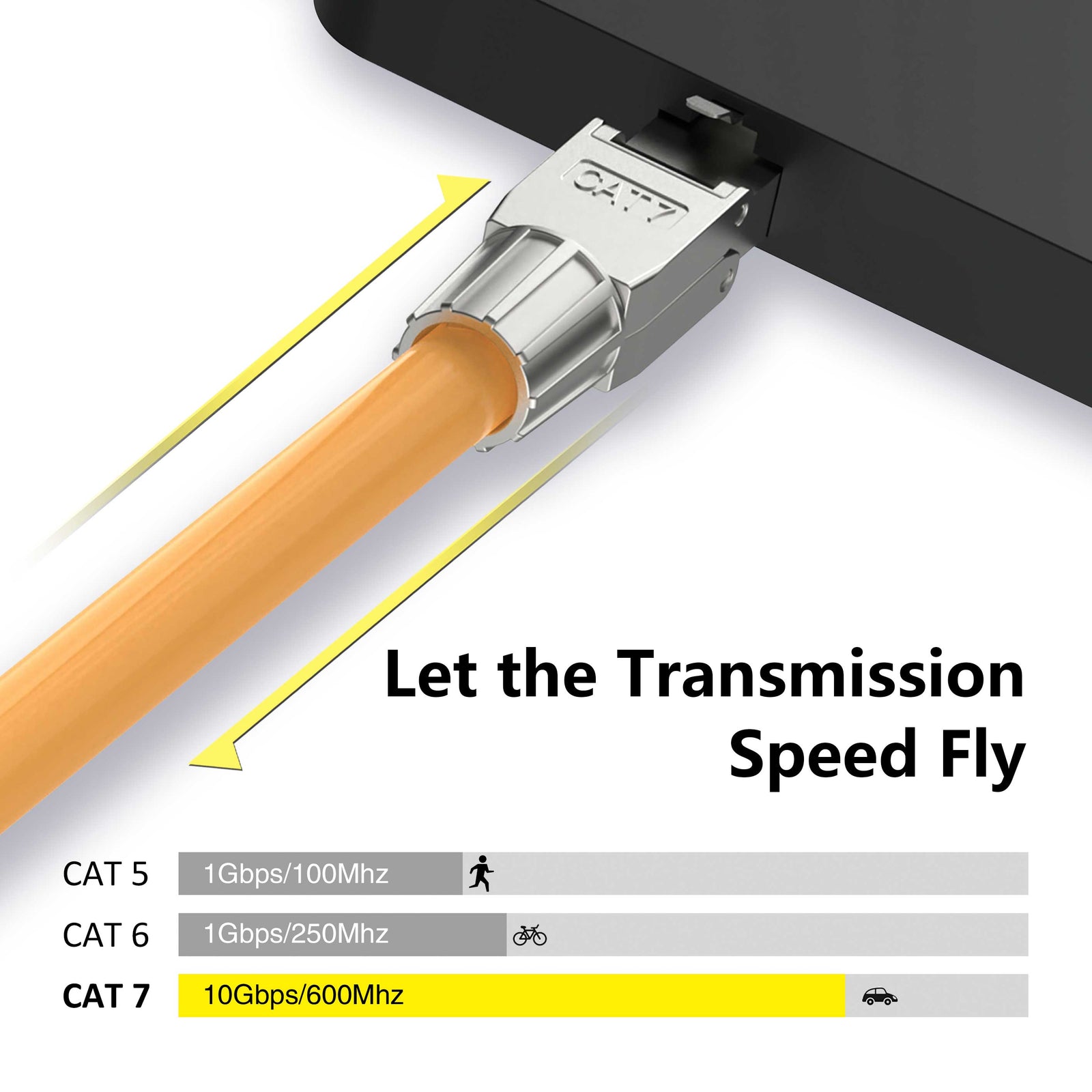

Cat7 Network Performance
-Supports Cat7 network of up to 10 Gbps and 600 MHz;
-Can be used for PoE, PoE Plus, UPoE applications.
