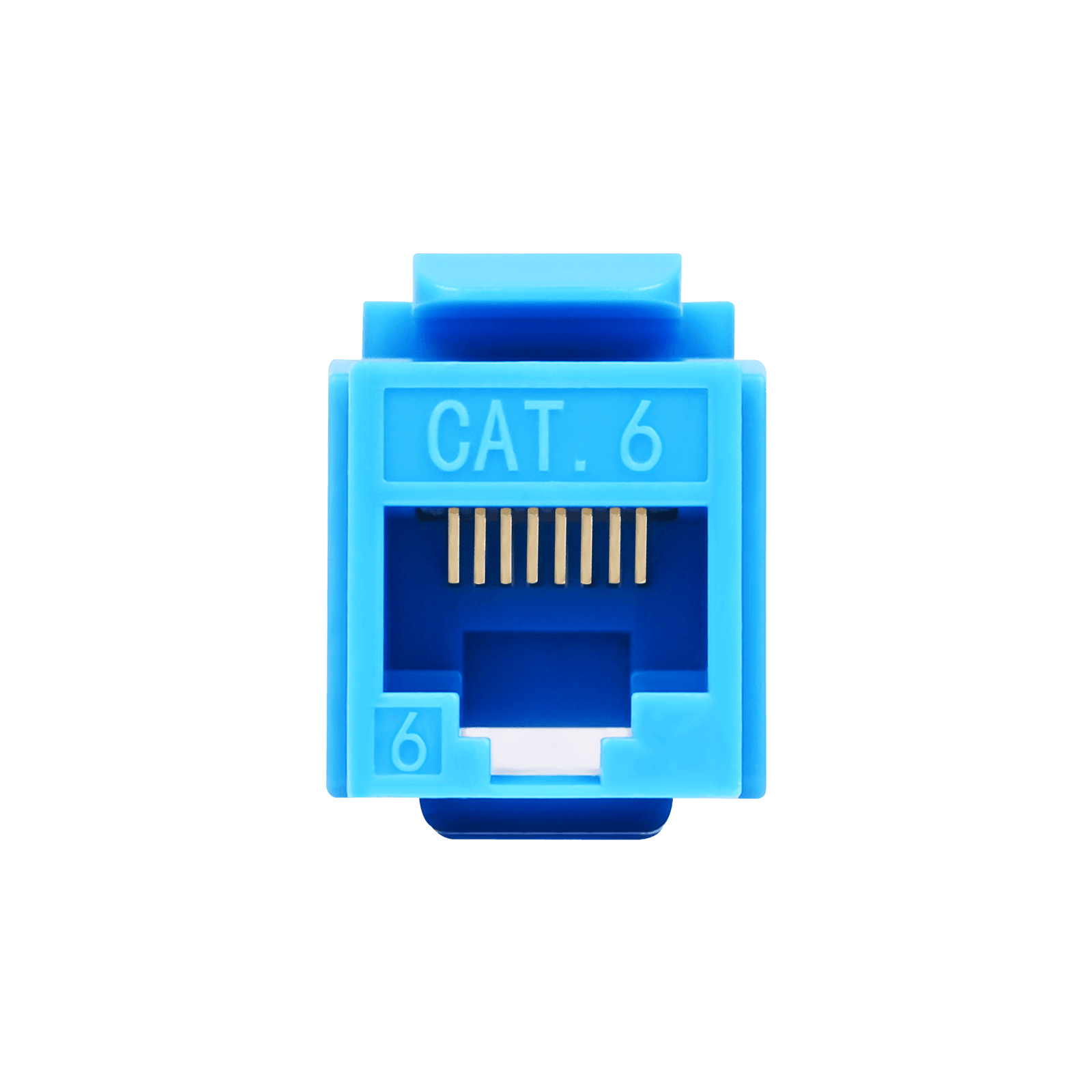

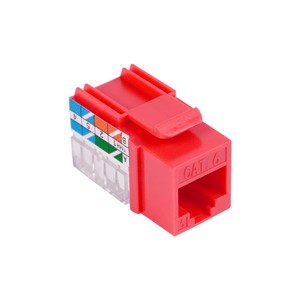

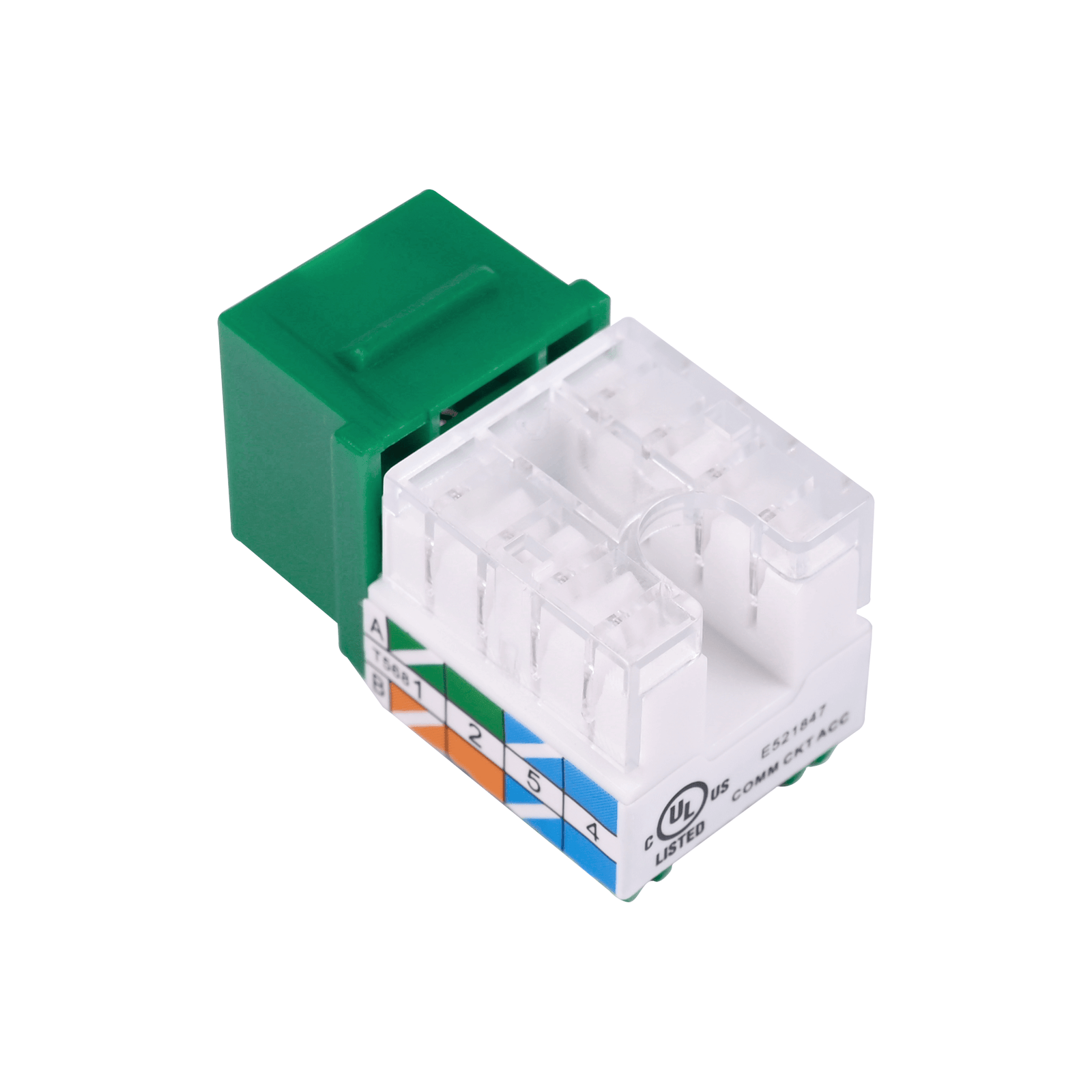

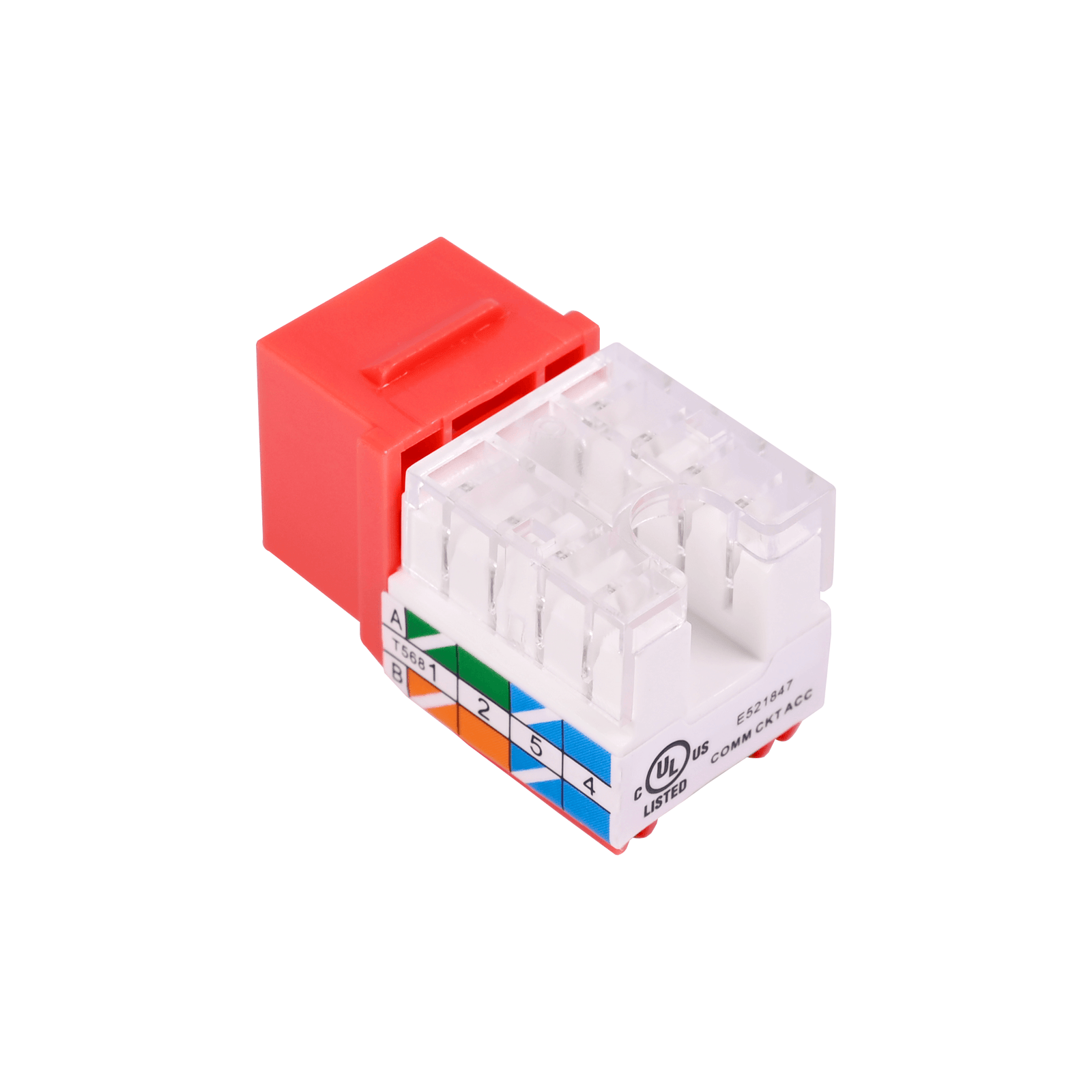

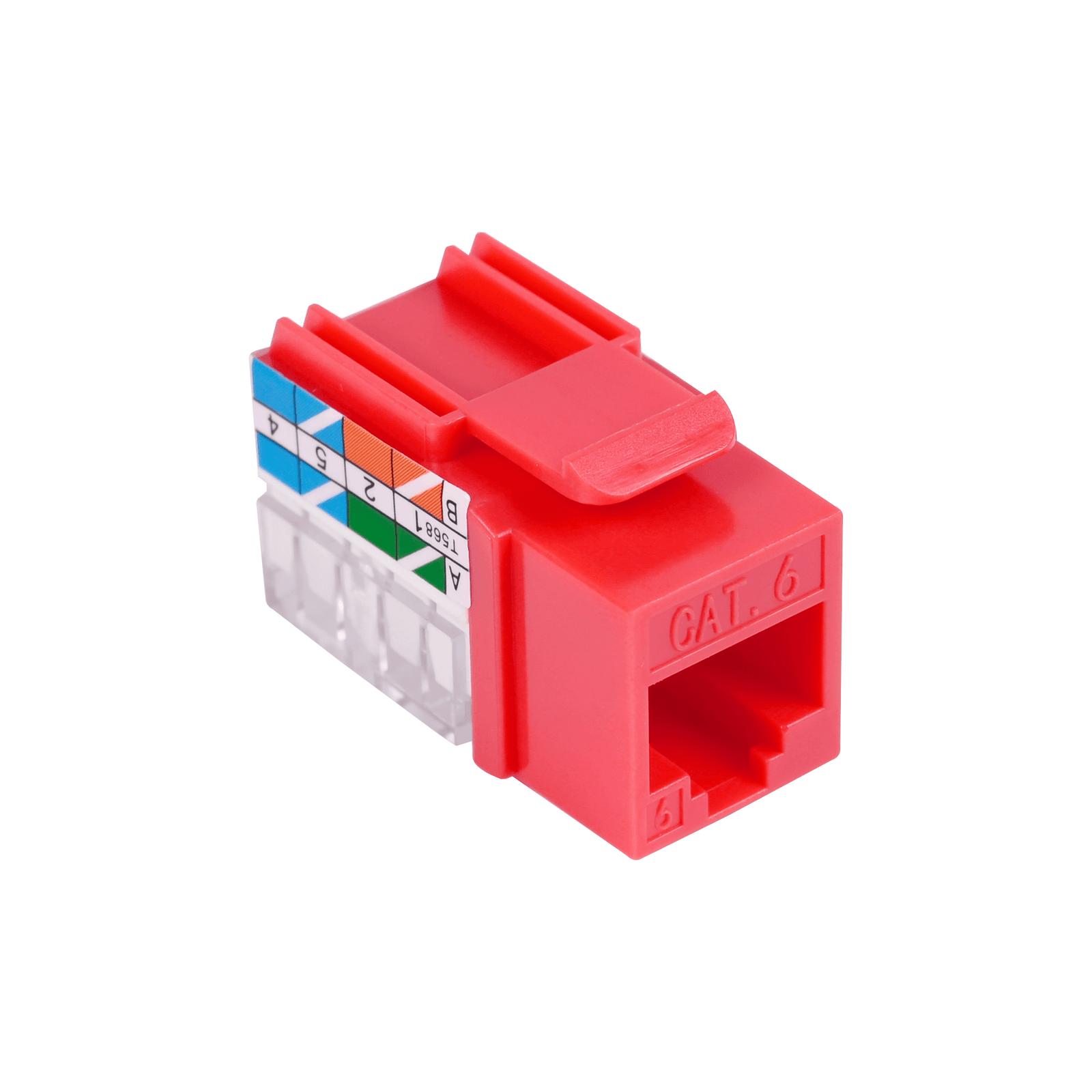

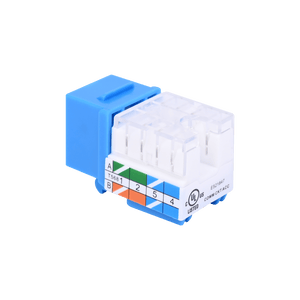

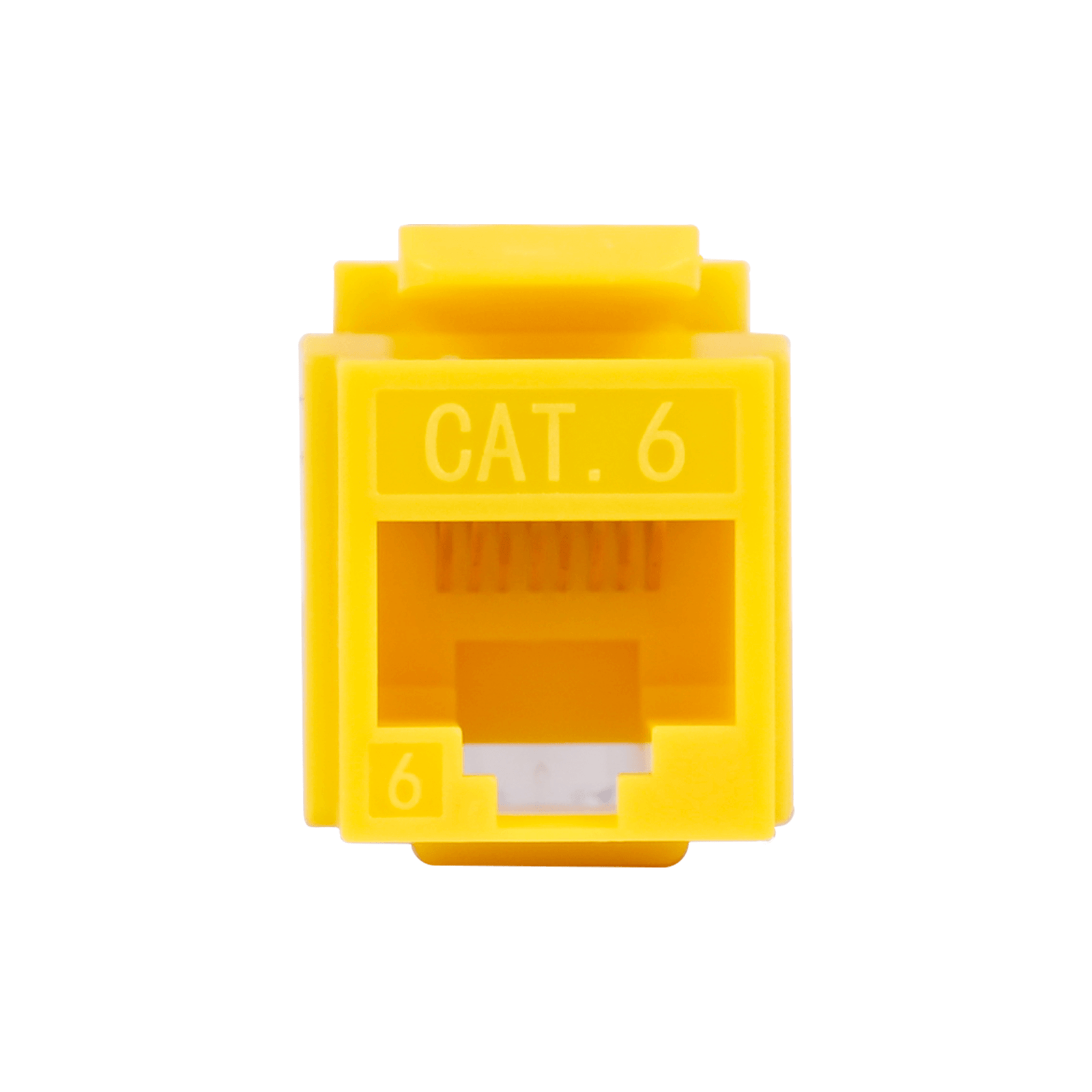

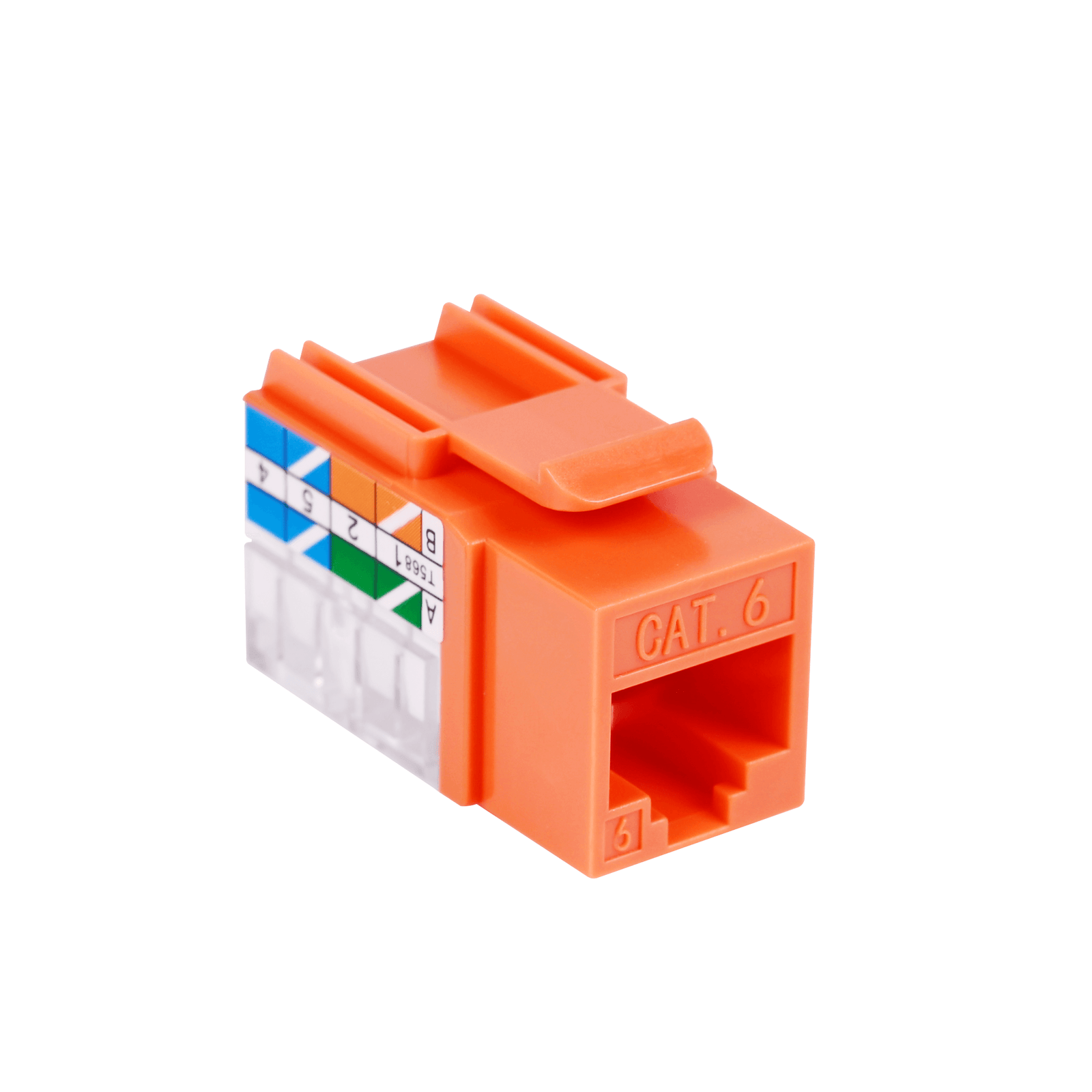

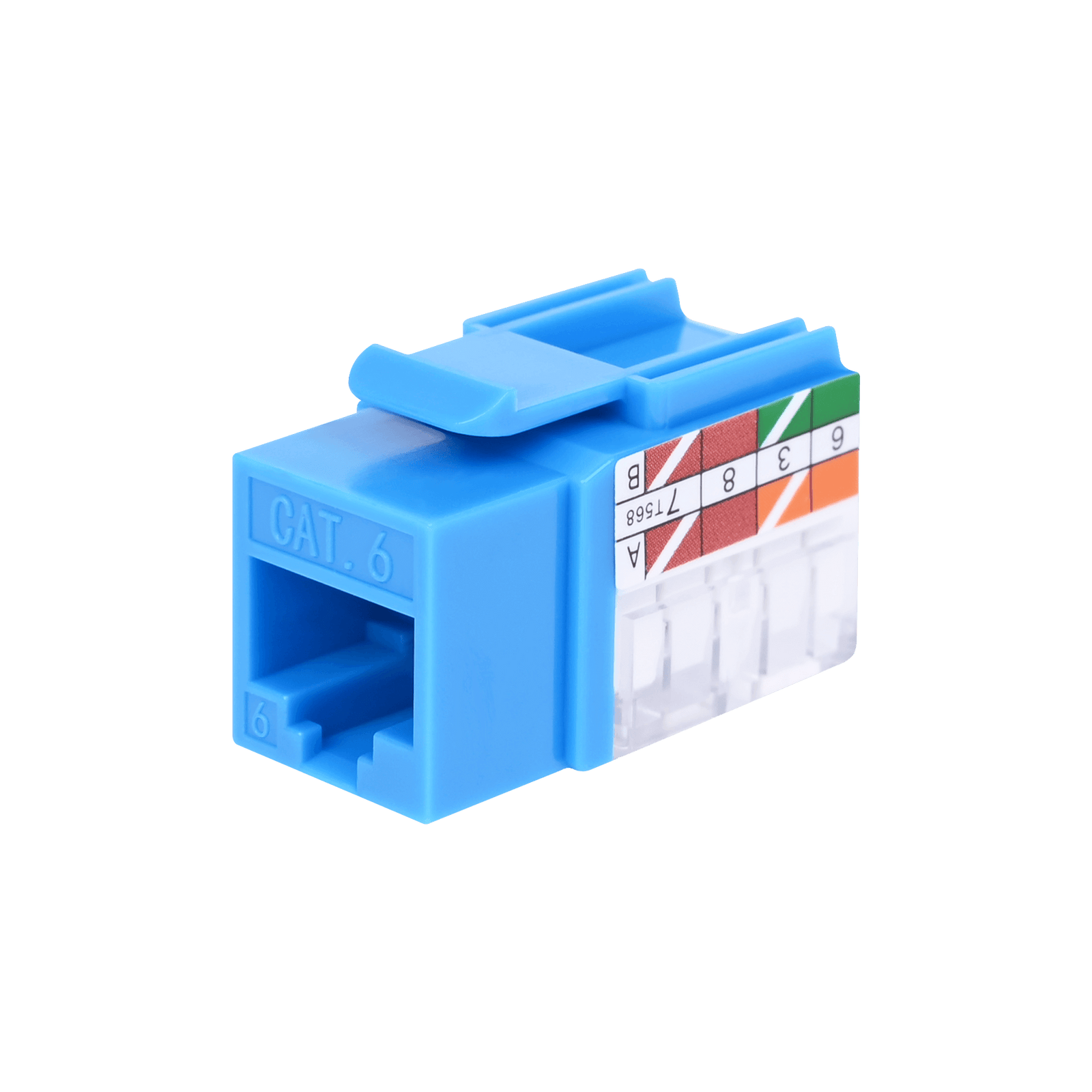

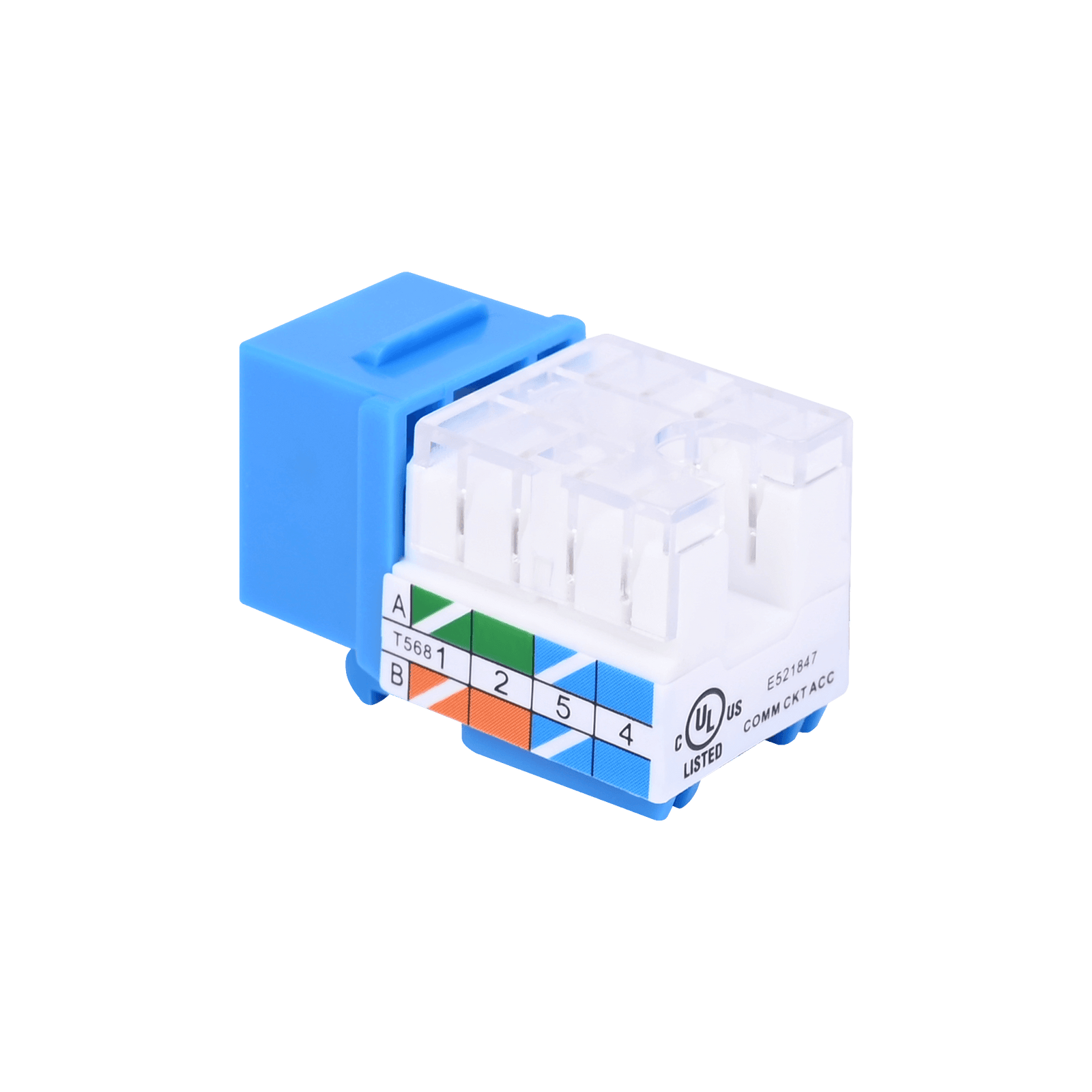

UL Listed Cat6 Keystone Jack VCELINK

Item Quantity

Free shipping for orders above $29.99.

Please allow 4-25 working days for transportation if you purchase here. Know More at Delivery & Return.

For bulk purchase request please send us an inquiry or email us.

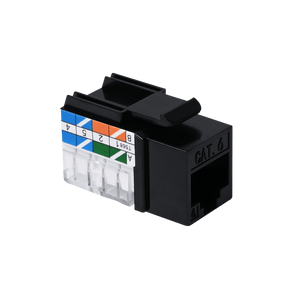

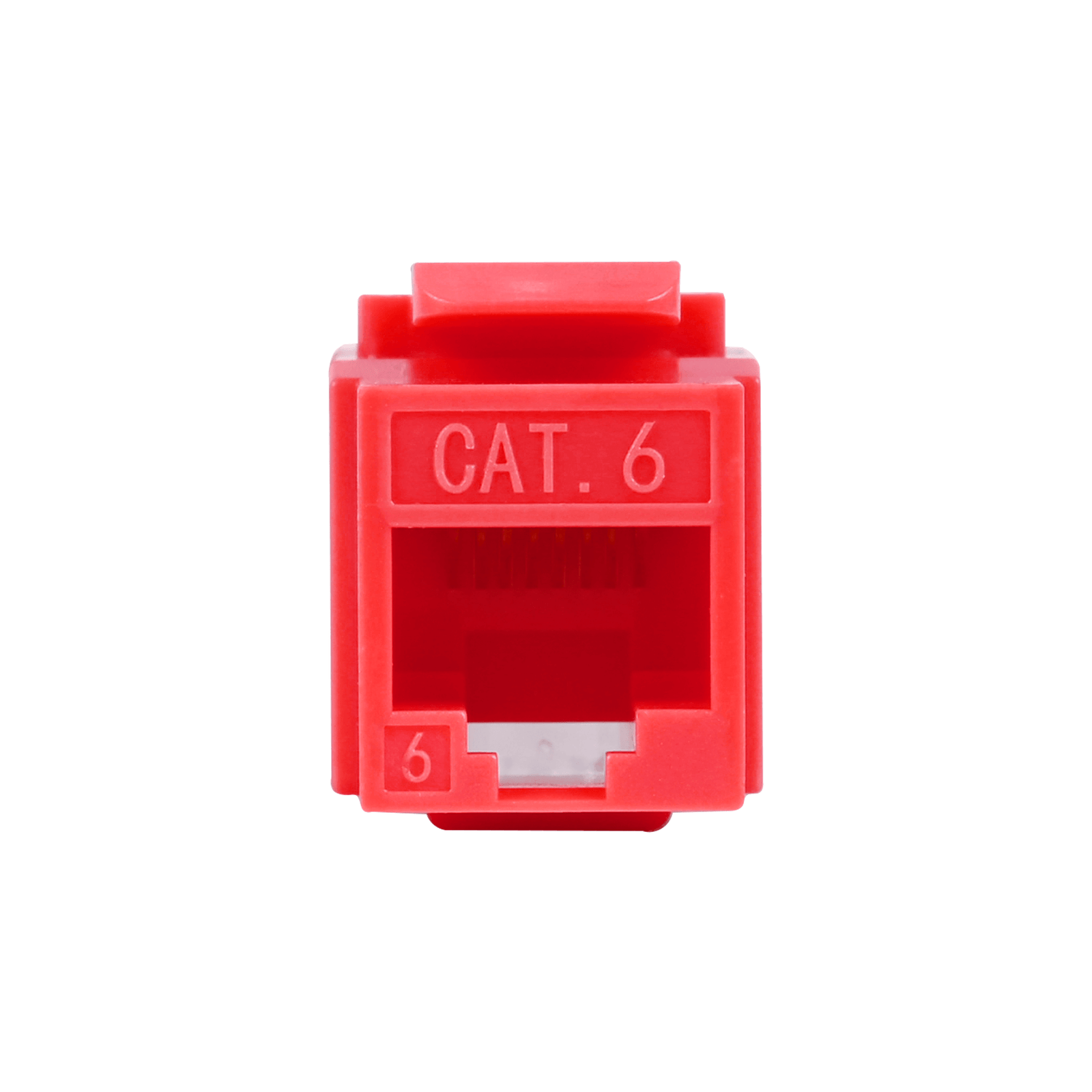

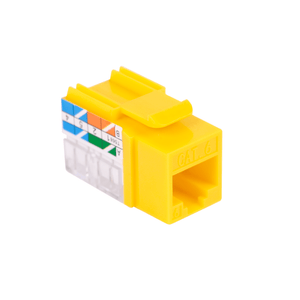

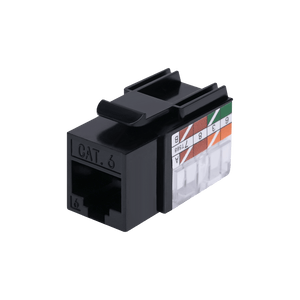

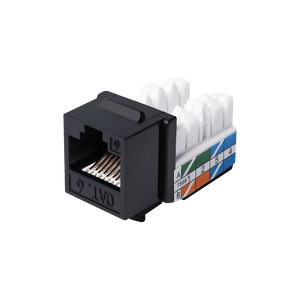

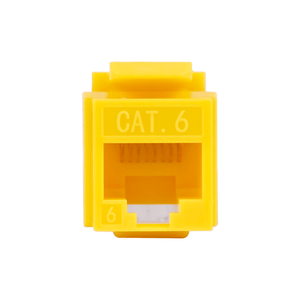

  • 90 Degree UTP Cat6 Module Plug
  • Suitable for 23/24 AWG UTP Solid/Twist Wire

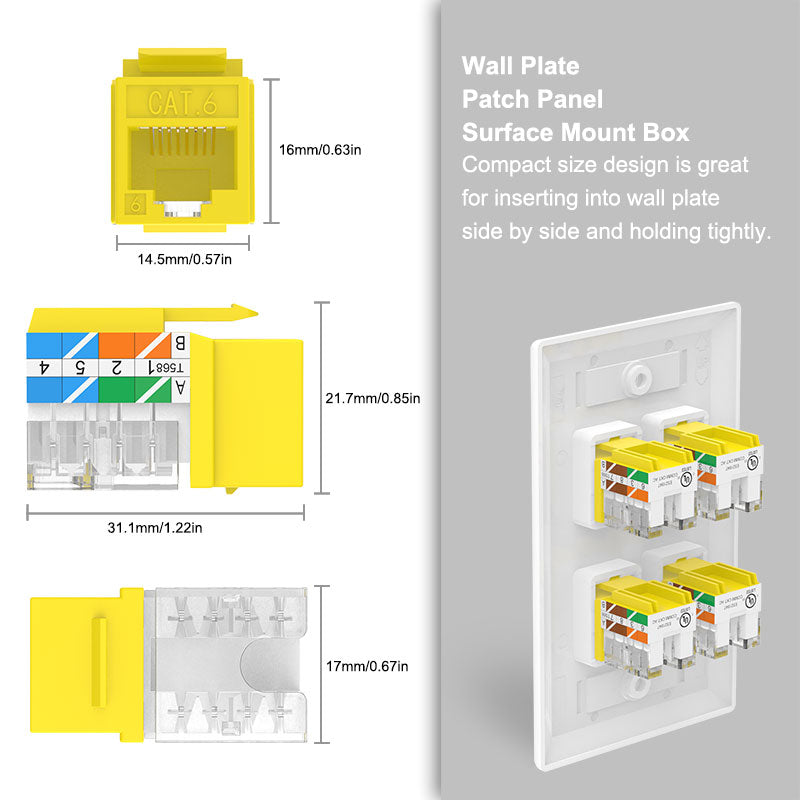

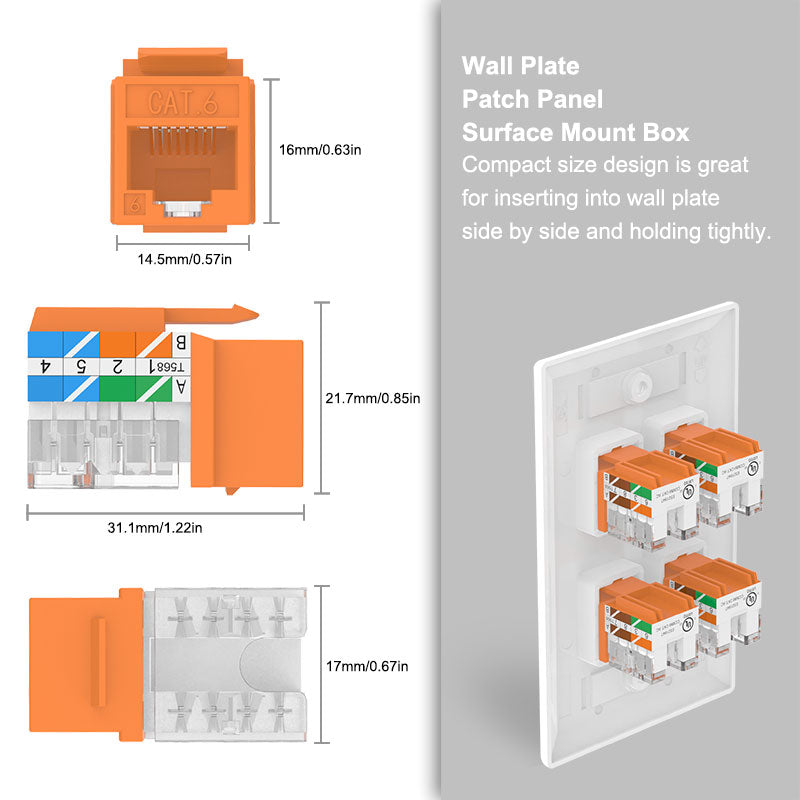

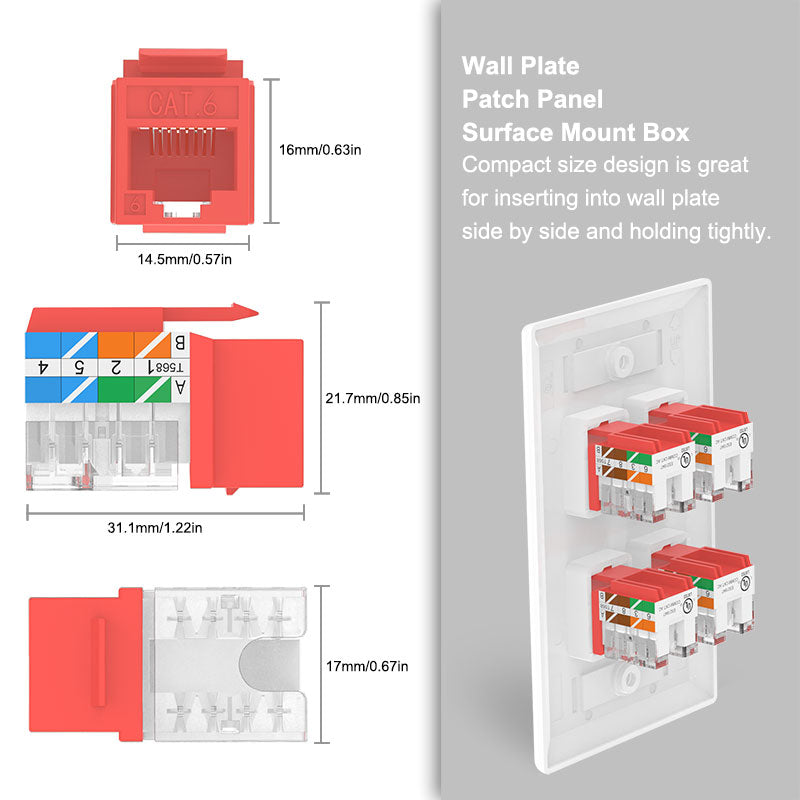

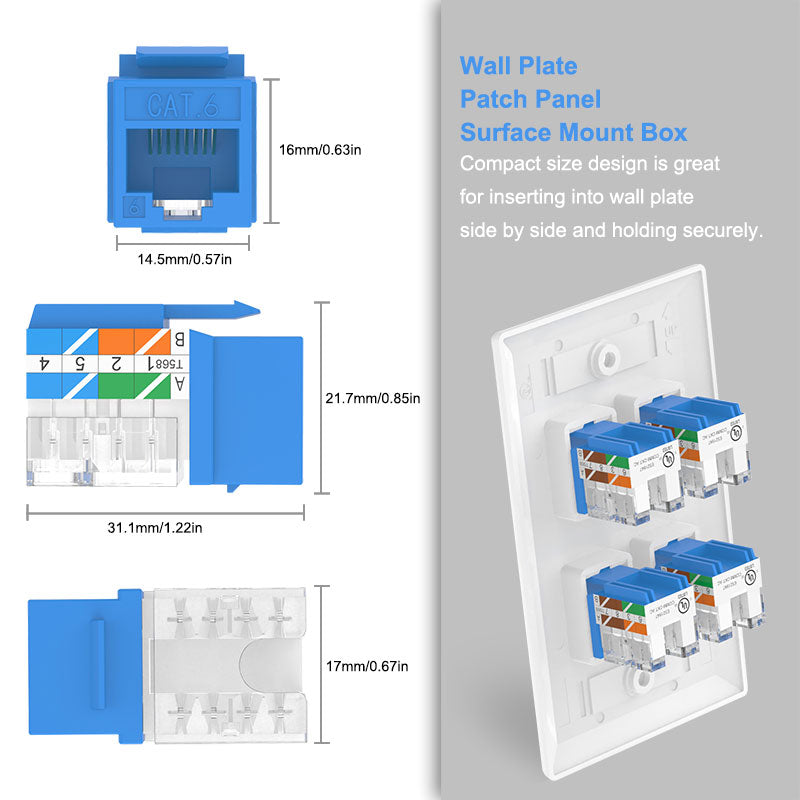

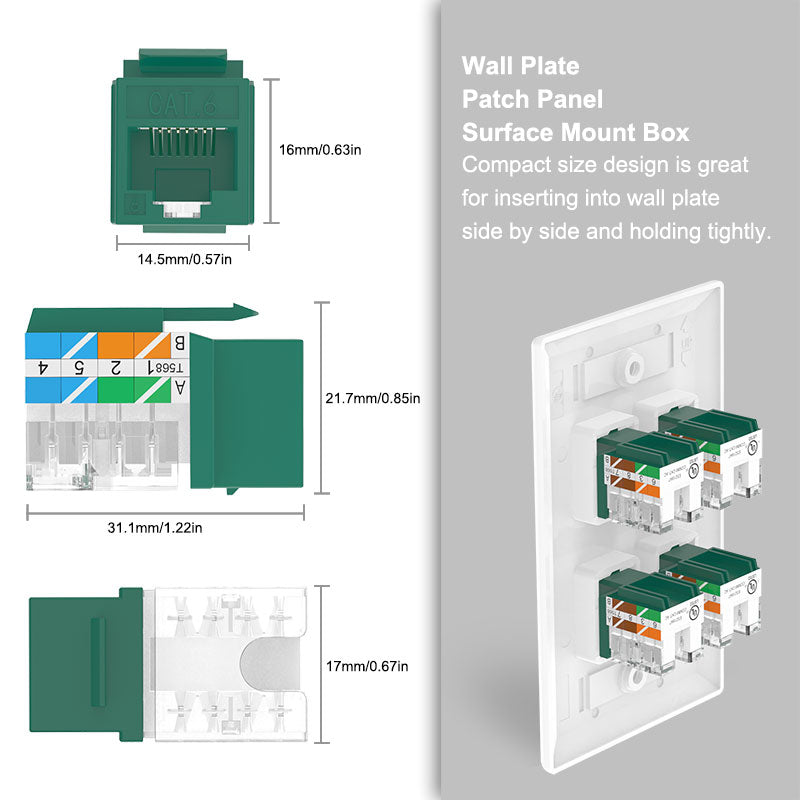

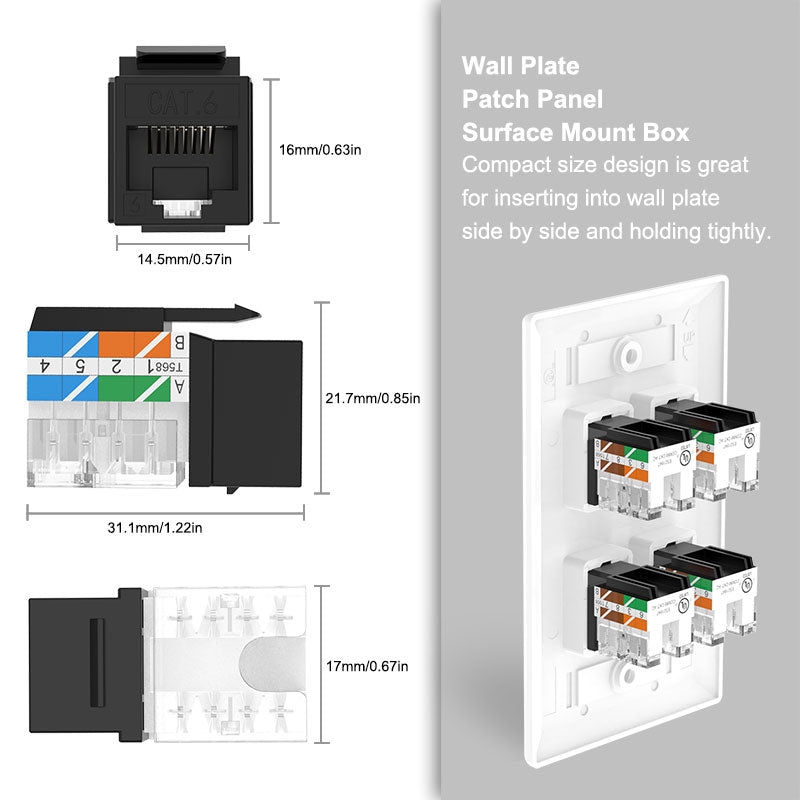

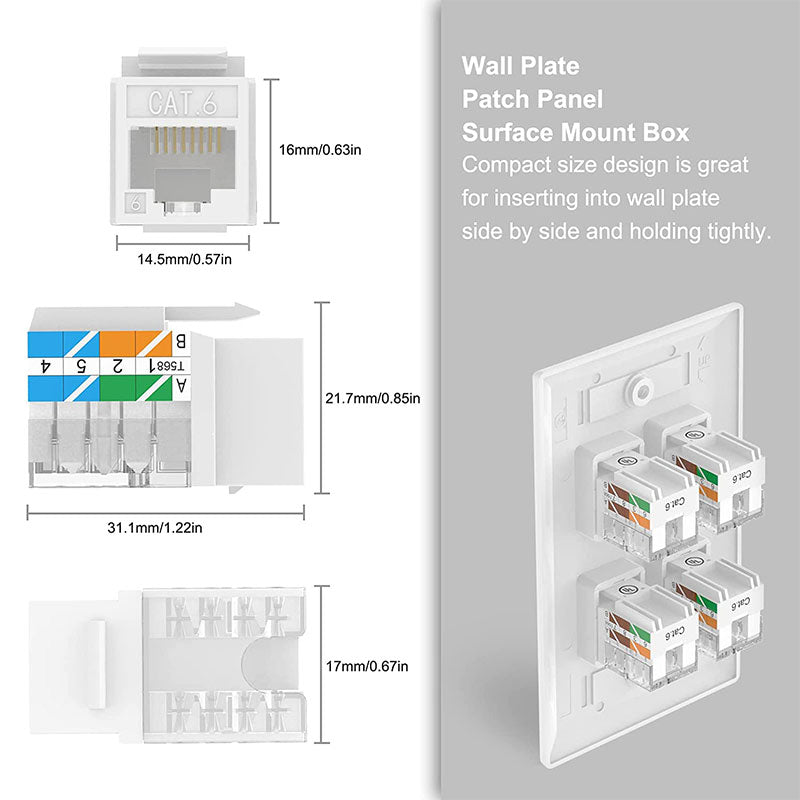

  • 0.85in x 1.22in x 0.67in (21.7 x 31.1 x 17 mm)
  • Compatible with Blank Wall Plate/Patch Panel
  • Offer Color/LOGO/Packaging Customization Service
  • 12-month Warranty & Lifetime Product Support


Elevate your network connections to unparalleled levels of excellence with the VCELINK Cat 6 Keystone Jack. UL-certified for exceptional quality and reliability, the keystone jack ensures maximum Cat6 performance, meeting all your networking needs. Why choose VCELINK keystone jack? Our 90-degree Cat6 keystone jack offers easy installation and back compatibility, suitable for home and office networks. This keystone jack comes in various colors for easy cable management. It is often paired with wall plates, patch panels, or surface mount boxes. Use our 110 punch-down tool or EZ Ethernet punch down tool for easy termination.

VCELINK supports bulk and customized services. If you have any questions, feel free to contact us or email us.

Learn More in A Buying Guide of Keystone Jack


Product Type Cat6 Keystone Jack
Wiring Diagram T568A/T568B
Dimensions 0.85''H*0.67''W*1.22''D
Termination Type Keystone Jack
Style 90-degree; Unshielded

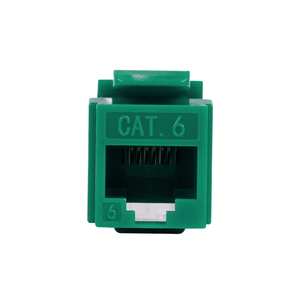

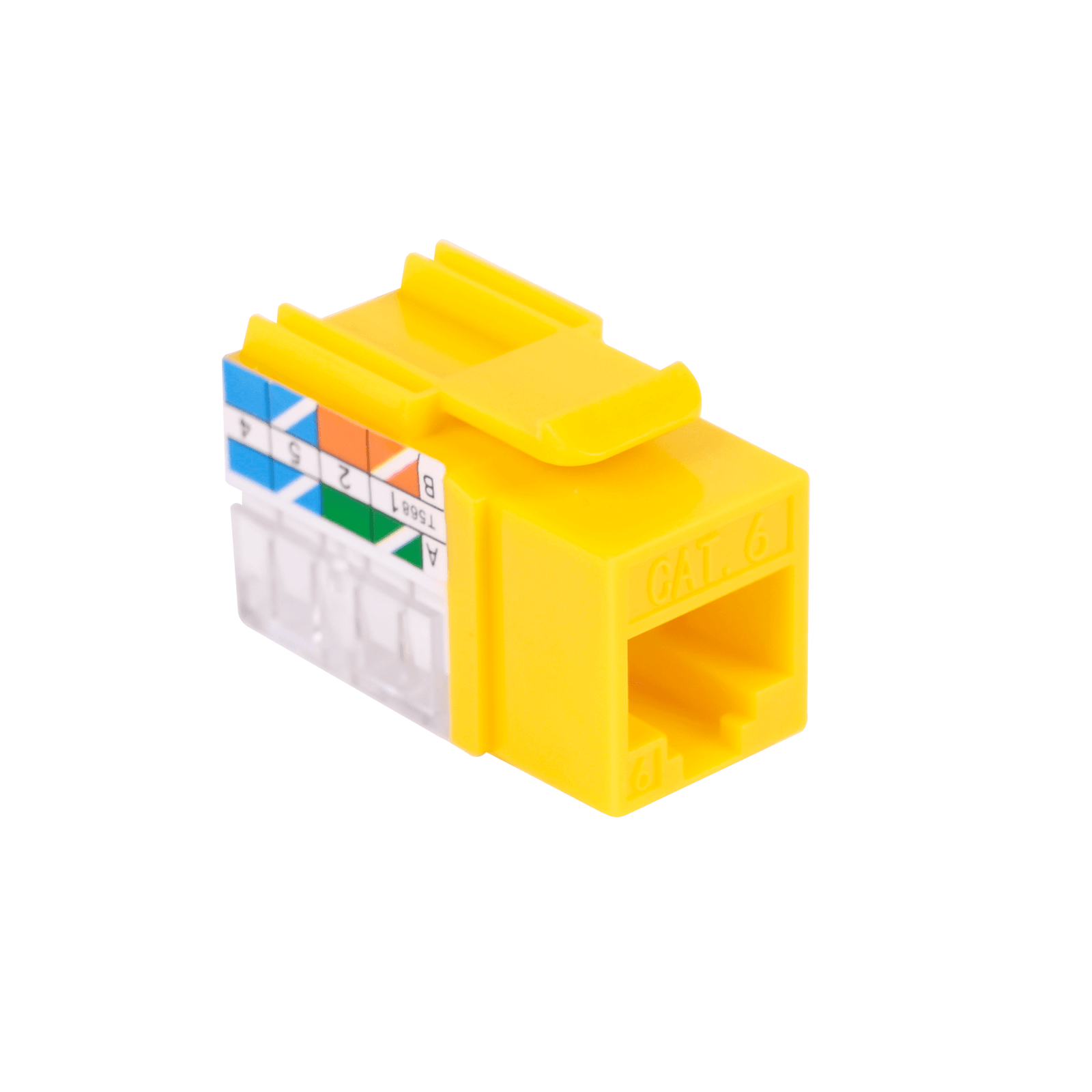

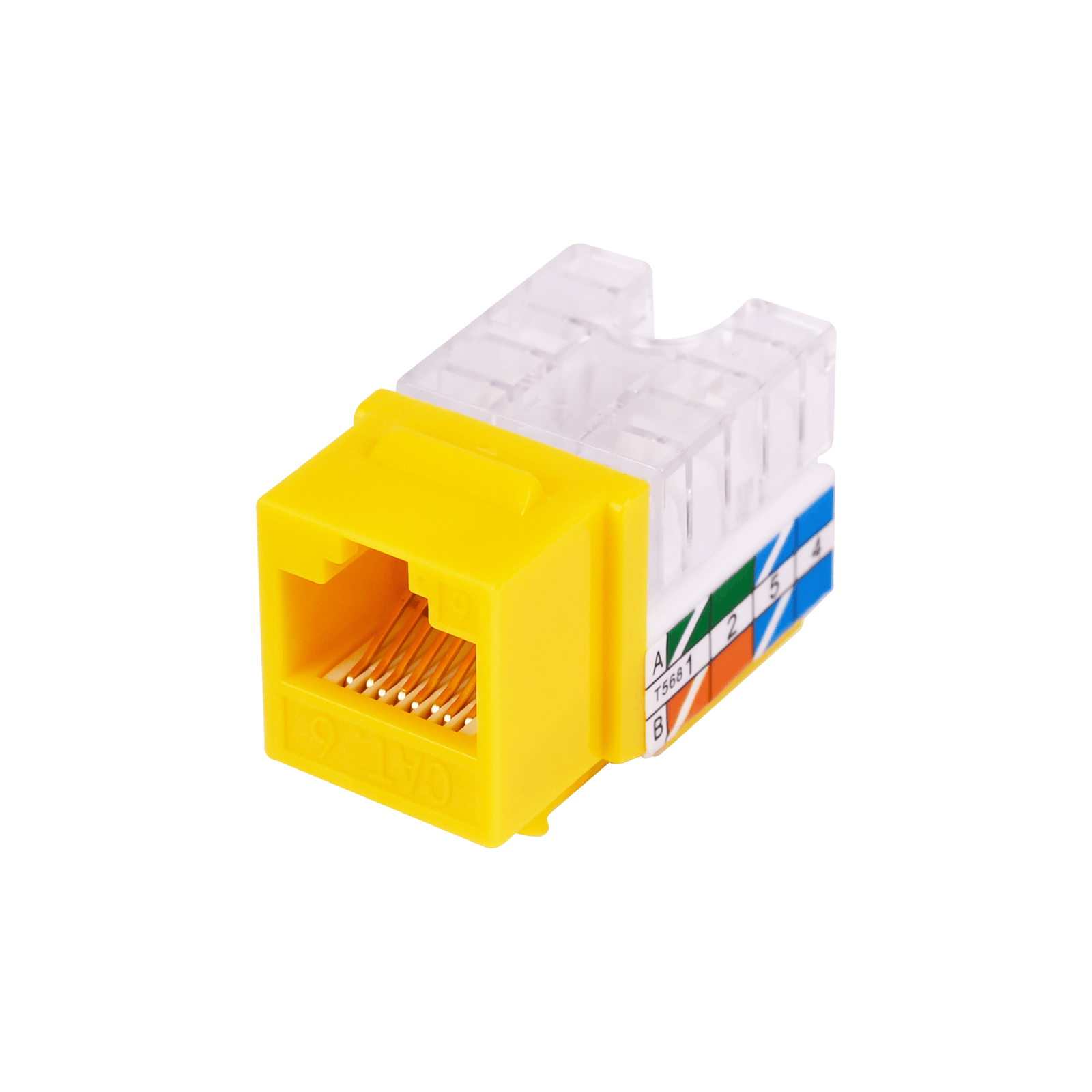

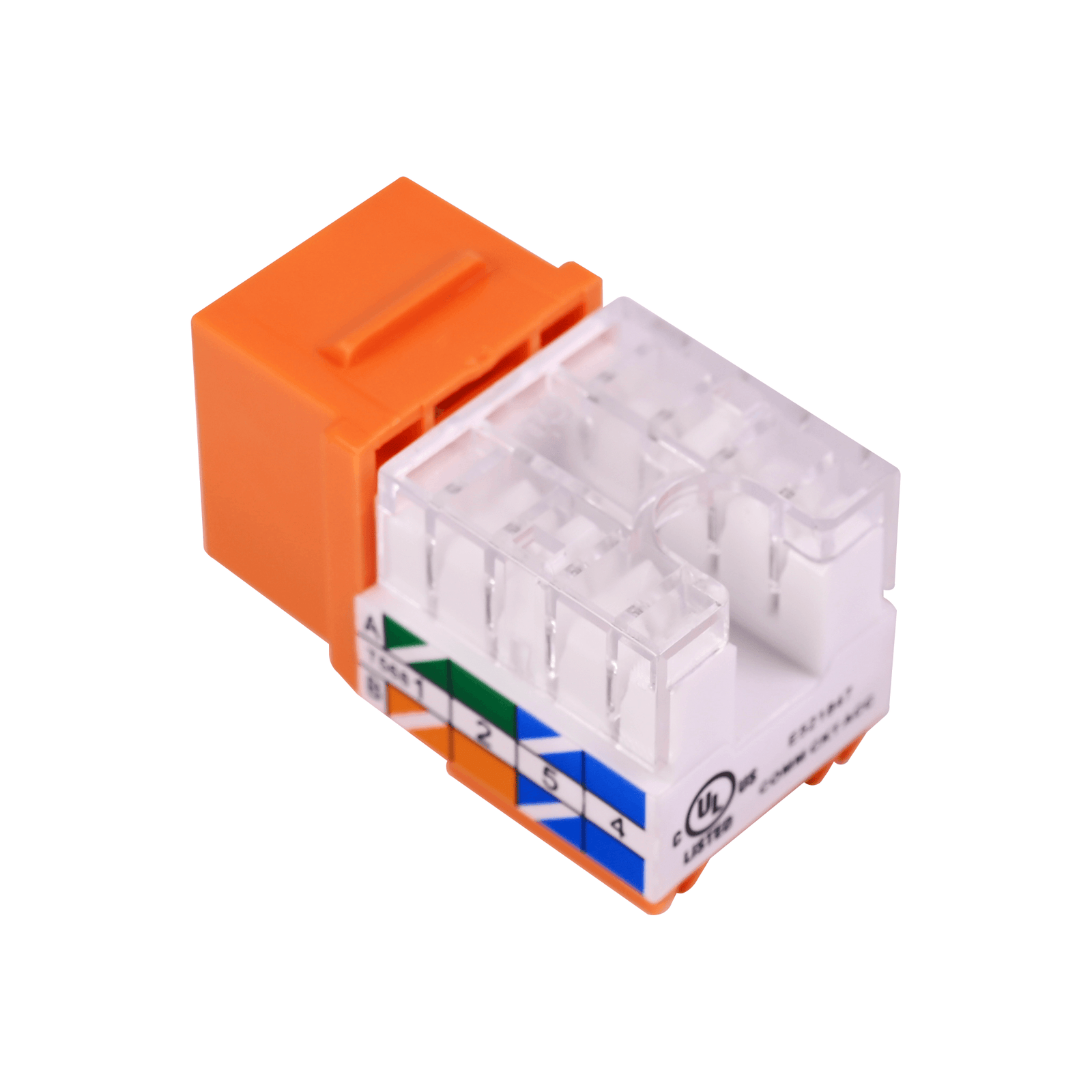

Color White/Blue/Black/Red/Yellow/Green/Orange

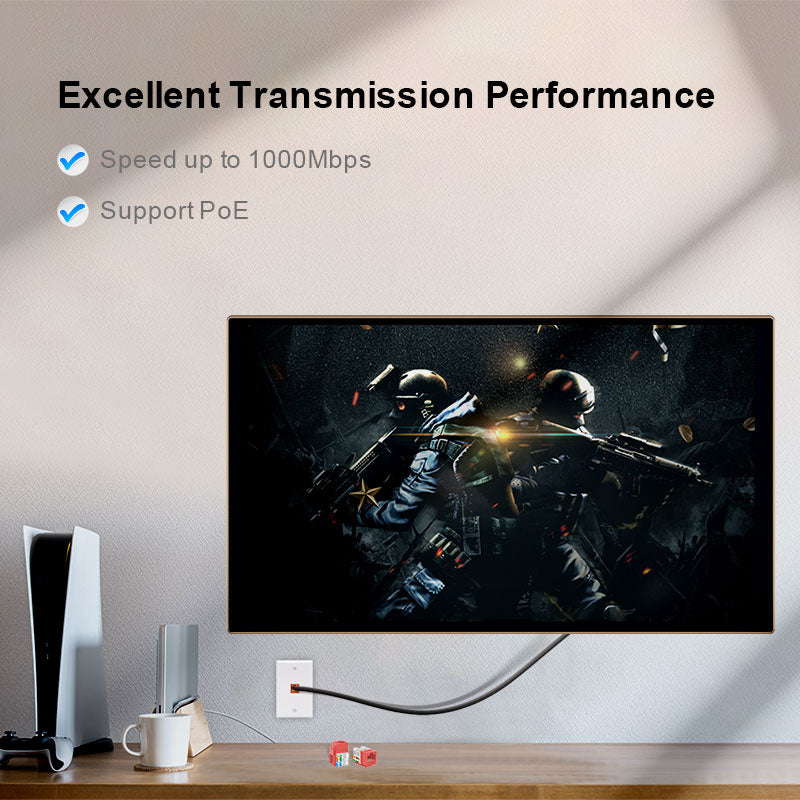

Data Rate Support 1,000 Mbps

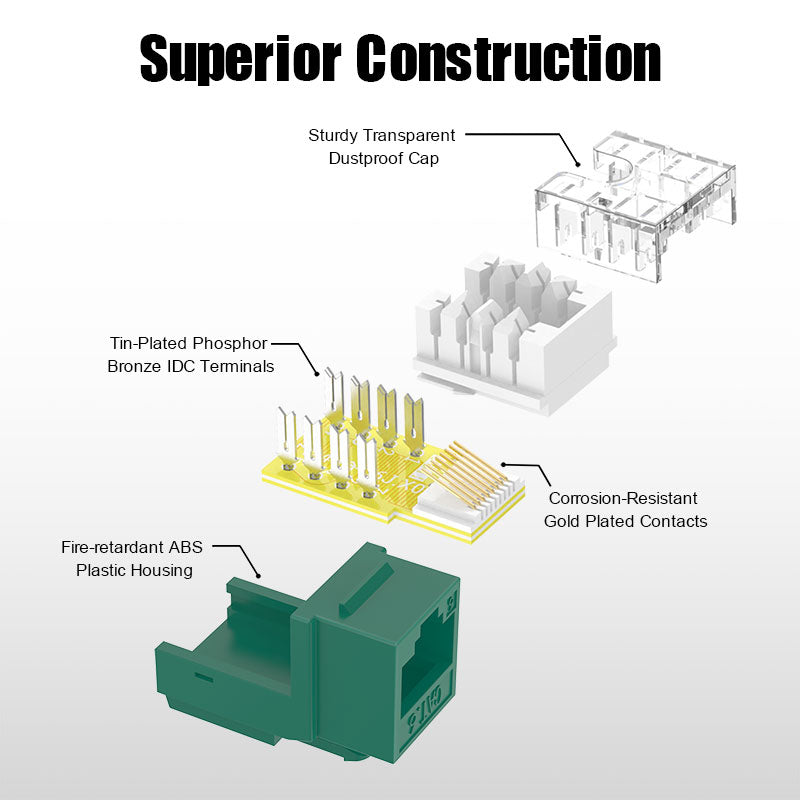

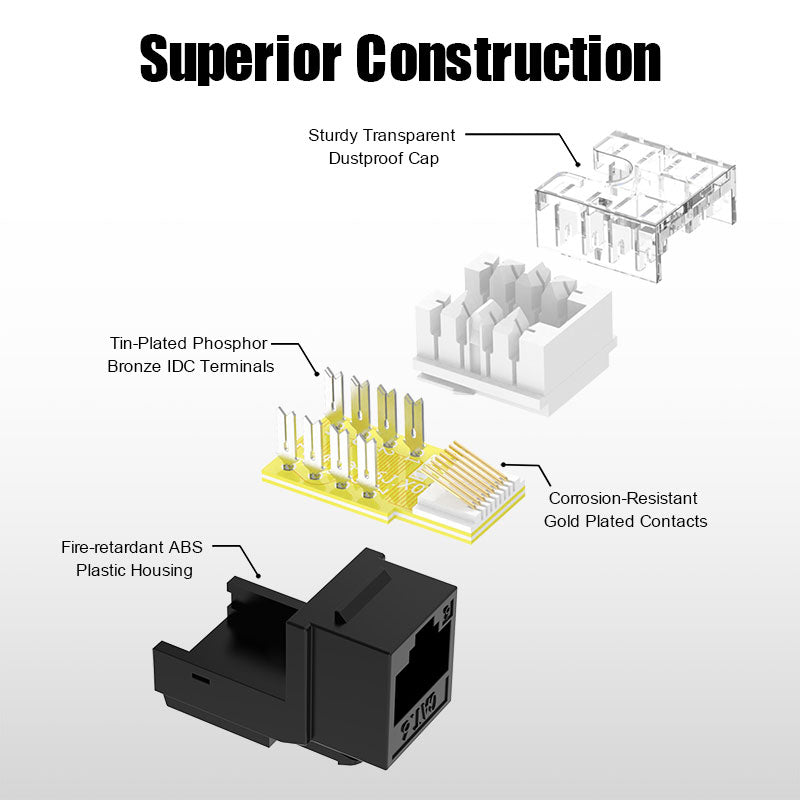

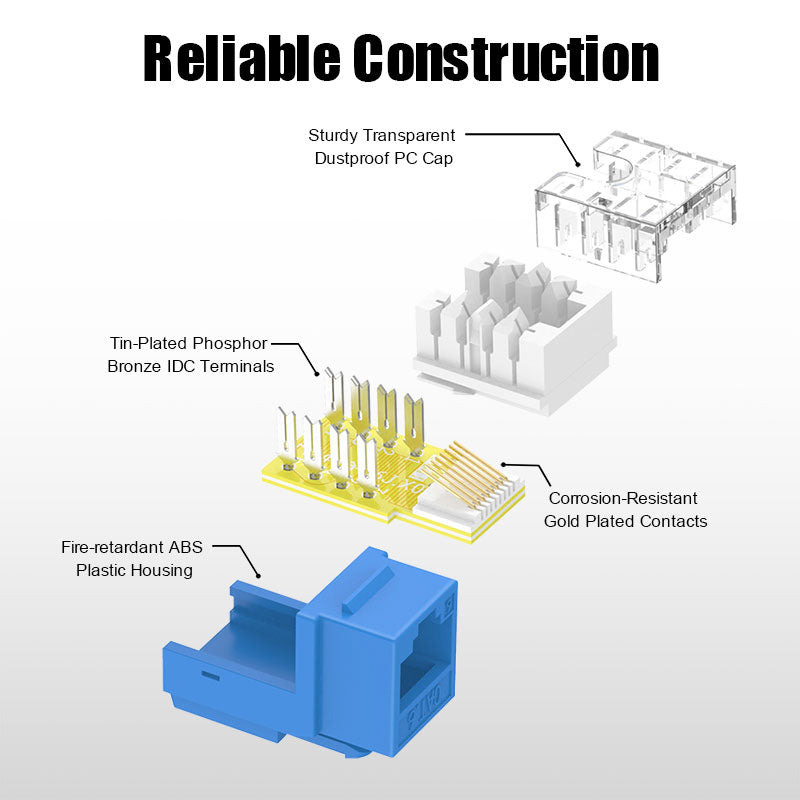

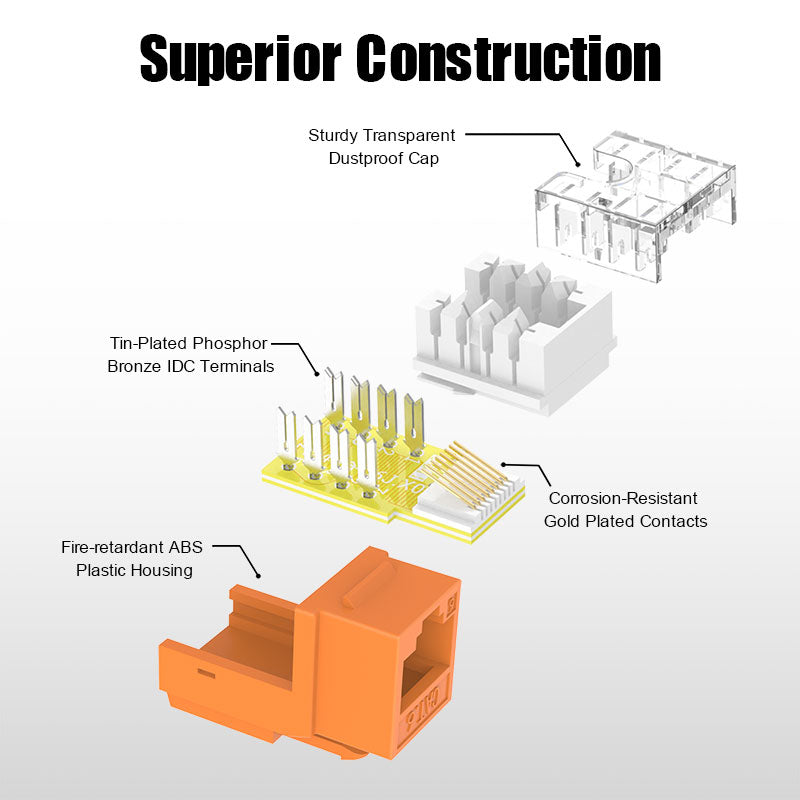

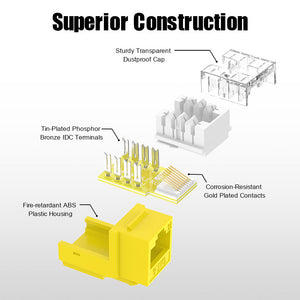

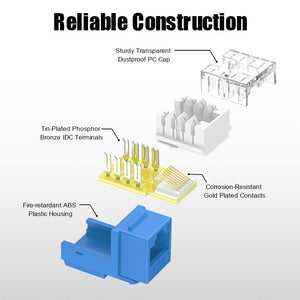

Housing Material ABS+PC
Contact Blade Material Phosphor Bronze, Nickel Plated
Contact Area Material Phosphor Bronze, Gold Plated
IDC Housing Material PC
IDC Terminal Material Phosphor Bronze, Tin Plated
IDC Cap Material PC
PCB Material FR4; Thickness: 1.6mm
Operating Temperature -10°C ~ 60°C
Mating Cycles 750 Cycles MIN.
Usage Stranded Wires or Solid Wires 22 AWG to 26 AWG


Exceptional Performance and Compatibility

Compliant with ISO11801/TIA/EIA 568-C standards, our Ethernet keystone jack delivers high-performance transmission speed, signal quality, and reliability. Gold-plated contacts are designed for stable and reliable data transmission.

Easy Installation

-The 90-degree style makes it a breeze to install for both professional technicians and everyday users;

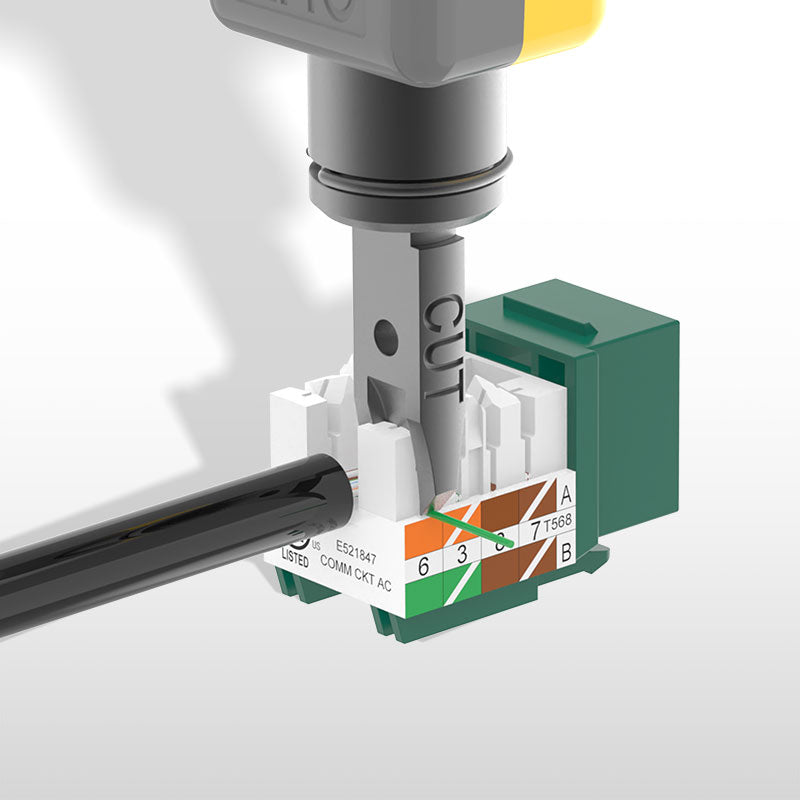

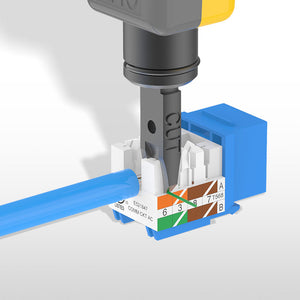

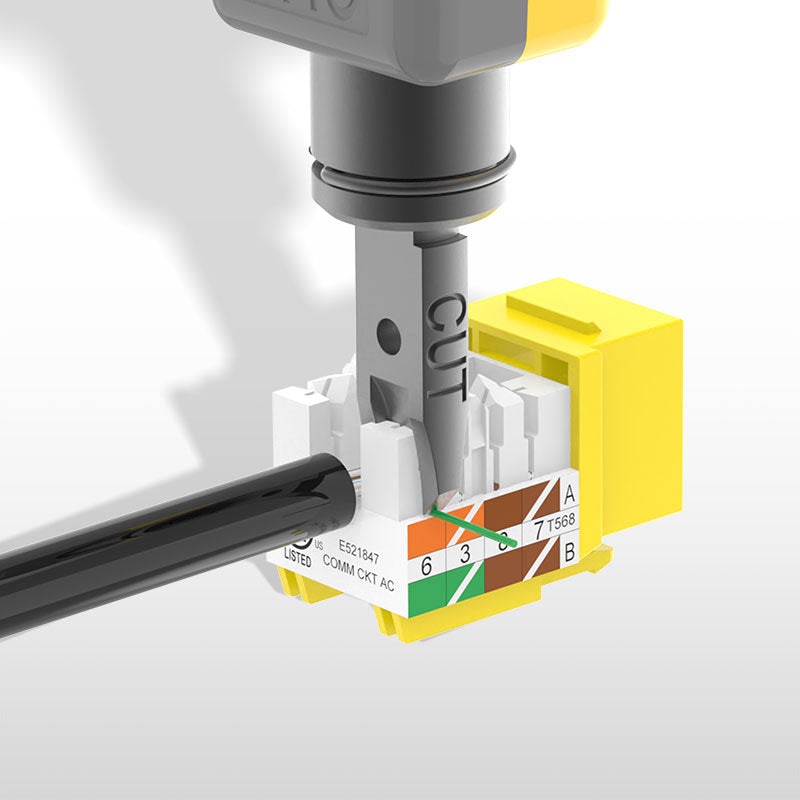

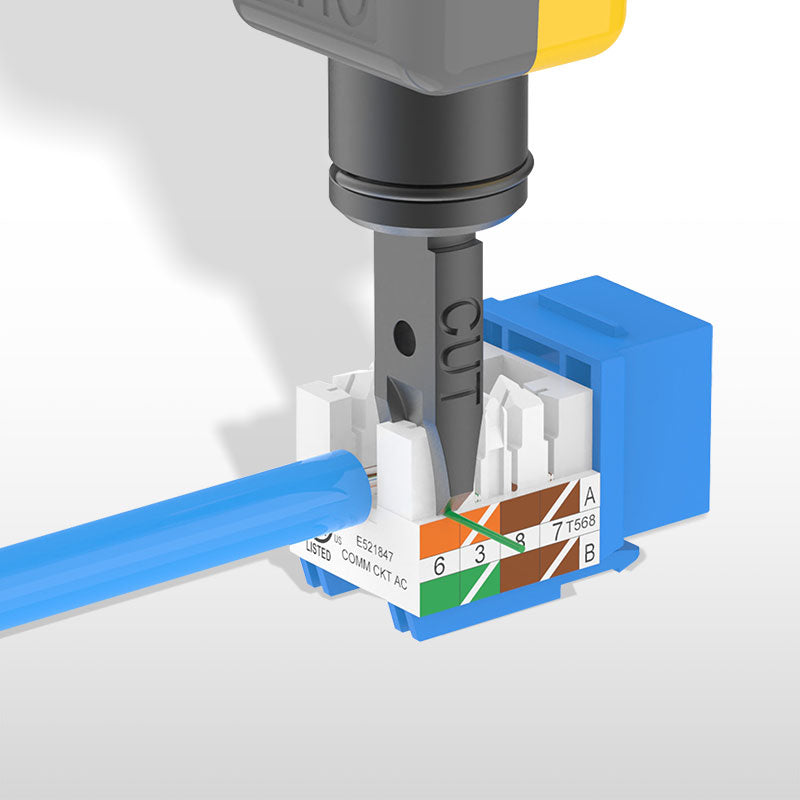

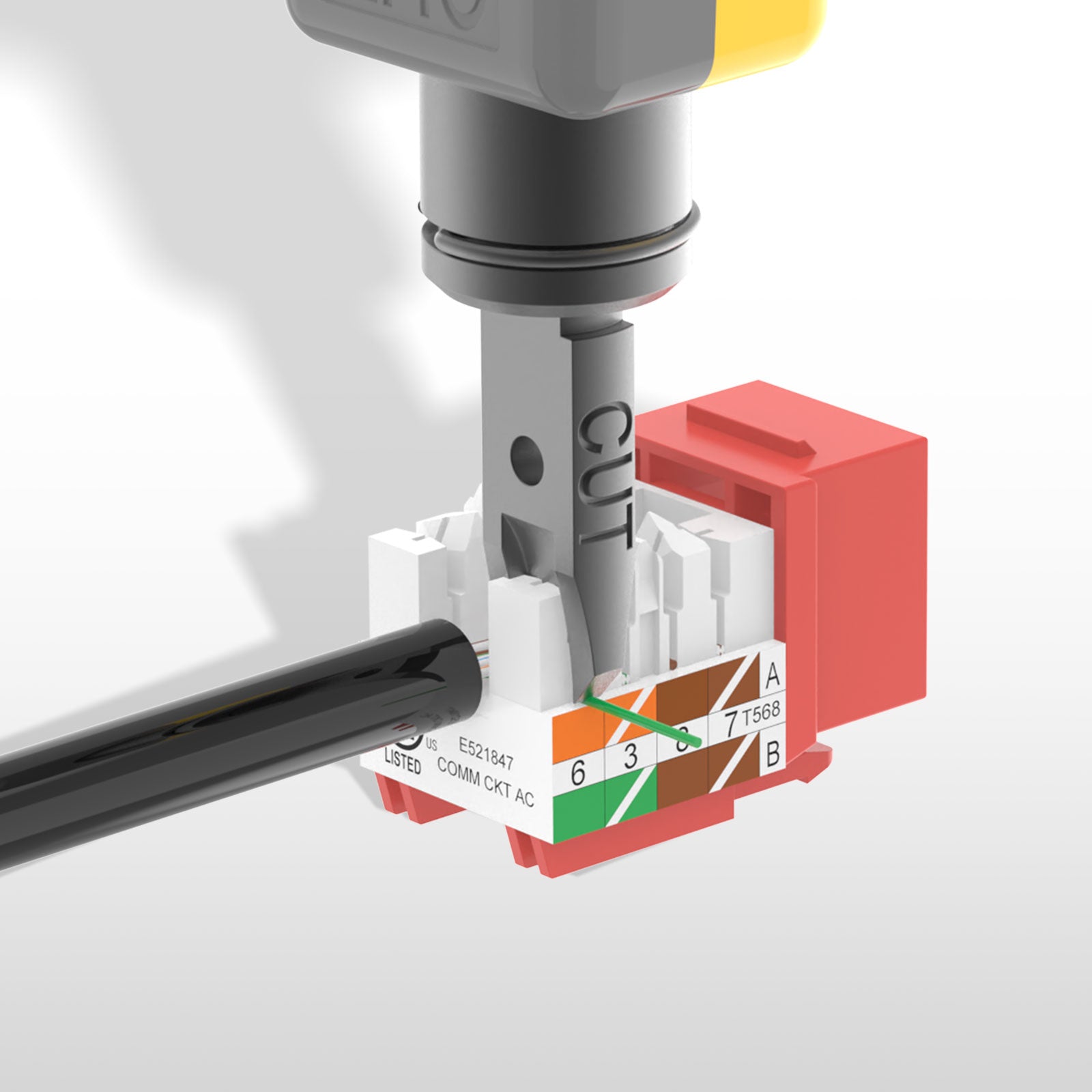

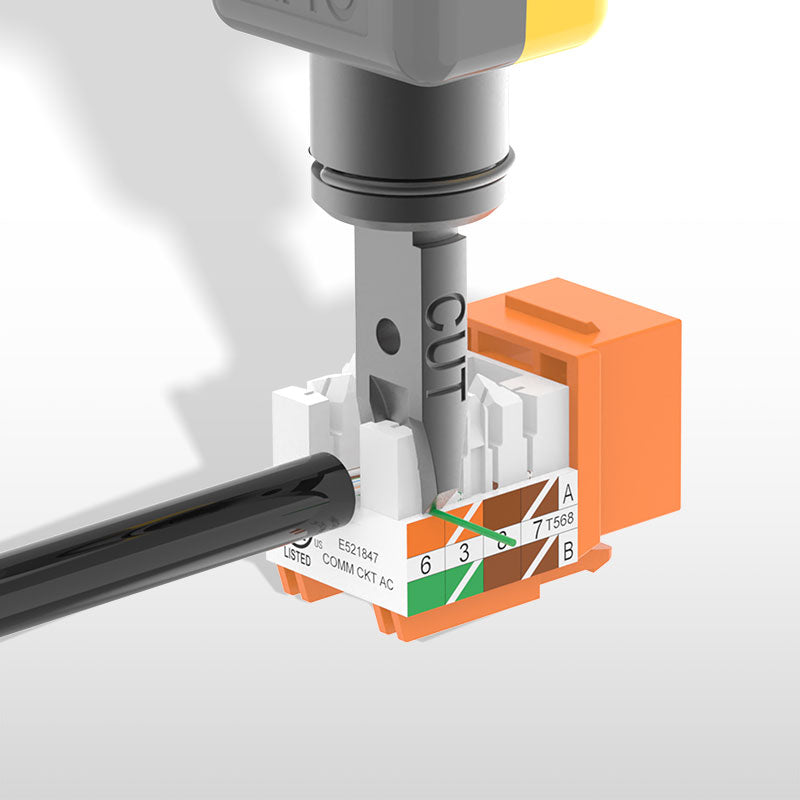

-Fast installation with our special punch down tool;

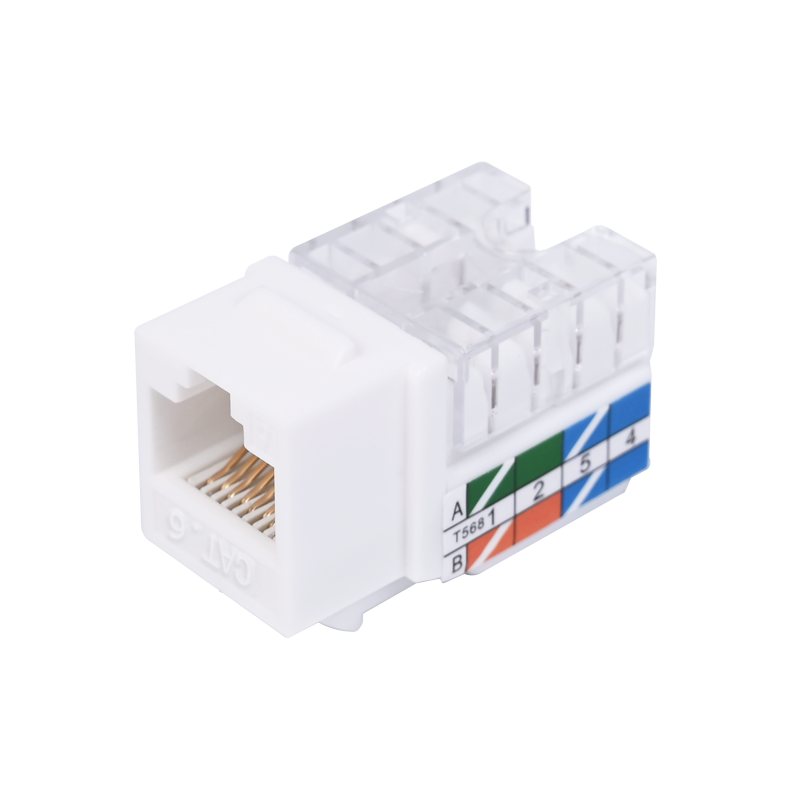

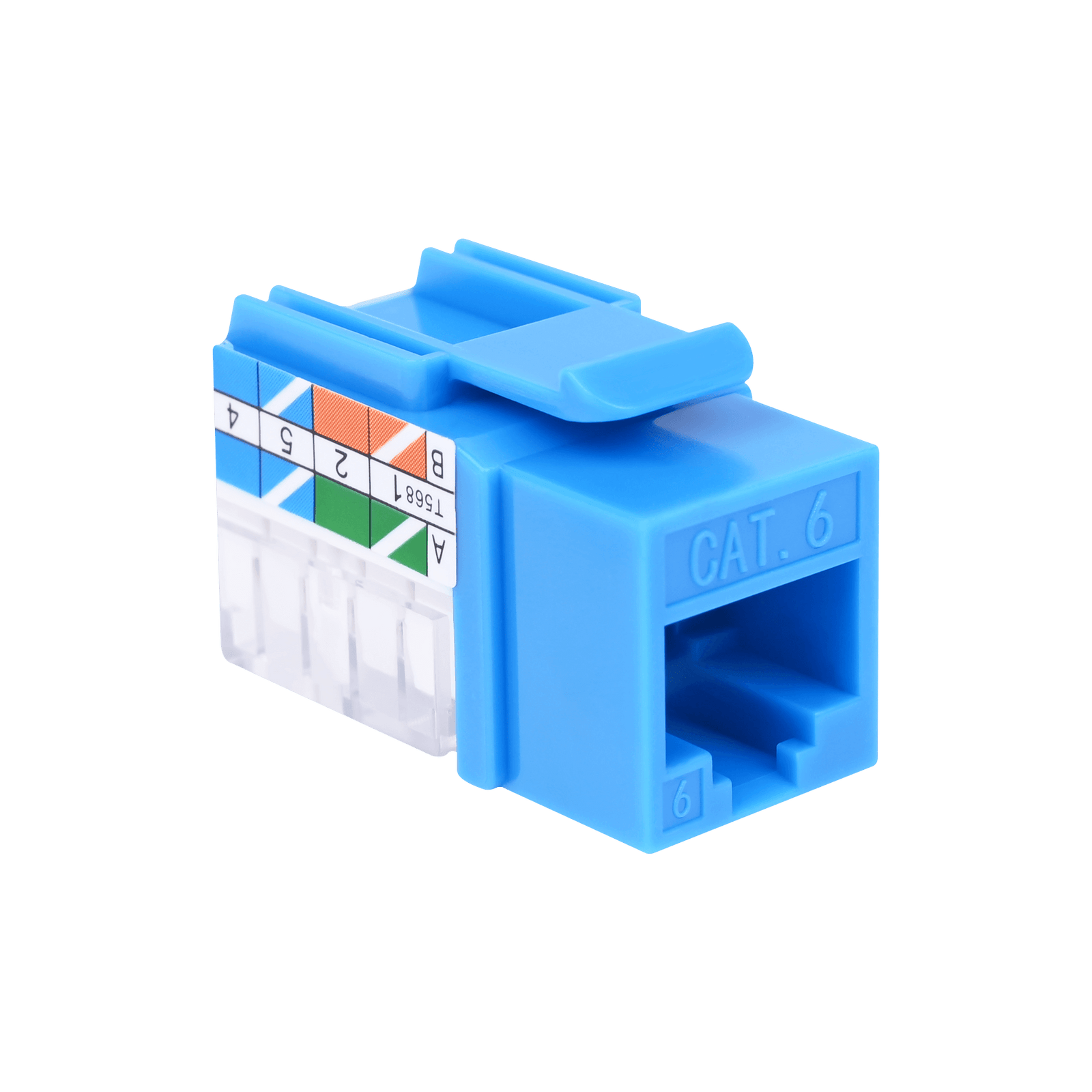

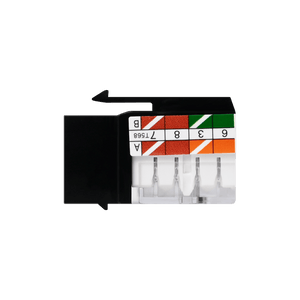

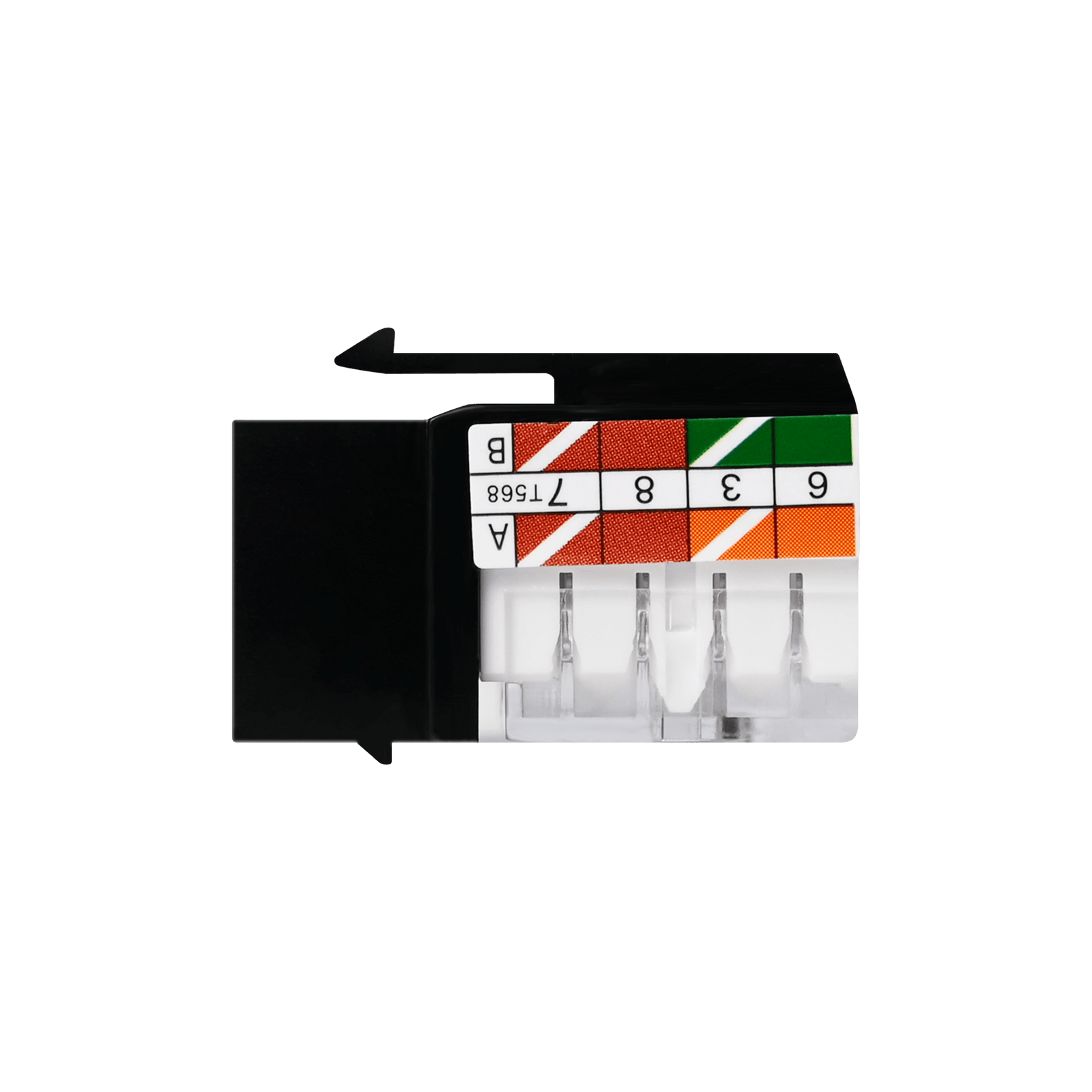

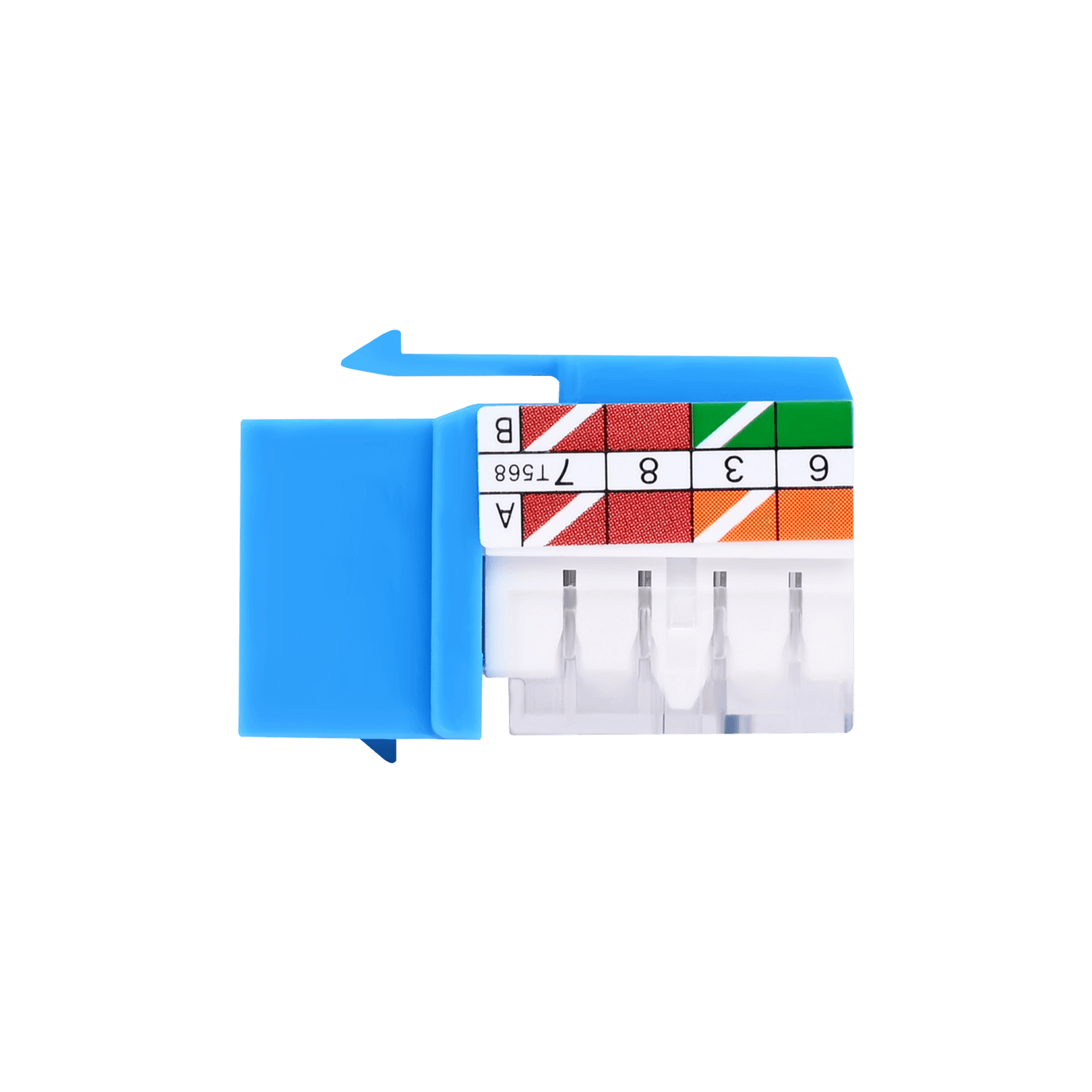

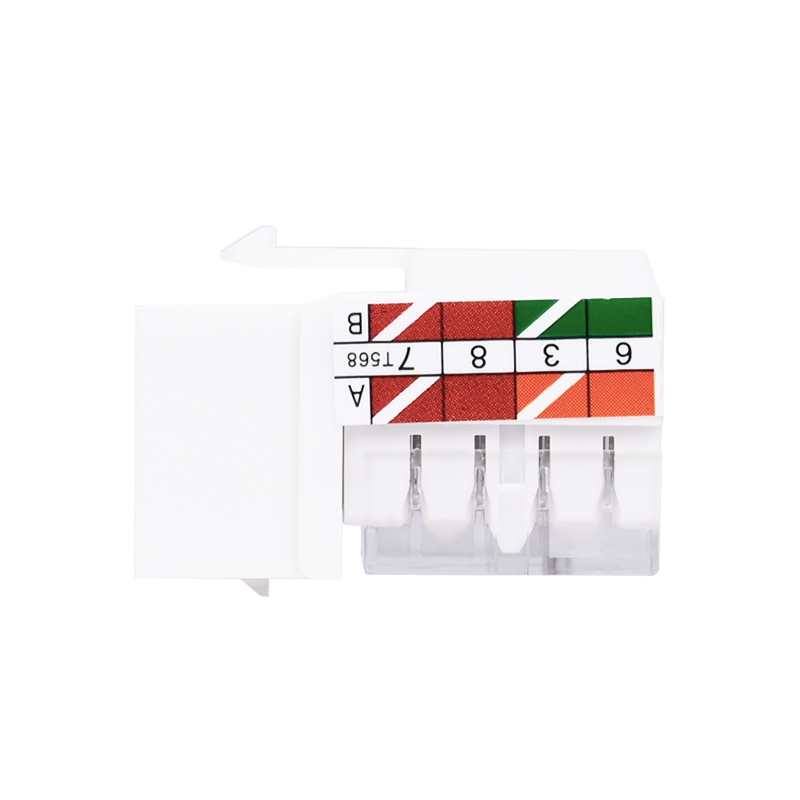

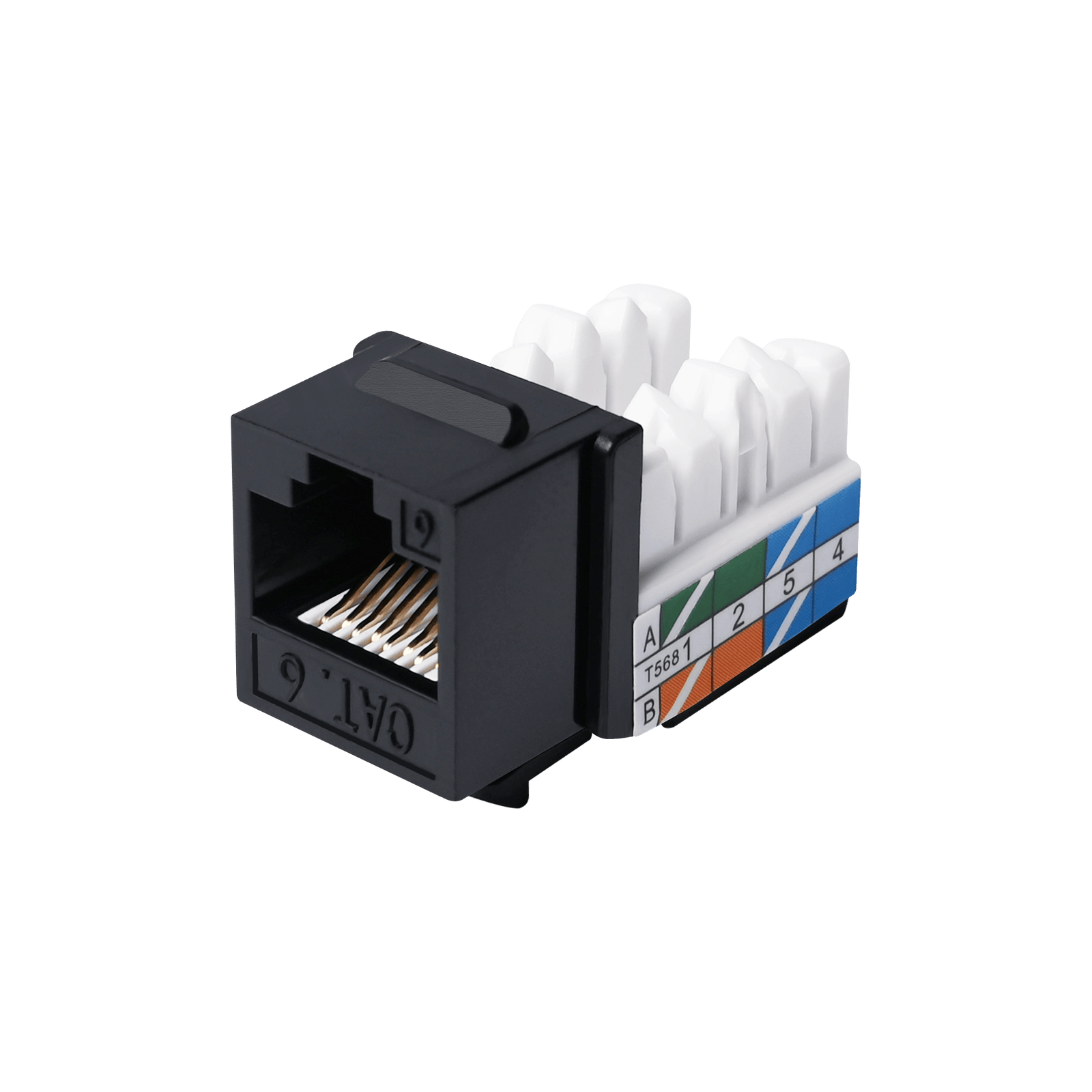

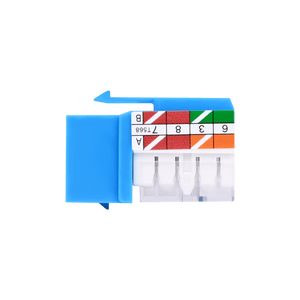

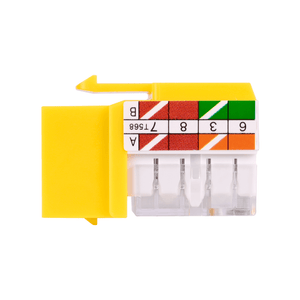

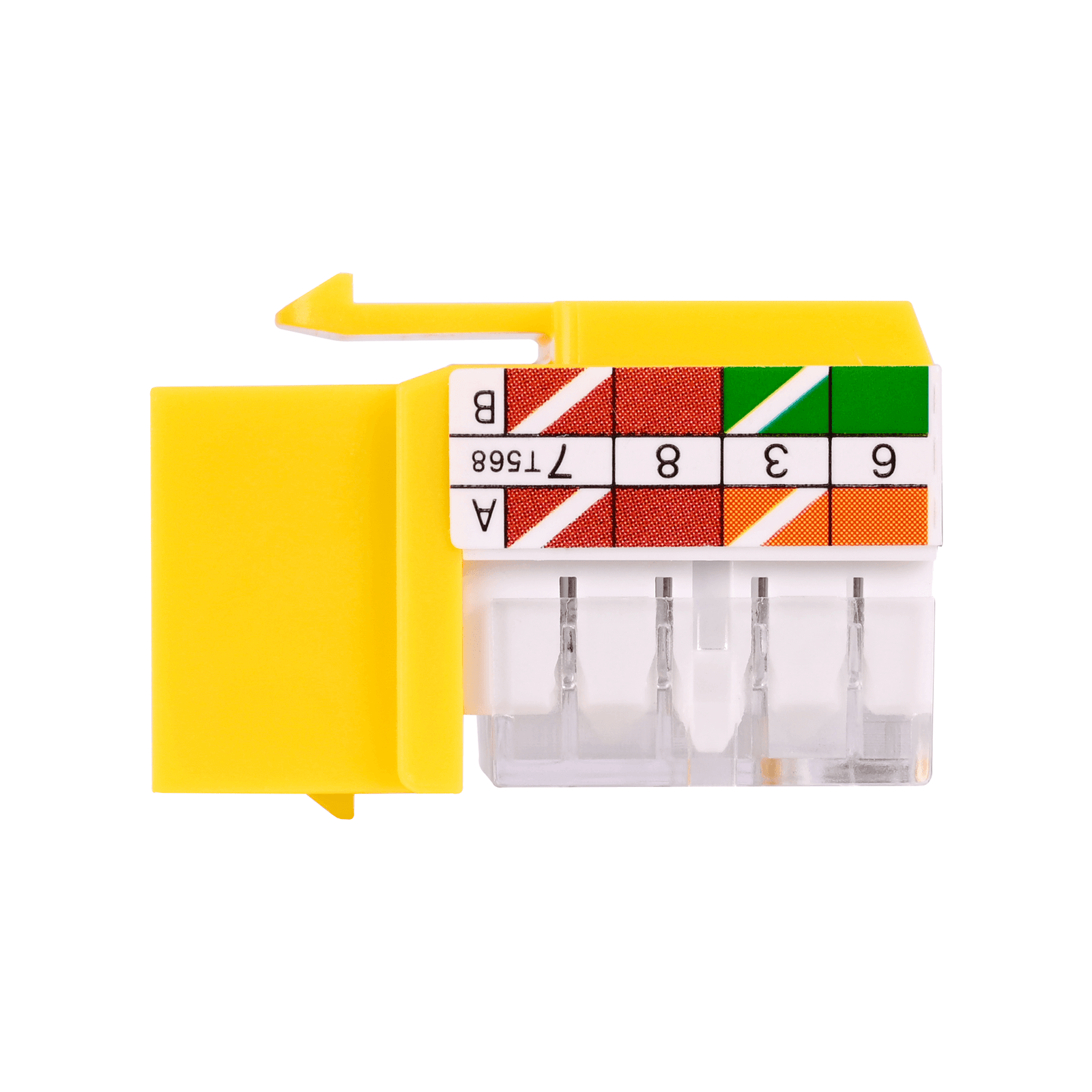

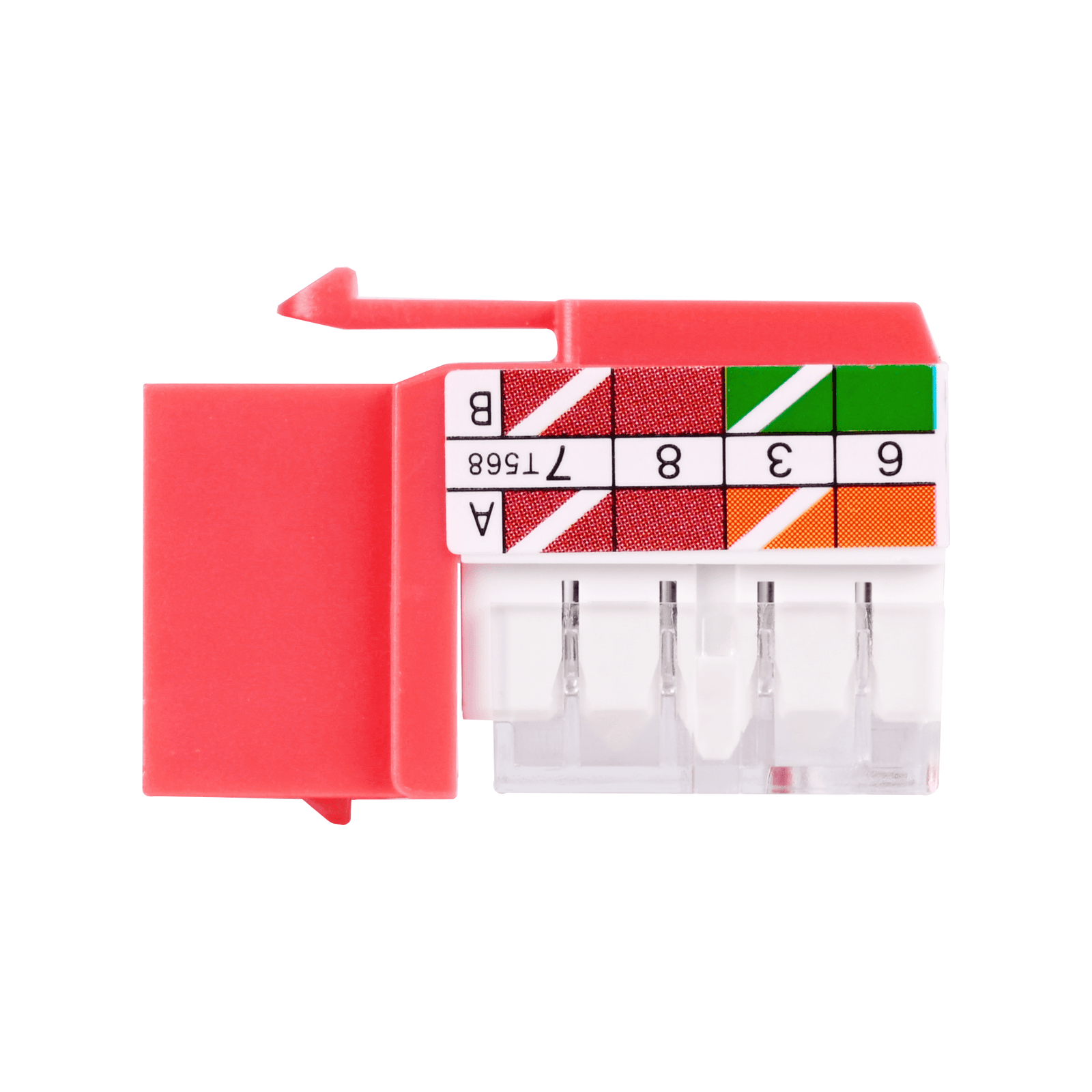

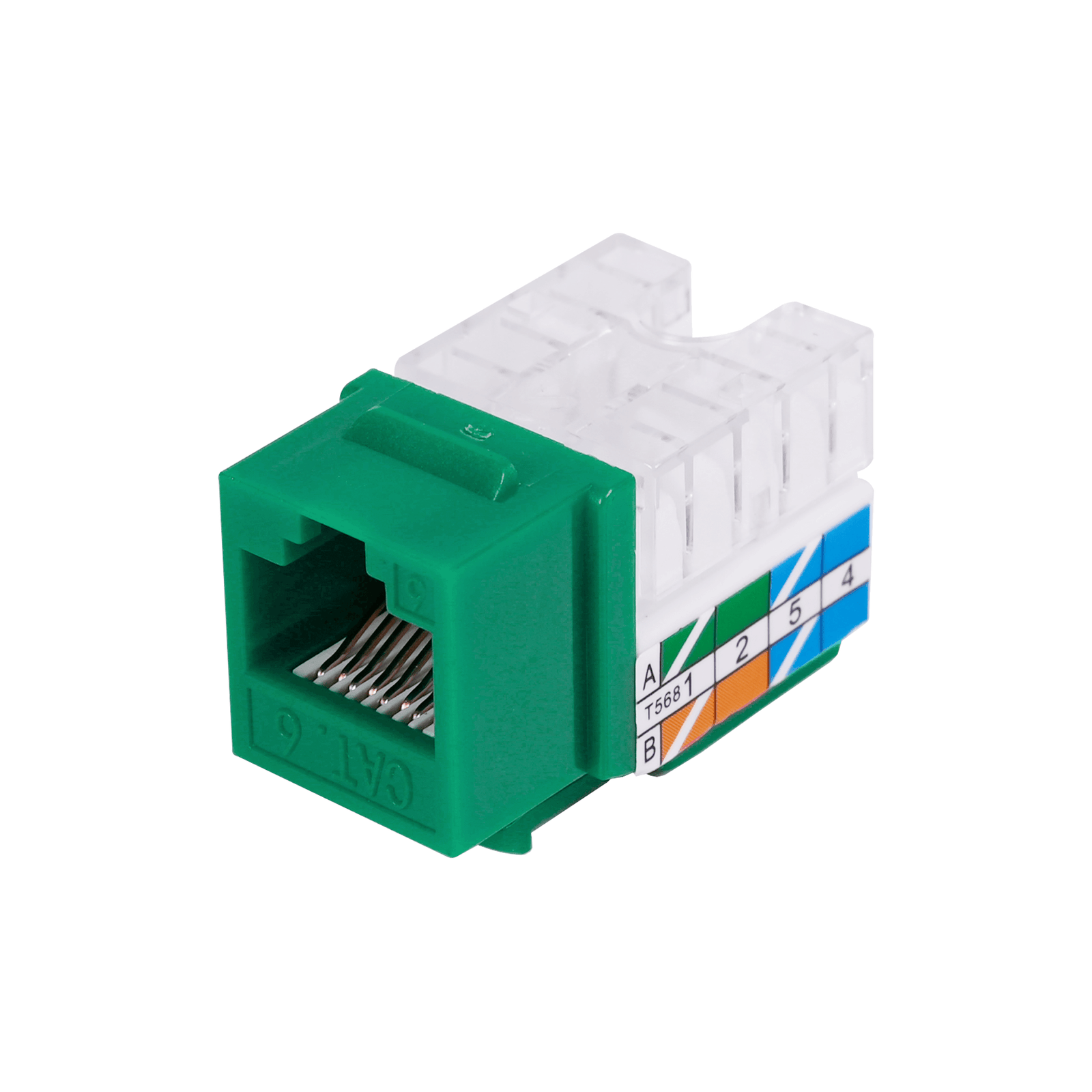

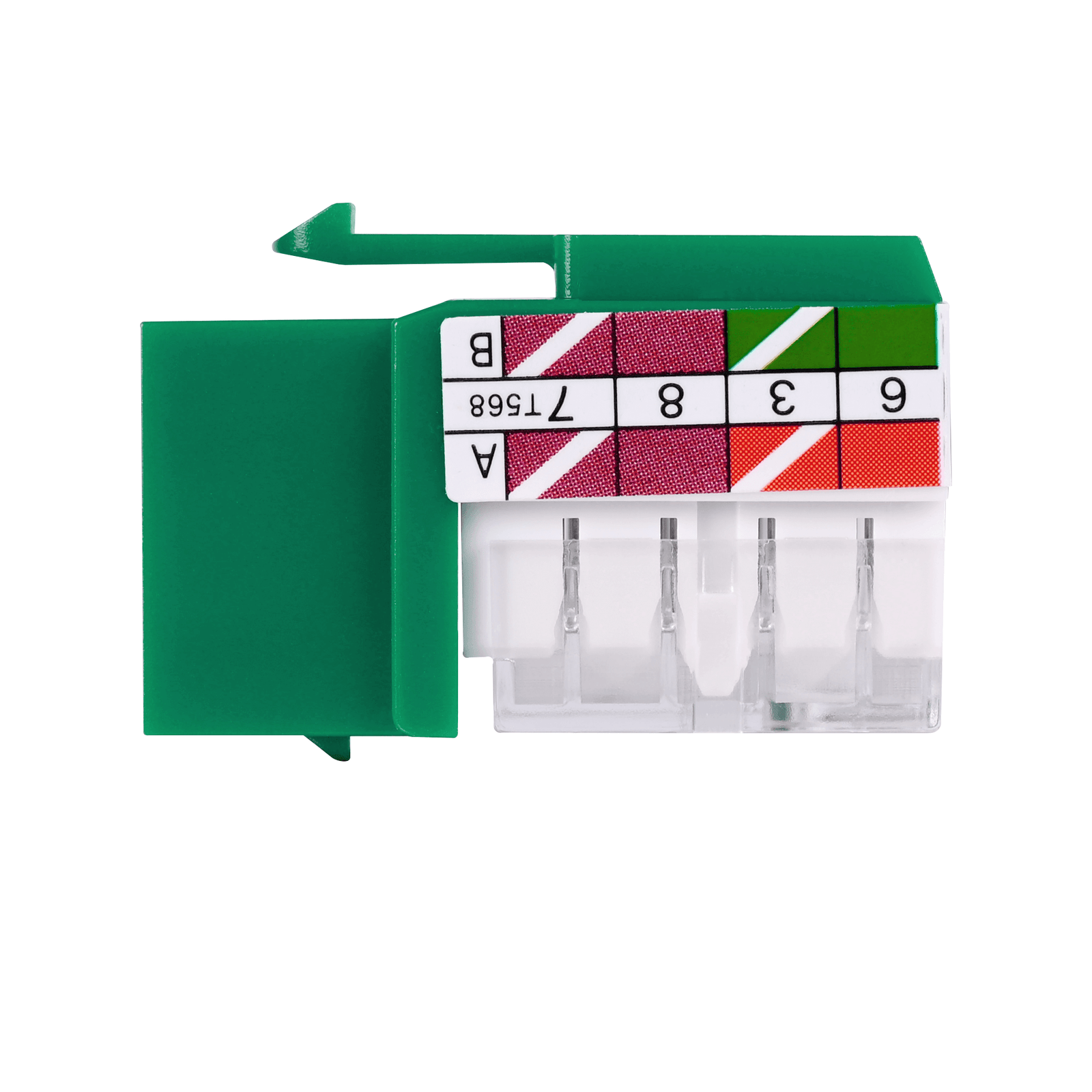

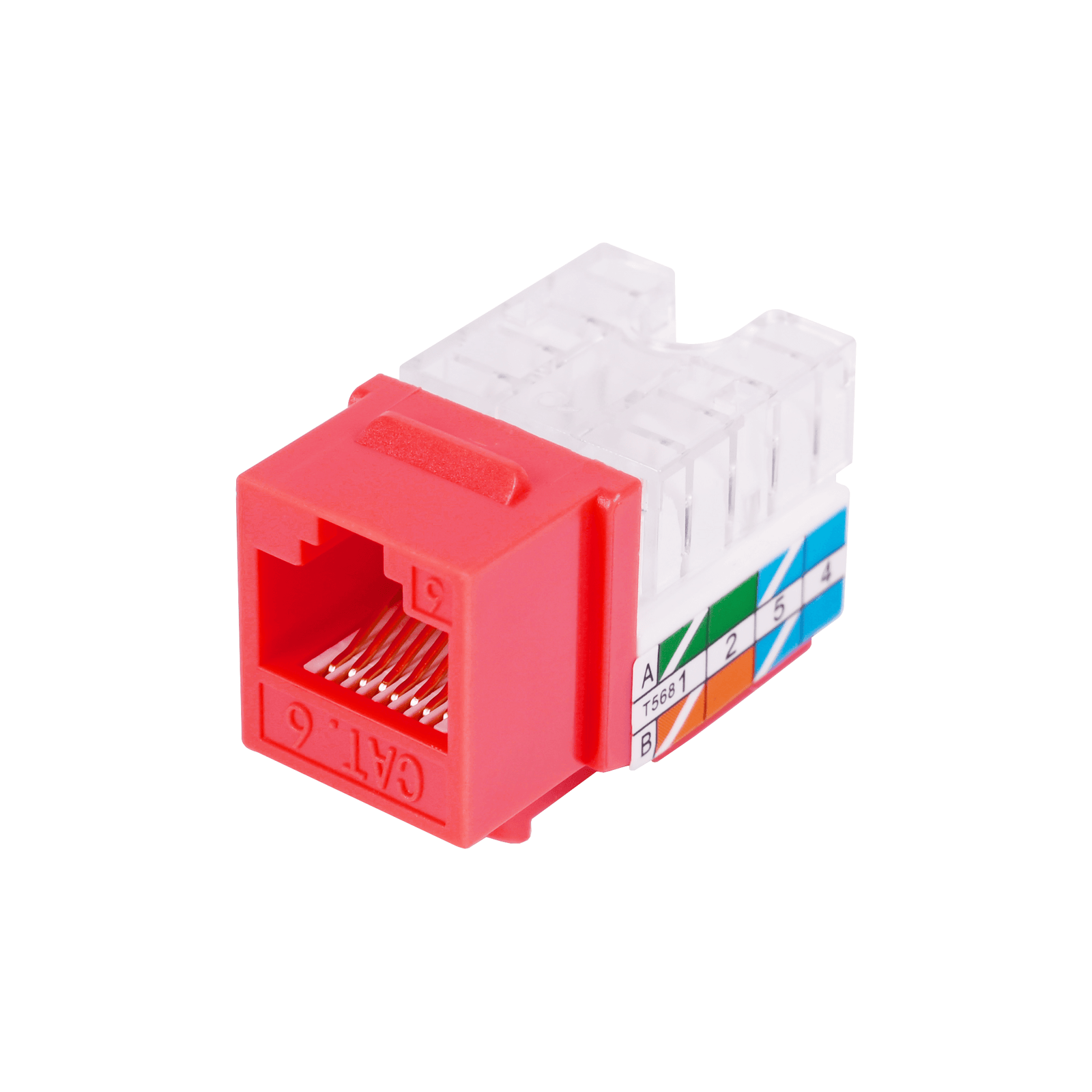

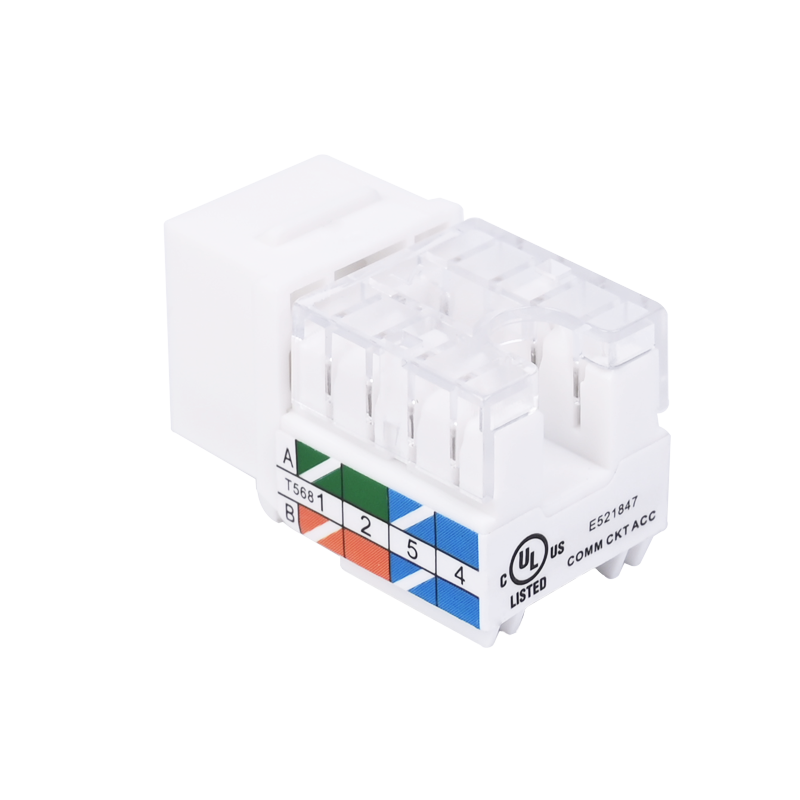

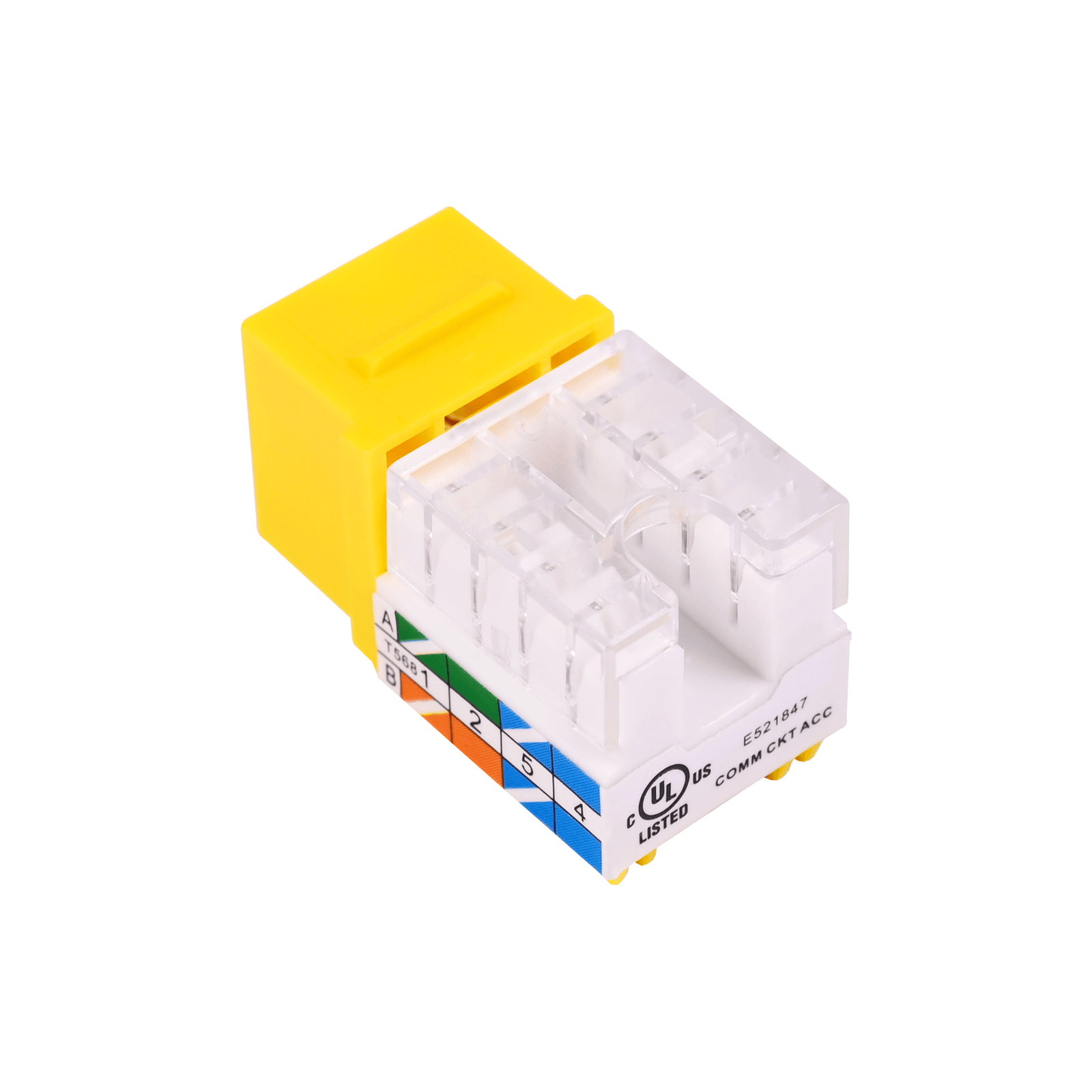

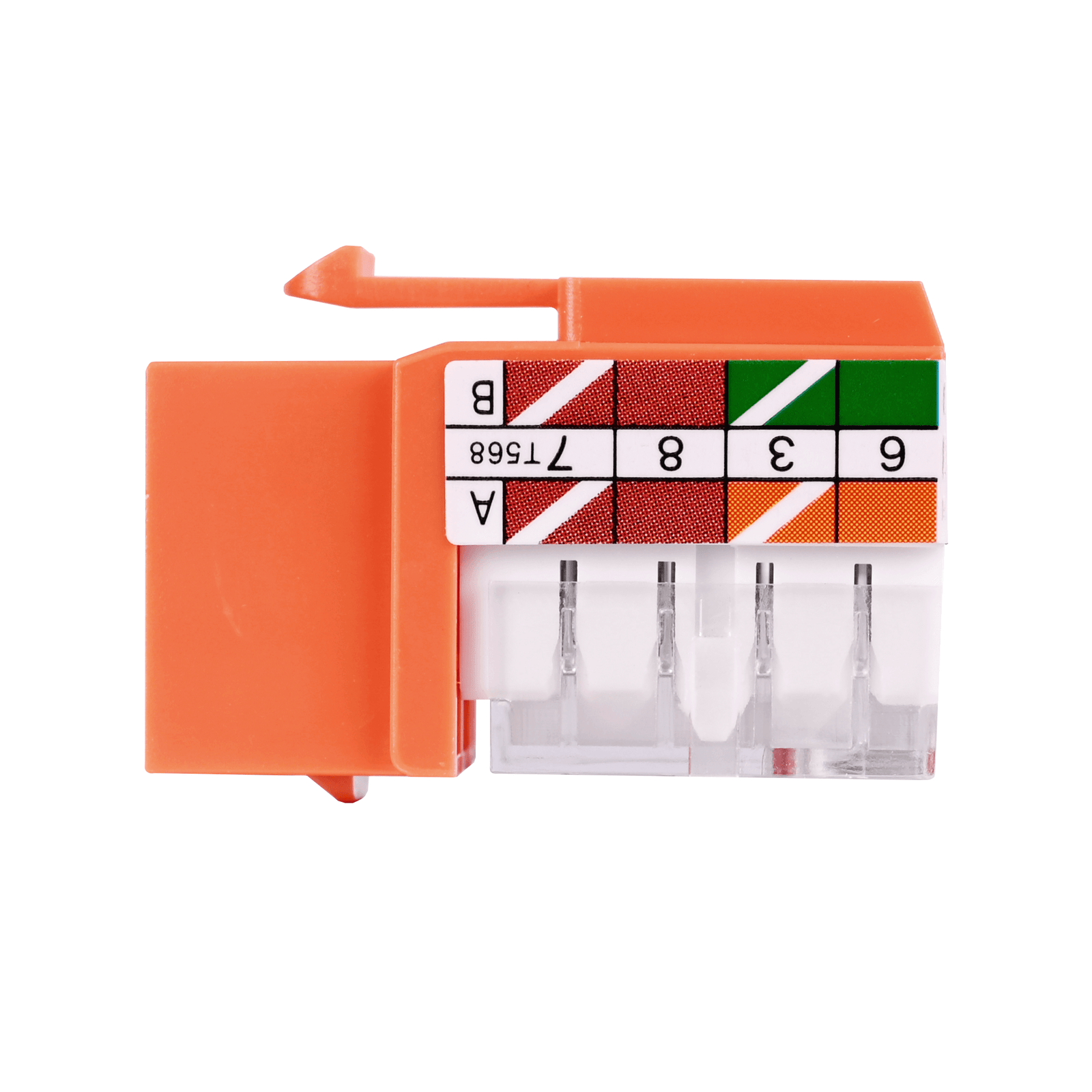

-Designed with dual-color labeling for T568A and T568B wiring diagram;

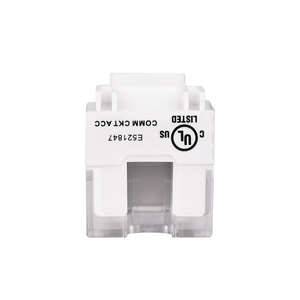

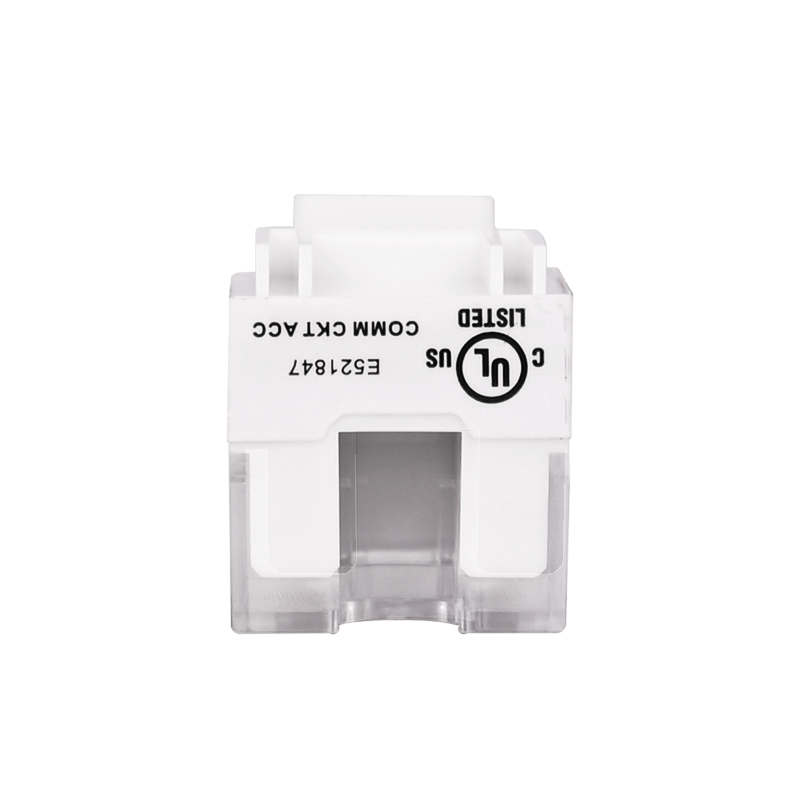

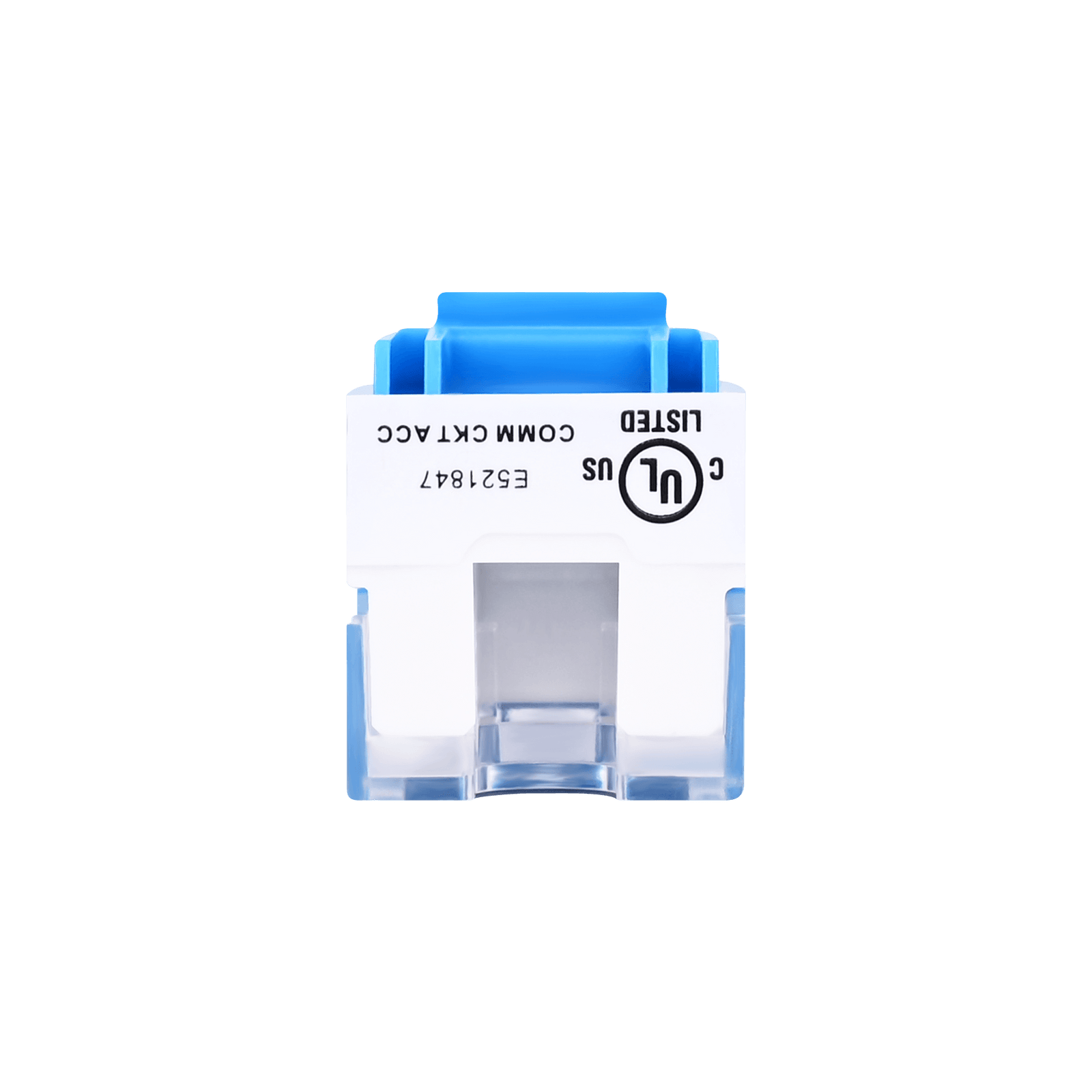

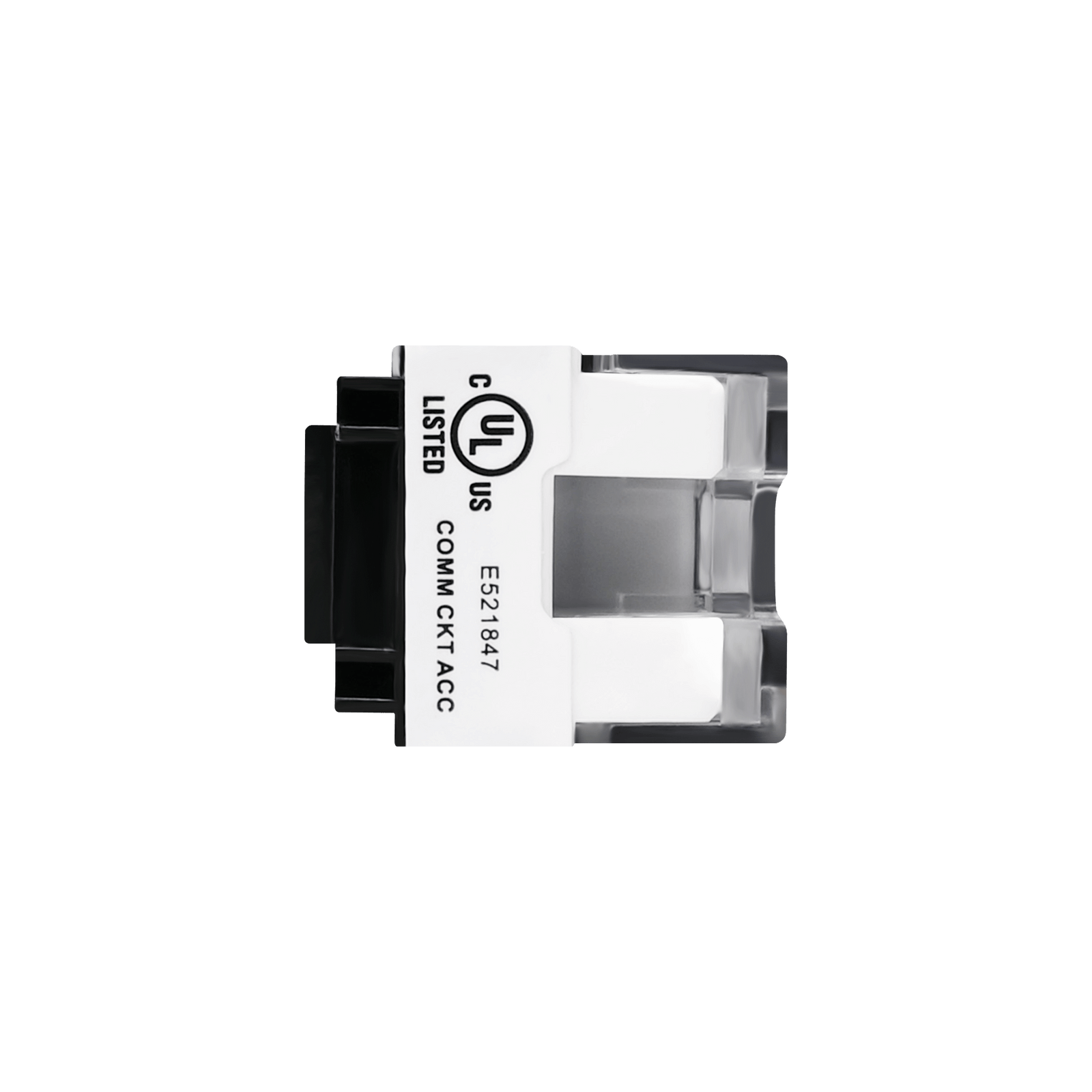

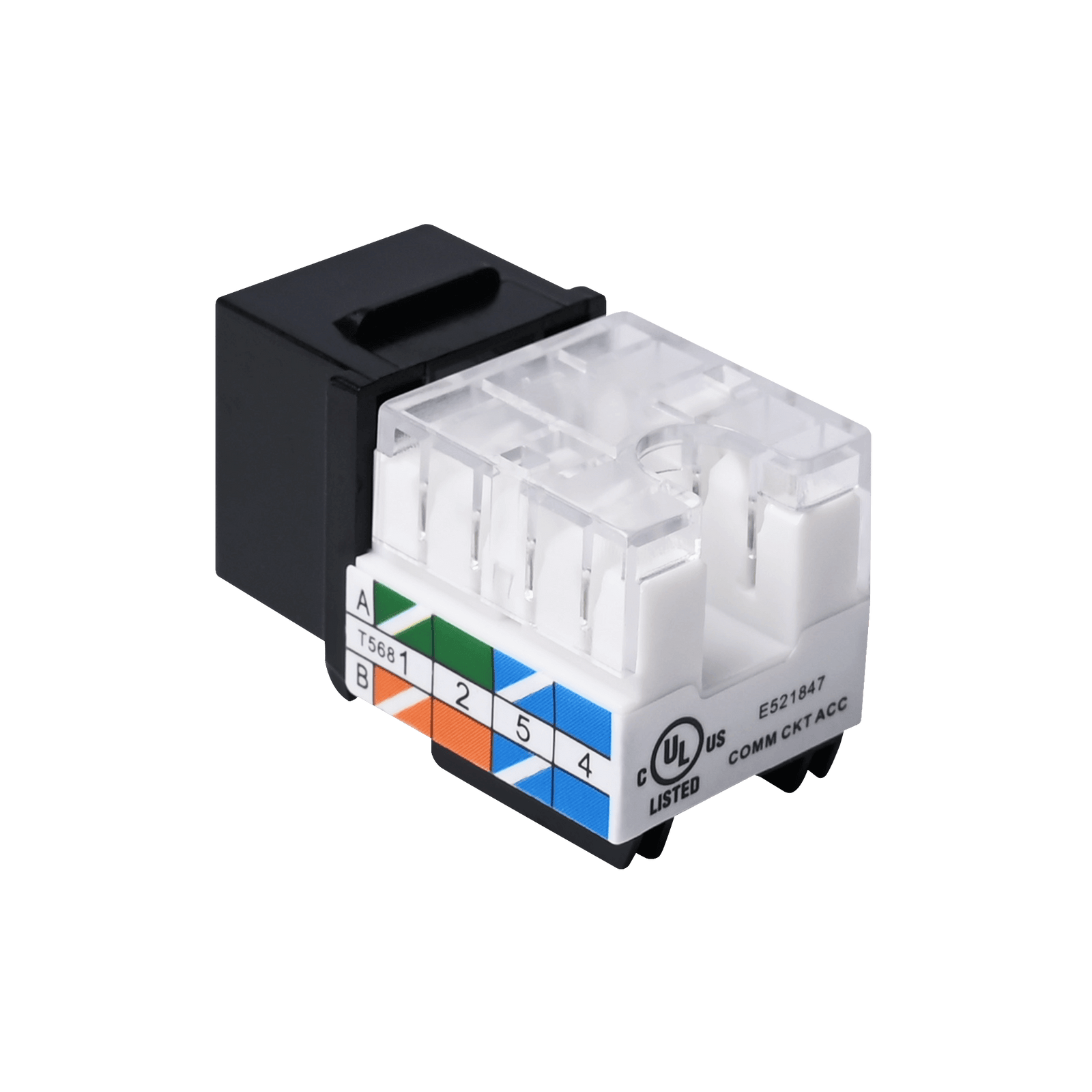

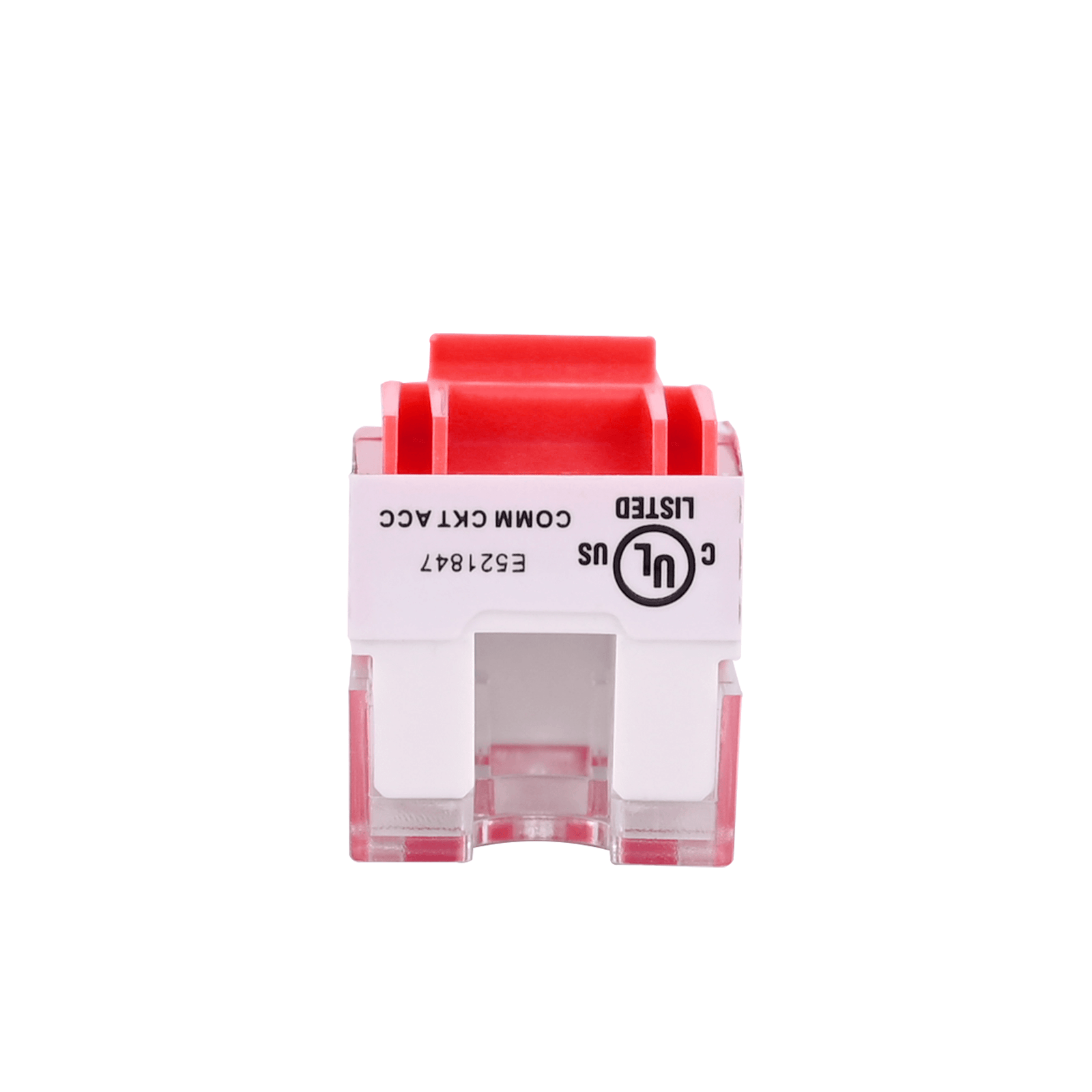

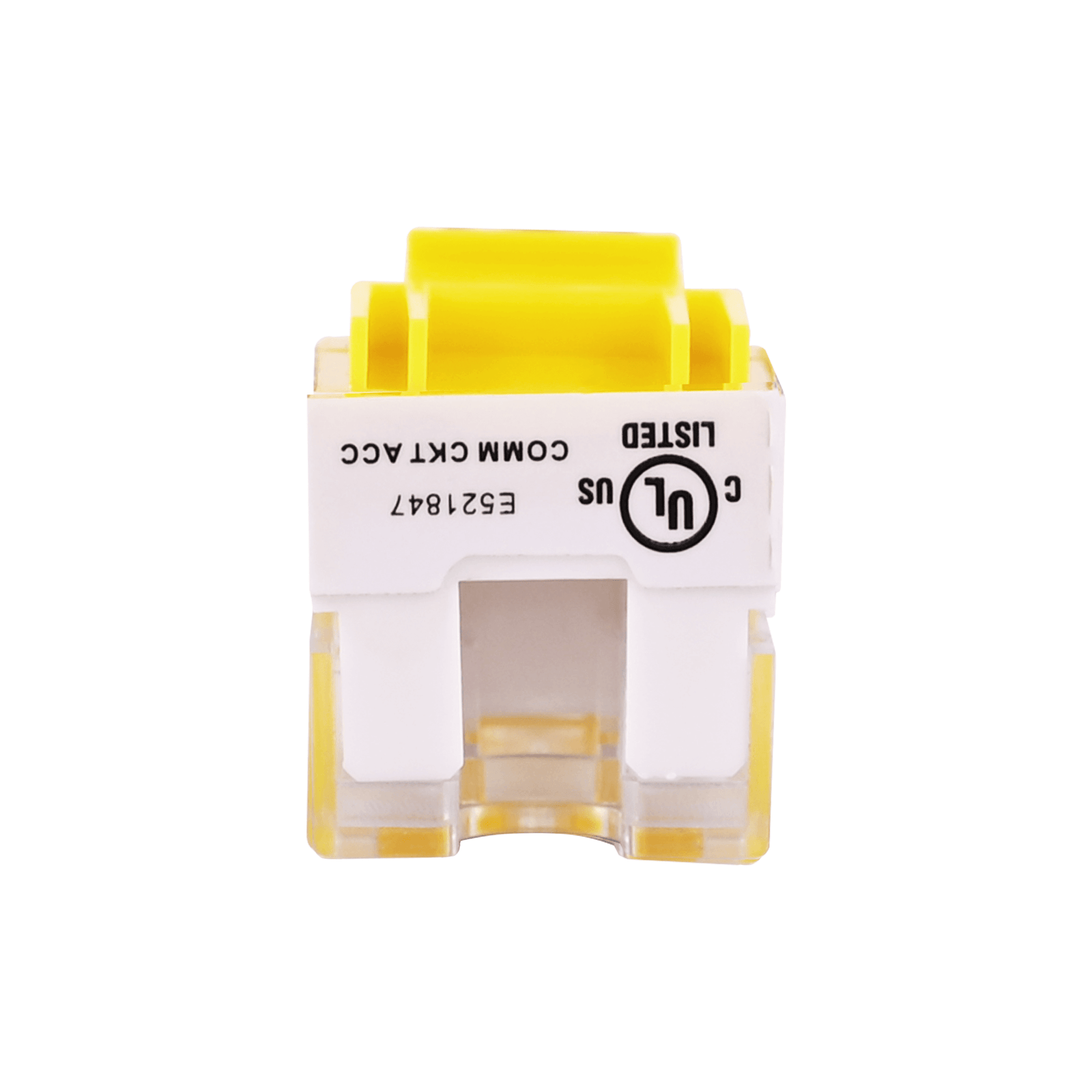

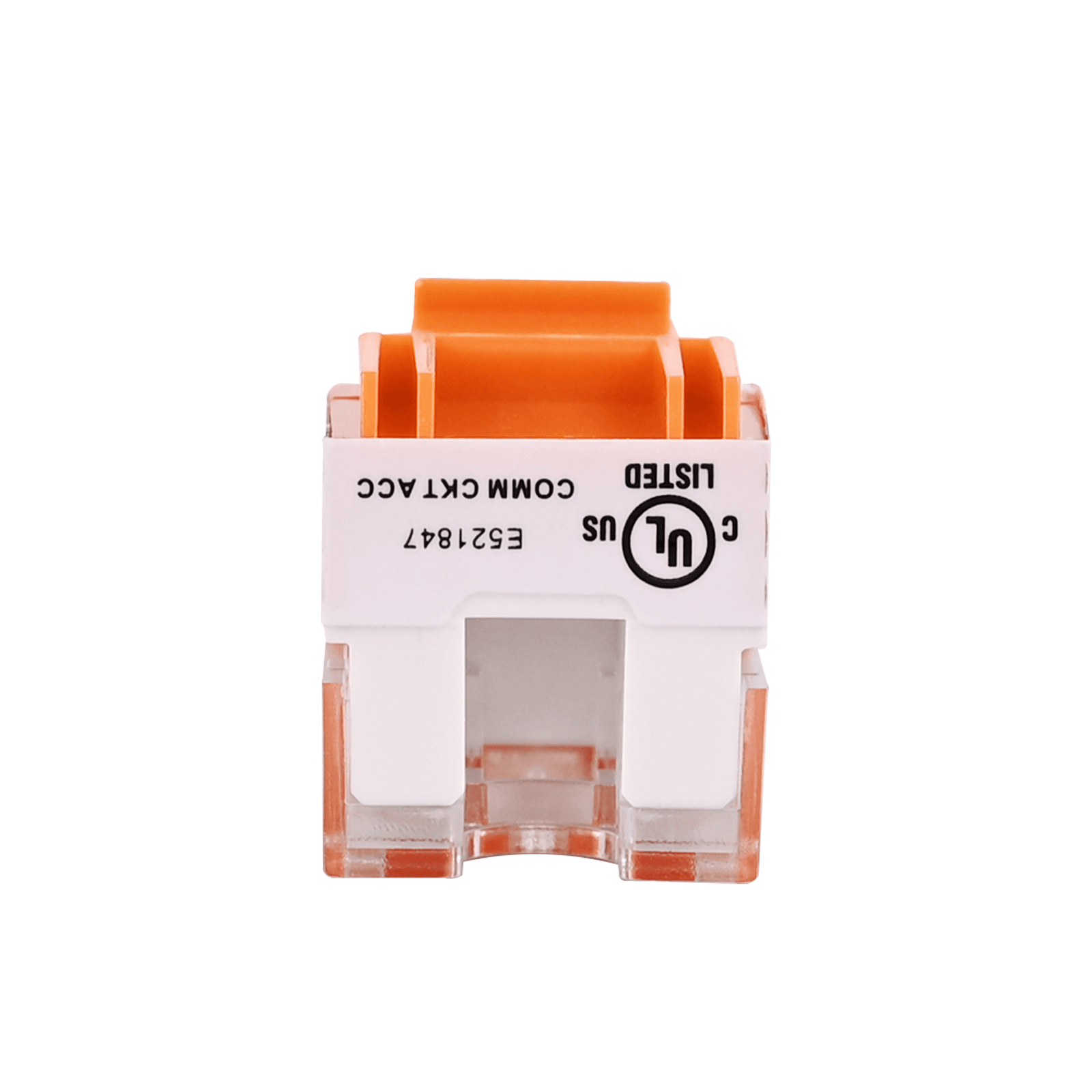

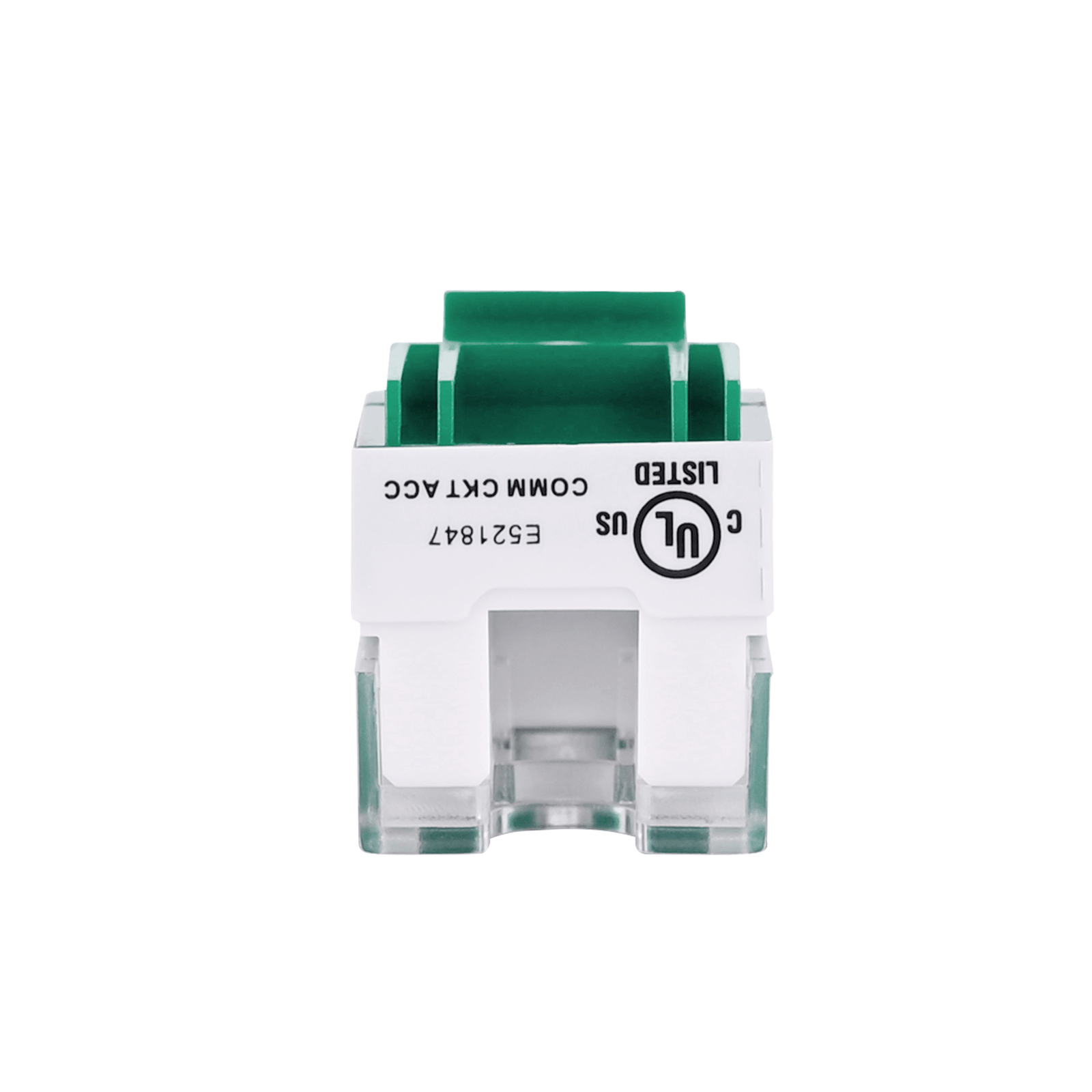

UL Certification

Safety is paramount. Our Cat6 Keystone Jack is flame retardant, ensuring peace of mind in any environment, be it homes, offices, schools, or server rooms.

Wide Compatibility and Applications

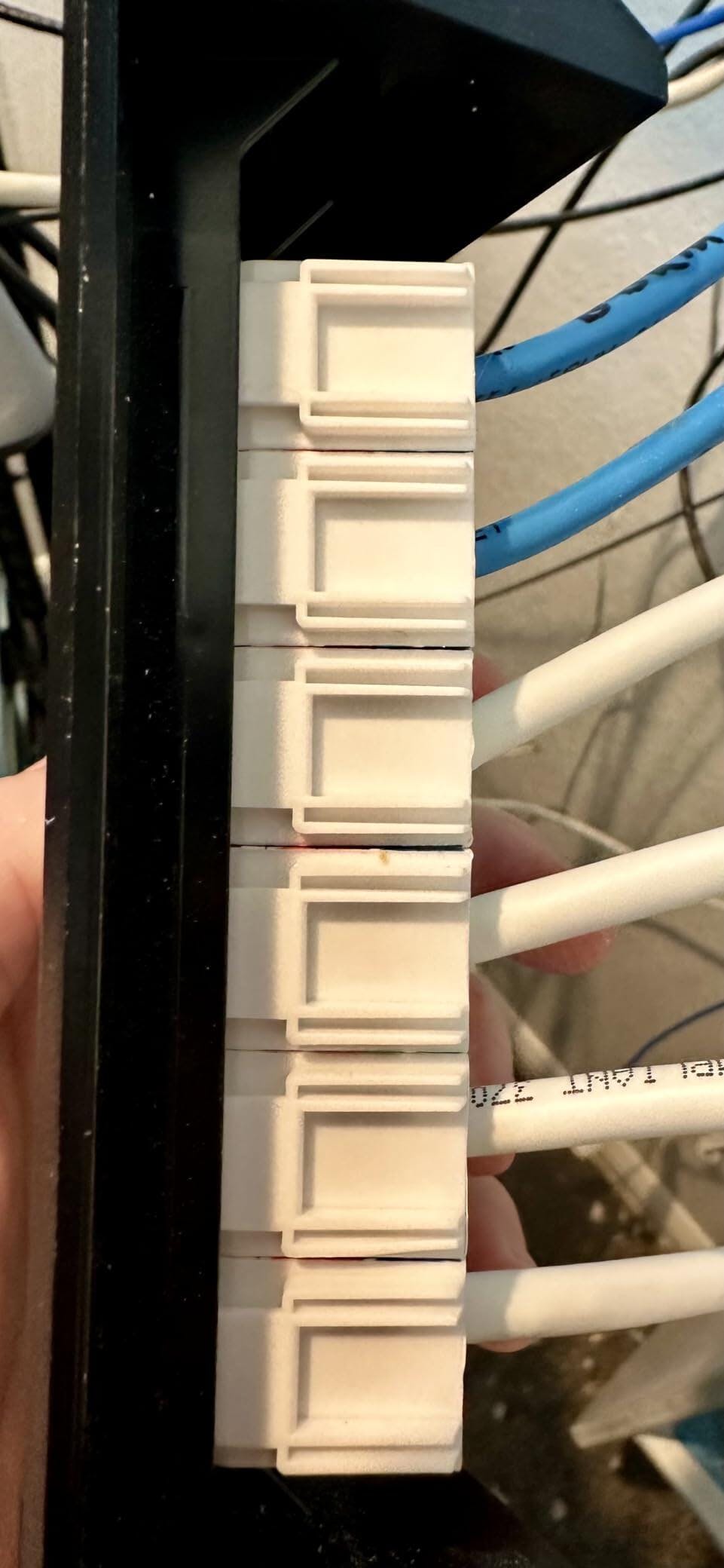

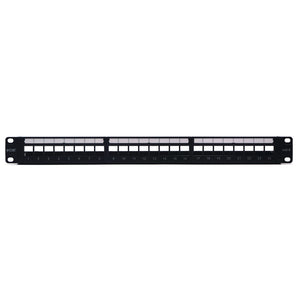

-Can be used with surface mount boxes, patch panels, and wall plates, ensuring seamless and stable network transmission;

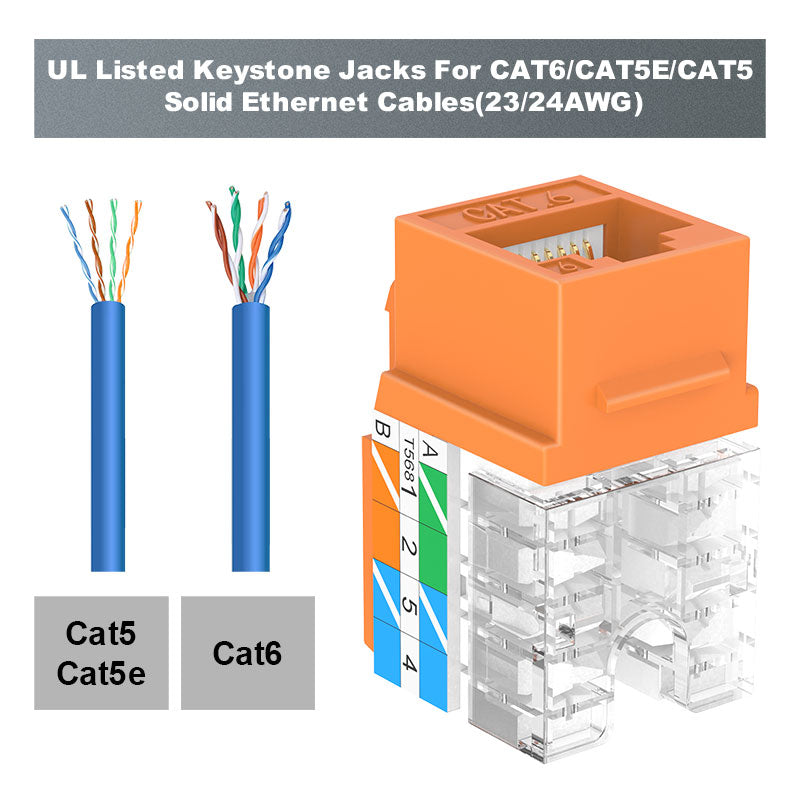

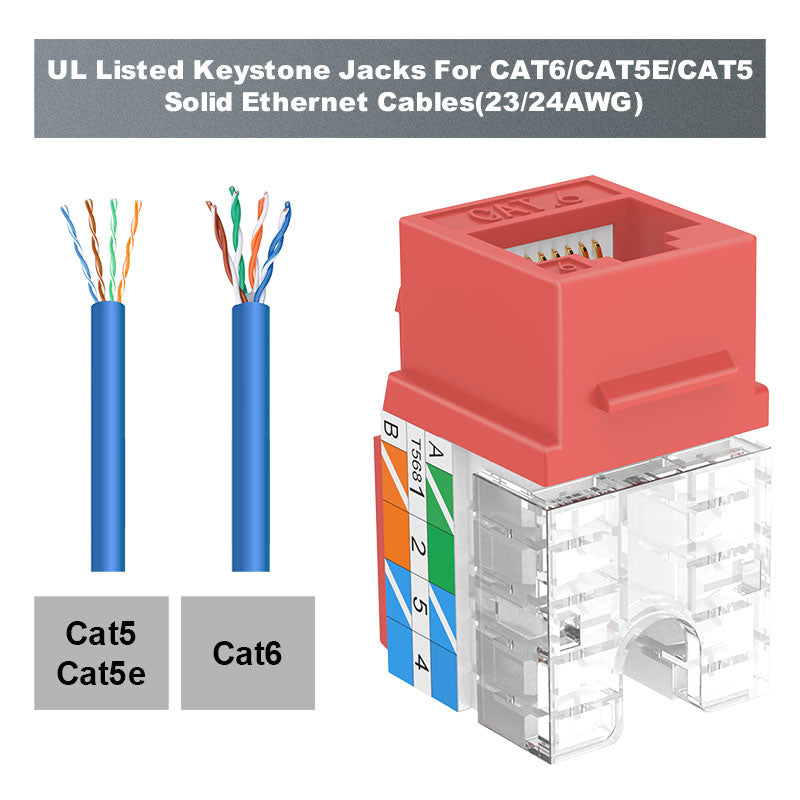

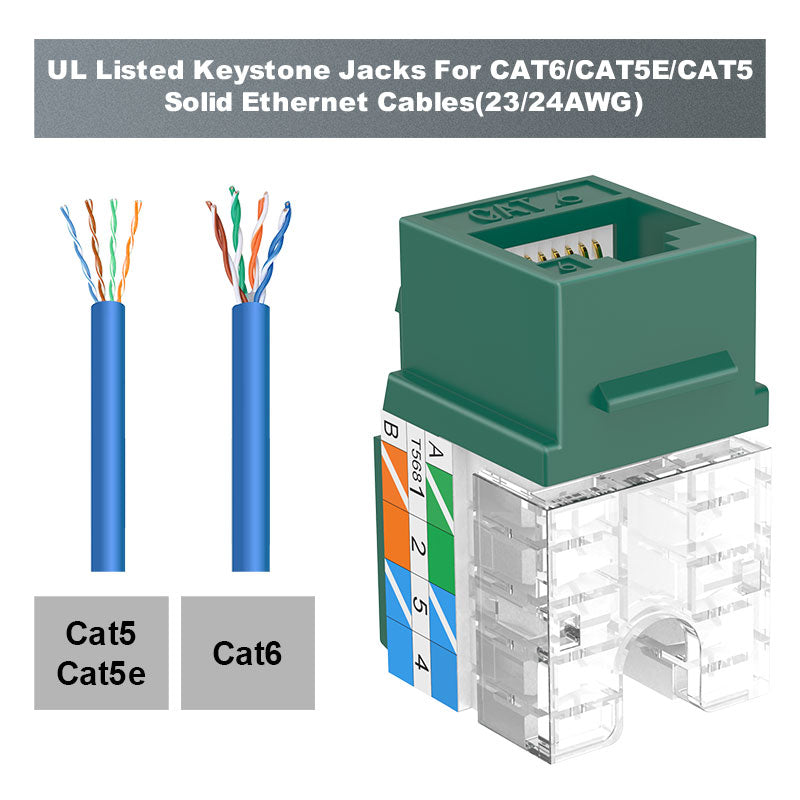

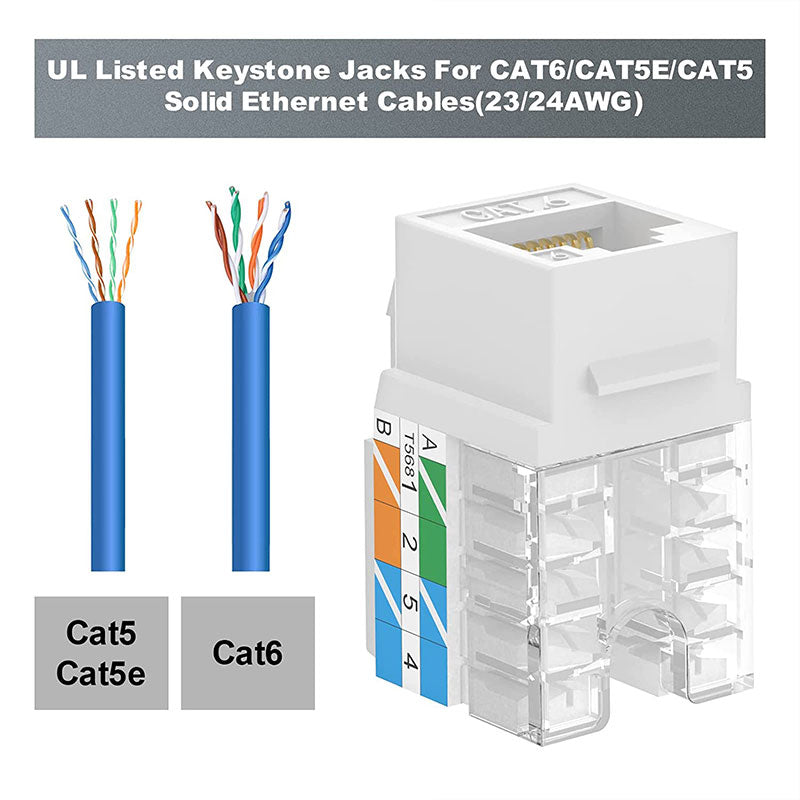

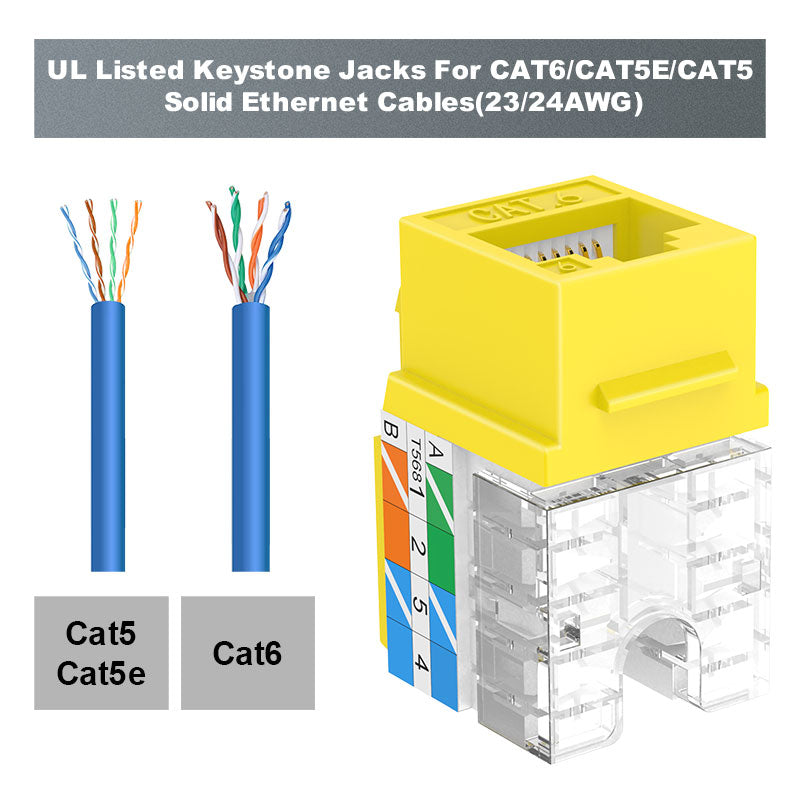

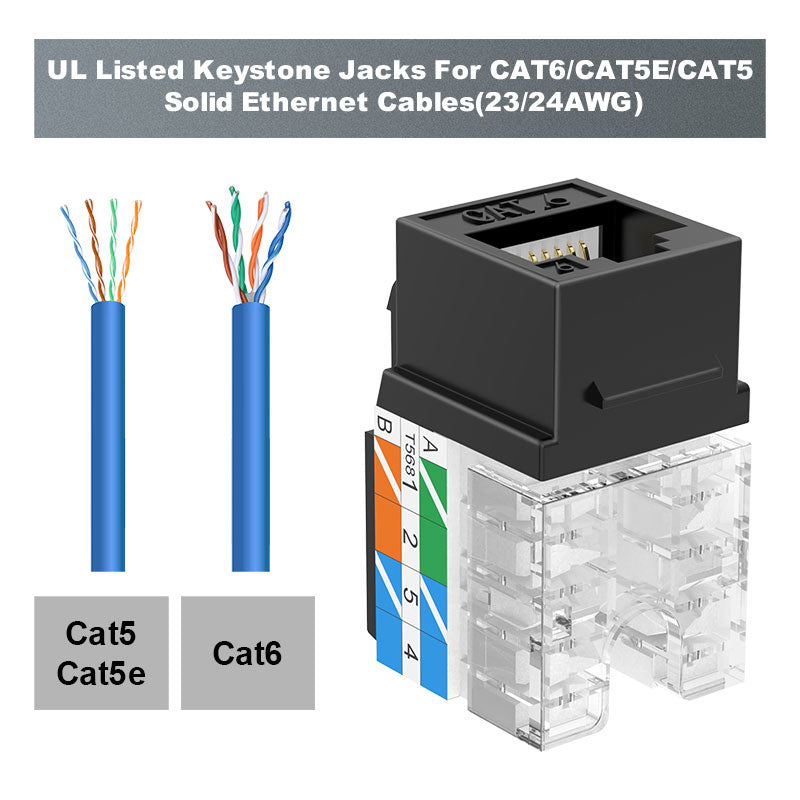

-Compatible with Cat6 cables and backward compatible with Cat5e, Cat5 cables; also compatible with solid and stranded wires;

-Widely used in home networks, business networks, and server rooms.
