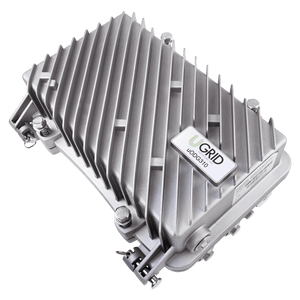

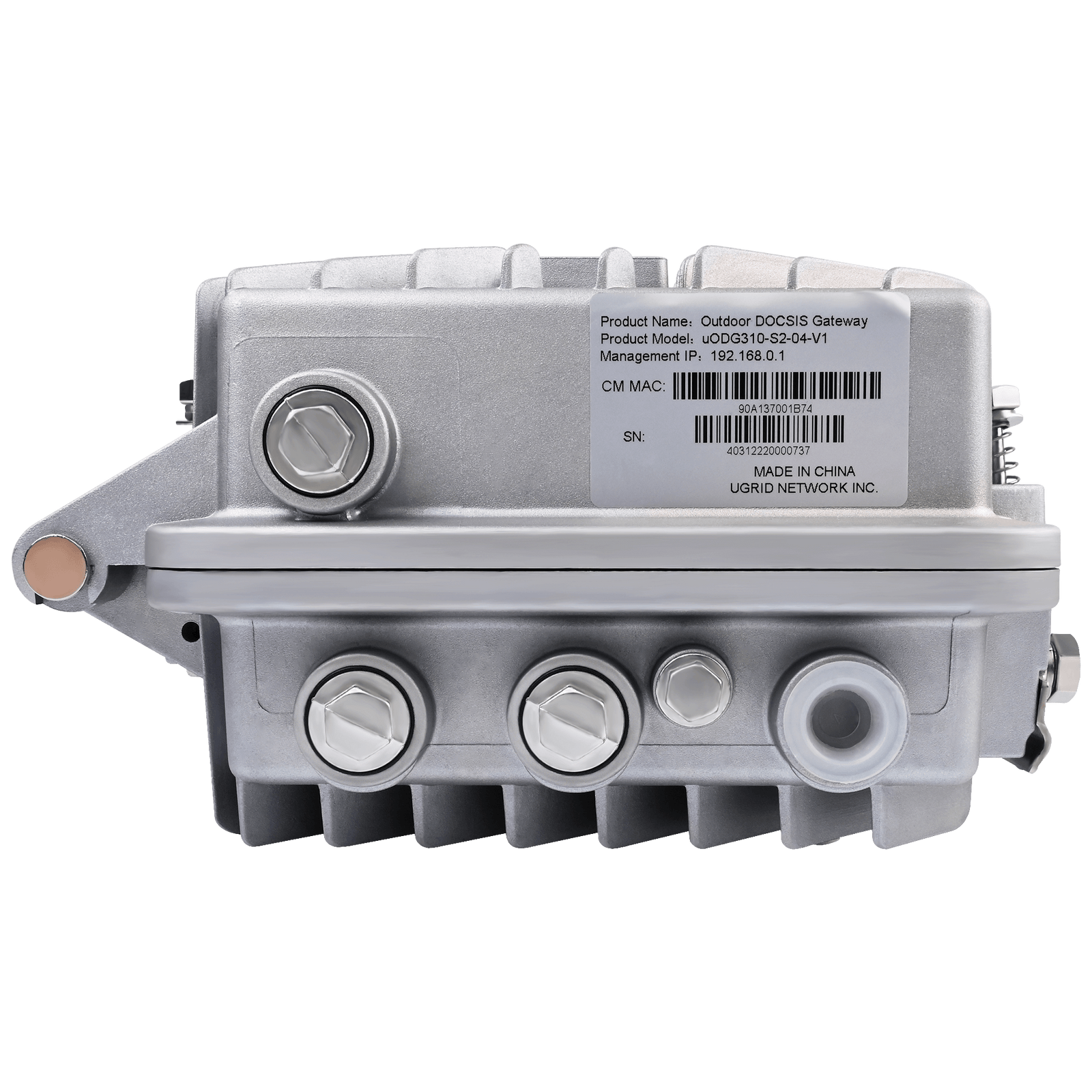

DOCSIS 3.1 Outdoor Modem
Free shipping for orders in the US-During the Promotion Period.
Fast shipping. Know More at Delivery & Return.
For more information, please send us an inquiry or email us.
Features:
- Compliant with DOCSIS 3.1 & 3.0
- Full band capture up to 1.2 GHz
- Supports 2×2 OFDM Bonded Channels and 32×8 SC-QAM Channels
- 4 Gigabit Ethernet Ports with PoE and PoE+
- Real-time and powerful Spectrum Analyzer
- Supports IPv4 and IPv6
Description
Our DOCSIS 3.1 outdoor gateway offers a highly effective and scalable solution for small cell and mobile backhaul networks over DOCSIS technology. It can be mounted on utility or street light poles to provide backhaul without other network infrastructure and create small cells supporting IoT such as IP camera surveillance and broadcast systems. This outdoor modem with IP68 design allows for high-bandwidth data transfer in harsh outdoor environments.
Specifications
| Product Type | Outdoor Modem |
| DOCSIS Standard | 3.0/3.1 |
| Dimensions | 28.5cm x 20.5cm x 12cm (L x W x H) |
| Weight | 3.5 kg |

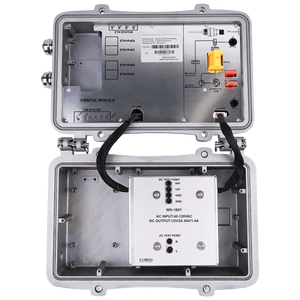

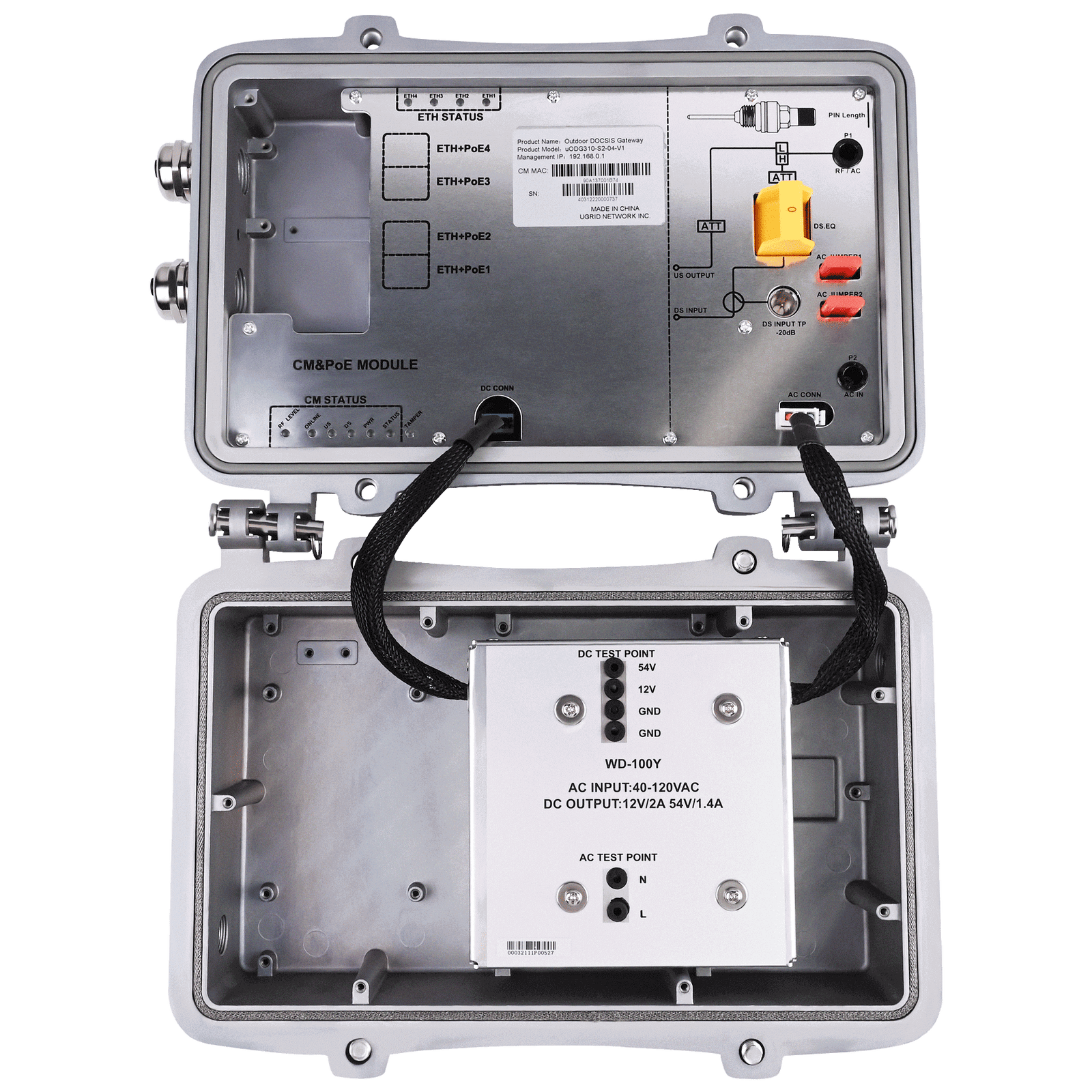

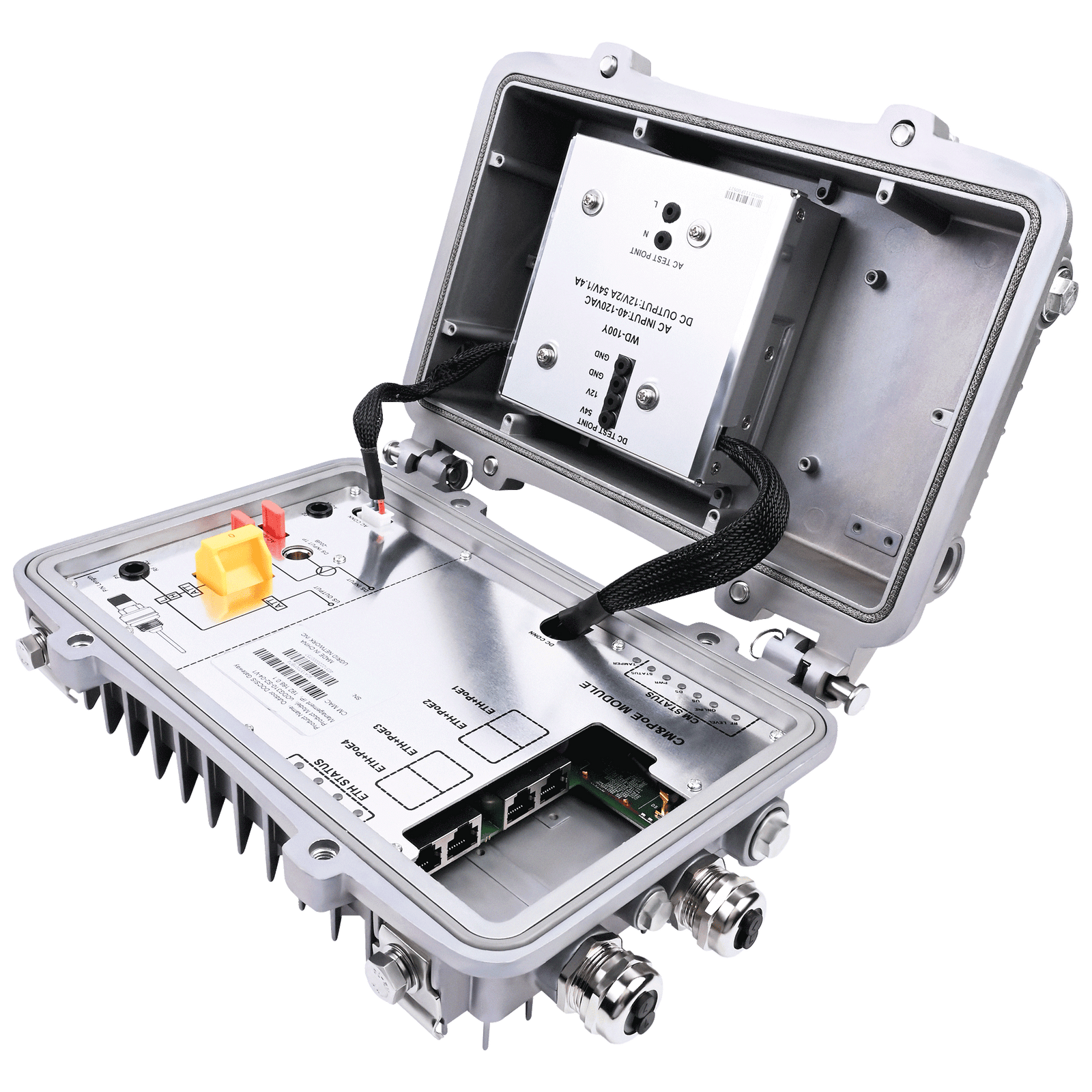

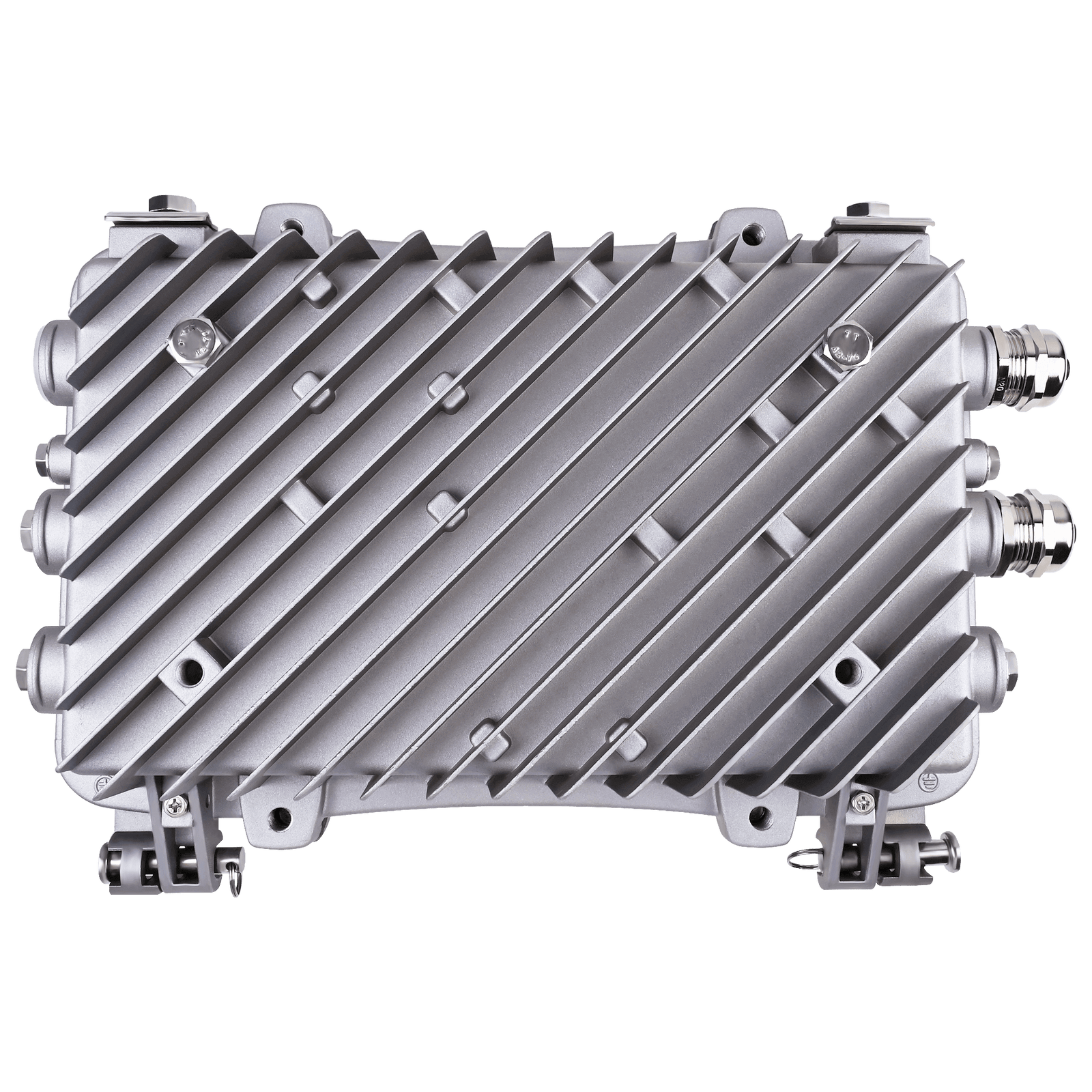

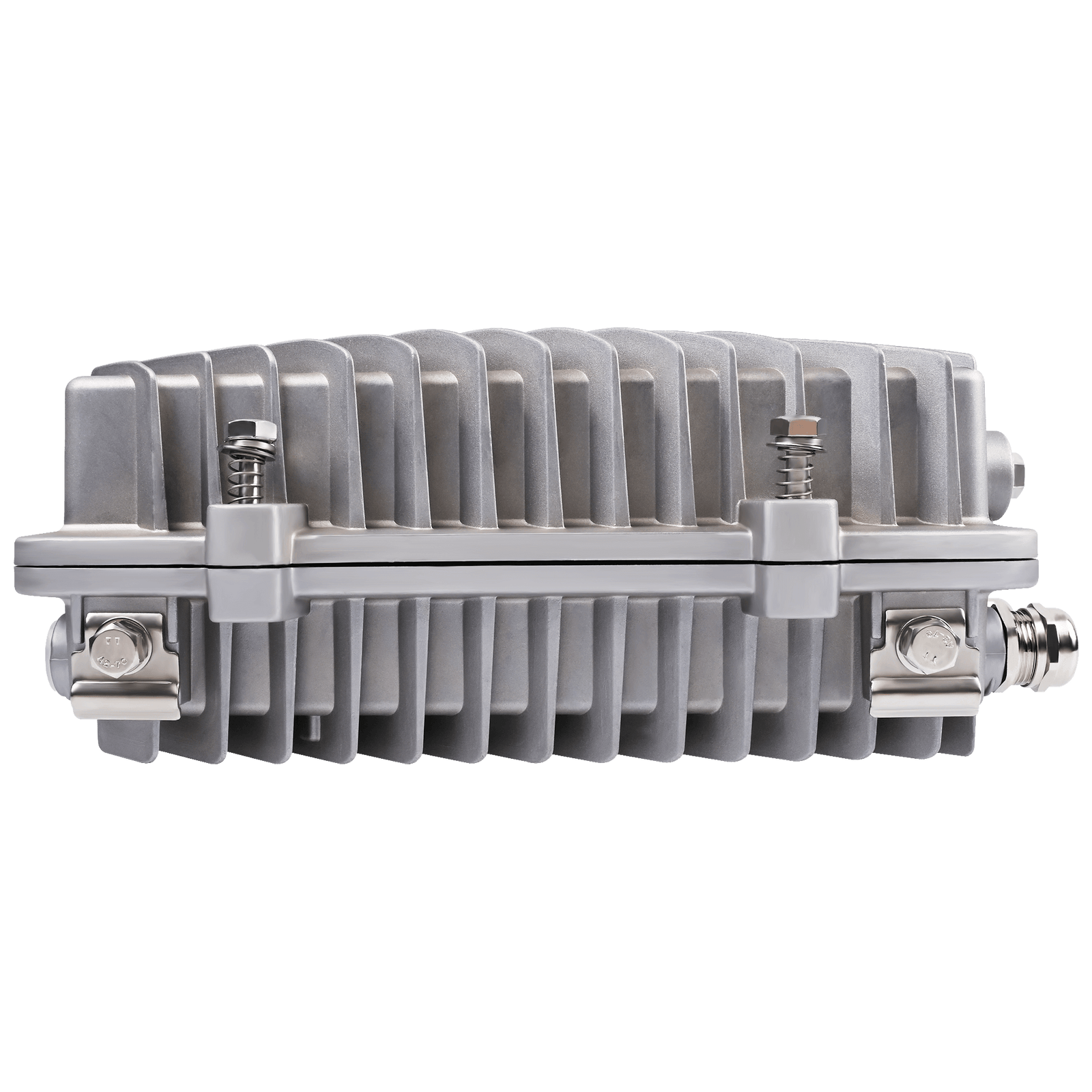

| Housing Material | Die-cast Aluminum Housing (Clamshell) |

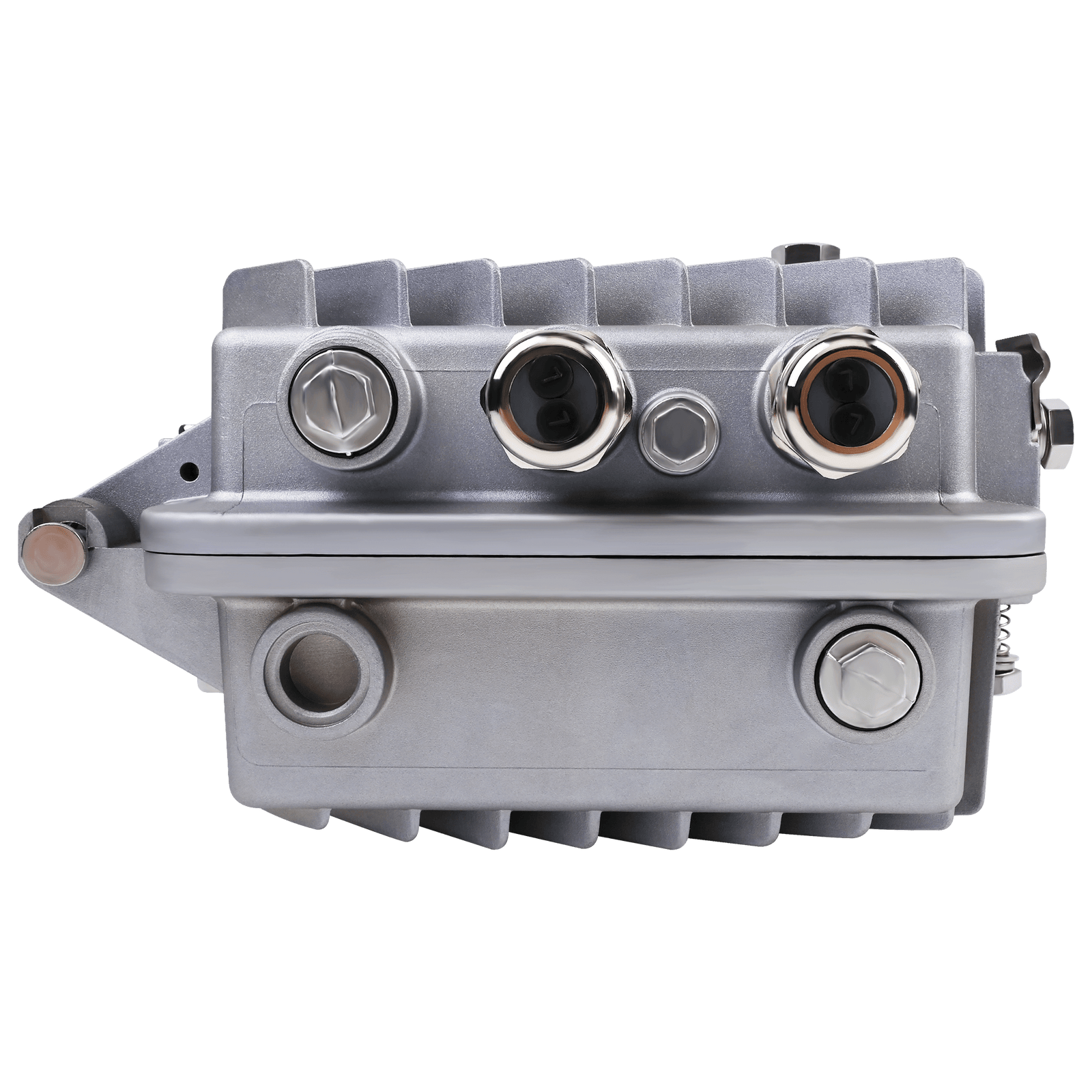

| Interface | 4 Ethernet ports and 1 RF female F-type interface |
| Power Input | 40 to 120 AC, 50/60Hz Sin or Quasi wave |
| Operation Temperature | -40°C ~ 60°C |
| Humidity | 5% ~ 100% (non-condensing) |
| Water Resistance | IP68 |
| Power over Ethernet | PoE and PoE+ with Mode A/B |
| Impedance | 75Ω |
| Input Return Loss (across freq. range) | ≥ 8 dB |
| Output Return Loss | ≥ 8 dB |
Features
Excellent Performance
-Compliant with DOCSIS 3.0 and 3.1, ensuring high-bandwidth data transmission；
-2 OFDM and 32 SC-QAM downstream channels with 1.2 GHz Full Band Capture as well as 2 OFDMA and 8 SC-QAM upstream channels;
-Equipped with an integrated real-time, powerful spectrum analyzer;
-Features tamper switch monitoring.
Enhanced Durability
-IP68 enclosure allows this outdoor gateway to withstand extreme temperature, humidity, rain, snow, dust, and physical impact;
-Offers surge protection to ensure added durability outdoors.
PoE Technology
-Features four Ethernet ports supporting PoE (IEEE 802.3 af) or POE+ (IEEE 802.3at) using Cat5e or higher category of Ethernet cables;
-Supports Mode A and Mode B, and is configurable.
Wide Applications
Our DOCSIS 3.1 outdoor gateway can be used for IP camera video surveillance, broadcast, digital signage, small cell backhaul, and other applications requiring DOCSIS.
