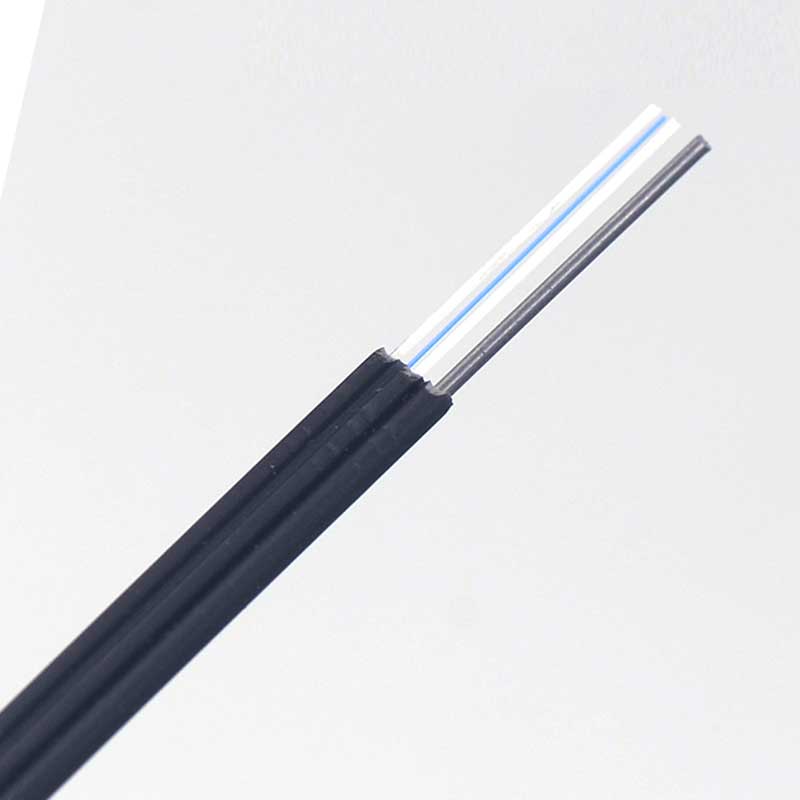

FTTH Single Mode Fiber With Messenger VCELINK

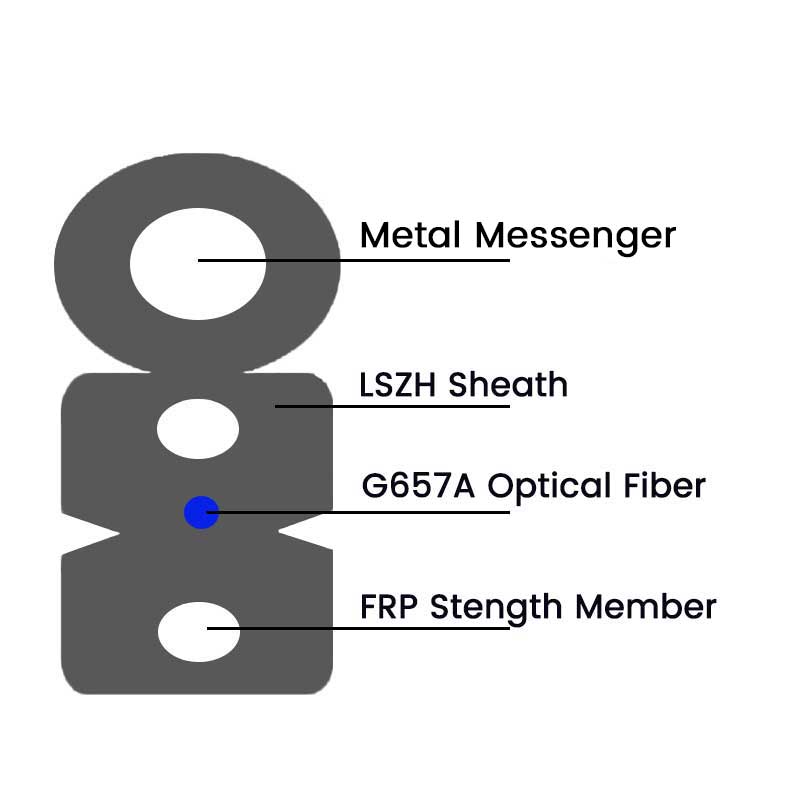

Features:
- Material of Sheath: LSZH
- Material of Fiber Optic: 1 x G.657A1
- Material of Strength Member: FRP
- Material of Messenger: Steel Wire
- Lifetime Product Support
If you have a bulk purchase request, please send us an inquiry or email us.
DESCRIPTION
FTTH Single Mode Fiber With Messenger VCELINK
Model NO. | GJYXFCH-1B6a |
Types | Single Mode |
Material of Strength Member | FRP |
Material of Messenger | Steel Wire |
Material of Sheath | LSZH |
Outer diameter(±0.05mm) | 5.2±0.2mm*2.1*3.1(+0.10/-0.05)mm |
Colors | Black or as customers’ requirements |
Printing | As customers’ requirements |
Transmission Loss | @<0.26dB/km;@1310nm<0.38dB/km; |
Features:
1. The use of low-bend-sensitivity fiber enhances communication transmission performance and enables high bandwidth support.
2. The inclusion of two parallel FRP strength members delivers excellent resistance to crushing to protect the fiber.
3. A single steel wire and FRP serve as additional strength members, providing superior tensile strength.
4. Lightweight and practicable in design, with a straightforward structure.
5. The innovative flute design allows for easy stripping and splicing, streamlining installation and maintenance.
