FTTH Wi-Fi 6 GPON ONU
Free shipping for orders in the US-During the Promotion Period.
Fast shipping. Know More at Delivery & Return.
For more information, please send us an inquiry or email us.
Features:
- Compliant with GPON ITU-T G984.X
- Compatible with mainstream OLTs
- Supports Wi-Fi 6
- Supports bidirectional FEC function
- Supports multiple services, such as CATV and VoIP
- Supports OMCI remote management
Description

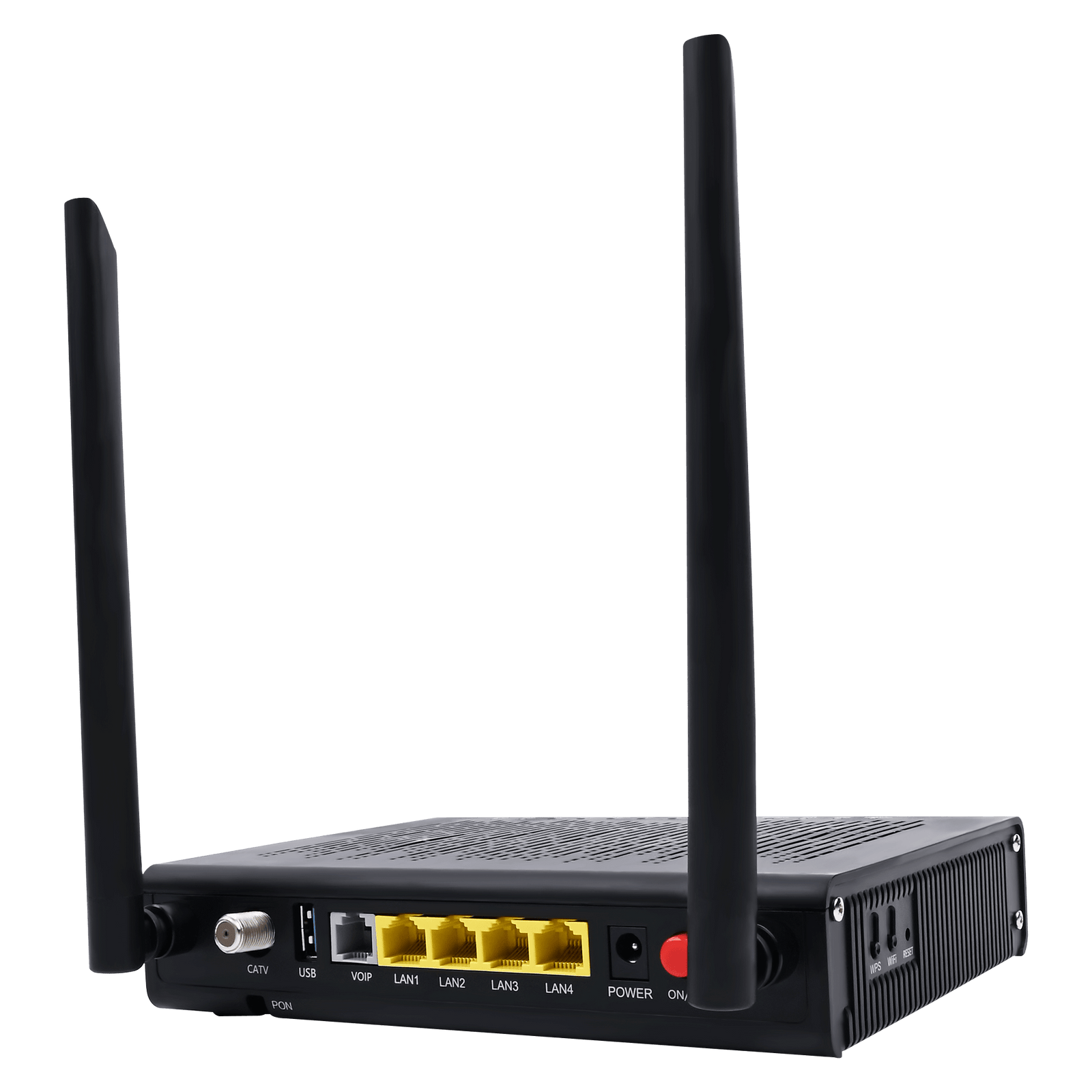

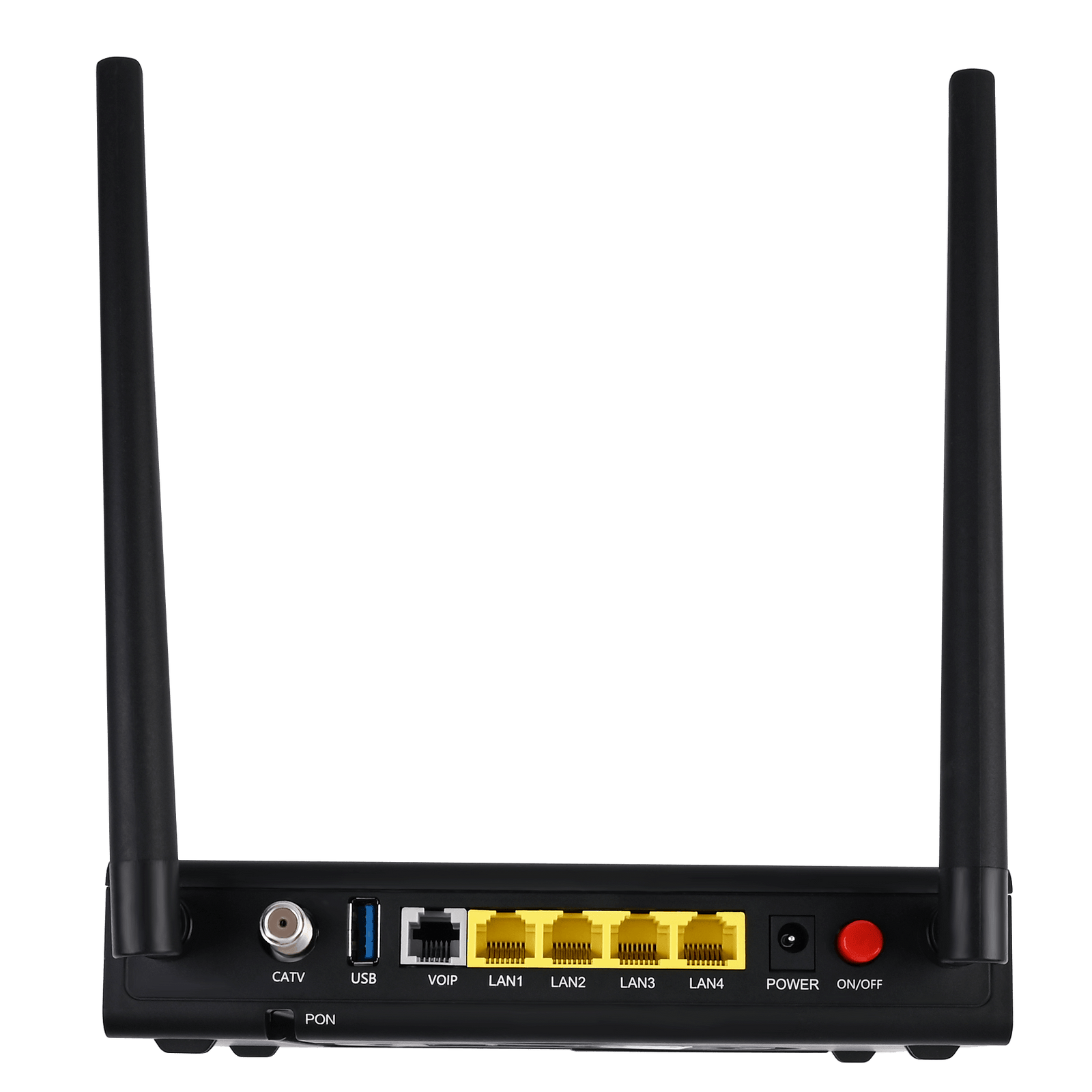

This FTTH GPON ONU with Wi-Fi 6 is a broadband access device specifically designed for residential and SOHO (small office/home office) networks. The ONU supports GPON, combined with Wi-Fi 6 for high-speed internet access. It is compatible with mainstream OLTs in the industry, including Nokia, ZTE, Fiberhome, and Calix. The device is equipped with 4 LAN ports, 1 VoIP port, 1 USB port, and 1 CATV port, ensuring high-quality transmission of audio, video, and data. With enhanced QoS, WEB and OMCI management, and comprehensive security protocols, the device ensures a high-quality and reliable internet experience for users.
Learn more in Understanding GPON ONU: A Comprehensive Guide
Specifications
| Product Type | GPON ONU |
| Dimensions | 19.5cm x 13.5cm x 3.5cm (L x W x H) |
| Weight | 0.33 kg |
| User-Side Ports | 4x GE/1x CATV/1x USB/1x VoIP |
| Data Rates | Upstream 1.25 Gbps, Downstream 2.5 Gbps |
| WLAN | 802.11b/g/n/ac/ax |
| Distance | 20KM Max |
| Wi-Fi | 2.4GHz/ 5.8GHz |
| IP Service | DHCP Server/ Client, PPPoE, DNS |
| VoIP | SIP and H.248 |
| Management | CLI/WEB/TR069/OMCI |
| AC Adaptor | AC 100~240V, DC-12V 1.5A |
| Power Consumption | ≤18W |
| Operation Temperature | 0°C ~ 40°C |
| Humidity | 10% ~ 90% (non-condensing) |
Features
Wide Compatibility
-Compliant with GPON ITU-T G984.X standards;
-Compatible with mainstream OLTs in the industry, including Nokia, ZTE, Fiberhome, and Calix.
Excellent Performance
-Supports Wi-Fi 6 technology with MIMO 2.4 GHz and 5 GHz;
-Supports uplink and downlink bidirectional FEC (Forward Error Correction);
-Provides powerful QoS features to prioritize different types of service traffic;
-Dual-band 2x2 antennas for stable and reliable Wi-Fi connections.
Multi-port Service
The multifunctional GPON ONU integrates with LAN, VoIP, USB, and CATV ports, allowing for comprehensive connectivity of wired devices, and high-quality audio and video transmission for residential and business needs.
Easy Operation & Management
-User-friendly GUI with plug-in and play capability instead of field configuration;
-OMCI enables remote service distribution, fault diagnosis, and performance monitoring;
-High-efficiency management and maintenance with port-based mode configuration.
