PoE ONU GPON/EPON VCELINK
Shipping:
Free Over $59 (US&Japan&South Korea)
Free Over $79 (Canada&Australia)
Free Over $99 (Singapore&Thailand)
Free Over $159 (France&Germany&UK&Some EU)
Free Over $199 (Qatar&Maldives&Mexico&Saudi Arabia)
Know More at Shipping Policy.
Features:
- Features 1 × GPON, 24 × 10/100/1000 Mbps RJ45, 1 × RJ45 Console
- Supports PoE/PoE+
- Used with OLTs for FTTB, FTTC, and Multiservice Networks
- Worldwide Shipping & Fast Delivery
- 12-month Warranty & Lifetime Product Support
Invoice Support：We provide official invoices upon request for your purchase.
If the product is sold out, you can inquire about purchasing it.
Description
VCELINK RT009 is a typically XPON ONU with PoE function. Fully compliant with ITU-T G.984 and IEEE802.3ah standard, this XPON ONU supports up to 1.25 Gbps Uplink and 2.5 Gbps Downlink. It includes adaptive G/EPON port for uplink connectivity and 24 Gigabit Ethernet ports for downlink, each supporting PoE/PoE+. This PoE ONU XPON is ideal for FTTB, FTTO, and POL network applications, providing high-performance, multi-port data connectivity over PON infrastructures.
Features
PoE Support
Supports PoE and PoE+ function and powers devices like IP cameras and VoIP phones over long distances.
GPON/EPON Compatibility
-Comply with Comply with ITU-T G.984 and IEEE802.3ah standard;
-Supports EPON of 1000BASE-PX20+ symmetric, 1.25Gbps downstream/upstream and GPON of Class B+/Class C+, 2.488Gbps/1.244Gbps downstream/upstream.
Multiple Ports

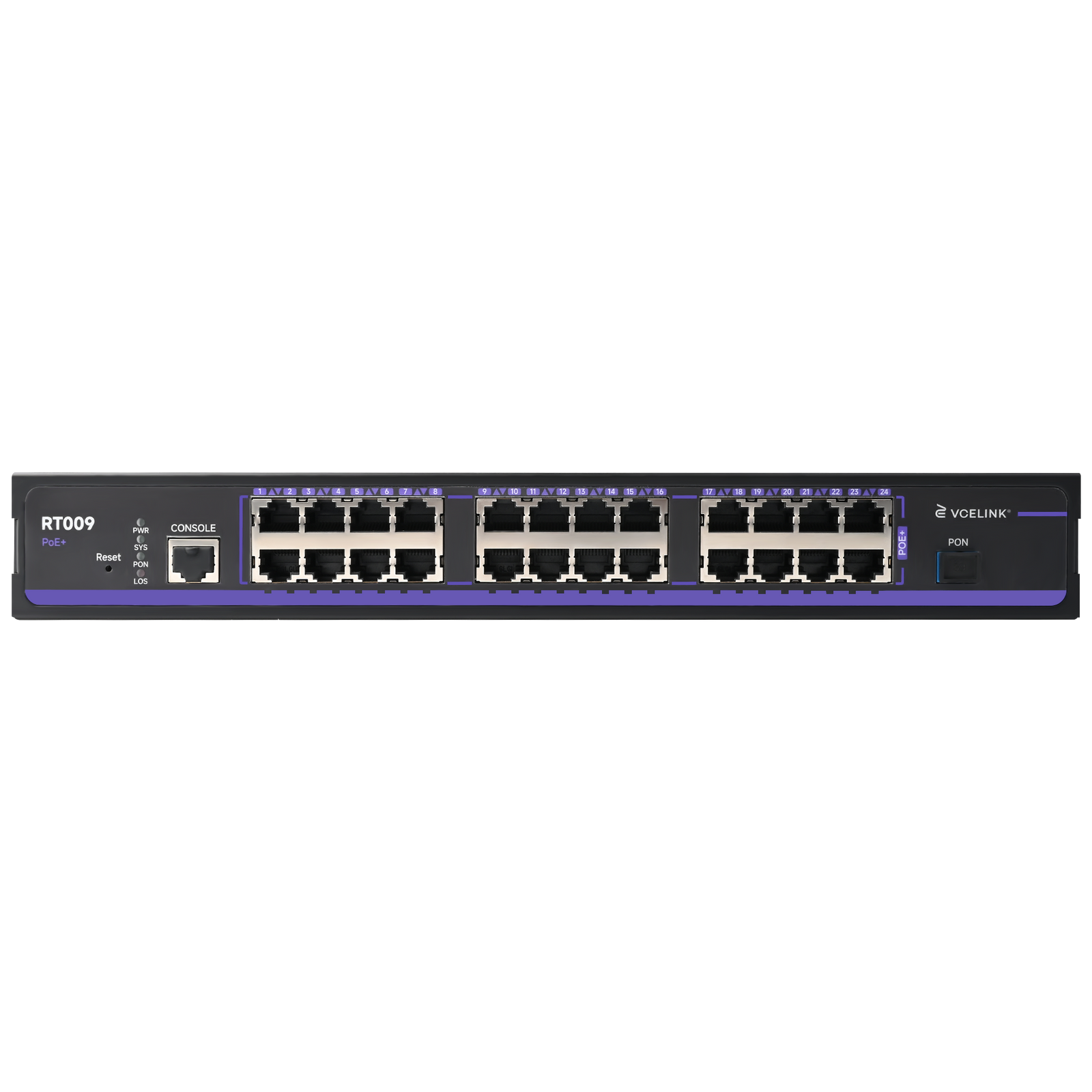

Features one G/EPON port for uplink connectivity, 24 Gigabit Ethernet ports for downlink, and one RJ45 console for management.
Easy Management&Installation
-Supports plug-and-play setup;
-Supports WEB/CLI/SNMP management, VLAN/VLAN Stacking/QINQ, Dynamic Bandwidth Allocation (DBA), and IGMP/MLD Snooping.
