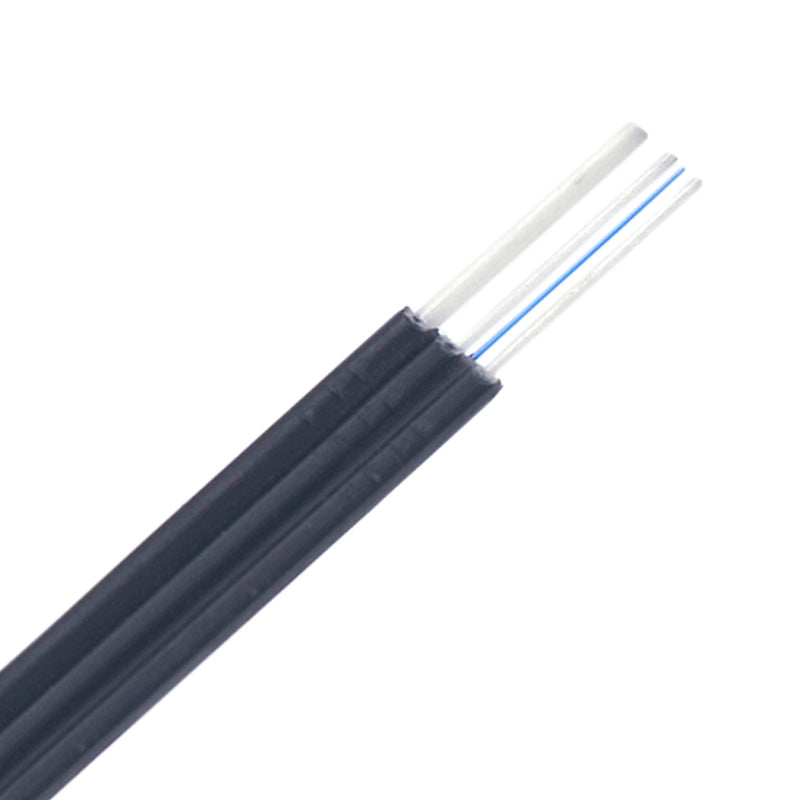

1 Core Single-Mode FRP FTTH Cable VCELINK
Features:
- Material of Sheath: LSZH
- Material of Fiber Optic: 1 x G.657A1
- Material of Strength Member: FRP
- Material of Messenger: FRP
- Lifetime Product Support
If you have a bulk purchase request, please send us an inquiry or email us.
DESCRIPTION
1 Core Single-Mode FRP FTTH Cable VCELINK
| Model NO. | GJYXFCH-1B6a 1.0 FRP |
| Types | Single Mode |
| Material of Strength Member | KFRP |
| Material of Messenger | KFRP |
| Material of Sheath | LSZH |
| Material of Optic Fiber | 1*G.657A2 |
| Outer Diameter of Cable | 5.0±0.2mm*1.95*2.95（+0.10/-0.05）mm |
| Thickness of Messenger | ≥0.4mm |
| Colors | Black or as customers’ requirements |
| Printing | As customers’ requirements |
| Transmission Loss | @<0.23dB/km；@1310nm<0.35dB/km； |

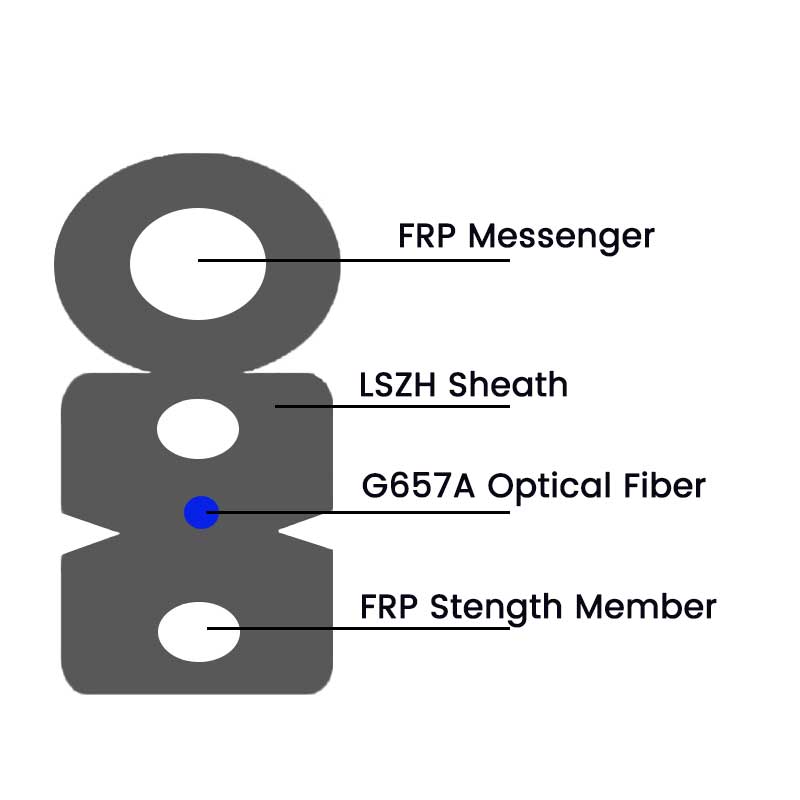

VCELINK FTTH fiber optic cable boasts a number of exceptional features that make it an excellent choice for communication applications. The special low-bend-sensitivity fiber delivers high bandwidth and reliable transmission, while two parallel FRP strength members ensure it is highly resistant to crushing.
The simple structure of FTTH flat drop cable, lightweight, and high practicability make it easy to work, and the novel flute design means it can be stripped and spliced with ease. The cable is also engineered with safety in mind, featuring a low smoke, zero halogens, and flame retardant sheath.
Contact us or email us directly to inquire about the wholesale price.
Learn more from Fiber Optic Cable Types: What You Should Know.
