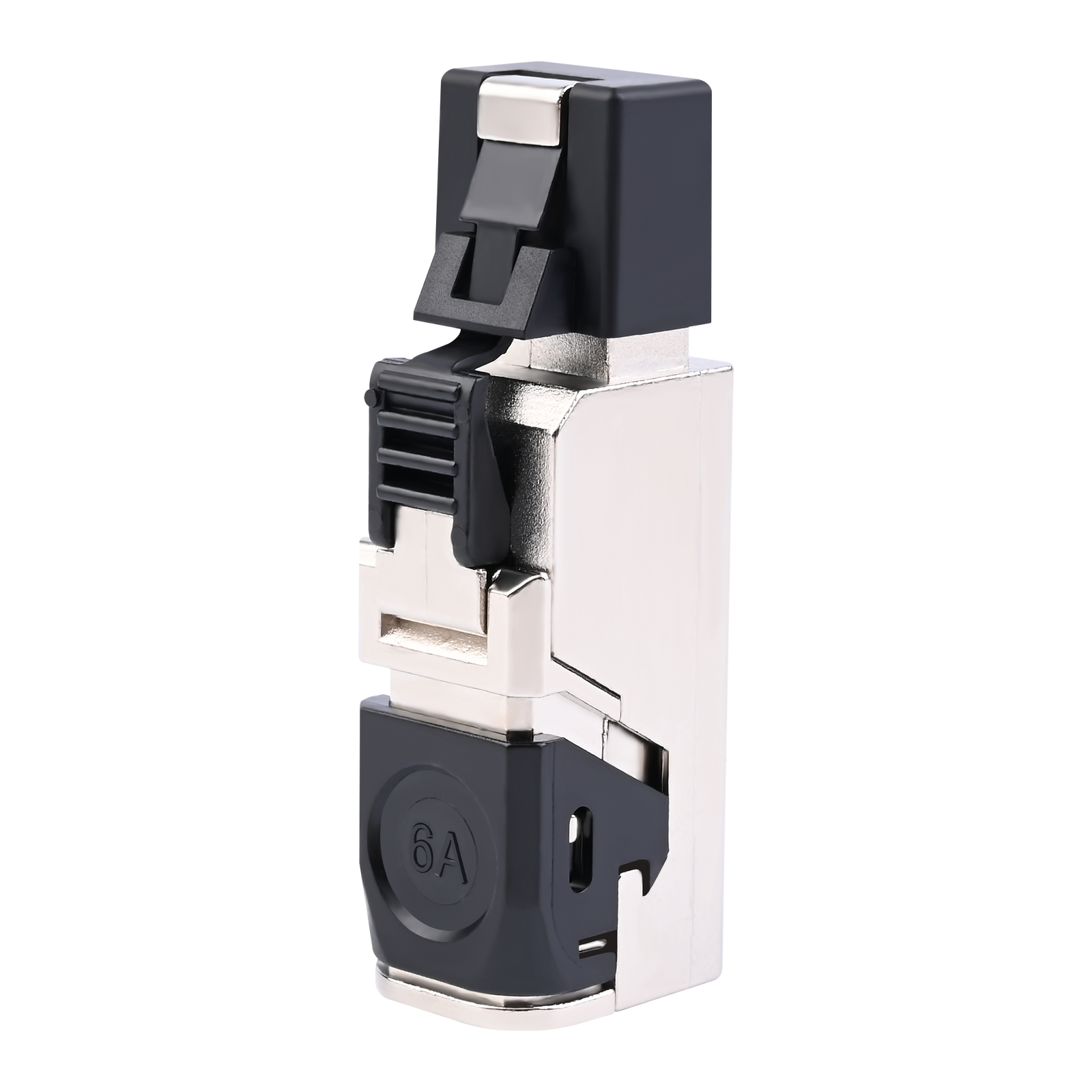

Cat6a RJ45 Field Termination Plug with Locking Mechanism VCELINK

KJ25BK-6A-1P-OL
$6.99
Low Stock <100
QuantityPrice Per Unit / PackSavings
10-49 $6.655%
50-99 $6.448%
100+ $5.9515%
Saves you %

Free Shipping for Orders Over $39.99 in the US.

Fast shipping. Know More at Shipping Policy.

For more information, please send us an inquiry or email us.

Features:

  • Black Sliding Design Ensures Tight Cover Locking
  • Zinc Alloy Metal Housing Shields EMI/RFI and Crosstalk
  • Tool-free Installation without Crimping Tools
  • Supports T568A and T568B Wiring Standard
  • PoE, PoE+, and PoE++ Compatibility
  • Worldwide Shipping & Fast Delivery
  • 12-month Warranty & Lifetime Product Support

Pairs Perfectly With

Total price: --
Prices shown may not reflect final costs.

Description

VCELINK newly designed toolless Cat6a field termination has upgraded the structure of the traditional shielded RJ45 connector and meets ANSI/TIA568-C.2 and ISO/IEC11801 standards. Our RJ45 connector has a unique locking design for easy and secure lock with the bottom cover. The plug features a zinc alloy shielding design, ensuring stable data transmission with less EMI, RFI or crosstalk noise. Color-coded load bar is integrated with the cable holder for quick wiring reference. The Cat6a field plug has a built-in strain relief design, protecting your cables from straining or stressing. All you need for Cat6a cable on-site termination is a wire stripper and a cutter. It is ideal for enterprise and data center network environments.

Specifications

Product Type Cat6a Field Term Plug
Color Black+Silver
Style Toolless; Shielded
Wiring Type T568A/T568B
Data Rate Support 10 Gbps
Bandwidth 500 MHz
PoE Capacity PoE, PoE+, PoE++
Components Cat6a Toolless Plug, Dust-proof Cover
Metal Shell Material Zinc Alloy, Nickel Plated
Black Plastic Material PC
PIN Material Phosphor Bronze, Gold Plated
IDC Contact Material Phosphor Bronze, Nickel Plated
Size 1.97 in x 0.56 in x 0.73 in (50.00 mm x 14.10 mm x 18.60 mm) (L x W x H)
Net Weight 0.05 lb (21.10 g )
Mating Durability ≥750 Times
IDC Terminal Life ≥250 Times
Cable Gauge Compatibility 22-26 AWG Solid and Stranded Wires
Maximum Cable OD 10 mm
Cable Compatibility Cat5/Cat5e/Cat6/Cat6a
Operating Temperature Range 14°F - 140°F (-10℃ - 60℃)
Implementation Standards ANSI/TIA 568-C.2, ISO/IEC11801

Features

Easy Operation

-Features a locking slider that securely locks the cover in place;

-No crimping tools are required for wire termination.

Cat6a Performance

Supports 10 Gbps transmission and 500 MHz bandwidth.

Stable Data Transmission

-Zinc alloy metal shielding effectively prevents EMI, RFI, and crosstalk interference;

-Gold-plated RJ45 contacts offer conductivity and corrosion resistance to ensure stable data transfer.

Wide Compatibility

-Can crimp solid and stranded wires from 22 to 26 AWG;

-Compatible with Cat5/Cat5e/Cat6/Cat6a Ethernet cables;

-Supports PoE, PoE+, and PoE++ applications.
