Cat7 Field Termination Plug with Locking Mechanism VCELINK
| Quantity | Price Per Unit / Pack | Savings |
|---|---|---|
| 10-49 | $6.65 USD | 5% |
| 50-99 | $6.44 USD | 8% |
| 100+ | $5.95 USD | 15% |
Shipping:
Free Over $39.99 (US&Canada)
Free Over $49.99 (UK&Germany&France)
Free Over $59.99 (Other EU Countries)
Free Over $45.99 (Australia)
Know More at Shipping Policy.
Features:
- Zinc Alloy Metal Housing Shields EMI/RFI and Crosstalk
- Sliding Locking Cover for Easy Cable Fix
- Tool-free Installation without Crimping Tools
- Supports 10 Gbps Speed and 600 MHz Bandwidth
- Supports T568A and T568B Wiring Standard
- PoE, PoE+, and PoE++ Compatibility
- Worldwide Shipping & Fast Delivery
- 12-month Warranty & Lifetime Product Support
Pairs Perfectly With
Description

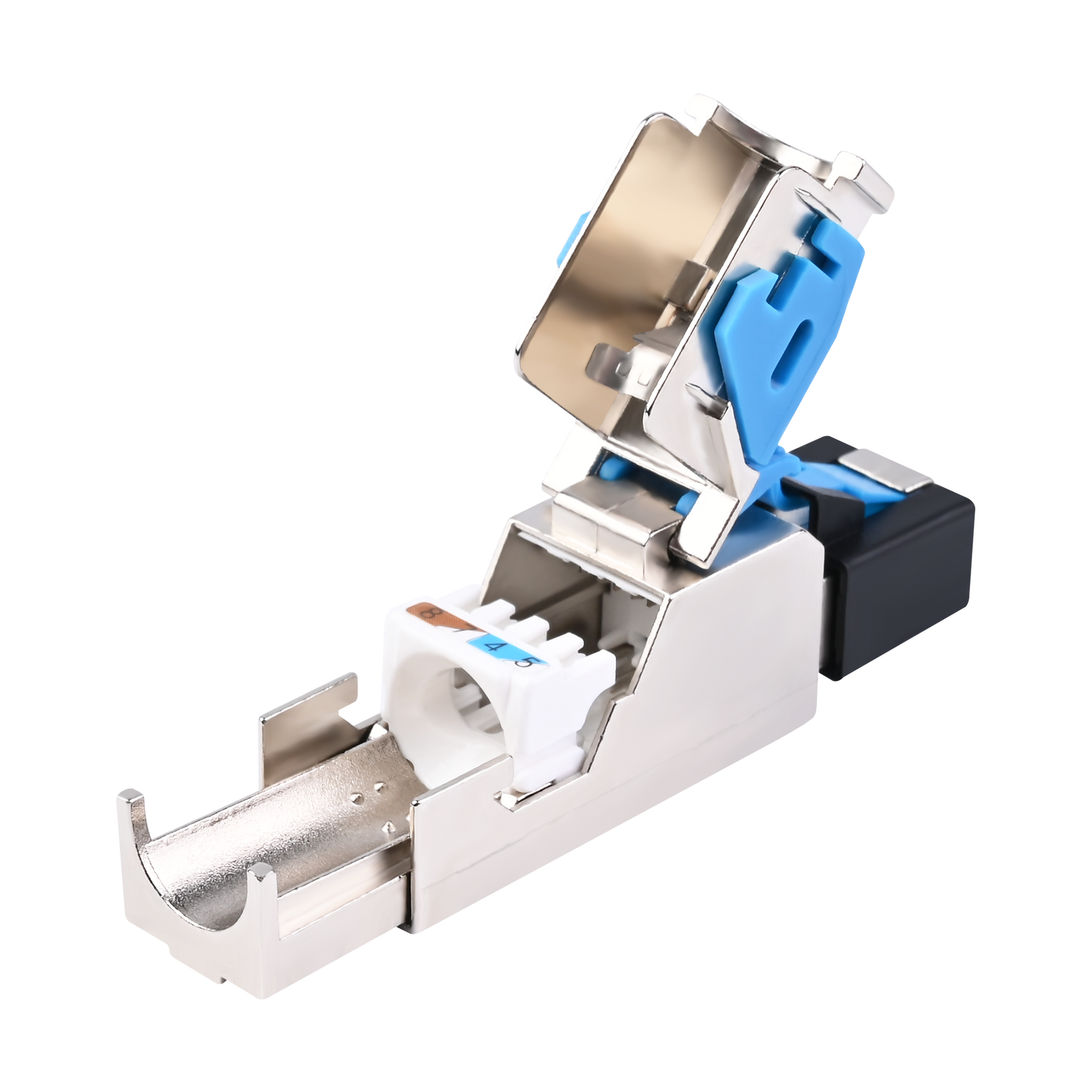

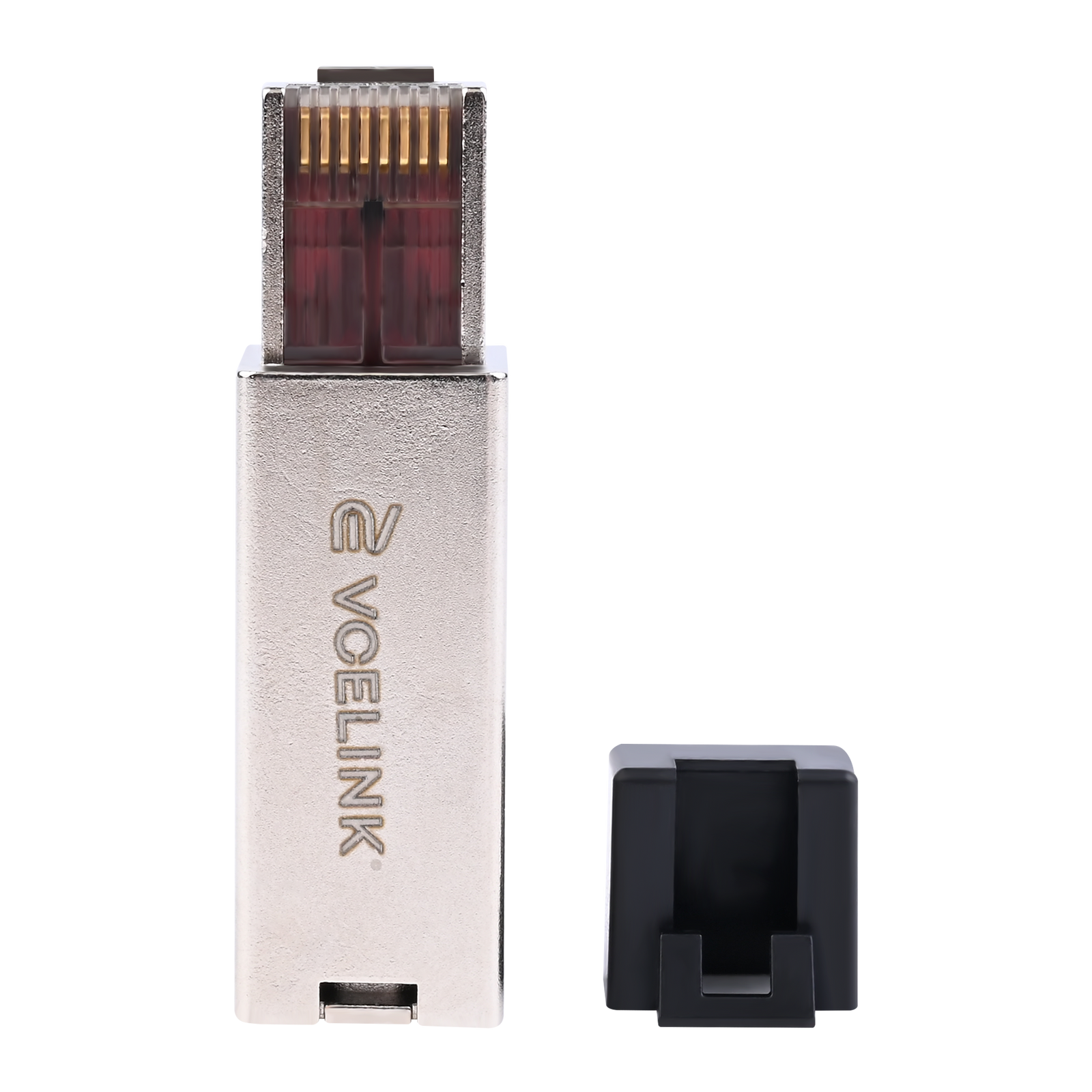

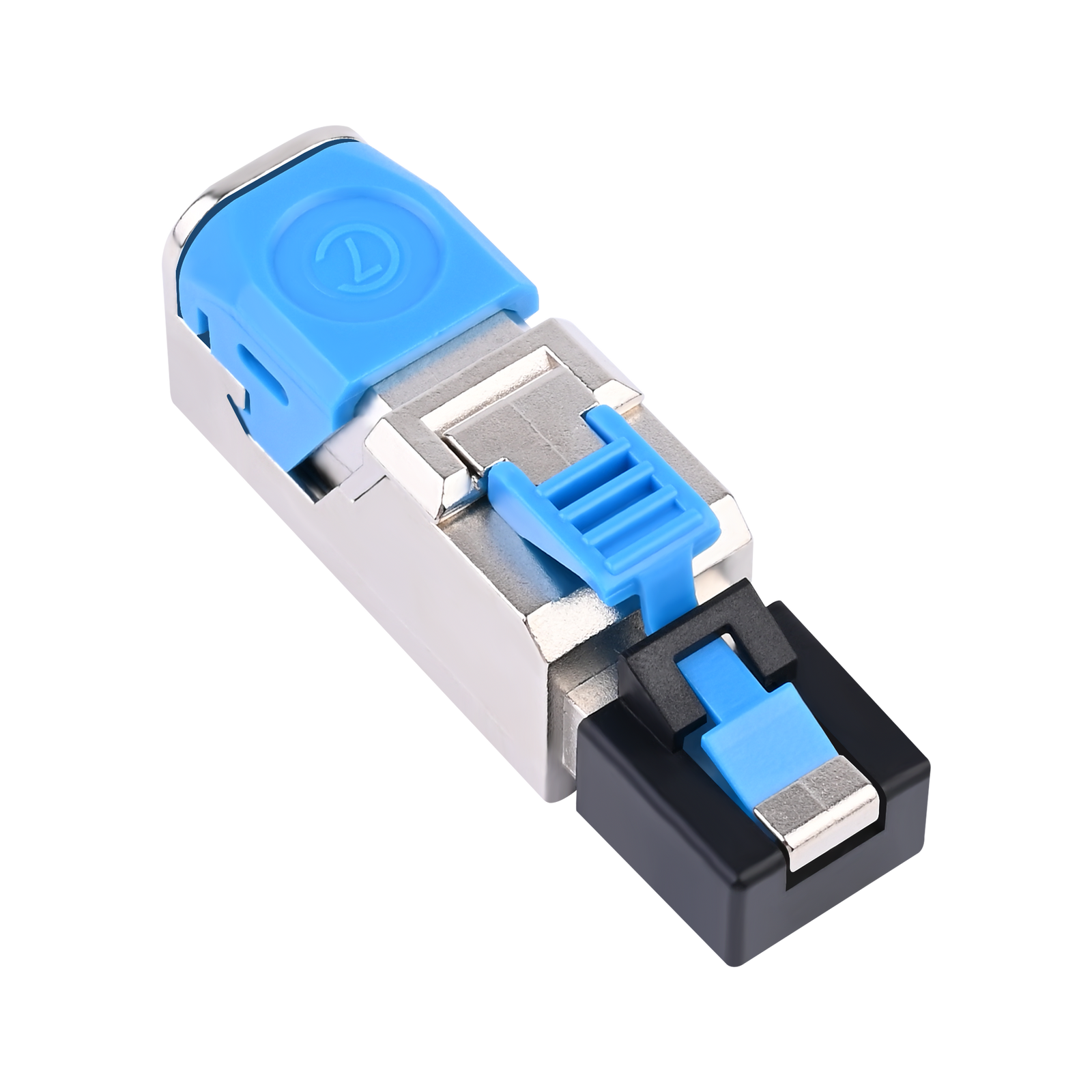

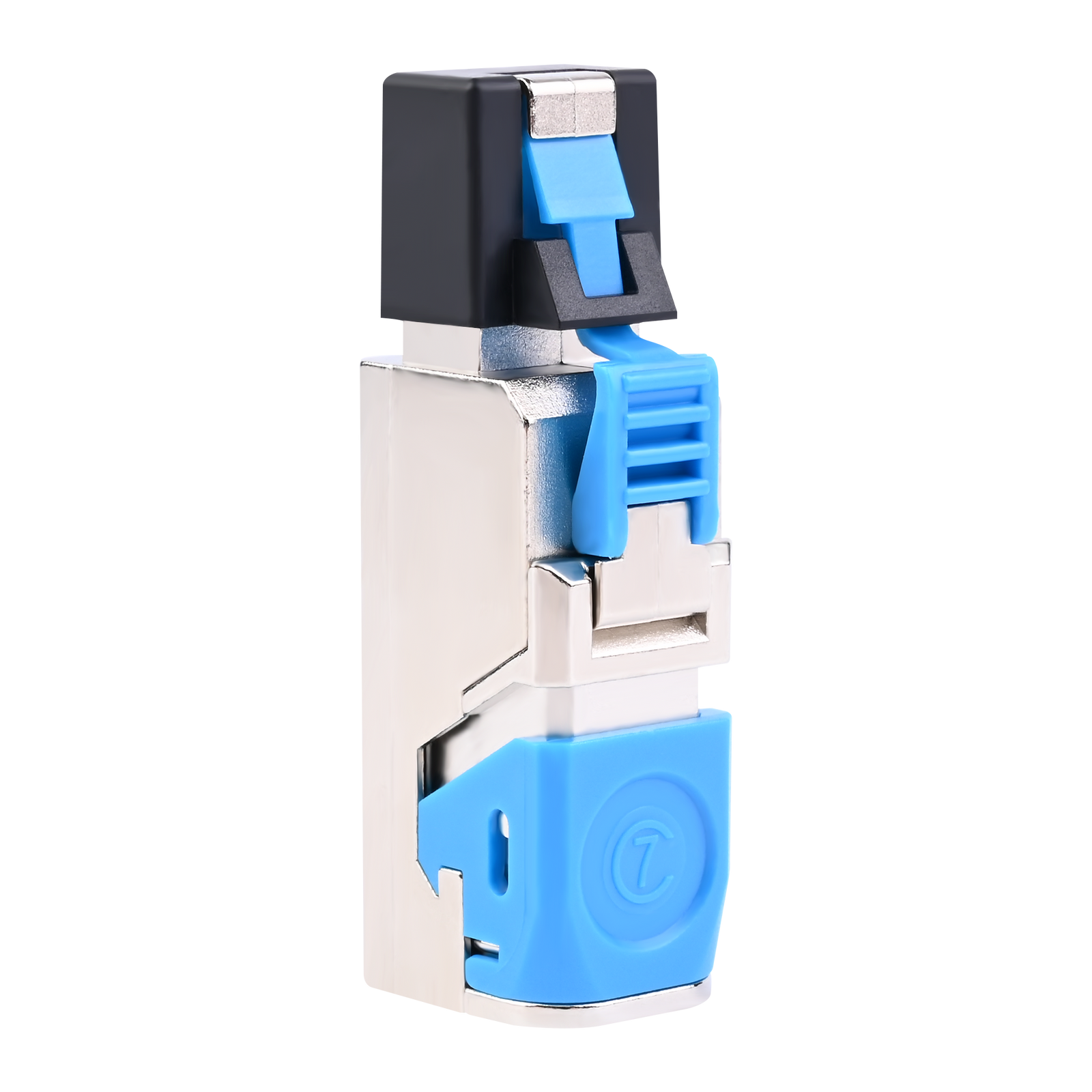

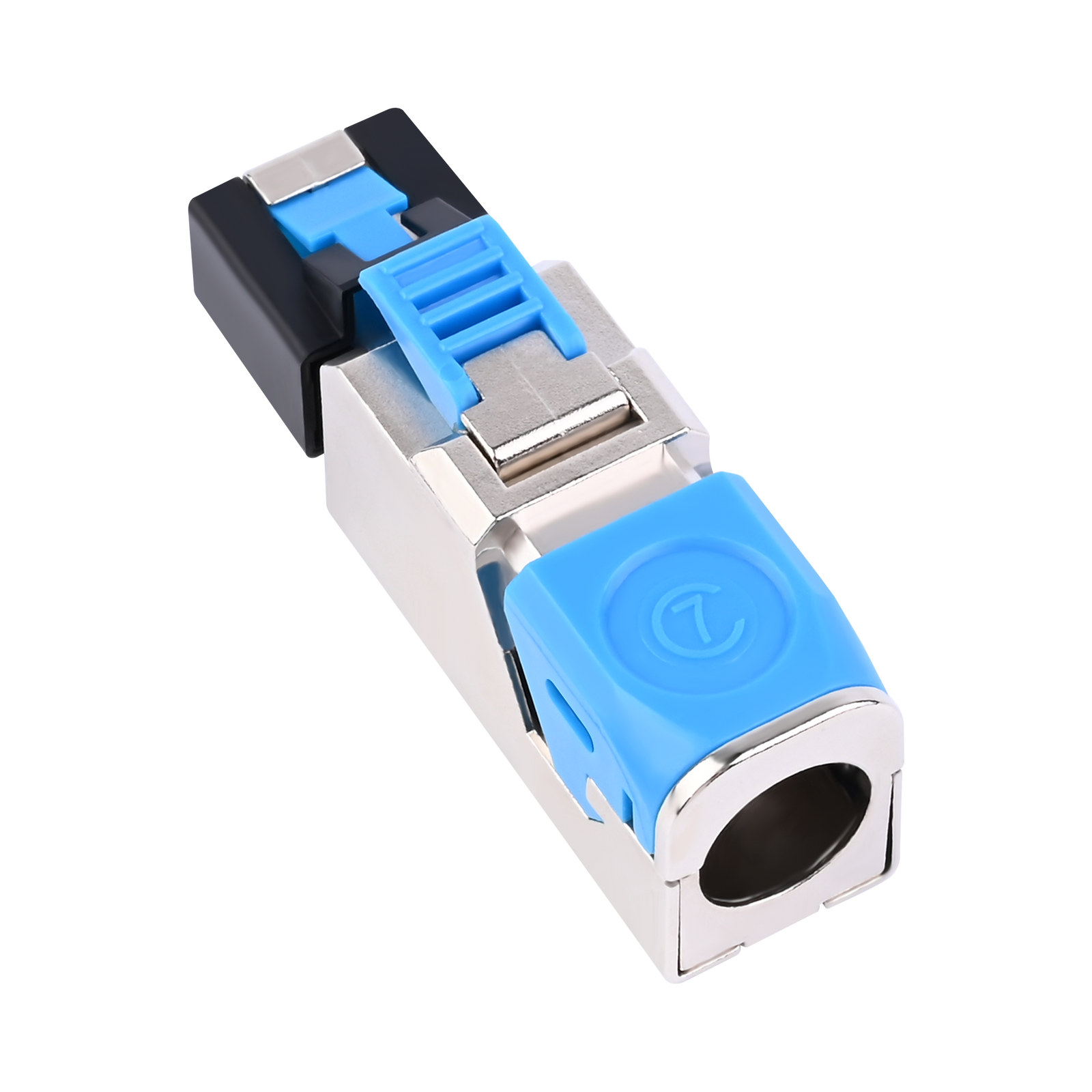

VCELINK tool free shielded Cat7 connector with locking cover is designed for a 10 Gbps and 600 MHz bandwidth network solution. It meets ANSI/TIA568-C.2 and ISO/IEC11801 standards. This Cat7 field termination plug features a unique locking design for easy and secure locking with the bottom cover. The plug features a zinc alloy shielding design, ensuring stable data transmission with less EMI, RFI, or crosstalk noise. The cable conductor holder smoothly slides into the RJ45 connector body for quick and hassle-free termination. The Cat7 field plug has an integrated strain relief design that helps protect your network cables from stress and potential damage.
Features
Cat7 Performance
Supports 10 Gbps speed and 600 MHz bandwidth.
Hassle-free Installation
-Features a locking cover for easy cable fix;

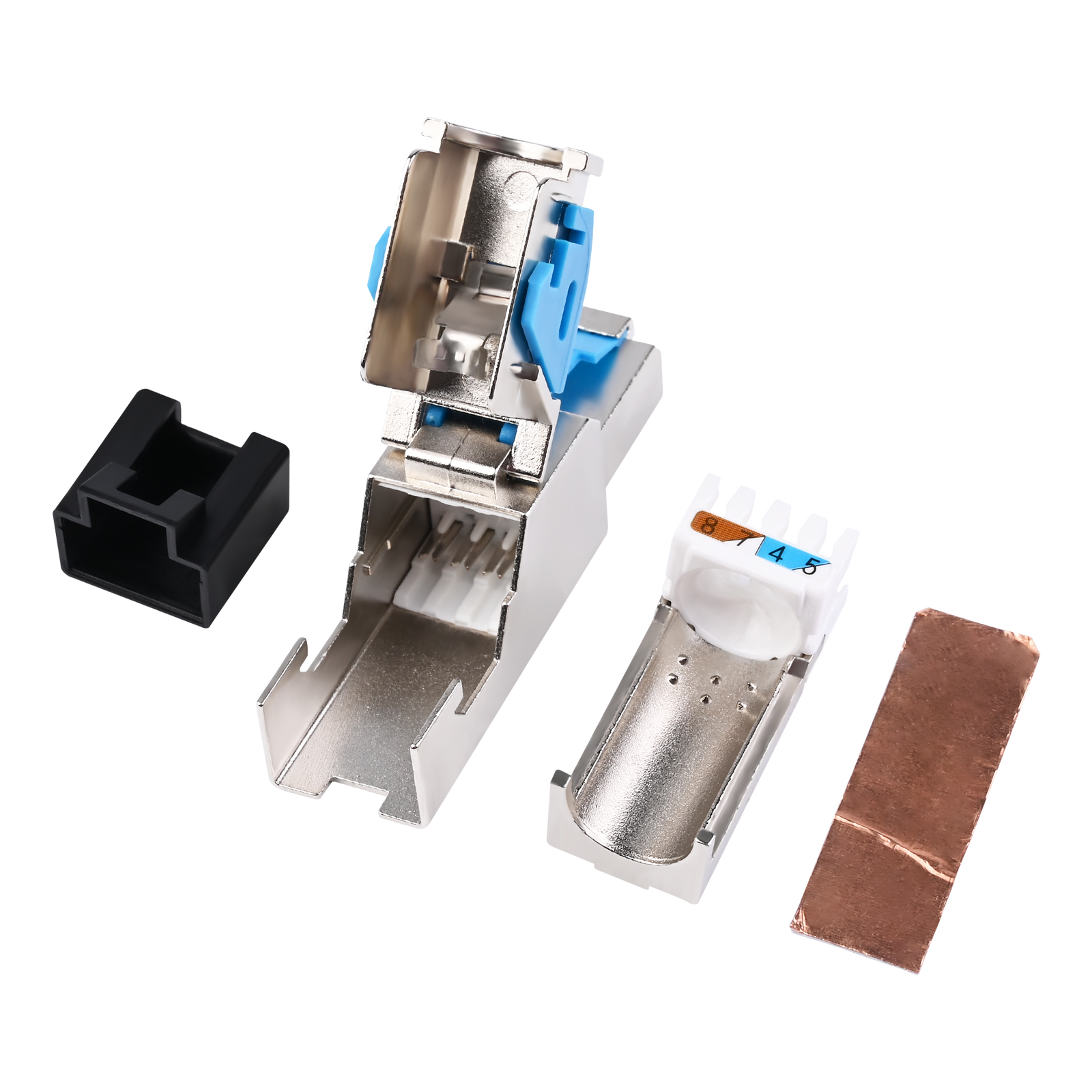

-Equipped with a cable holder and a top cover for quick cable termination;
-No crimping tools are required for wire termination.
Stable Data Transmission
-Zinc alloy metal shielding effectively prevents EMI, RFI, and crosstalk interference;
-Features a dust cover to protect the RJ45 connector;
-Gold-plated contacts offer conductivity and corrosion resistance to ensure stable data transfer.
Wide Compatibility
-Can crimp solid and stranded wires from 22 to 26 AWG;
-Backward compatible with Cat5e/Cat6/Cat6a Ethernet cables;
-Supports PoE, PoE+, and PoE++ applications.
