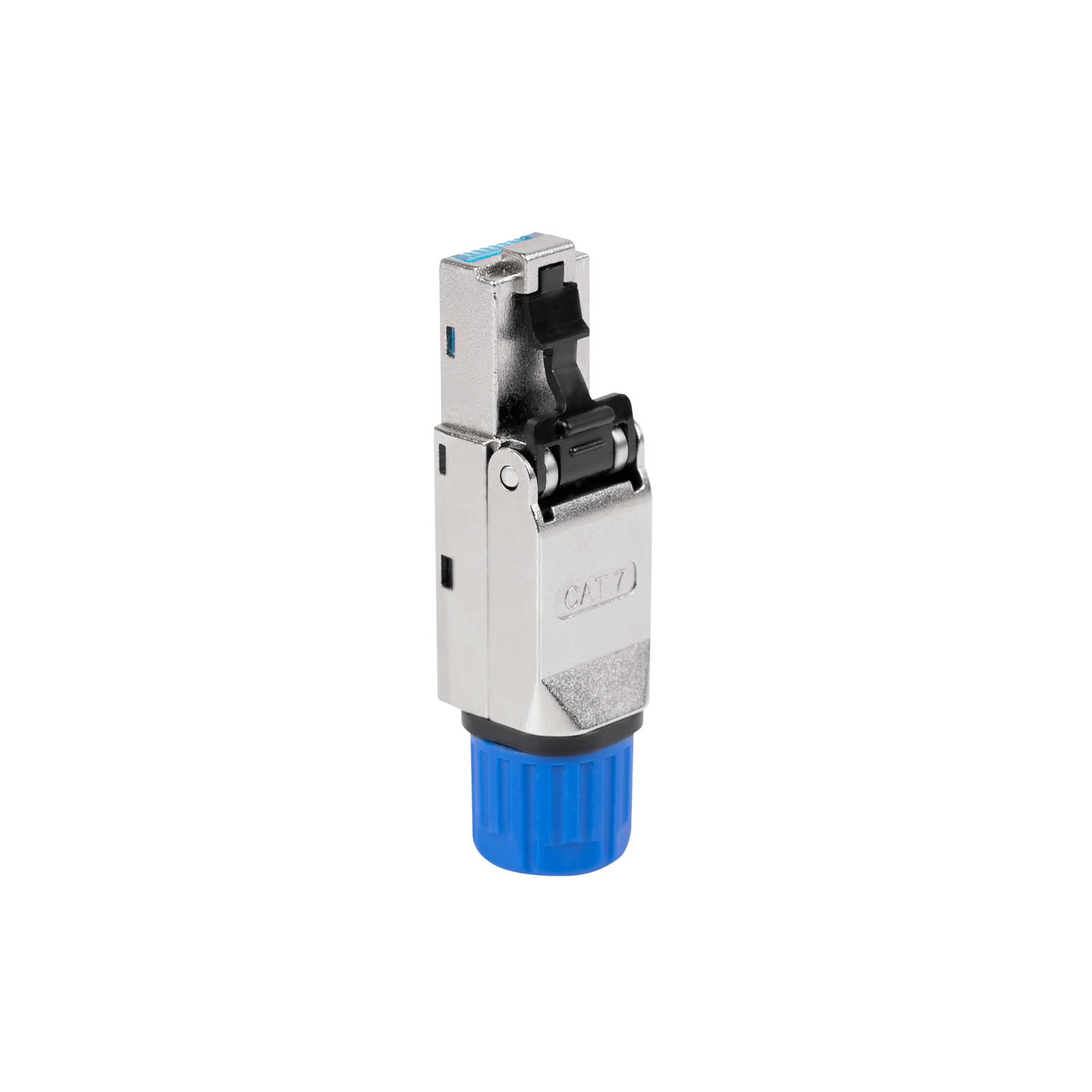

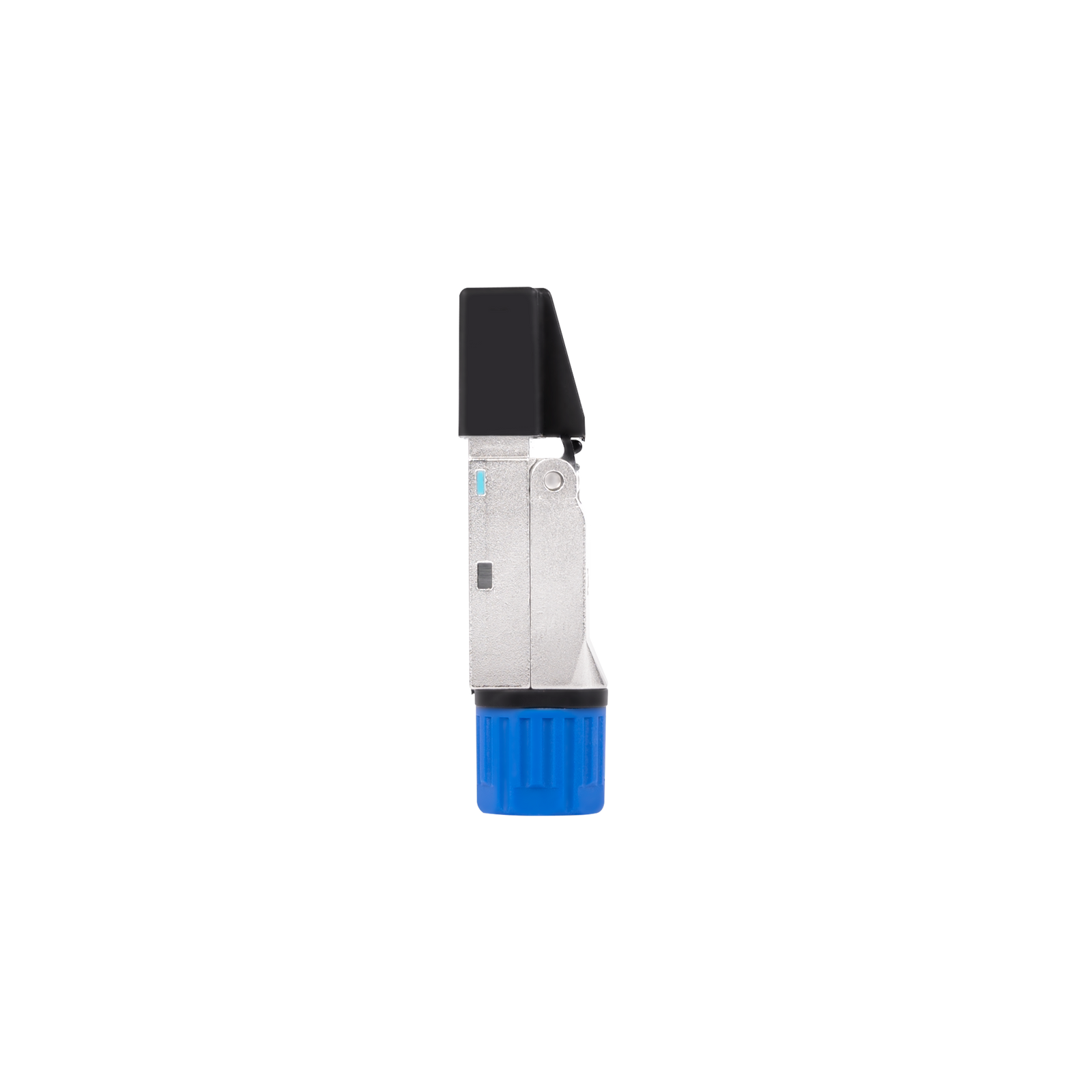

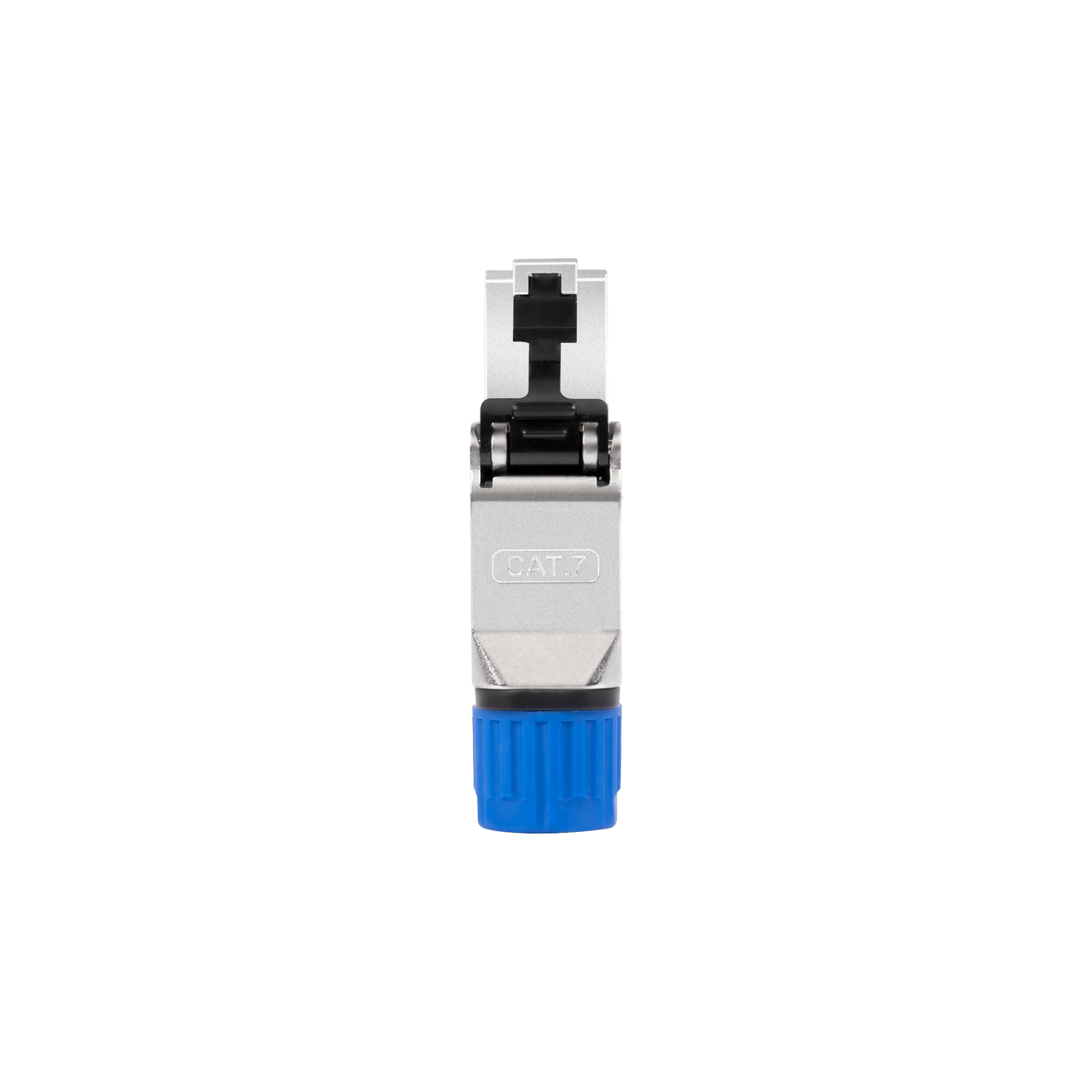

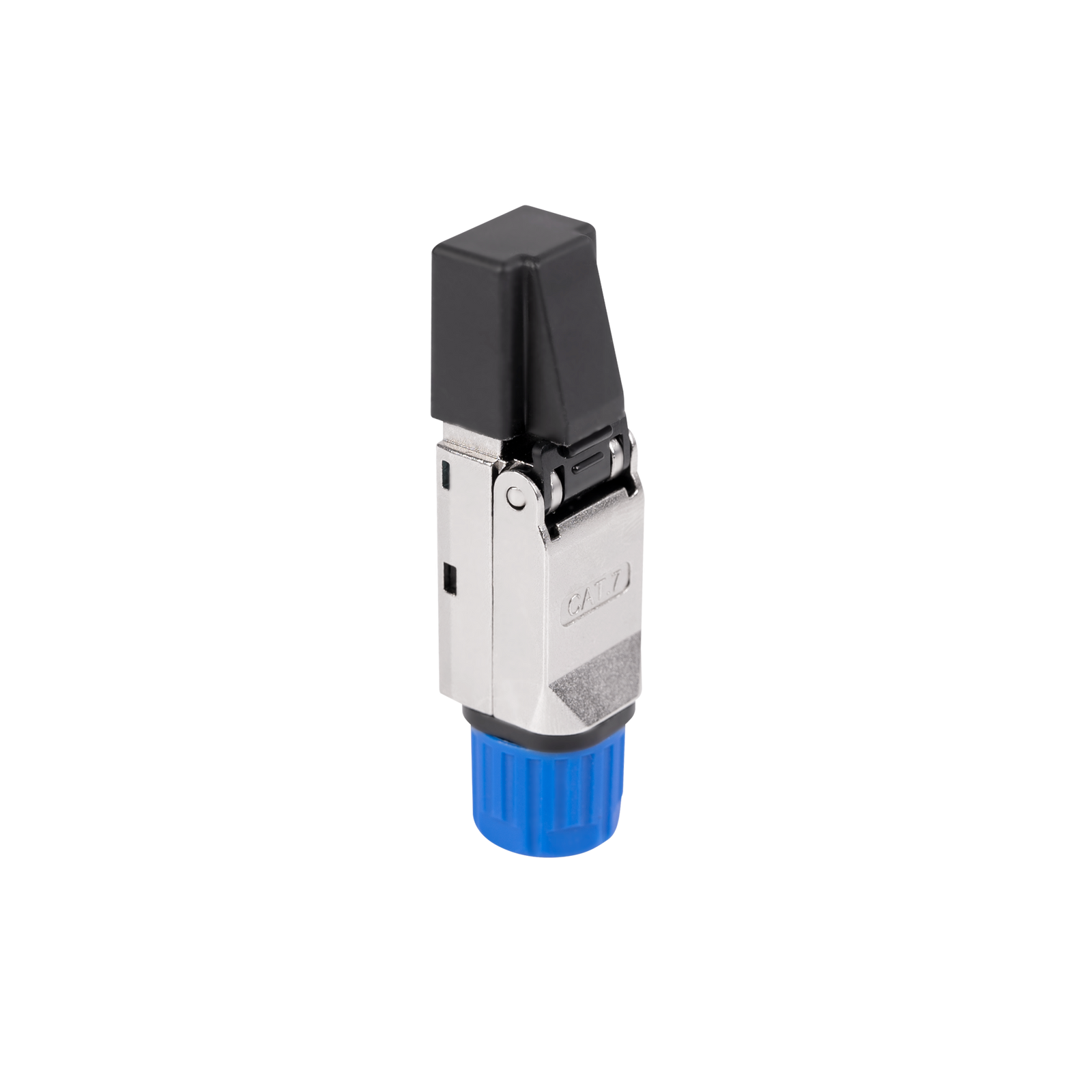

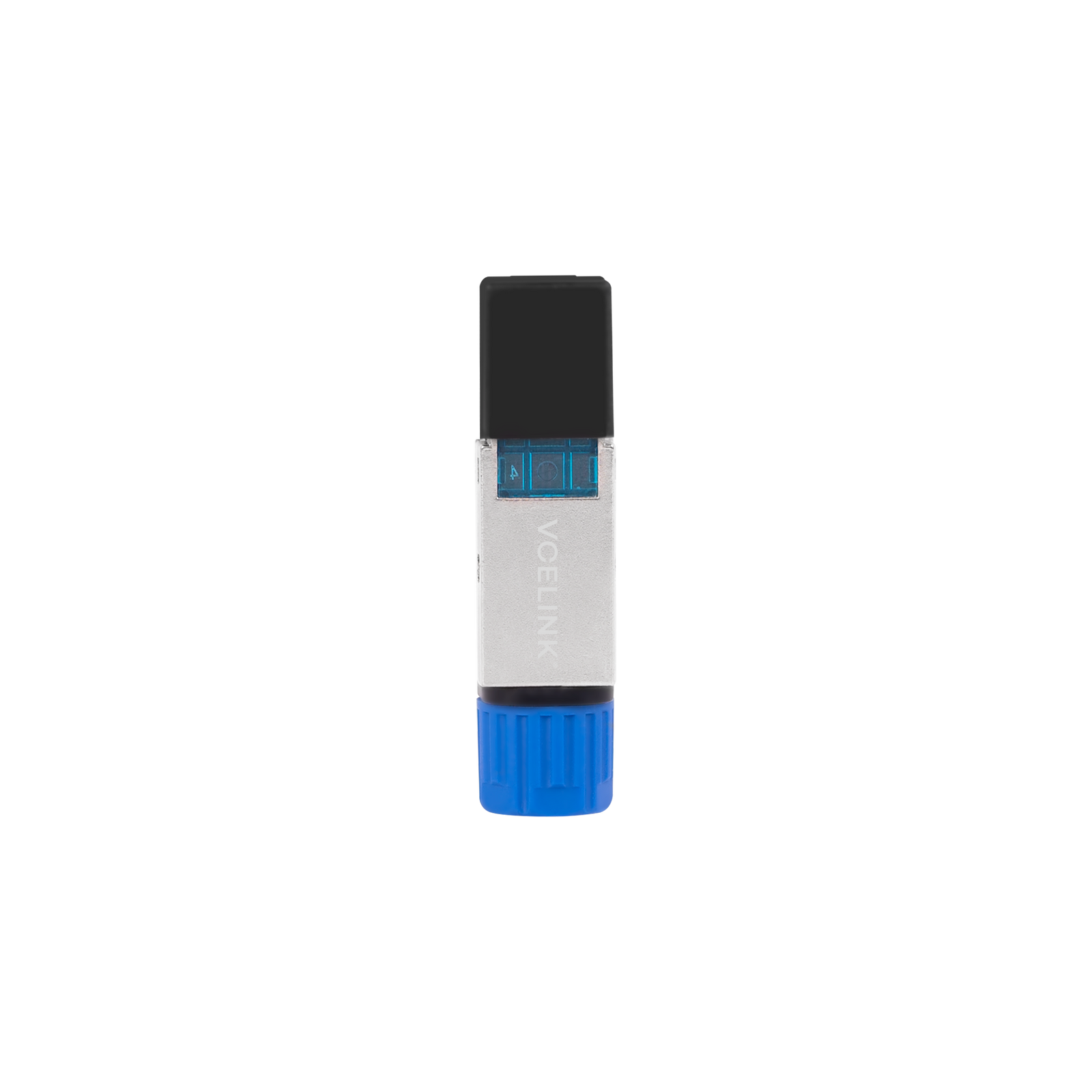

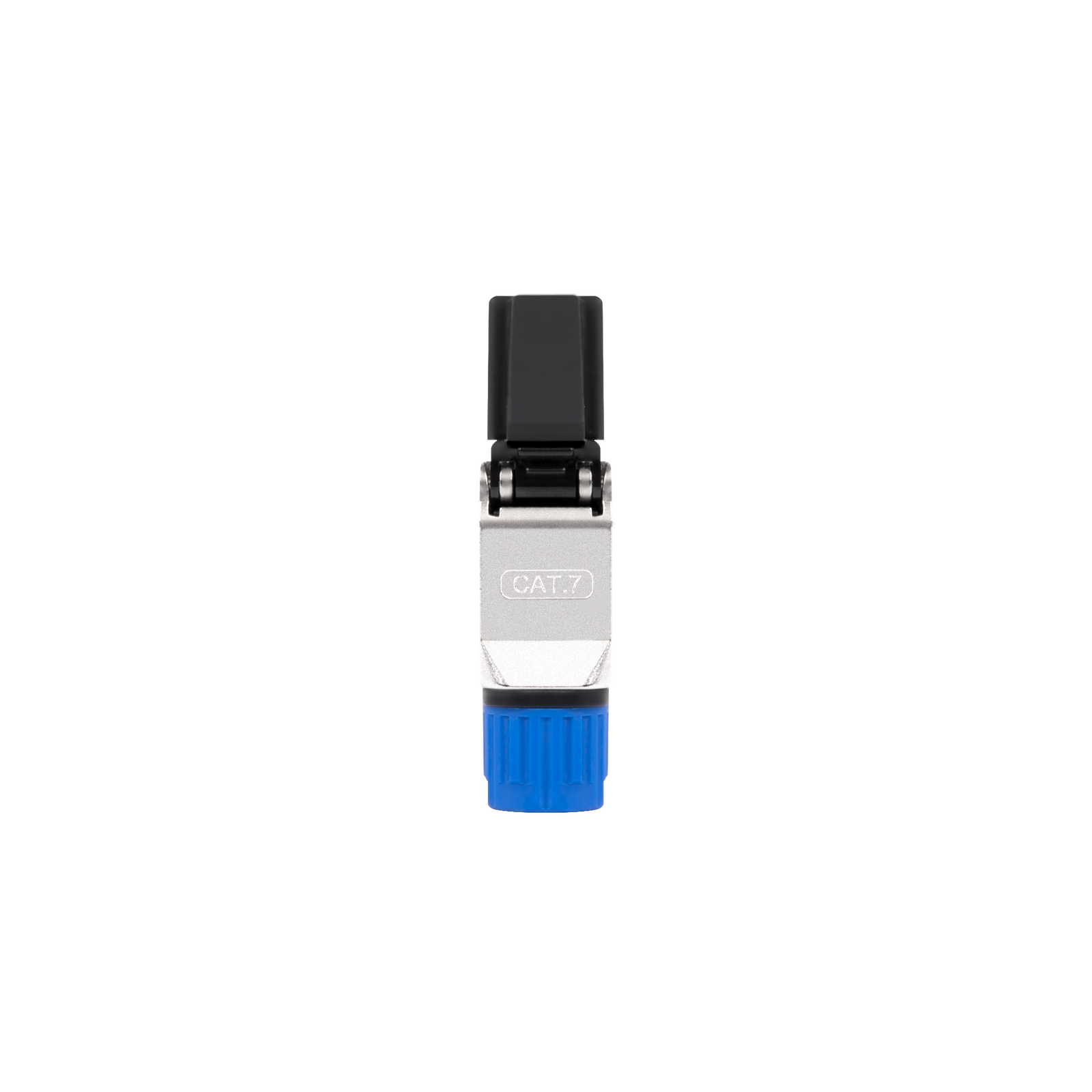

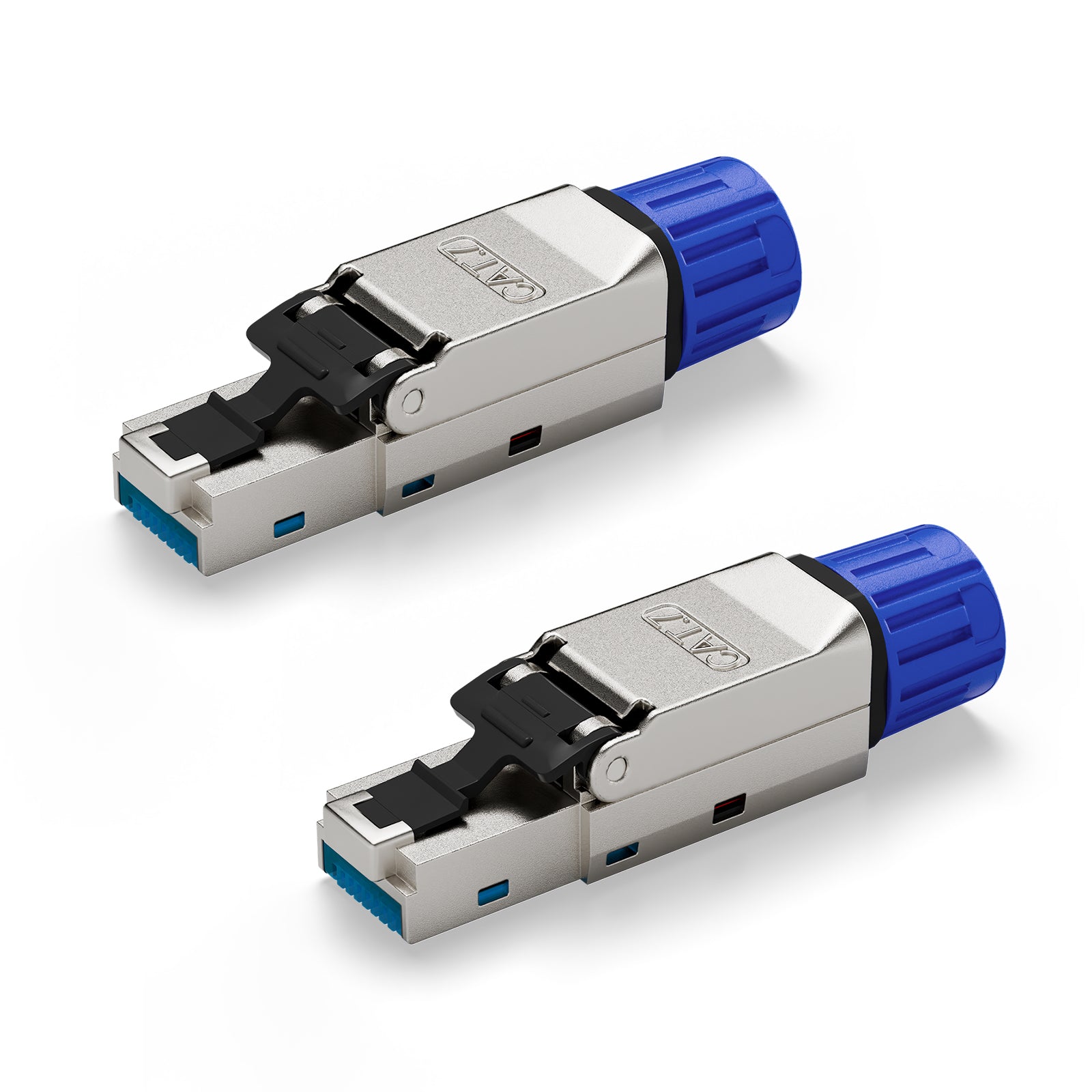

Toolless Cat7 RJ45 Plug VCELINK

KJ23-C7-2P-OL
$9.99
In Stock 500+
QuantityPrice Per Unit / PackSavings
10-49 $9.495%
50-99 $9.198%
100+ $8.4915%
Item Quantity
Saves you %

Free shipping for orders in the US-During the Promotion Period.

Fast shipping. Know More at Delivery & Return.

For more information, please send us an inquiry or email us.

Features:

  • Up to 600 MHz Bandwidth
  • Suitable for Shielded and Unshielded Ethernet cables
  • Gold-plated Contacts
  • 12-month Warranty & Lifetime Product Support

Pairs Perfectly With

Description

VCELINK Toolless Cat7 RJ45 Plug simplifies network cable termination without any professional RJ45 crimping tools, ideal for both DIYers and professionals. It is backward compatible with Cat6a and Cat6 shielded or unshielded cables. The metal shielding and gold-plated contacts ensure stable data transmission, making it suitable for server rooms and data centers.

VCELINK provides bulk and customized services. Feel free to contact us or email us if you have any questions about this product.

Learn More in What is Field Termination Plug?

Specifications

Product Type Cat7 Toolless Plug
Shielding Type Shielded
Data Rate Support 10 Gbps
Bandwidth 600 MHz
Shielded Material Zinc Alloy
Plastic Material PP
Contact Material Nickel Plated Phosphor Bronze; Gold Plated
Insertion Force 30N MAX.
Retention Strength 7.7 kg Between Jack and Plug
Operation Temperature -10 ℃ to 60 ℃
Usage 22 AWG to 26 AWG Stranded or Solid Wires
Cable OD 7 mm-8.5 mm
Insertion Frequency ≥ 1000 Times
Terminal Life ≥ 250 Times

Features

Cat7 Network Performance

-Achieves network speed of 10 Gbps and bandwidth of up to 600 MHz;

-Supports PoE applications;

-Backward compatible with Cat6a and Cat6.

 Easy Installation

-Easy to install without any professional RJ45 crimper;

-Supports T568A and T568B wiring diagrams;

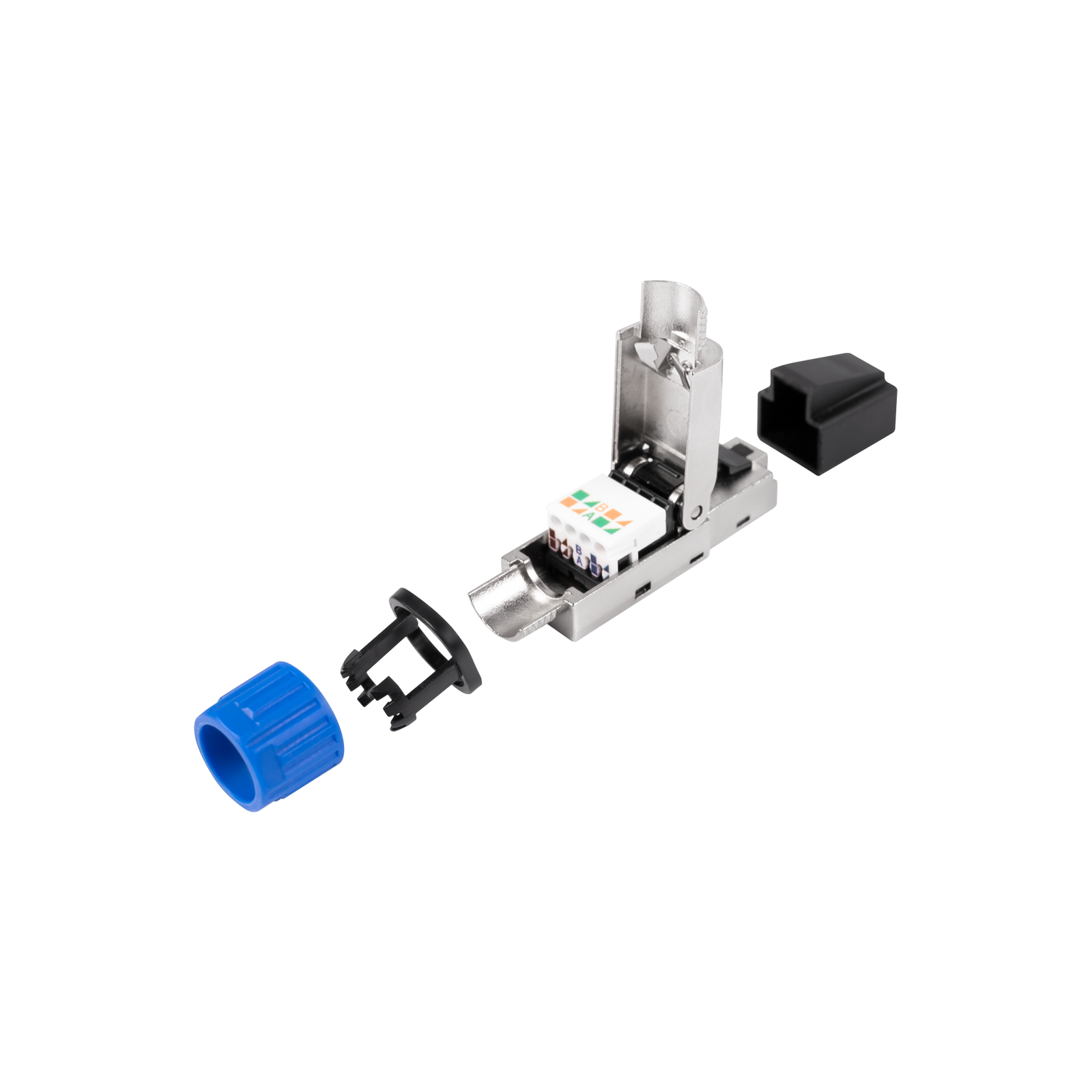

-Equipped with a conductor holder for easy wiring and termination.

Robust Construction

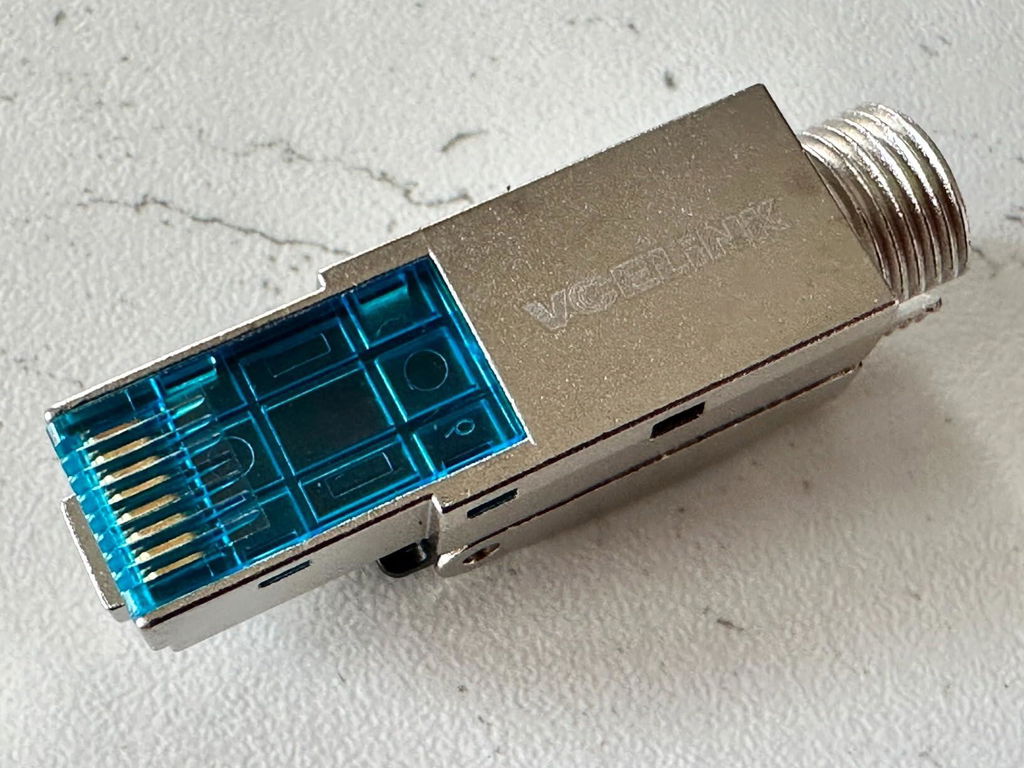

-Gold-plated contacts are resistant to oxidation and corrosion;

-Shielded design for resistance to EMI and RFI;

-High-quality PCB ensures good conductivity and low signal loss.

Compact and Reusable Design

-Ideal for high-density network environments like server rooms and data centers;

-The compact size makes this Cat7 connector suitable for tight space.

Q&A

Have a question?

Be the first to ask a question about this.

Ask a Question

Reviews

Customer Reviews

Based on 10 reviews
100%
(10)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
P
P M.

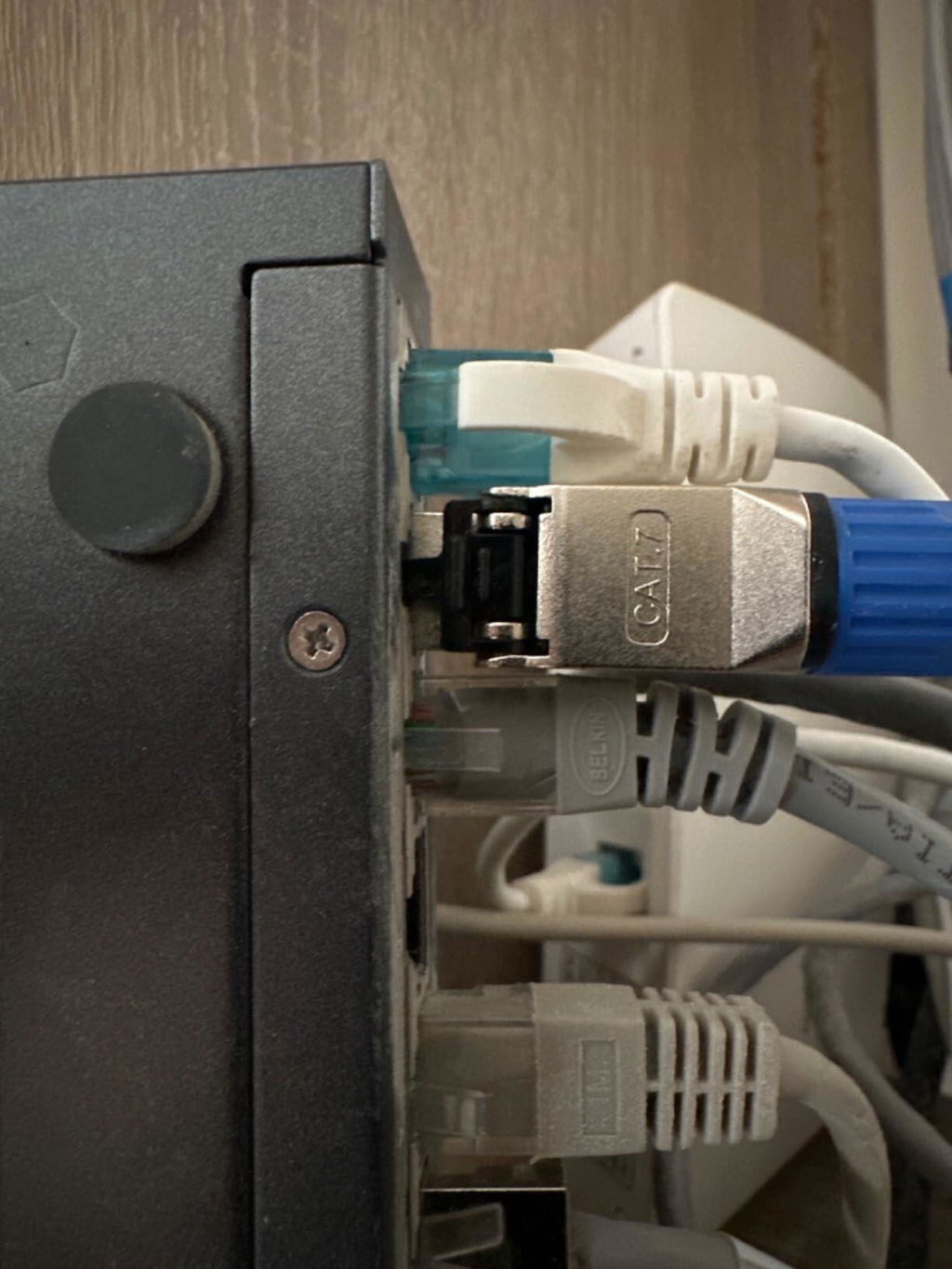

I had struggled to get more than 100 Mbps from a cat7 cable that I had run to our garden for a WiFi access point. I replaced the RJ45 sockets + patch leads I was using with one of these cat7 connectors on each end of the cable and the switch immediately negotiated at 1 Gbps. I haven’t tried faster since I only have a 100/1000 Mbps switch.

T
Trench

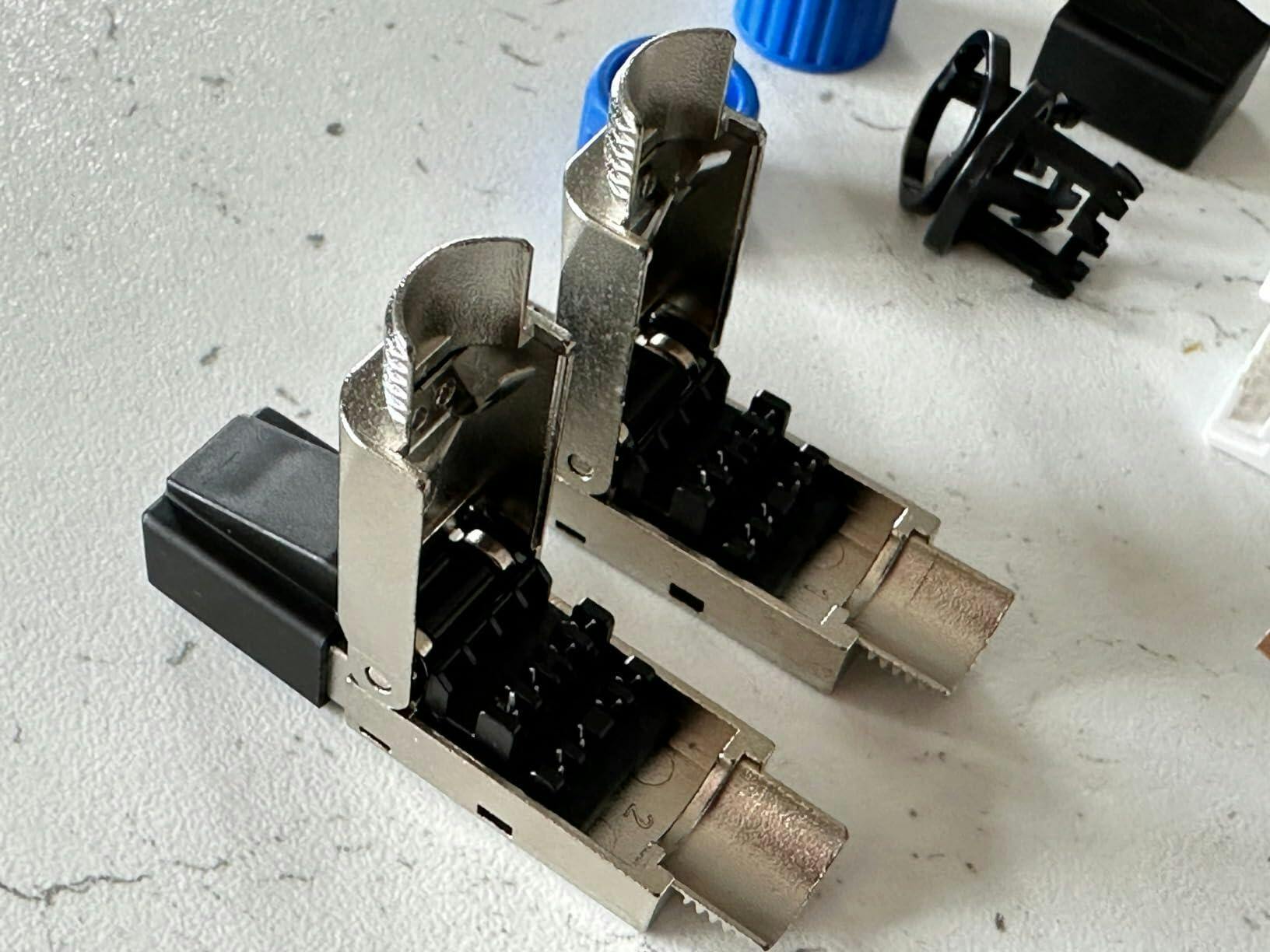

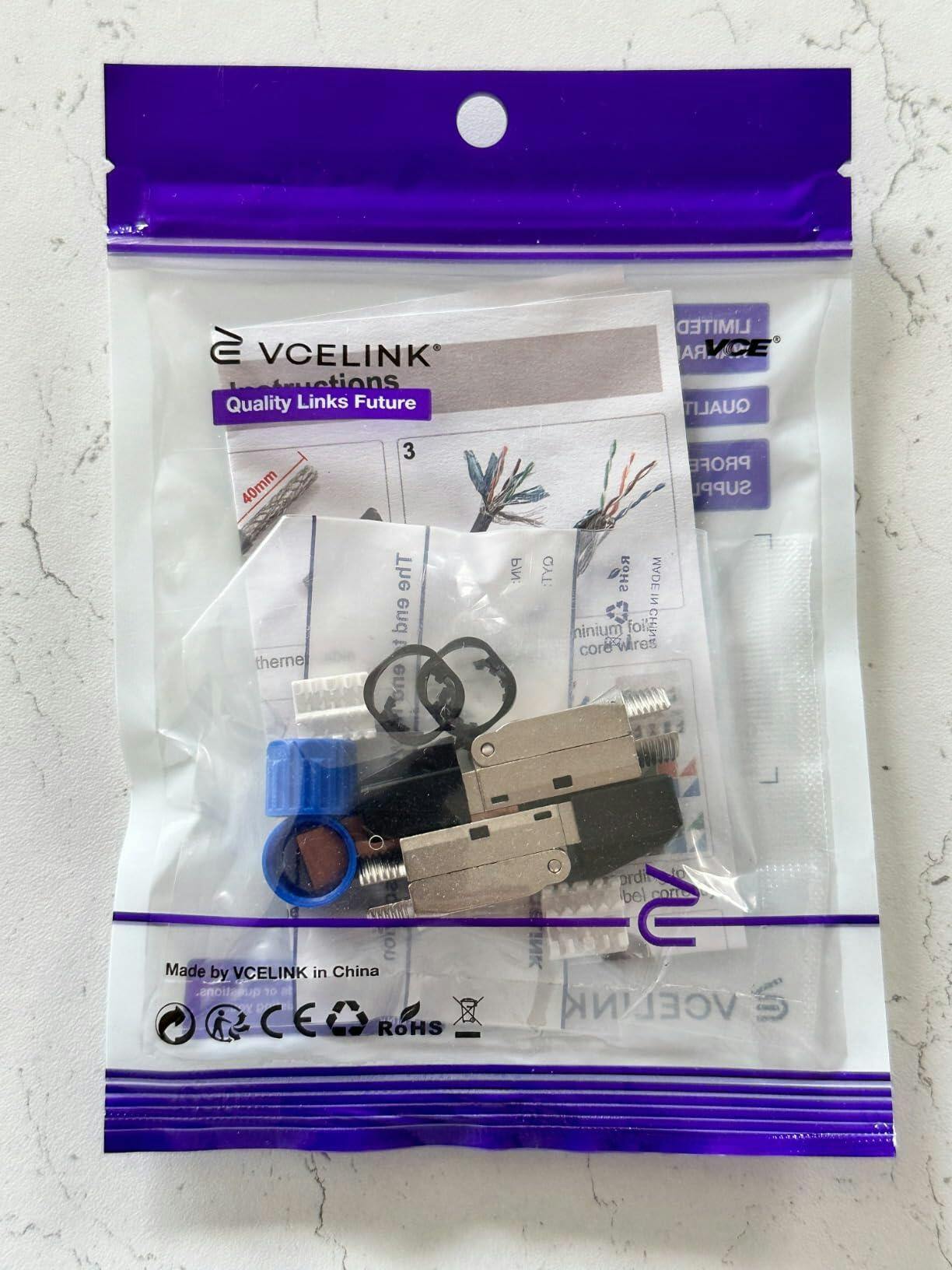

This is a set of 2 x CAT 7 RJ45 connectors from VCELINK.

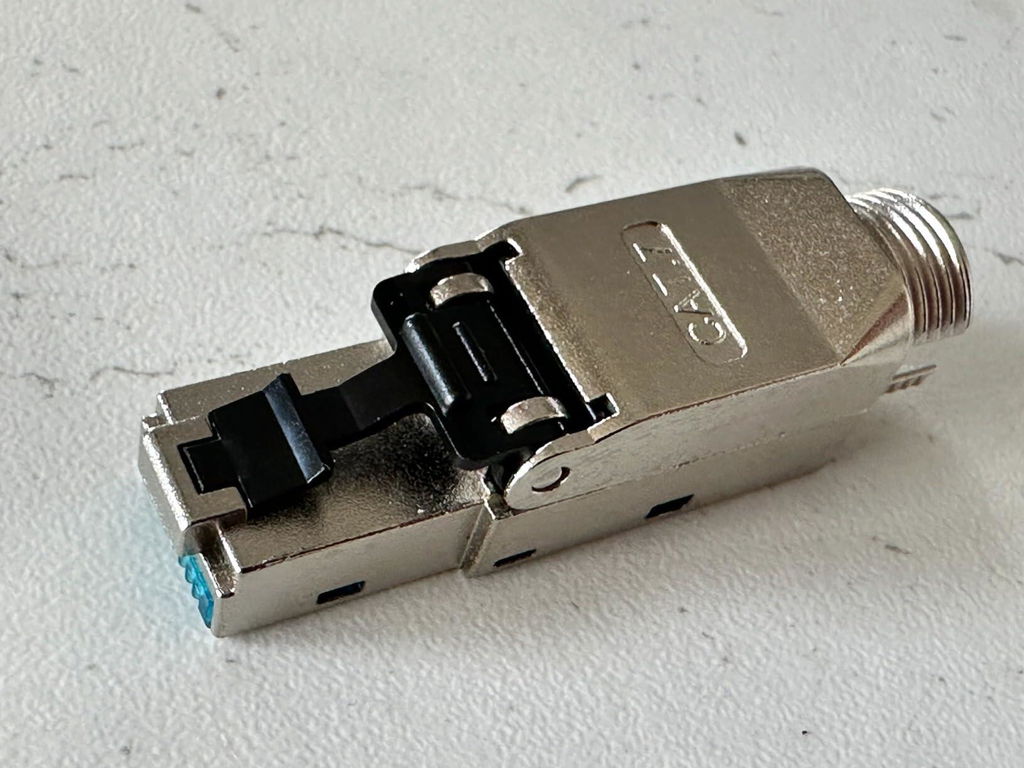

Construction of both these connectors is very well done with the ability of connecting your network leads with the need of a crimping tool.

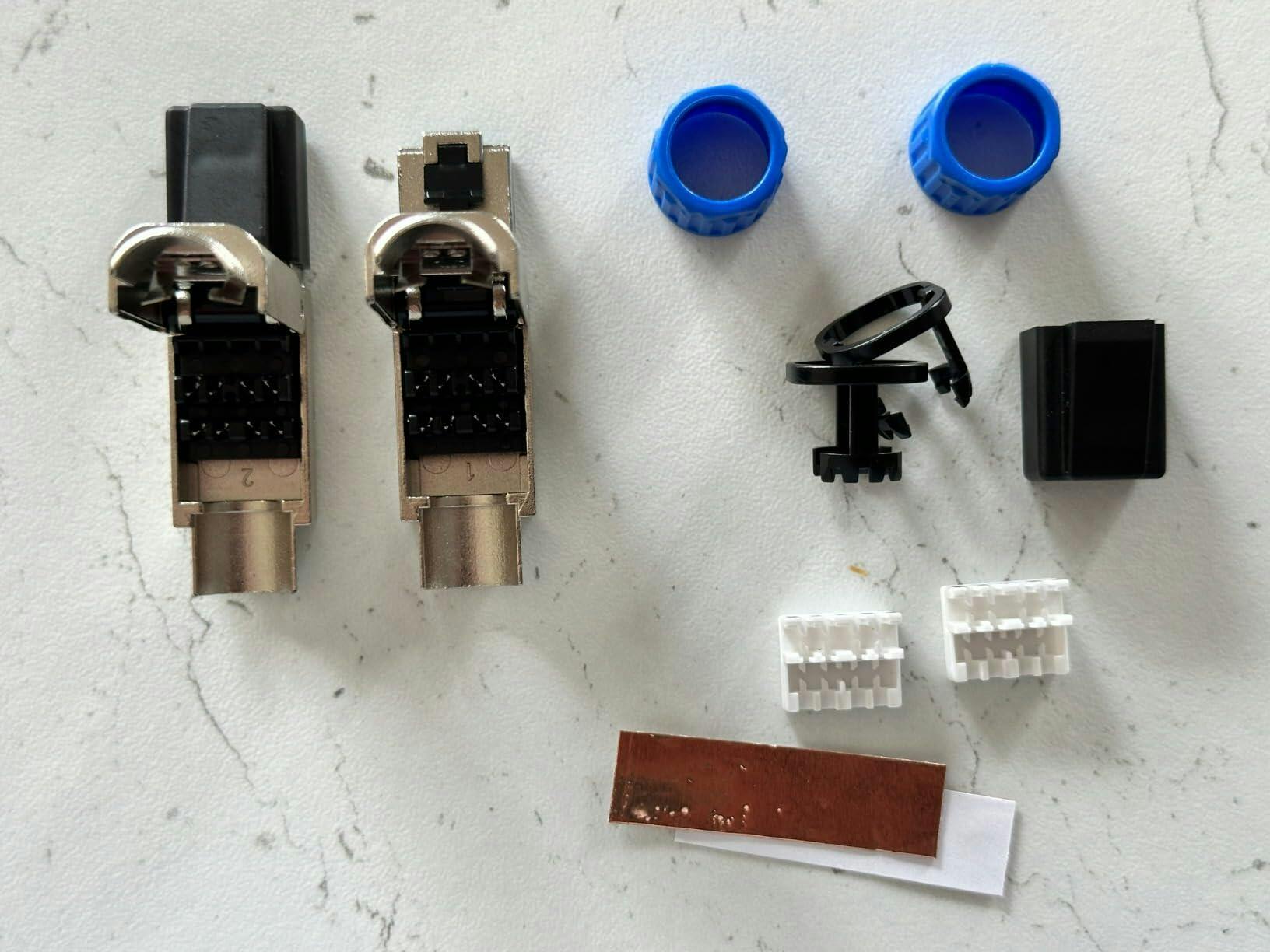

Each CAT connector has comes with its own unique cable device so that the cables can be inserted into the corresponding slot and then cut off with wire cutters.

The whole thing then just slots into the back the metal connector and closed up.

This whole solution helps remove the crimpers and is an ideal solution for IT consultants out on the road in the data centres and not requiring fiddly crimpers with a longer lasting solution with these metal RJ25 caps.

Overall these are a brilliant pair of RJ45 metal connectors and accessories and I thoroughly recommend them.

D
Daniel

Pro:

Werkzeuglose Installation 🛠️
Hohe Übertragungsgeschwindigkeit (bis zu 10 Gbps) 🚀
Stabile Verbindung durch Metallabschirmung 🔒
Vergoldete Kontakte für zuverlässige Signalübertragung ✨
Kompatibel mit CAT6A/CAT7-Kabeln 🔌
Farbcodierte Lastleiste für einfache Installation 🌈
Staubschutzkappe im Lieferumfang 🧹

Kontra:

Größerer Stecker als herkömmliche RJ45-Stecker 📏
Leichte Lernkurve bei der ersten Benutzung 📚

Fazit:
Insgesamt bin ich mit den VCELINK RJ45 Steckern sehr zufrieden. Sie bieten eine praktische, werkzeuglose Lösung für Netzwerkverbindungen mit hoher Leistung. Trotz der etwas größeren Bauweise überzeugen sie durch Qualität und Benutzerfreundlichkeit. Empfehlenswert für alle, die eine zuverlässige und einfach zu installierende Netzwerkverbindung suchen. 👍

A
Alex T.

Bought this to finish my outdoor Cat 6E thick and rugged cable installation. This is fantastic, clips on perfectly and works at 10gbps. Buy this as this is metallic and mighty, very reliable.

b
bt@

A nice item to have if you're doing fieldwork as a tech and need a quick fix. I like the metal construction and build quality, and the assembly of the cables is easier than others.. Still prefer keystone jack and plate installs, but this works OK if install cleanliness isn't an issue. I always use TIA-B for my ethernet jacks, be sure to use the same on both sides (though most computers and switches now auto-crossover if needed).
