Cat5e 180 Degree RJ45 Keystone Jack VCELINK
| Quantity | Price Per Unit / Pack | Savings |
|---|---|---|
| 20-49 | $10.45 USD | 5% |
| 50-99 | $10.12 USD | 8% |
| 100+ | $9.35 USD | 15% |
Shipping:
Free Over $59 (US&Japan&South Korea)
Free Over $79 (Canada&Australia)
Free Over $99 (Singapore&Thailand)
Free Over $159 (France&Germany&UK&Some EU)
Free Over $199 (Qatar&Maldives&Mexico&Saudi Arabia)
Know More at Shipping Policy.
Features:
- Gigabit Speed: 1000Mbps data rate, 100MHz bandwidth
- PoE Support: IEEE 802.3af compliant for power over Ethernet
- Package: 10 Pieces x Cat5e Keystone jack
- Worldwide Shipping & Fast Delivery
- After-sales Service: 12-month warranty
Invoice Support：We provide official invoices upon request for your purchase.
If the product is sold out, you can inquire about purchasing it.
Pairs Perfectly With
Description

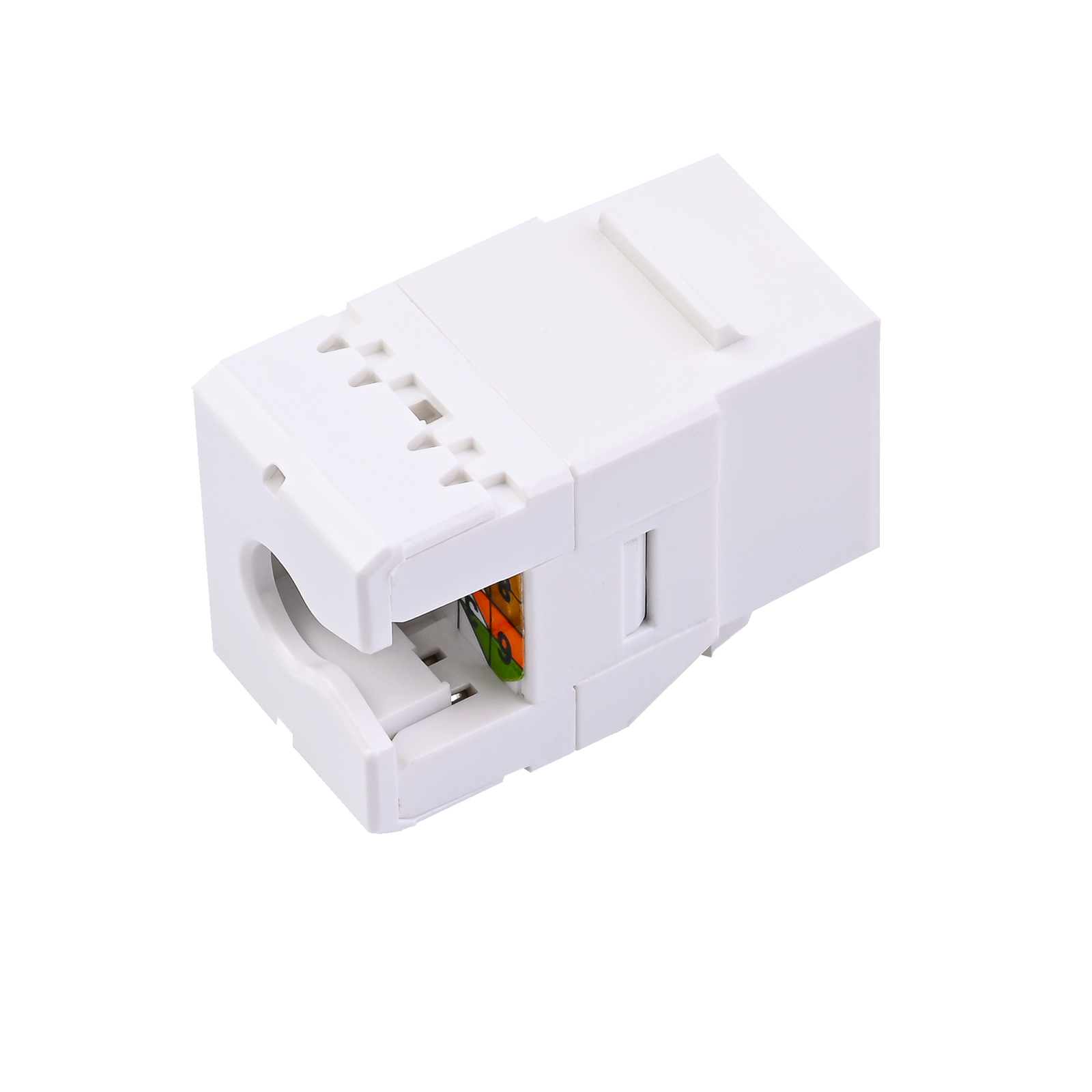

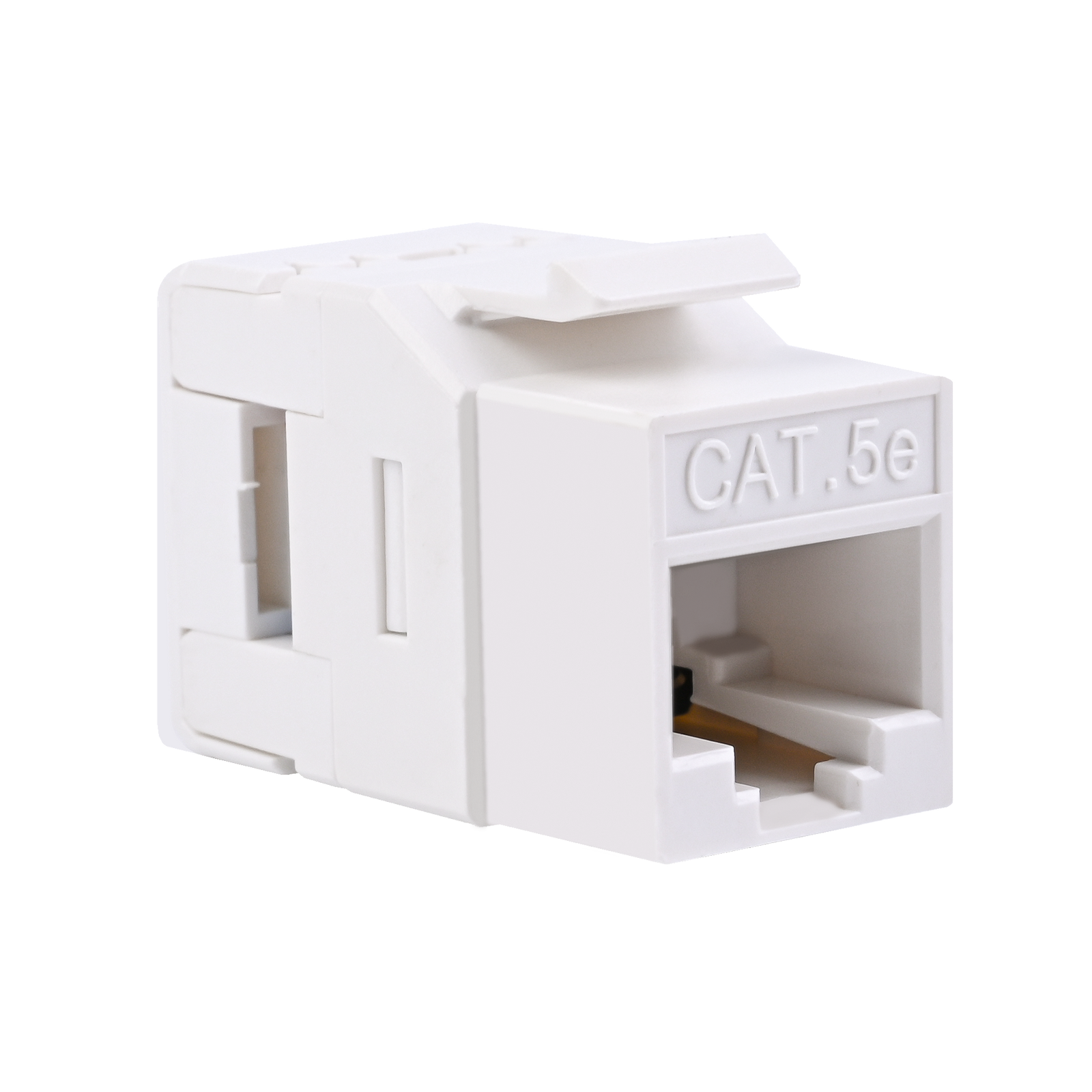

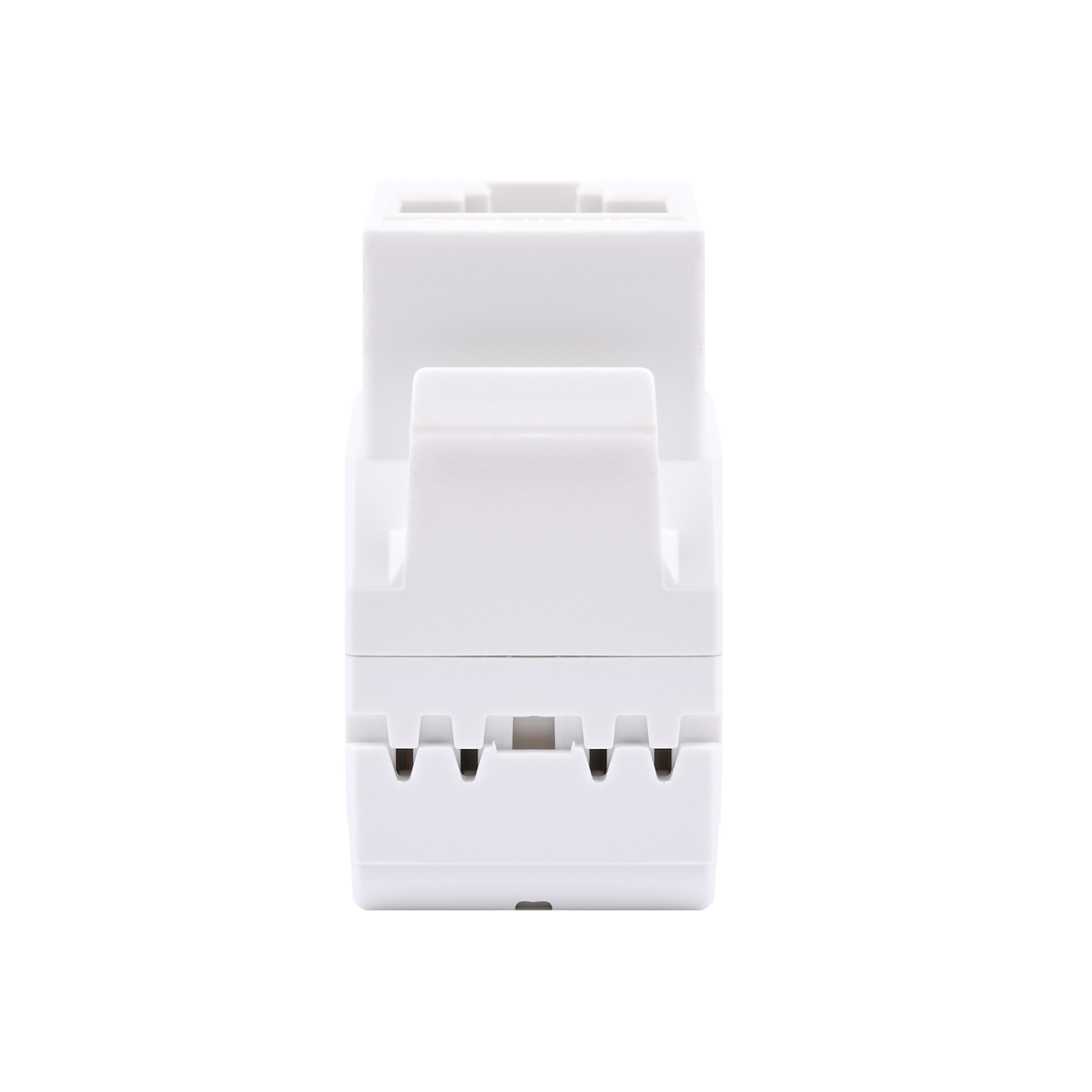

VCELINK Cat5e Keystone Jack is designed for reliable Ethernet connections in structured cabling systems. The unshielded 180° design features a durable white polycarbonate housing and supports 22–23 AWG conductors. Compliant with T568A/B wiring standards and ANSI/TIA/EIA-568 specifications, it delivers up to 1000 Mbps transmission with 100 MHz bandwidth and supports IEEE 802.3af PoE applications.
Features
Cat5e Performance
ANSI/TIA/EIA-568B.2.1 compliant, supporting up to 1000 Mbps data transfer and 100 MHz bandwidth.
Gold-plated contacts ensure reliable signal transmission and stable high-speed networking, while also supporting PoE for broader connectivity.
Easy Installation

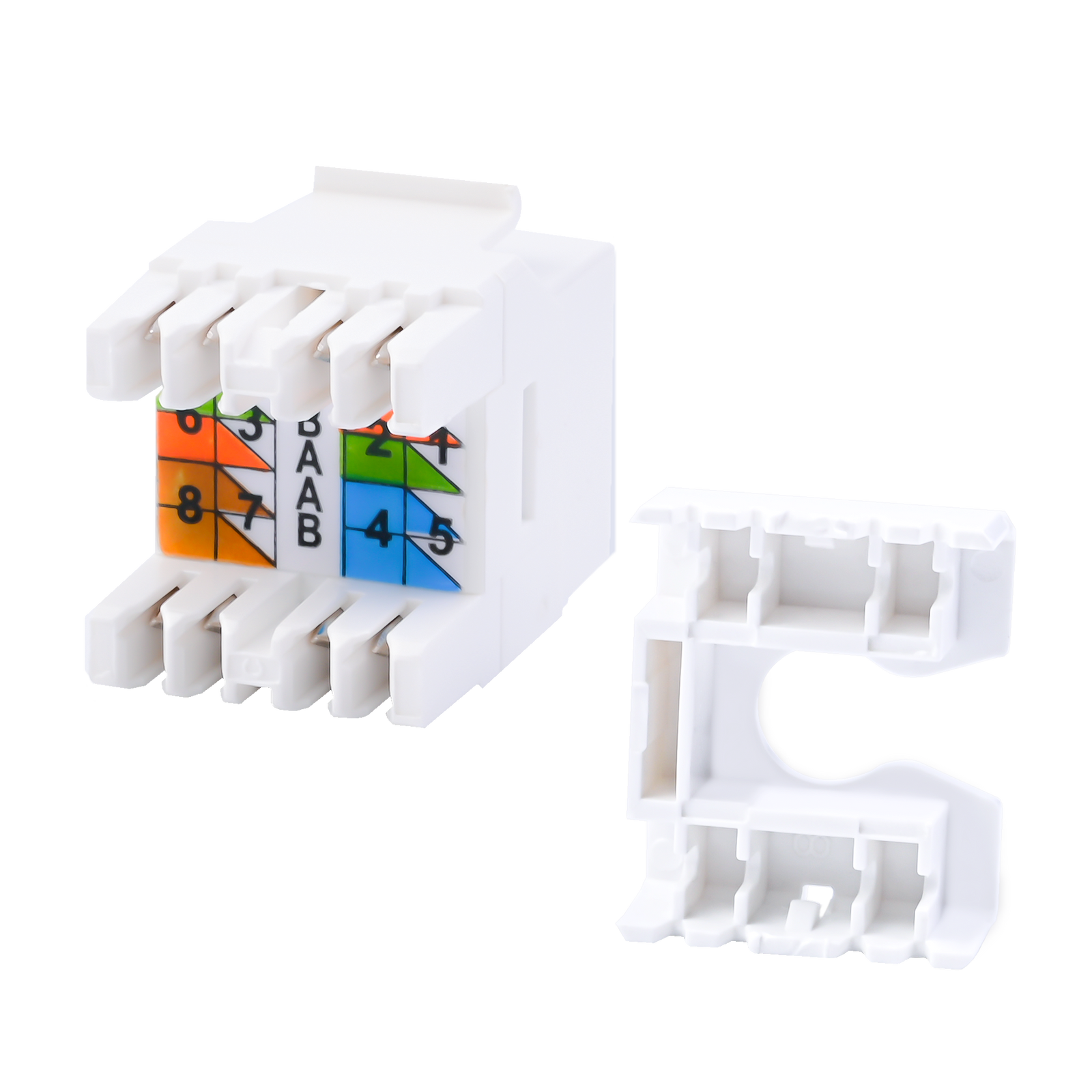

-180 degree termination design provides easy punching down, ideal for both DIYers and network technicians;
-Designed with dual-color labeling for T568A and T568B wiring diagram.
Durable Design
-Gold-plated RJ45 contacts provide corrosion resistance for stable data transmission.
-Used with faceplates, patch panels, and surface mount box for easy cable management. The jack can be easily removed from panels and offers reusability.
Wide Applications and Compatibility
-Compatible with Cat5e and Cat5 Cabling;
-Supports 23-24 AWG solid and stranded wires.
