cat6a shielded rj45 field termination plug

Cat6a RJ45 Toolless Connector VCELINK

KJ22-6A-2P-OL

$6.59 In Stock 200+

Item Quantity

2 PIECES ($3.3/Count) 6 PIECES ($3/Count) 12 PIECES ($2.8/Count) 24 PIECES ($2.5/Count)

Color

Quantity

MIDYEAR20

08-Aug-2024

20% OFF! Happy Shopping!

Copy

Free shipping for orders above $29.99.

Please allow 4-25 working days for transportation if you purchase here. Know More at Delivery & Return.

For bulk purchase request please send us an inquiry or email us.

Features:

500 Mhz Bandwidth
10Gbps Transmission Speed
Worldwide Shipping & Fast Delivery
Multi-colores Are Available
In-stcok Wholesale & Customization Service
12-Month Warranty & Lifetime Product Support

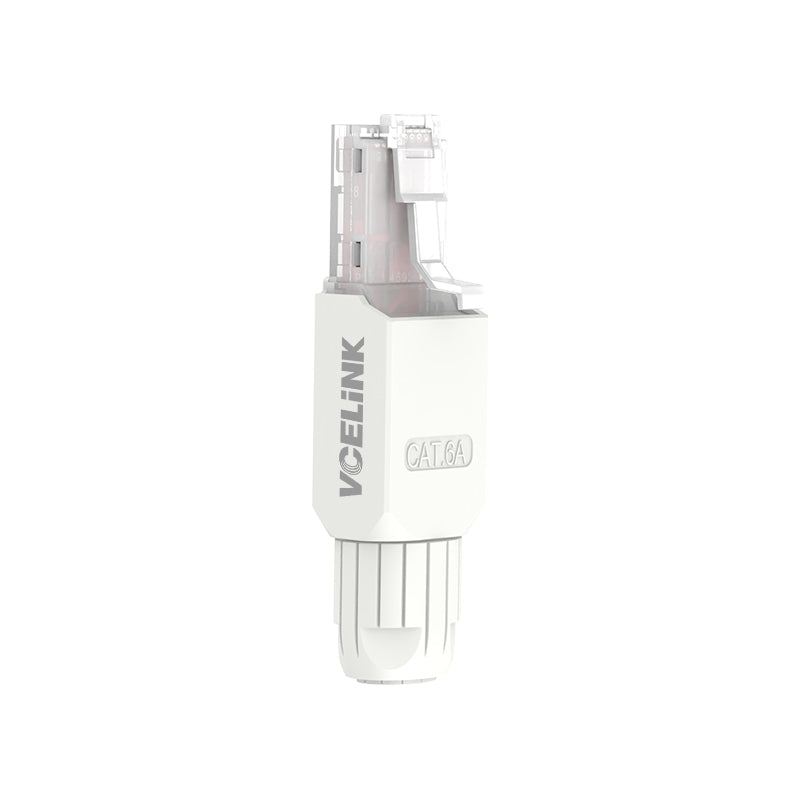

Cat6a RJ45 Toolless Connector VCELINK

$6.59

Description

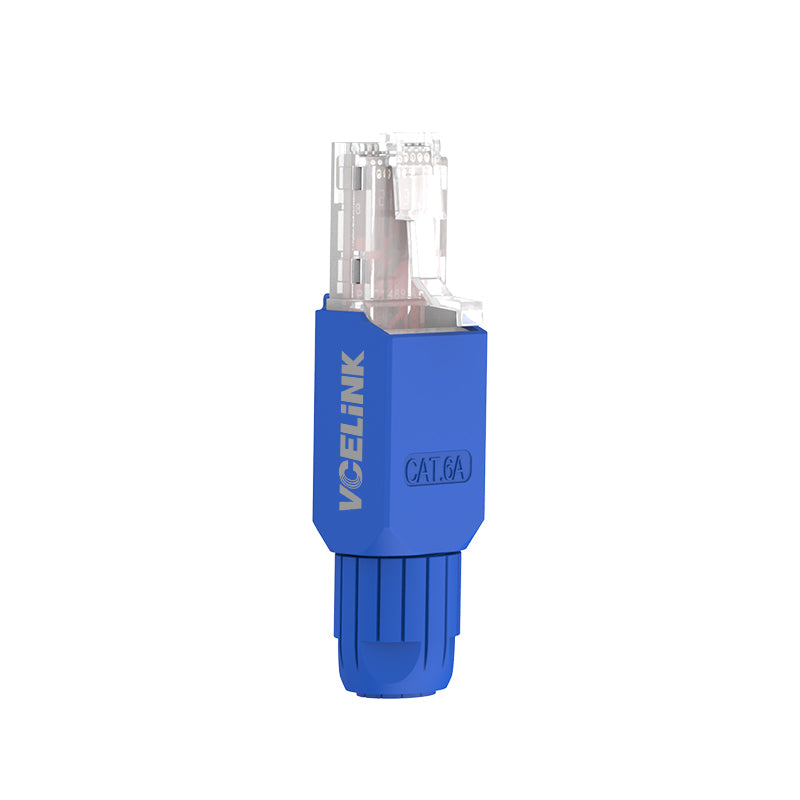

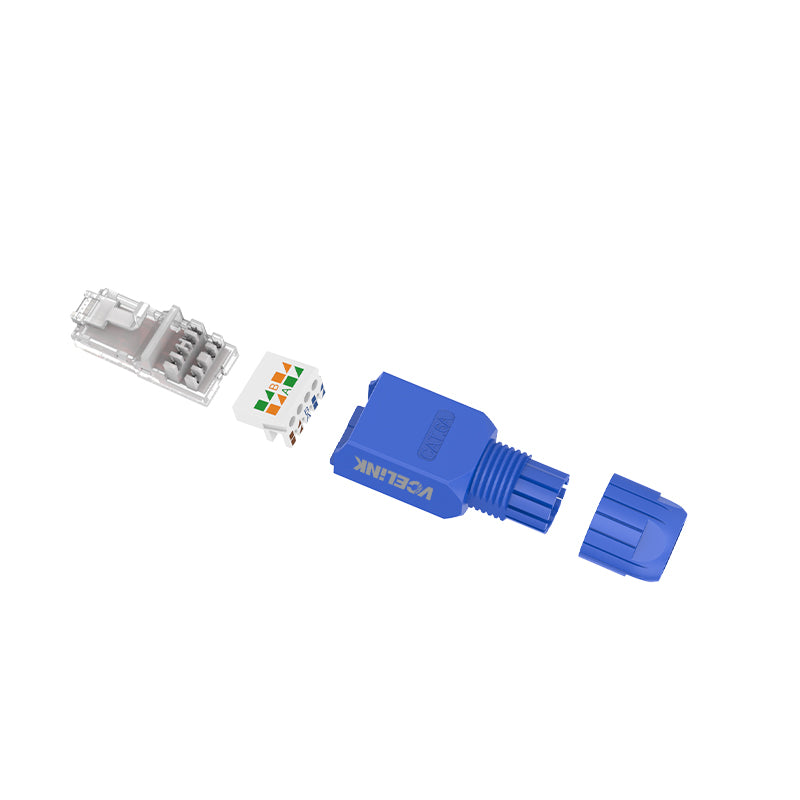

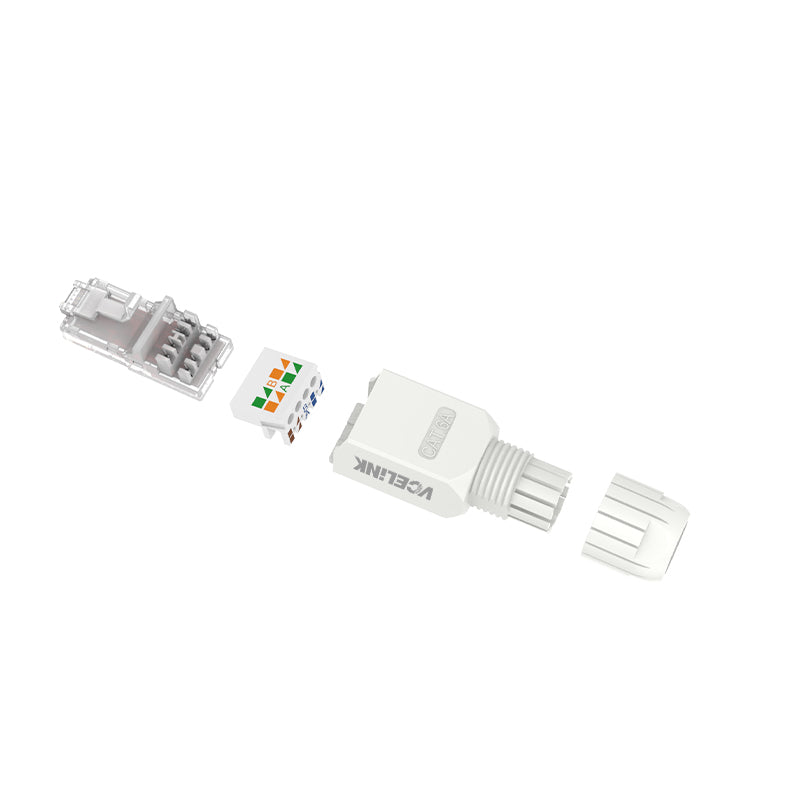

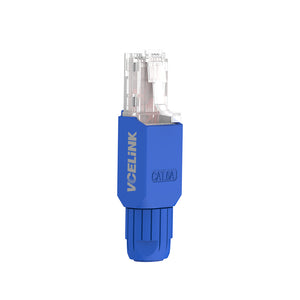

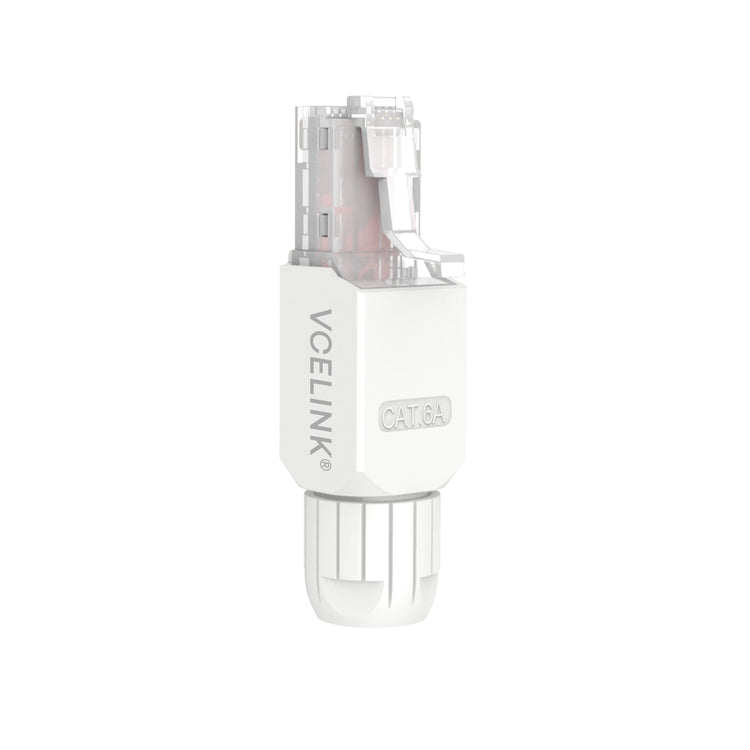

Simplify your network installations with VCELINK Cat6a RJ45 Plug. It is made of new PC materials for enhanced durability. Moreover, the Cat6a toolless connector is easy to install without any need for professional RJ45 crimping tools. The quick and easy installation makes this RJ45 connector more cost-effective than shielded toolless connectors if there is not much interference. The Cat6a connector is available in white, blue, and white for easy cable management.

We support bulk and customized services. If you have any questions, feel free to contact us or email us.

Learn More in Best for Field Termination: Toolless RJ45 Connector

Specifications

Product Type	Cat6a Toolless Plug
Termination Type	8P8C Connector
Style	Toolless;Unshielded
Wiring Scheme	T568A/T568B
Data Rate Support	10 Gbps
Plastic Material	New PC
Load Bar Material	PA66
Terminal Pins Material	Phosphor Bronze
RJ45 Contact Life	≥750 Times
IDC Terminal Life	≥250 Times
Contact Resistance	20m OHM
Insulation Resistance	≤500m OHM @100 V DC

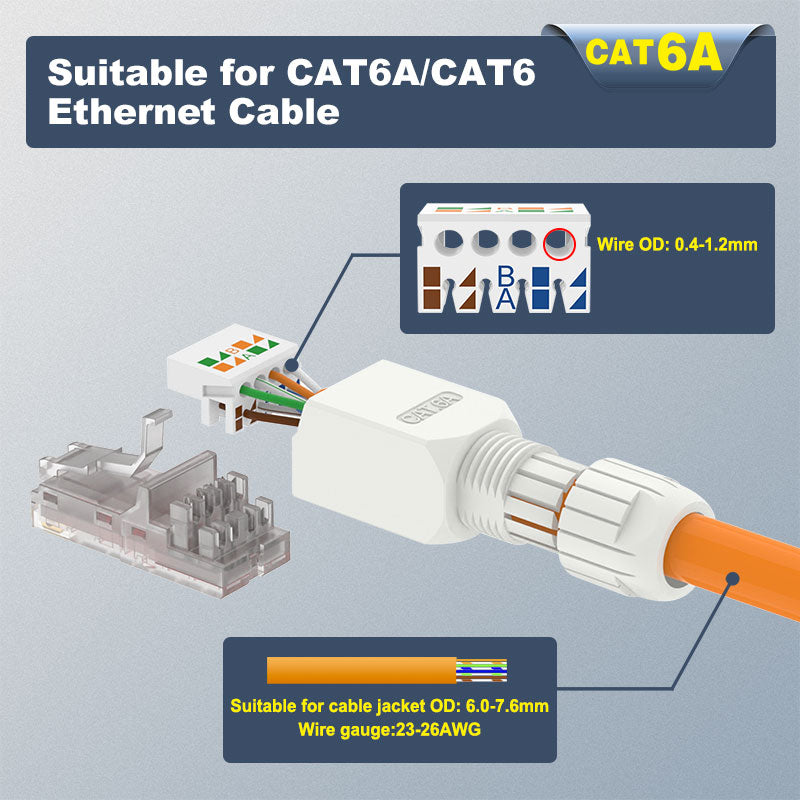

Usage	Stranded Wire or Solid Wire 23 AWG to 26 AWG

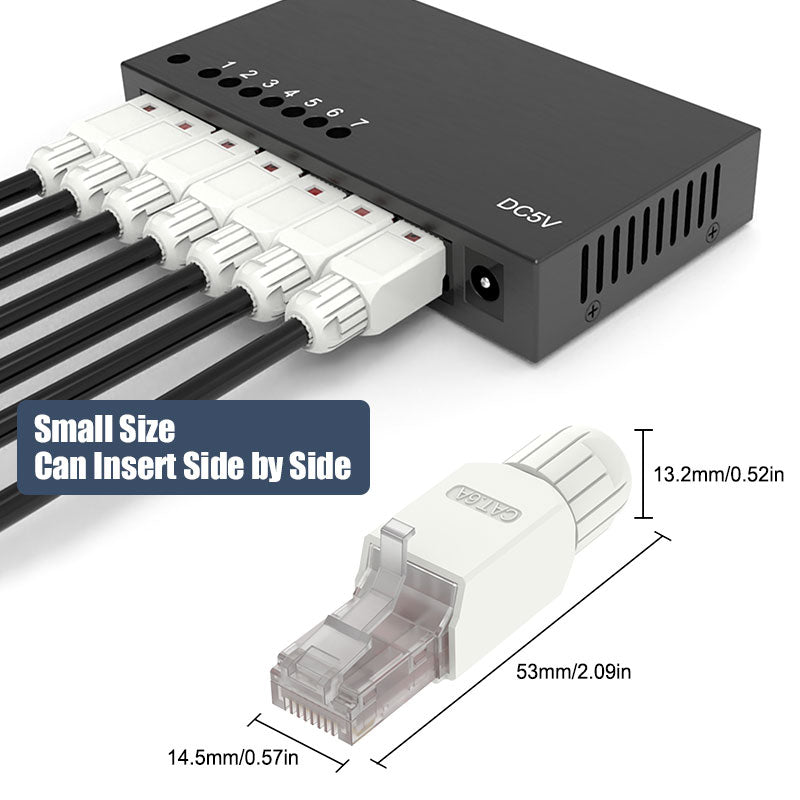

Cable Jacket Diameter	6mm to 7.6mm

Features

Easy Installation

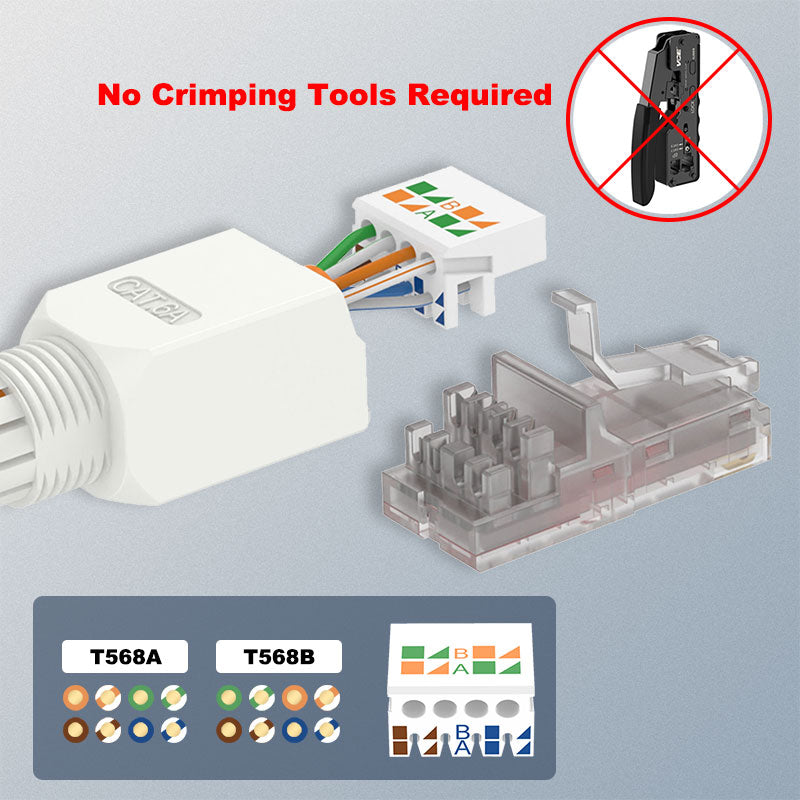

-The toolless design allows you to install this RJ45 connector without any need for professional crimping tools;

-T568A or T568B wiring diagram printed on the conductor holder allows for easy installation.

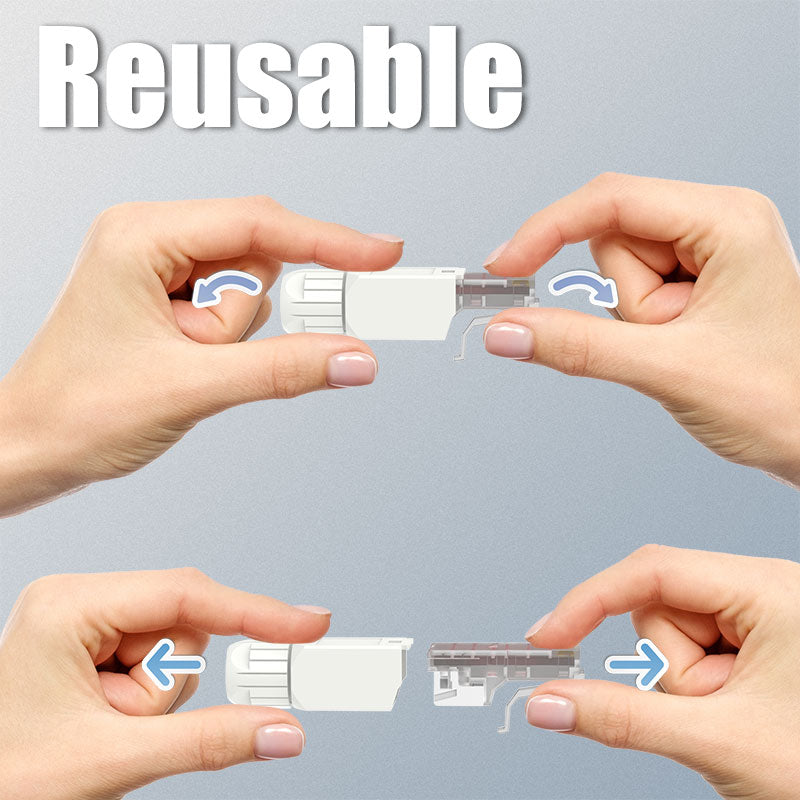

Reusable and Durable Design

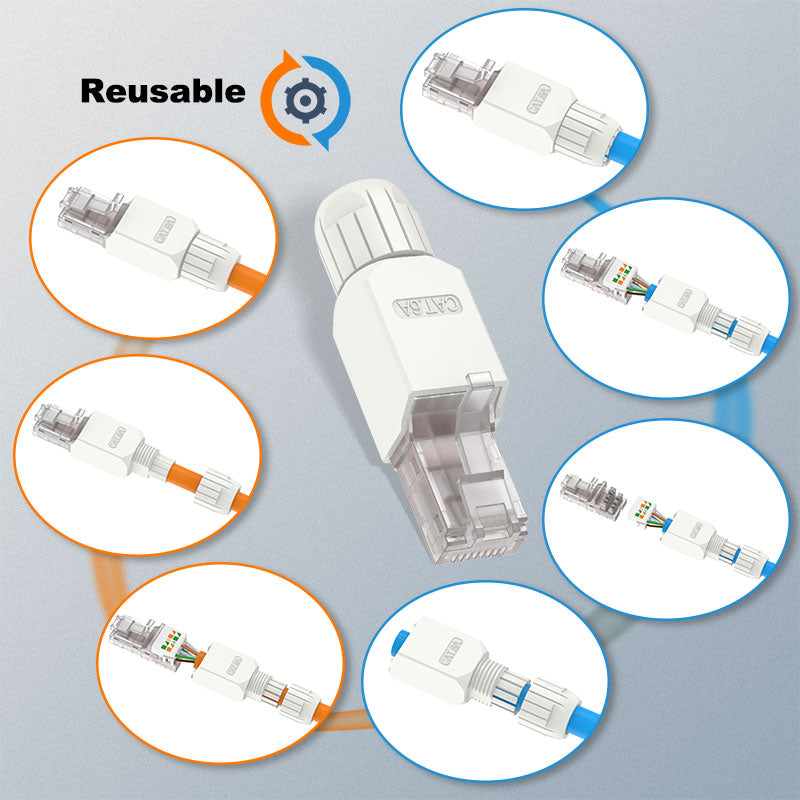

-The plug's reusable capability makes it a cost-effective and environmentally responsible choice for any networking project;

-New PC materials and PA66 materials with high strength and elasticity make this plug suitable for high temperatures.

Enhanced Performance

-Suitable for 10 Gbps, 500 Mhz up to 328feet (100m);

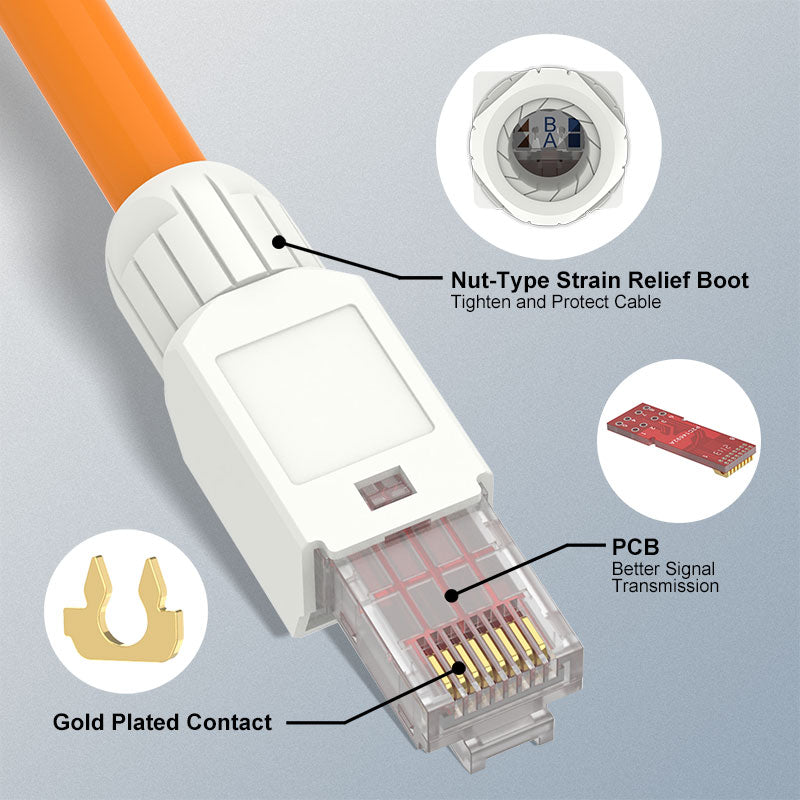

-Phosphor bronze nickel-plated terminal pins make the plug less susceptible to oxidation, ensuring stable data transmission;

-20u gold-plated reduces the resistance to corrosion, ensuring stable data transmission.

Wide Compatibility

-Compatible with devices with RJ45 standard interfaces e.g. printers, routers, PCs, servers, switches, and hubs;

-Backward compatible with Cat6, Cat5e, and Cat5 cables.

Video

Watch on YouTube: "Sample output of devtools-to-video cli tool"

Documents

Q&A

Have a question?

Be the first to ask a question about this.

Ask a Question

Reviews

Die Instalation am Kabel klappt ganz gut.

If you need to add a connector to a CAT6/6A cable in a tight spot (in my case up a ladder and in an attic crawlspace), then these are far easier than a traditional crimped connector in my opinion.

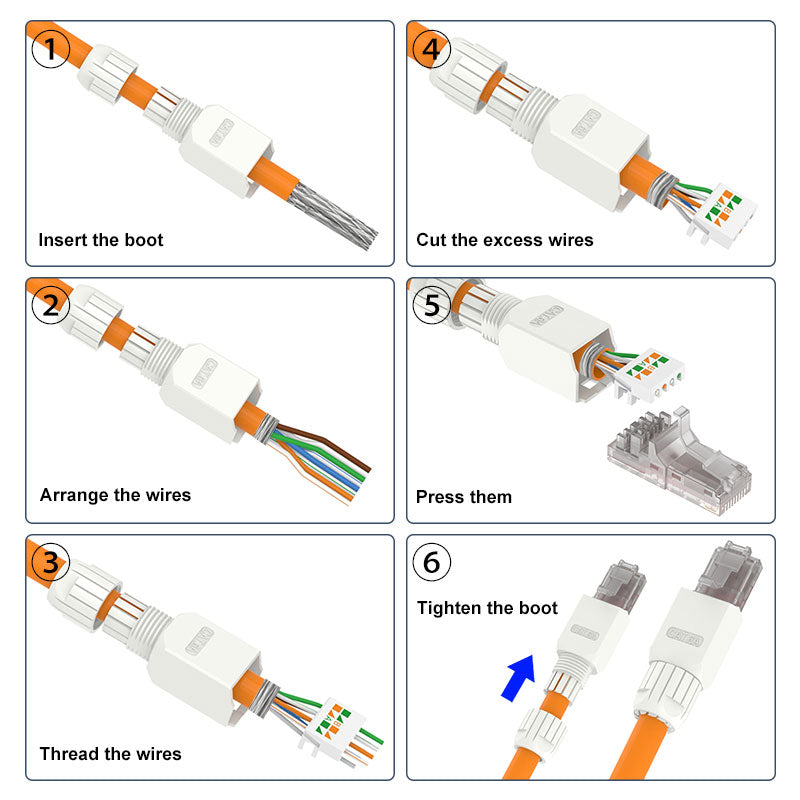

To explain: you thread the green/orange pairs straight through the plastic "comb", pull down to the top of the cable. The only trick is to make sure you have oriented the comb part to then make the blue/brown pair placement easy (after a couple of tries this becomes intuitive). The blue/brown pairs "clip" in but the green/orange ones don't, so it's important to get all of them in before you cut them flush, as the blue/brown are what holds everything in place until you clamp it down and put the boot on. So, green/orange pairs to pull the pairs tight and flush to the cable housing/core, blue/brown pairs to hold all in place, then cut flush.

I found that it needs quite a bit of force to get the crimp to happen, pressing on a flat surface made it easier, pliers helps if not available. Being honest, up a ladder the first time (no pliers) I used my teeth and it worked, but not a recommended method for obvious reasons.

The boot slides on easy, clicks into place, and can be removed relatively easily with a small flathead screwdriver afterward, more prying needed with flathead to undo the crimp, but if you are careful you can definitely remove and re-use in a pinch.

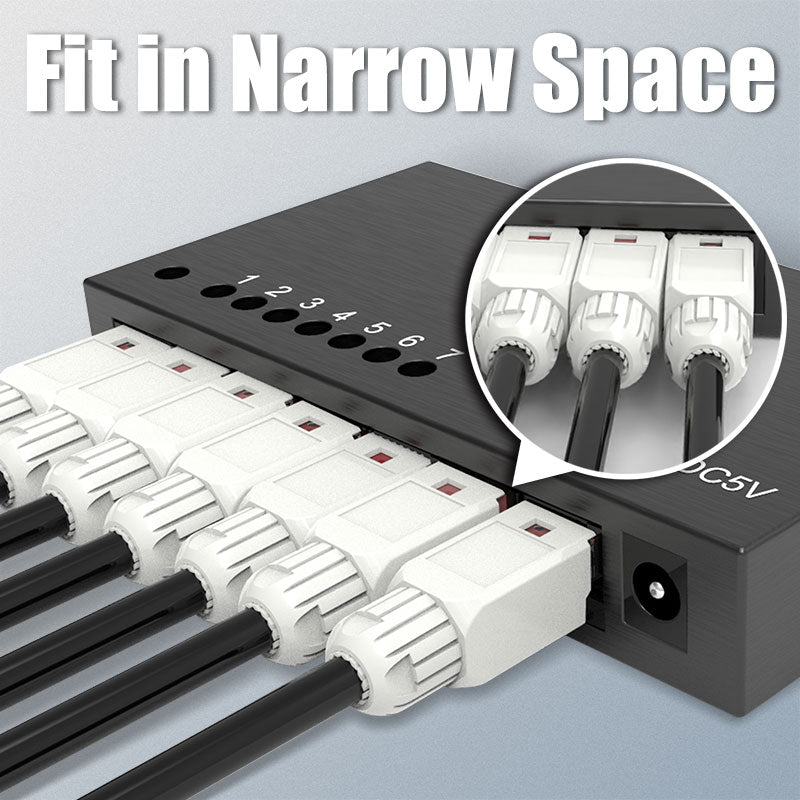

My only caveat is that the connectors are quite "long" and the release tab on the top sticks up quite far - if you need to plug into a restricted area, like the back of a wireless AP, or somewhere with a tight turn etc. then you might need another solution. I had to remove the lock on the back, trim down the "teeth", and then use tape in one such case (Unifi AP) for example. I also had to trim the release tab slightly so it was not accidentally triggered and releasing the connector. The extra length is a consequence of the tool-less design, and the release is easy to modify, so I do not dock stars, but definitely something to be aware of before purchase.

Great quality works as expected and would buy again.

easy to get the correct wiring also the ability to disassemble and fix a wire that did not pinch down

Fácil de utilizar se puede volver a desarmar sin problema
