RJ45 Cat6a Connector VCELINK
Free shipping for orders above $29.99.
Please allow 4-25 working days for transportation if you purchase here. Know More at Delivery & Return.
For bulk purchase request please send us an inquiry or email us.
Features:
- Plastic Material: NEW PC
- Shielded Material: Zinc Alloy Nickel Plating
- Operation Temperature: -10 °C to 60 °C
- 12-month Warranty & Lifetime Product Support
Description
The Cat6a field termination plug allows for quick assembly without the need for professional crimping tools, ideal for both novices and professionals. This RJ45 field termination plug is suitable for all devices with standard RJ45 ports, such as RJ45 keystone jacks and Ethernet patch panels.
VCELINK supports bulk and customized services, and you can contact us directly or email us for more information. Inquire before ordering to get an extra discount！
Learn More in What is Field Termination Plug?
Specifications
| Product Type | Cat6a Toolless Plug |
| Termination Type | 8P8C Connector |
| Style | Toolless; Shielded |
| Wiring Scheme | T568A/T568B |
| Data Rate Support | 10 Gbps |
| Plastic Material | New PC |
| Shielded Material | Zinc Alloy Nickel Plating |
| Terminal Pins | Phosphor Bronze, Zin Plating |
| RJ45 Contact Life | ≥750 Times |
| IDC Terminal Life | ≥250 Times |
| Contact Resistance | 20m OHM |
| Insulation Resistance | ≤500m OHM @100 V DC |
| Withstand Voltage | DC 1,000V AC700V RMS 60HZ, 1MIN. |
| Operating Ambient Temperature | -10°C ~ 60°C |
| Storage Ambient Temperature | 1-40°C ~ 70°C |
| Cat6a Permanent Link | Conform to ANSI/TIN/EIA 568B. 2-10 |
| Usage | Stranded Wire or Soild Wire 22 AWG to 24 AWG |
Features
Easy Installation

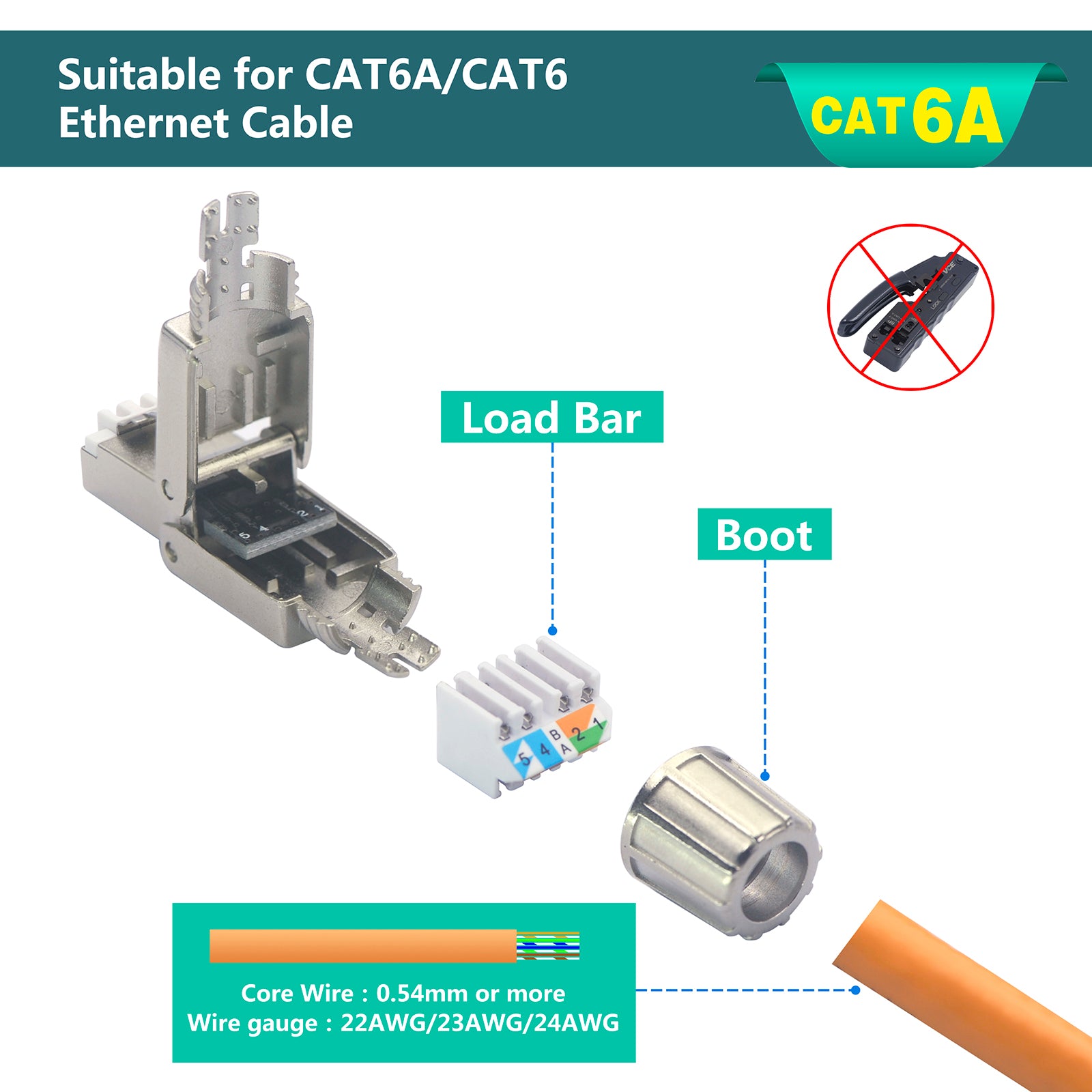

-The Cat6a toolless connector is easy to install without any need for a professional RJ45 crimper. All you need is a stripping tool and a cutting tool;

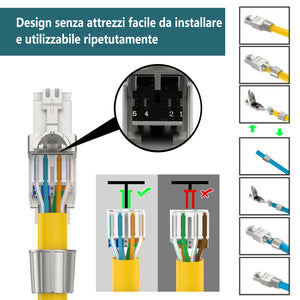

-The printed wiring diagram and conductor holder allow for a quick and reliable installation.
Durable Design
-Compact size, shorter and narrower than standard tool-free plugs, suitable for tight spaces;
-Our Cat6a connector is designed for multiple uses without compromising the quality of network connections.
Superior Network Performance

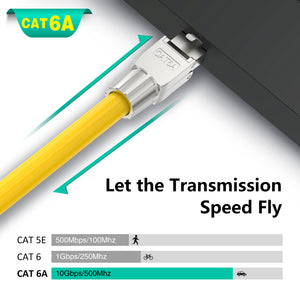

-Our Cat6a field termination plug delivers excellent network performance of up to 10 Gbps and 500 MHz;
-Supports PoE, PoE Plus, UPoE;
-Compatible with Cat6a cables and backward compatible with Cat6 Ethernet cables.
Enhanced Transmission

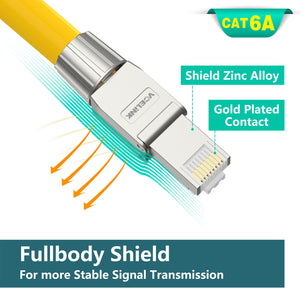

-The inc alloy shielded housing offers durability and corrosion resistance;
-Gold-plated contacts improve the quality of the signal transmission;
-PCB board ensures good conductivity and effectively reduces network signal loss for a more stable network transmission.
Video
Q&A
-
I find the labeling on the block somewhat difficult to understand. I am certain there is a method but I don't quite get it well enough to make my cable. I highly recommend that this site include that schematic in full-color for others. Can'tvbelieve I am alone. It would be easy to add a graphic that was clearer.
Thanks for your inquiry! We are sorry for your bad experience. We have made a video to show how to install the connectors. You can check the tutorial at the following link: https://www.youtube.com/shorts/ErsV6ijEMEE. -
Are these for indoor use only or can I use them outdoors as well?
Dear Customer, thanks for your inquiry! These Tool-free reusable connectors are not weatherproof and waterproof, so we suggest you can use them indoors better.
We also have waterproof rj45 connectors female to female designed for outdoor use.
Thanks & Best Regards. -
Will these work with cat 6 direct burial cable 23awg?
Dear Customer, these connectors support 23 AWG solid or stranded wires.
Reviews
Customer Reviews
Very good quality very sturdy and easy to put together would definitely recommend
I discovered my crimping tool was destroying the pins on the conventional rj-45 connectors I was trying to use. After wasting 5 of them and wondering why I couldn't get a solid connection, I ordered a pack of these. Installation is so easy, and they just work. I'm probably going to order a bunch more and change all my self-installed connectors to these. They are not only much easier to install, they are also much more stable and sturdy than the old school crimp on junk.
Careful to trim the wires correctly when installing these. I had a short because I had left the wire too long. Luckily it's easy to disassemble and reuse, after trimming the wire correctly it worked really well.
Works great and like the convenience of not having to cut and throw away a termination.
Though it may lead to more work than actually crimping a termination, as the brackets for each of the wires may not make contact with the pins when clamping down showing no connection. Even if you have the compatible AWG wires
How I got it to work
disassemble the termination and check where the wires attempted to stab to make contact with the copper.
I used an exacto knife to just cut off a little of the tubing so that the pins make contact with the copper wires.
After doing that termination worked fine
I want to say these are kind of on the spendy side, but they're worth it and I would buy them again in a heartbeat. A buddy had pulled about 100ft of Chainflex exterior cable l out of a dumpster and didn't have any connections. I tried using cheap plastic ones at first, didn't work. I tried better ones, and they were too small for the cable, my fault, but after 3 frustrating attempts at terminating this cable, I said screw it, and bought these. It took maybe 2 minutes, and it's clean and secure. Save yourself some frustration and time, spend the money and get these
