The Cat6a Connector features an alloy shielding housing, which is durable and corrosion-resistant

Key Features:

Plastic Material: NEW PC
Shielded Material: Zinc Alloy Nickel Plating
Operation Temperature: -10 °C to 60 °C
12-month Warranty & Lifetime Product Support

RJ45 Cat6a Connector VCELINK

KJ20-6A-4P-OL

$17.99 USD

Item Quantity

4 pcs 24 pcs

Quantity Minimum order quantity: 6

Volume Pricing

Quantity	Unit Price	Savings
20-49	$17.10 USD	5%
50-99	$16.56 USD	8%
100+	$15.30 USD	15%

Shipping

From the US warehouse - delivered in 7 days.

Free U.S. Shipping Over $59.99

Worldwide Shipping Available

Know More at Shipping Policy .

Invoice Support

We provide official invoices upon request for your purchase.

Bulk Pricing Available

For bulk purchases, or if the product is currently stock out, you can click the "Request a Quote" button to inquire about purchasing it.

Fast U.S. Shipping Reliable delivery to the U.S.

12-Month Warranty Quality assured products.

Lifetime Product Support Expert help when you need it.

Secure Checkout Multiple payment methods.

Pairs Perfectly With

Total price: --

Prices shown may not reflect final costs.

RJ45 Cat6a Connector VCELINK

$17.99 USD

Description

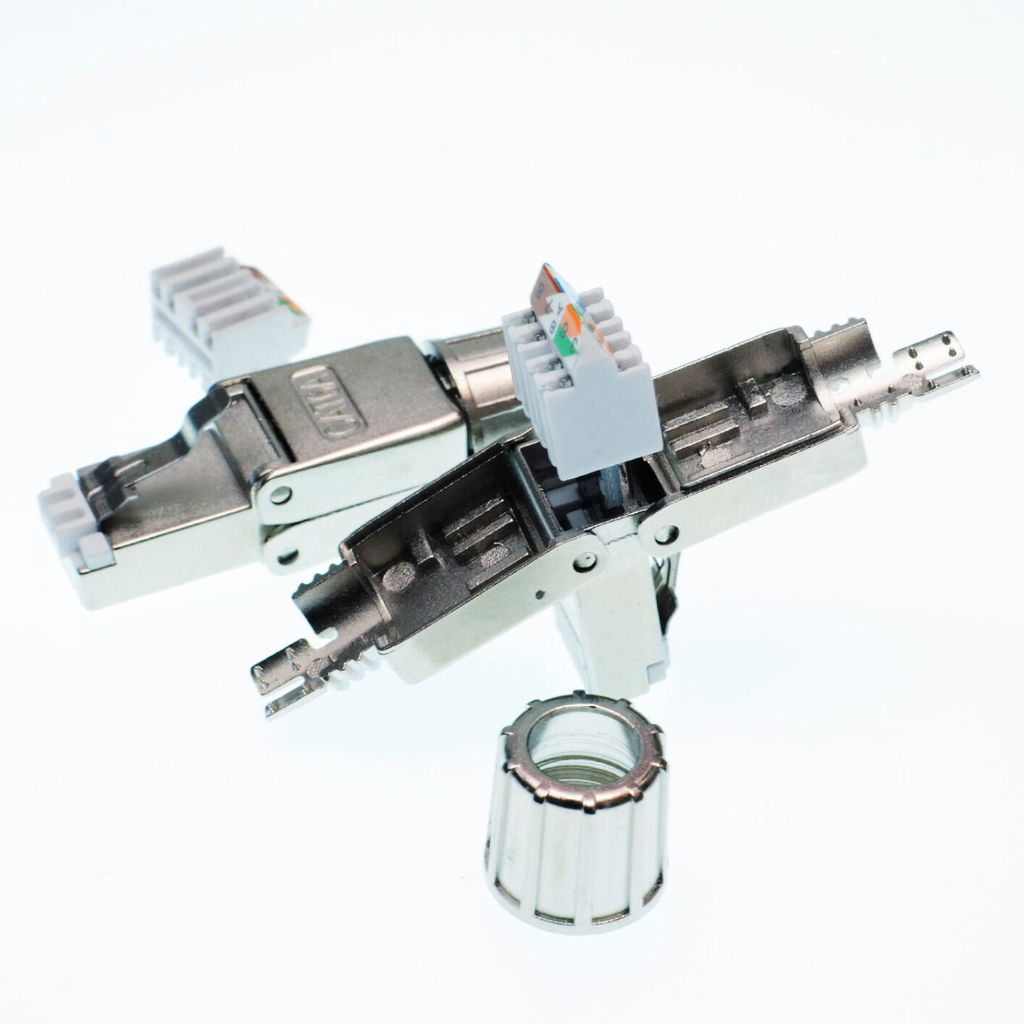

The Cat6a field termination plug allows for quick assembly without the need for professional crimping tools, ideal for both novices and professionals. This RJ45 field termination plug is suitable for all devices with standard RJ45 ports, such as RJ45 keystone jacks and Ethernet patch panels.

VCELINK supports bulk and customized services, and you can contact us directly or email us for more information. Inquire before ordering to get an extra discount！

Learn More in What is Field Termination Plug?

Features

Easy Installation

-The Cat6a toolless connector is easy to install without any need for a professional RJ45 crimper. All you need is a stripping tool and a cutting tool;

-The printed wiring diagram and conductor holder allow for a quick and reliable installation.

Durable Design

-Compact size, shorter and narrower than standard tool-free plugs, suitable for tight spaces;

-Our Cat6a connector is designed for multiple uses without compromising the quality of network connections.

Superior Network Performance

-Our Cat6a field termination plug delivers excellent network performance of up to 10 Gbps and 500 MHz;

-Supports PoE, PoE Plus, UPoE;

-Compatible with Cat6a cables and backward compatible with Cat6 Ethernet cables.

Enhanced Transmission

-The inc alloy shielded housing offers durability and corrosion resistance;

-Gold-plated contacts improve the quality of the signal transmission;

-PCB board ensures good conductivity and effectively reduces network signal loss for a more stable network transmission.

Applications

IT & Telecommunications

Corporate Offices

Data Centers

Contractors & Installers

Specifications

Product Type

Cat6a Toolless Plug

Termination Type

8P8C Connector

Style

Toolless; Shielded

Wiring Scheme

T568A/T568B

Data Rate Support

10 Gbps

Plastic Material

New PC

Shielded Material

Zinc Alloy Nickel Plating

Terminal Pins

Phosphor Bronze, Zin Plating

RJ45 Contact Life

≥750 Times

IDC Terminal Life

≥250 Times

Contact Resistance

20m OHM

Insulation Resistance

≤500m OHM @100 V DC

Withstand Voltage

DC 1,000V AC700V RMS 60HZ, 1MIN.

Operating Ambient Temperature

-10°C ~ 60°C

Storage Ambient Temperature

-40°C ~ 70°C

Cat6a Permanent Link

Conform to ANSI/TIN/EIA 568B. 2-10

Usage

Stranded Wire or Soild Wire 22 AWG to 24 AWG

Documents

Data Sheet
Operation Document

Video

Watch on YouTube: "Sample output of devtools-to-video cli tool"

Customer Reviews

Based on 20 reviews Average Rating 4.8 stars out of 5

Filter 17 Reviews with 5 star rating

Filter 2 Reviews with 4 star rating

Filter 1 Review with 3 star rating

Filter 0 Review with 2 star rating

Filter 0 Review with 1 star rating

Katrina K. Katrina
16-01-2024

Very good

Very good quality very sturdy and easy to put together would definitely recommend
William Crossley W. C. William C.
03-12-2023

These are fantastic!

I discovered my crimping tool was destroying the pins on the conventional rj-45 connectors I was trying to use. After wasting 5 of them and wondering why I couldn't get a solid connection, I ordered a pack of these. Installation is so easy, and they just work. I'm probably going to order a bunch more and change all my self-installed connectors to these. They are not only much easier to install, they are also much more stable and sturdy than the old school crimp on junk.
Emre Yucel E. Y. Emre Y.
08-05-2023

Nice and sturdy

Careful to trim the wires correctly when installing these. I had a short because I had left the wire too long. Luckily it's easy to disassemble and reuse, after trimming the wire correctly it worked really well.
Calvin Contreras C. C. Calvin C.
22-12-2022

Works, but depending on the AWG may not make contact even if the recommended

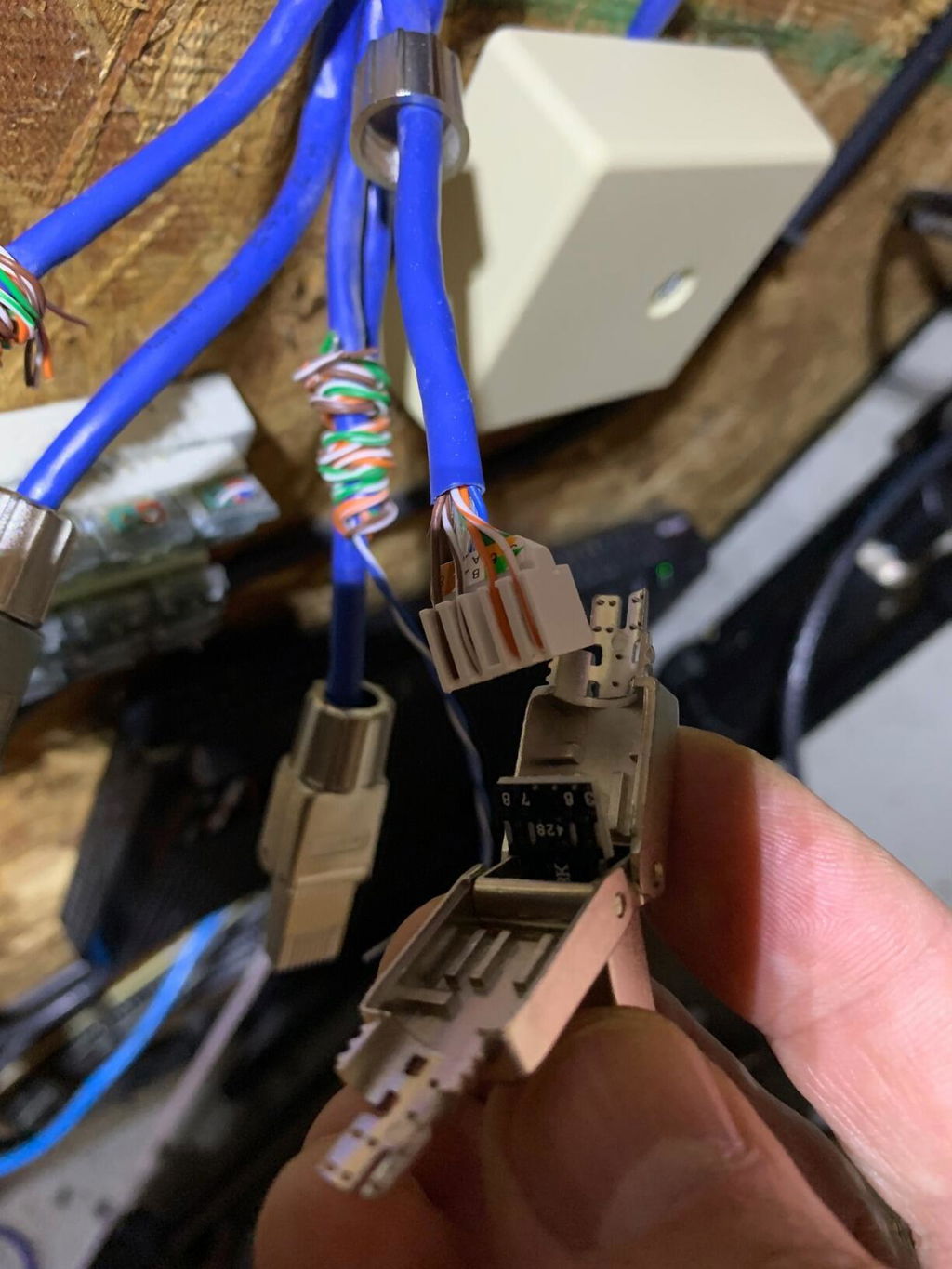

Works great and like the convenience of not having to cut and throw away a termination. Though it may lead to more work than actually crimping a termination, as the brackets for each of the wires may not make contact with the pins when clamping down showing no connection. Even if you have the compatible AWG wires How I got it to work disassemble the termination and check where the wires attempted to stab to make contact with the copper. I used an exacto knife to just cut off a little of the tubing so that the pins make contact with the copper wires. After doing that termination worked fine
Stop calling me Rick S. C. M. R. Stop c. m. R.
08-09-2022

These. These are the ones you've been looking for.

I want to say these are kind of on the spendy side, but they're worth it and I would buy them again in a heartbeat. A buddy had pulled about 100ft of Chainflex exterior cable l out of a dumpster and didn't have any connections. I tried using cheap plastic ones at first, didn't work. I tried better ones, and they were too small for the cable, my fault, but after 3 frustrating attempts at terminating this cable, I said screw it, and bought these. It took maybe 2 minutes, and it's clean and secure. Save yourself some frustration and time, spend the money and get these
C. J. Cone C. J. C. C. J. C.
16-08-2022

Works very well so far

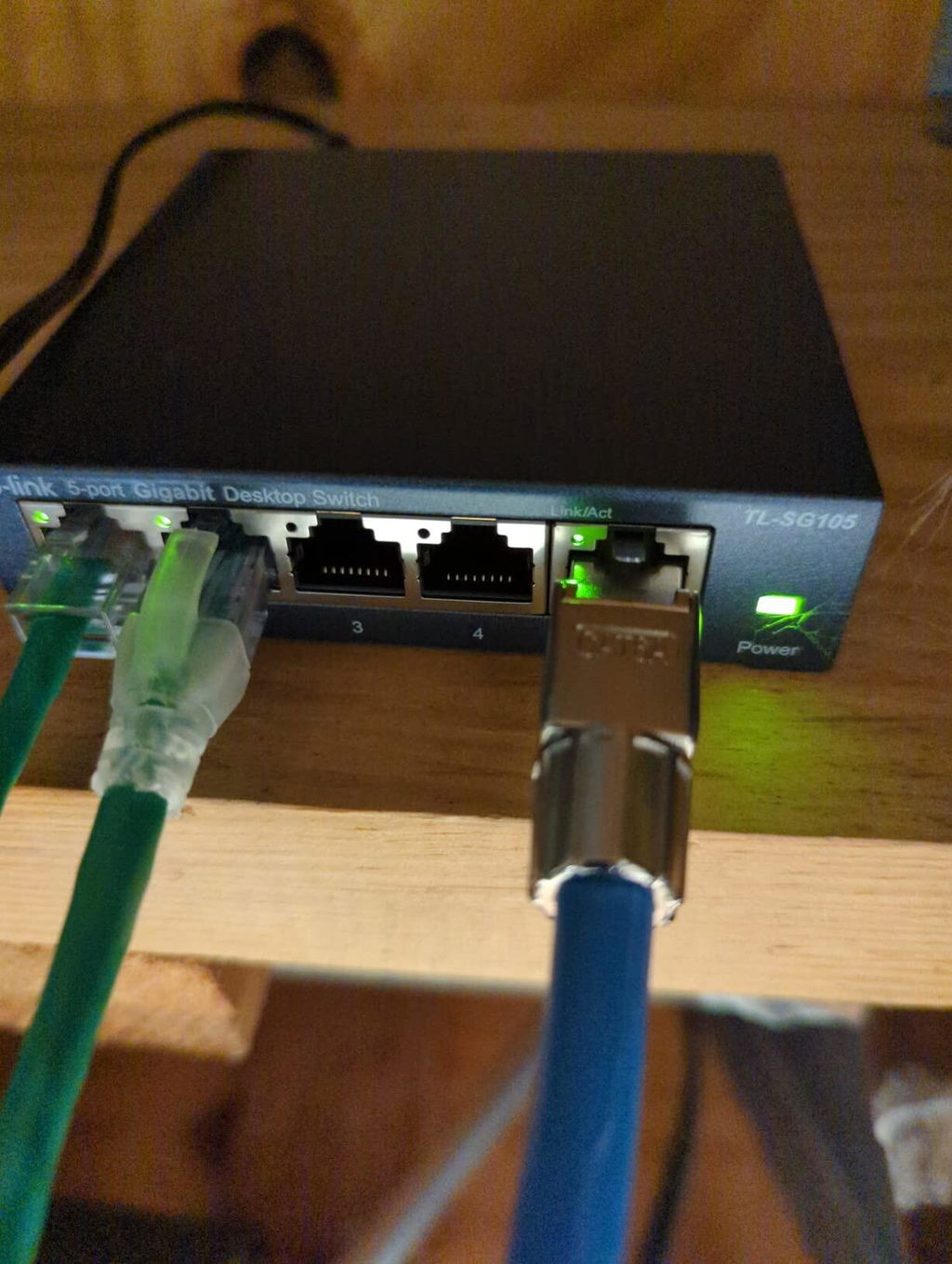

I just used two of these tonight. They were pretty easy to put on and I confirmed they were able to max out my 1000mbps internet (same speed as store-bought cable). They make what feels like a very solid connection when plugging into a jack. Similar to another reviewer I had to struggle to get it unplugged from my laptop, but no trouble at all unplugging from my router.
Jarod Grant J. G. Jarod G.
17-09-2021

Push through is key

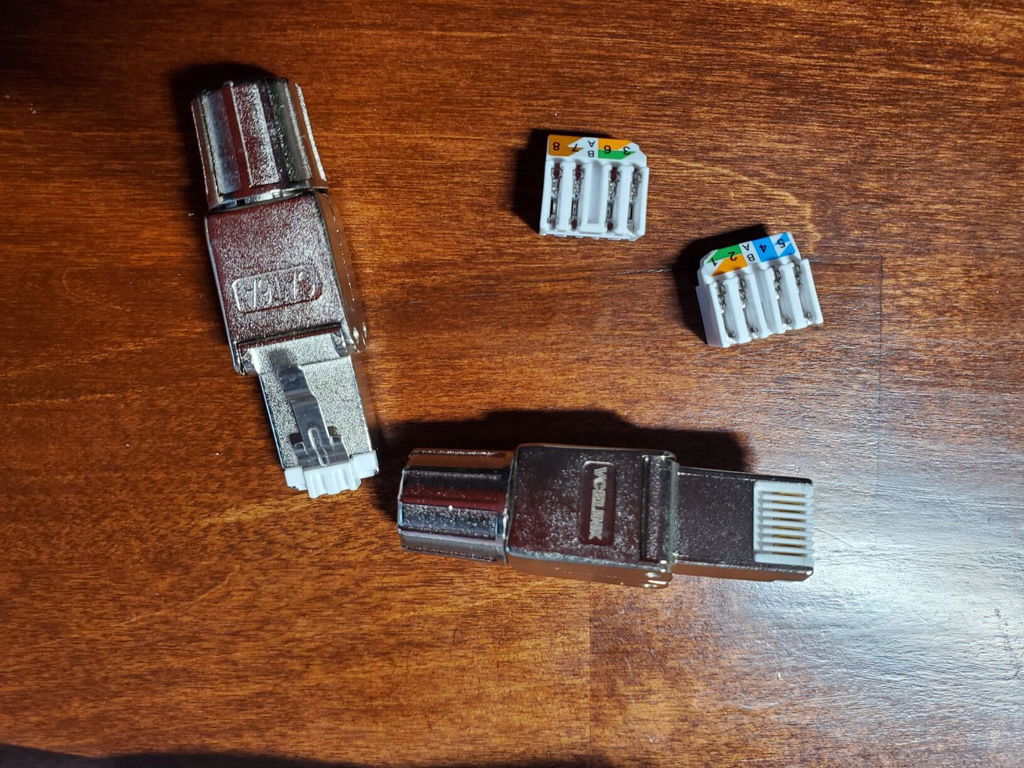

Love the all metal case and you can pull out the the actual connecter
Henry H. Henry
23-07-2021

Very good quality connectors

A bit pricey, but worth it if you are trying to set up a solid bulletproof Ethernet line with Shielded Twisted Pair 23gauge cable. Very easy to setup the connectors with STP cable, which is a pain in the rear end to work with.
Jonathon Z. J. Z. Jonathon Z.
08-06-2021

I had one tiny problem with the product but great buy.

Only reason I gave a 4 was that the labeling was incorrect. The a and b labeling was backwards. I use 568b everywhere in my house as that is the common wiring and when I did my test using a keystone on the other end of the wire at my patch panel this connector showed to be wired incorrectly. Checked and the wires where correctly placed for the label. Swapped to 568a according to the label and my meter passed but over all these connectors where easy to install and look like they will hold up for a long time.
J.Rocha J. J.Rocha
10-05-2021

Ethernet Cabling for Dummies

These RJ45 connectors couldn't have made terminating ethernet cables any easier. If you don't have the patience (or steady hand) for traditional RJ45 terminators, then you definitely need these!
TM T. TM
24-04-2021

Great For Testing, Cool For

How did I miss that these exist. I use them as temporary connectors before I get to the final cable length. I have to admit they also look pretty cool. It needs a bit of fiddling, but it's basically pressing everything together and then put the threaded ring on to keep the sides together.
UmFrumBahstin U. UmFrumBahstin
28-02-2021

Superior shielding and performance worthy of the price!

The VCELINK RJ45 Cat6A connectors have a really easy to use mechanism and guide that makes quick work of terminating CAT 5, 5e, 6 ends. Best of all they are reusable if I decide to shorten the run or use them elsewhere. I feel the shielding is far better than I was getting out of the one time plastic RJ45 clips. Very good quality reusable RJ45 connectors that worked out great for my home project!
Hydro H. Hydro
21-02-2021

So easy

These are super easy to terminate compared to a regular RJ45. A little on the spendy side, but probably worth it for the frustration they save.

Jim J. Jim 15-09-2026

Question asked: I find the labeling on the block somewhat difficult to understand. I am certain there is a method but I don't quite get it well enough to make my cable. I highly recommend that this site include that schematic in full-color for others. Can'tvbelieve I am alone. It would be easy to add a graphic that was clearer.

15-09-2026

Thanks for your inquiry! We are sorry for your bad experience. We have made a video to show how to install the connectors. You can check the tutorial at the following link: https://www.youtube.com/shorts/ErsV6ijEMEE.

TEST T. TEST 15-09-2026

Question asked: Will these work with cat 6 direct burial cable 23awg?

15-09-2026

Dear Customer, these connectors support 23 AWG solid or stranded wires.

TEST T. TEST 15-09-2026

Question asked: Are these for indoor use only or can I use them outdoors as well?

15-09-2026

Dear Customer, thanks for your inquiry! These Tool-free reusable connectors are not weatherproof and waterproof, so we suggest you can use them indoors better.We also have waterproof rj45 connectors female to female designed for outdoor use.ÂThanks & Best Regards.
