Shielded Cat6 Keystone Coupler VCELINK
| Quantity | Price Per Unit / Pack | Savings |
|---|---|---|
| 10-49 | $4.75 | 5% |
| 50-99 | $4.50 | 10% |
| 100+ | $4.00 | 20% |
Free Shipping for Orders Over $10.99 in the US.
Fast shipping. Know More at Delivery & Return.
For more information, please send us an inquiry or email us.
Features:
- Up to 1 Gbps Speed and 250 MHz Bandwidth
- Metal Shielded Housing Against EMI/RFI
- Gold-plated Contacts for Stable Signal Transmission
- Supports PoE Applications
- Compact and High-performance Design
- Worldwide Shipping & Fast Delivery
- 12-month Warranty & Lifetime Product Support
Pairs Perfectly With
Description

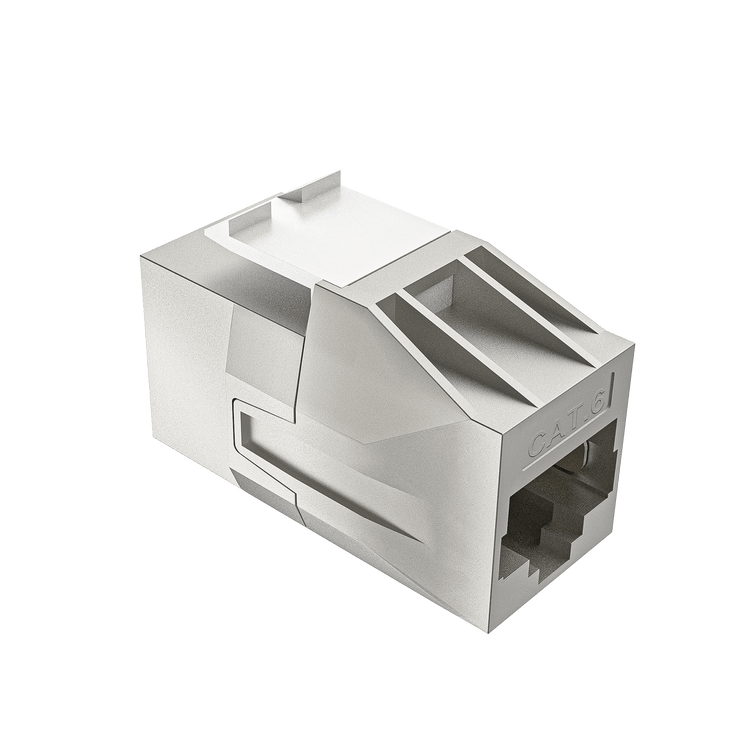

VCELINK Shielded Cat6 Keystone Coupler is a compact and high-performance female-to-female connector to link two Cat6 Ethernet cables securely. Supporting Cat6 performance with data transmission speeds of up to 1000 Mbps within 100 meters, it is fully backward compatible with Cat5e and Cat5 networks. In addition, it comes with metal shielding for interference resistance, ideal for high-density patch panels or wall plates in large-scale network installations.
VCELINK supports bulk and customized services. If you have any need, feel free to contact us or email us.
Learn More in What is an Ethernet Coupler? & Keystone Coupler vs Ethernet Keystone Jack: Which to Choose for Your Cabling?
Specifications
| Product Type | RJ45 Coupler |
| Color | Silver |
| Metal Body Material | Zinc Alloy |
| Plastic Tab Material | PC |
| RJ45 Contact Material | Phosphor Bronze with Nickel-Plated |
| Plastic Housing Material | ABS |
| Contact Area Material | Gold Plated |
| Size | 0.77 oz (21.90 g) |
| Compatibility | 8P8C Connectors, Wall Plates, Patch Panels |
| Data Rate Support | 1000 Mbps |
| Bandwidth | 250 MHz |
| Shielding Type | Metal Shield |
| PoE Capability | Supports PoE Applications |
| Insertion Force | 20N MAX. |
| Insertion/Withdrawal Cycles | 750 Cycles Plug-Jack Mating and Unmating Test |
| Wiring Type | T568A/T568B |
| Retention Strength | 7.7 kg Between Jack and Plug |
| Operating Temperature Range | -4℉ to 154℉ (-20℃ to 68℃) |
| Implementation Standards | ANSI/TIA/EIA 568 C |
Features
Shielded Cat6 Performance
-Features metal shielding for EMI/RFI resistance;
-Supports fast network speeds of up to 1000 Mbps within 100 meters and bandwidth of up to 250 MHz;
-Gold-plated contacts ensure corrosion resistance for stable data transmission.
PoE Support
Supports PoE applications in noisy environments, like IP camera systems and other networked devices.
Fast Space-saving Installation
-The plug-and-play design makes it easy to secure termination;
-Its compact size ensures a space-saving fit, allowing seamless side-by-side installation in patch panels and wall plates.
Versatile Compatibility
-Compatible with all standard keystone wall plates and patch panels;
-Compatible with shielded or unshielded Cat6, Cat5e, and Cat5 Ethernet patch cables and connectors.
