German-style Single Port RJ45 Faceplate VCELINK
Quantity | Price Per Unit / Pack | Savings |
---|---|---|
10-49 | $9.49 | 5% |
50-99 | $8.99 | 10% |
100+ | $7.99 | 20% |
Free shipping for orders in the US-During the Promotion Period.
Fast shipping. Know More at Delivery & Return.
For more information, please send us an inquiry or email us.
Features:

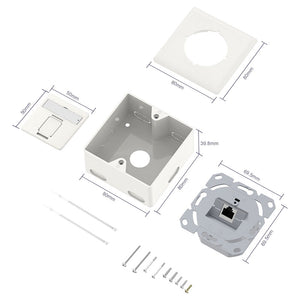

- Housing Size: 80mm*80mm*40mm
- Zinc Alloy Body Size: 70mm*70mm*38.6mm
- 10 Gbit Transmission Speed, 500Mhz Bandwidth
- German-style Ethernet Wall Plate
- 12-month Warranty & Lifetime Product Support
Pairs Perfectly With
Description
VCELINK German-style Single Port Faceplate is ideal for surface mounting or embedded installation, which can help you orgranize network cables for a tidy and clean look.
If you have requirements for bulk purchasing or customized services, contact us or email us.
Specifications
Product Type | Cat6a Ethernet Wall Plate |
Color | White |
Size | 3.15''W x 3.15''H |
Style | 1-Port; Shielded; German-style |
Data Rate Support | 10 Gbps |

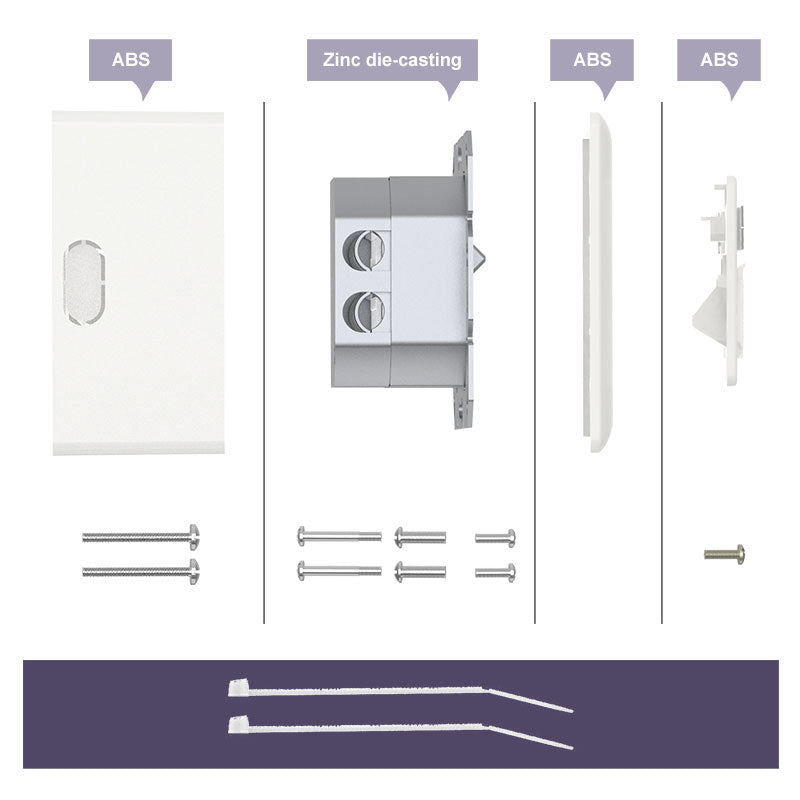

Housing Material | Zinc Alloy |
Shell Material | ABS |
PIN Material | Phosphor Bronze, Gold-plated |
IDC Material | Phosphor Bronze, Nickel-plated |
PCB Material | FR-4 |
Insulation Resistance | > 500 MΩ |
Contact Resistance | < 35 MΩ |
RJ45 Contact Life | < 750 Times |
IDC Contact Life | > 250 Times |

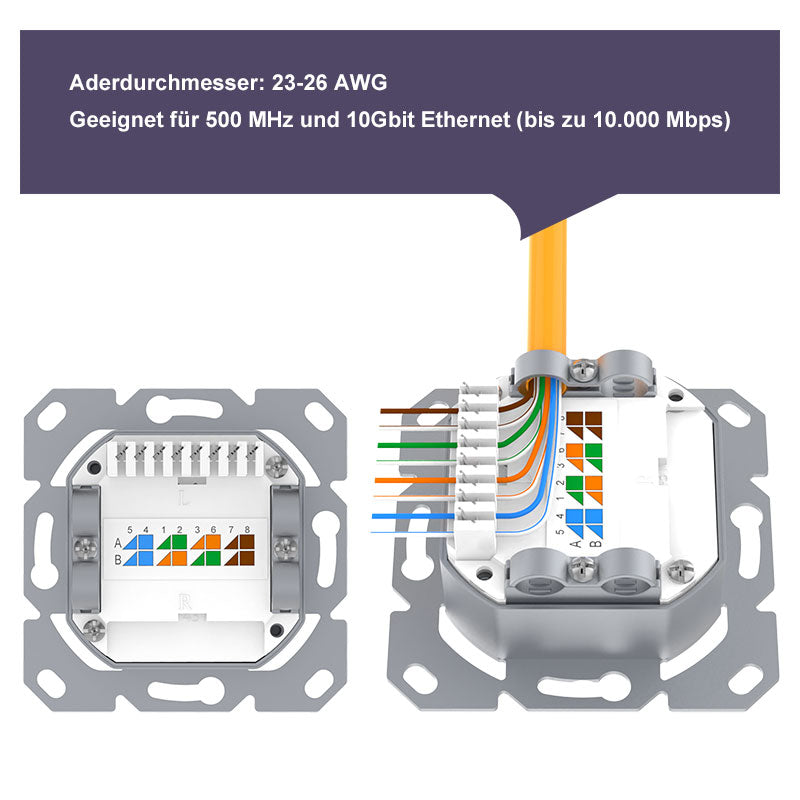

Application | Strandard Wire or Solid Wire 23 AWG to 26 AWG |
Features

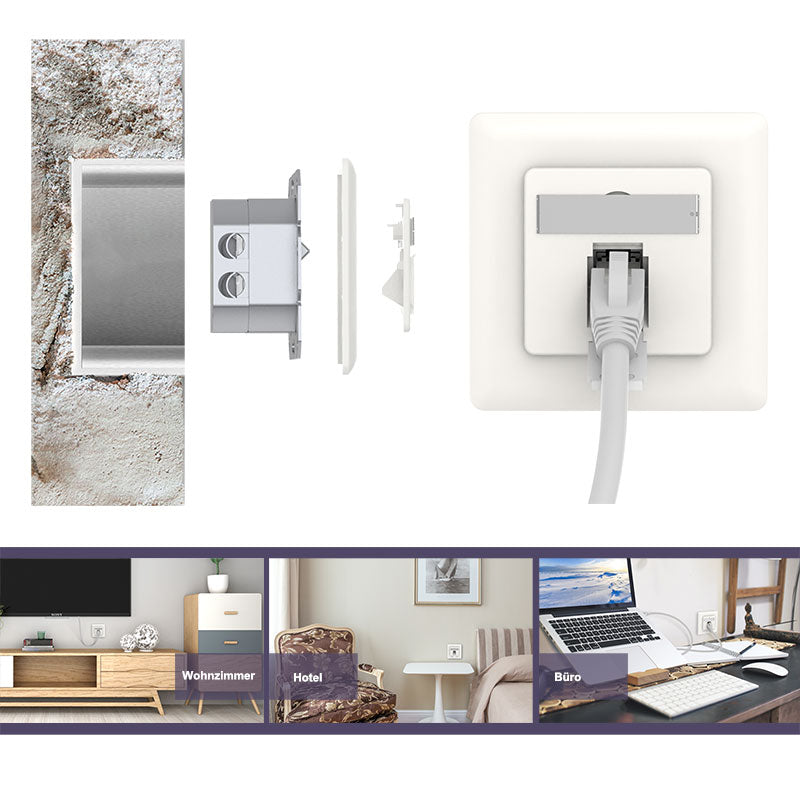

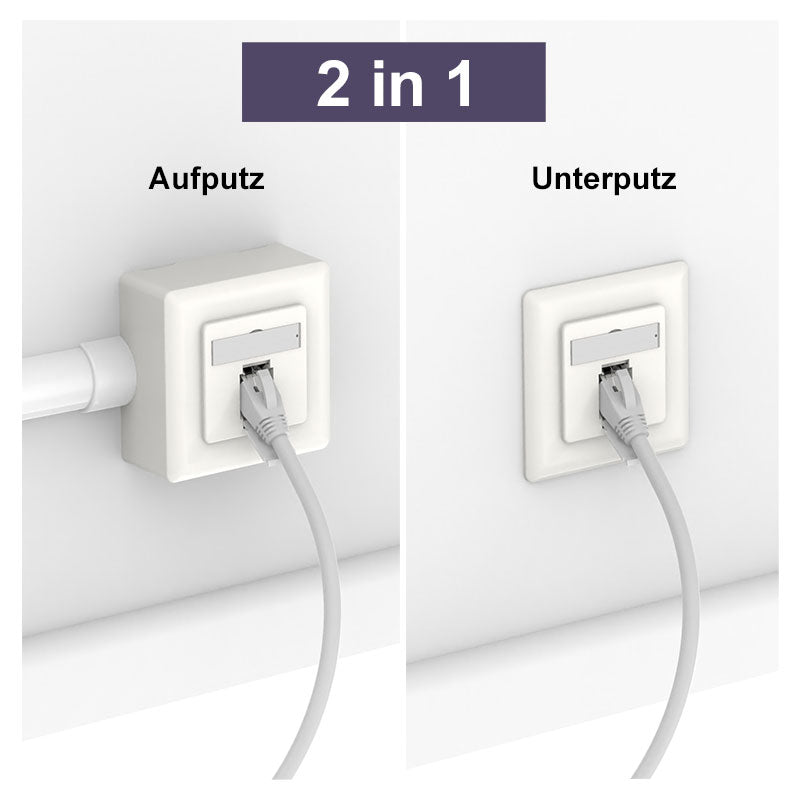

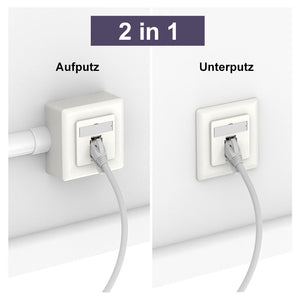

Two Installation Methods

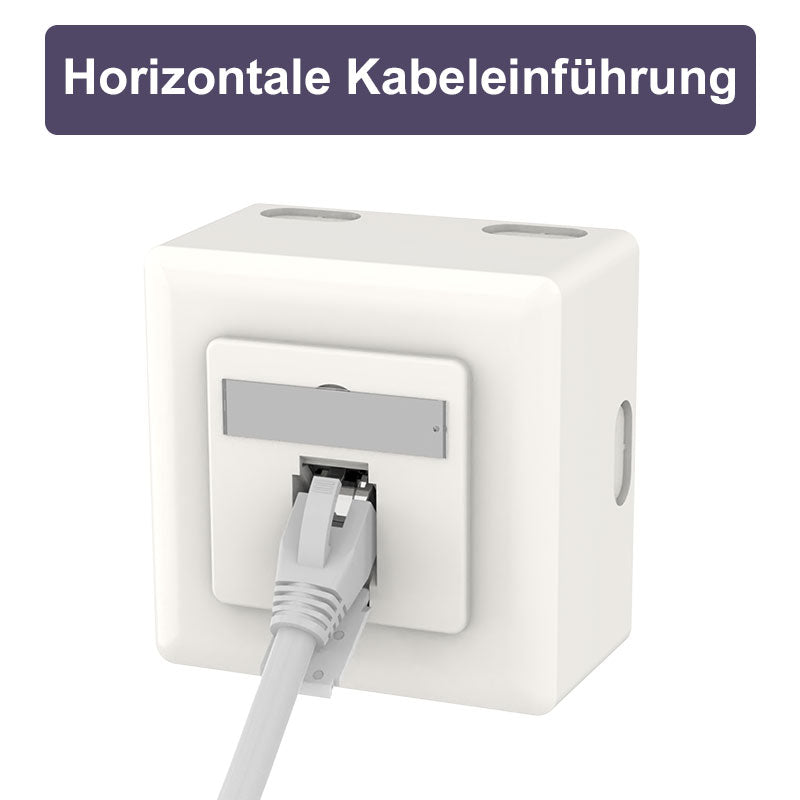

-Surface mounting without damaging the wall, simple and convenient;
-Embedded installation can better fit the home decoration, hide network cables for a beautiful look.
Dust-free Protection
The socket is designed with a dustproof and waterproof dust cover, suitable for usage in basements or wet rooms.
45-Degree Design
RJ45 interface female head is 45 degrees down, which can reduce the bending of the wire to avoid cable damage.
Wide Compatibility
The German-like Cat6 wall plate is compatible with Cat5, Cat5e, and Cat6 connectors.
